FILABOT EX6 R2 FILAMENT EXTRUDER

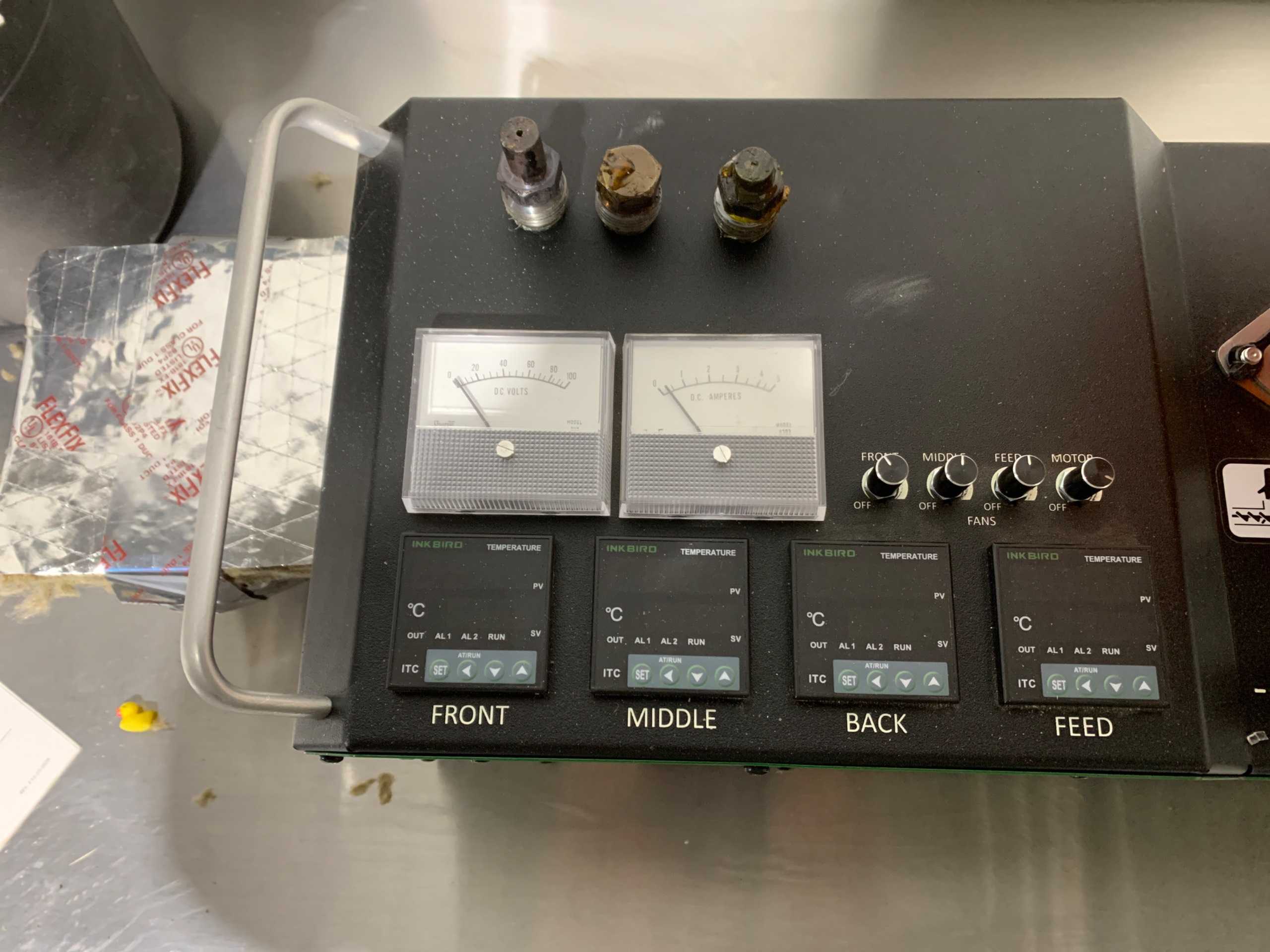

OVERVIEW: THE FILABOT EX6 R2 IS A HIGH-PERFORMANCE FILAMENT EXTRUDER ENGINEERED FOR THE PRODUCTION OF CUSTOM 3D PRINTING FILAMENT FROM A VARIETY OF THERMOPLASTIC MATERIALS. THIS ADVANCED MACHINE IS IDEAL FOR BOTH RESEARCH AND PRODUCTION ENVIRONMENTS, ENABLING USERS TO DEVELOP NEW POLYMER FORMULATIONS AND OPTIMIZE FILAMENT PROPERTIES FOR SPECIFIC APPLICATIONS. KEY FEATURES: THREE-STAGE EXTRUSION SCREW: CONSTRUCTED FROM HARDENED AND POLISHED HIGH-CARBON STAINLESS STEEL. FEATURES A 24:1 LENGTH-TO-DIAMETER (L/D) RATIO, ALLOWING FOR ENHANCED MIXING AND PROCESSING OF MATERIALS. EASILY INTERCHANGEABLE SCREW PROFILES TO ACCOMMODATE DIFFERENT POLYMER TYPES. TEMPERATURE CONTROL: FOUR INDEPENDENTLY PID-CONTROLLED HEATING ZONES ENSURE PRECISE TEMPERATURE MANAGEMENT TAILORED TO THE SPECIFIC REQUIREMENTS OF VARIOUS POLYMERS. ACTIVE FAN COOLING SYSTEM TO MAINTAIN OPTIMAL PROCESSING TEMPERATURES AND PREVENT OVERHEATING. EXTRUSION SPEED CONTROL: AUTOMATIC, VARIABLE VOLTAGE CONTROL MODULE FOR PRECISE REGULATION OF SCREW RPM (0-100 RPM). CAPABLE OF ACHIEVING EXTRUSION RATES EXCEEDING 10 POUNDS PER HOUR (4.5 KG/H), DEPENDING ON THE MATERIAL PROPERTIES. MATERIAL COMPATIBILITY: SUPPORTS A WIDE RANGE OF THERMOPLASTICS INCLUDING PLA, ABS, NYLON, PETG, PEEK, ULTEM, AND MORE. ACCEPTS INPUT MATERIALS IN THE FORM OF PELLETS OR POWDER, WITH A MATERIAL INPUT SIZE OF 1/8 INCH (3.18 MM). FILAMENT SPECIFICATIONS: PRODUCES FILAMENT IN STANDARD SIZES OF 1.75 MM AND 2.85 MM, SUITABLE FOR MOST 3D PRINTERS. HOPPER CAPACITY OF 195 CUBIC INCHES (3195.5 CUBIC CM) FOR EXTENDED PRODUCTION RUNS. DURABILITY AND WARRANTY: BUILT FOR LONG-TERM USE WITH ROBUST COMPONENTS. BACKED BY A COMPREHENSIVE THREE-YEAR WARRANTY ON ALL PARTS.
