FIPLEX ATBFCR023 RDL-2N1A4 ELECTROMAGNETIC DEVICE

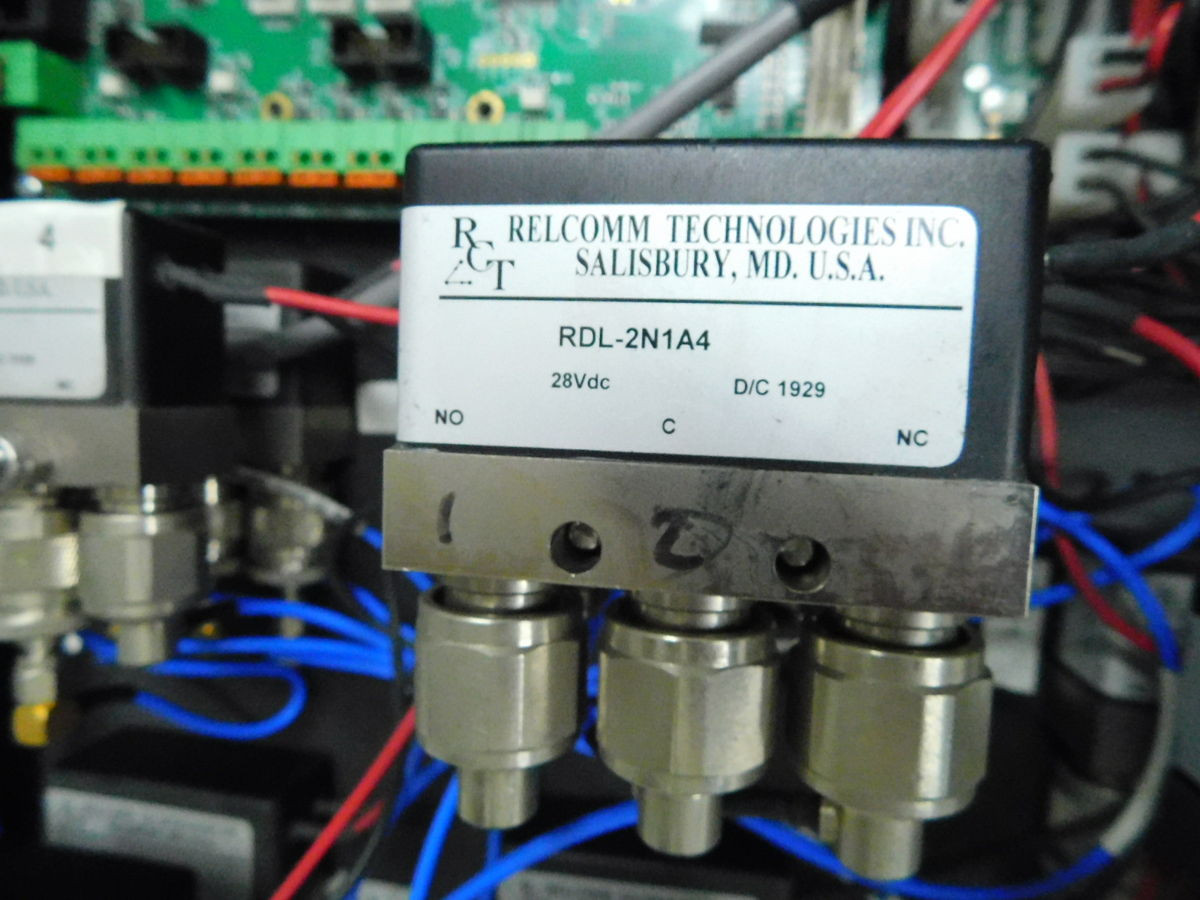

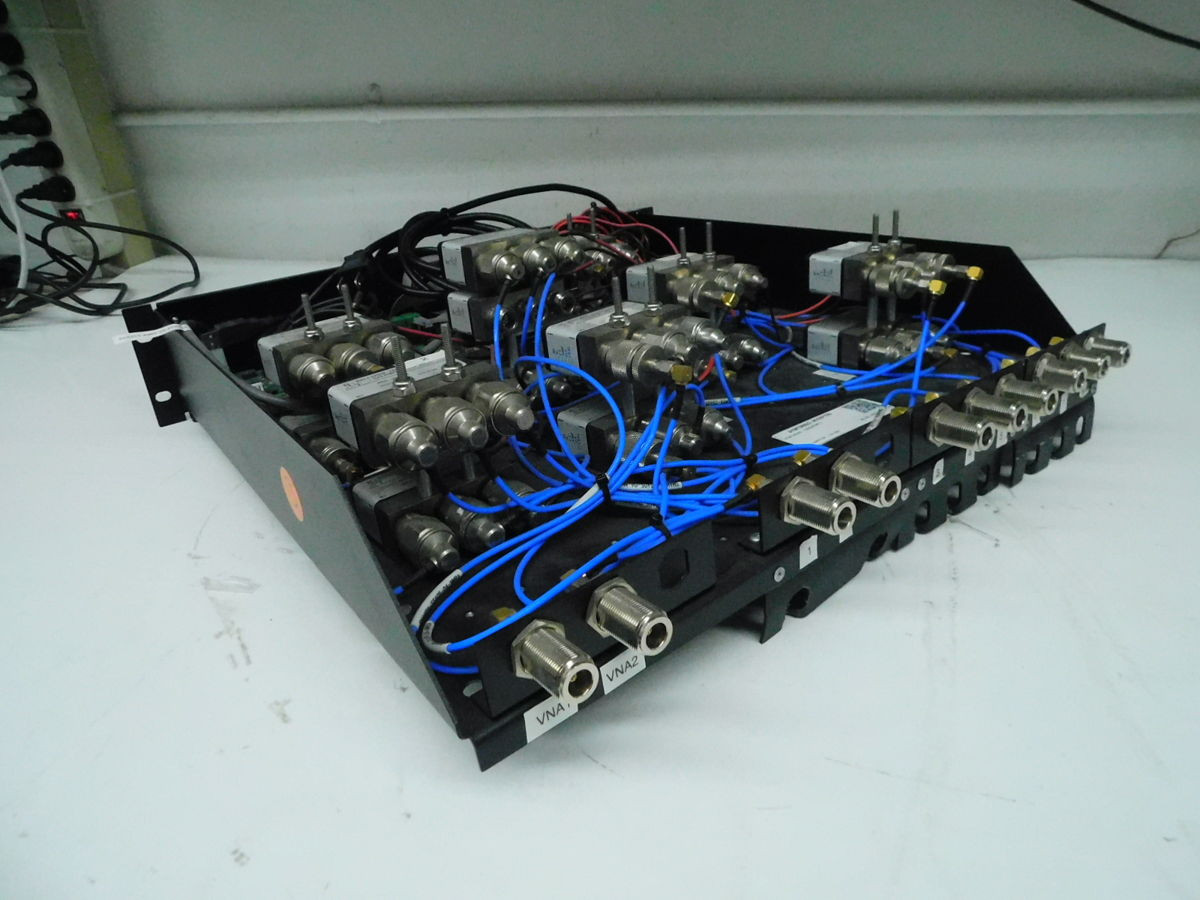

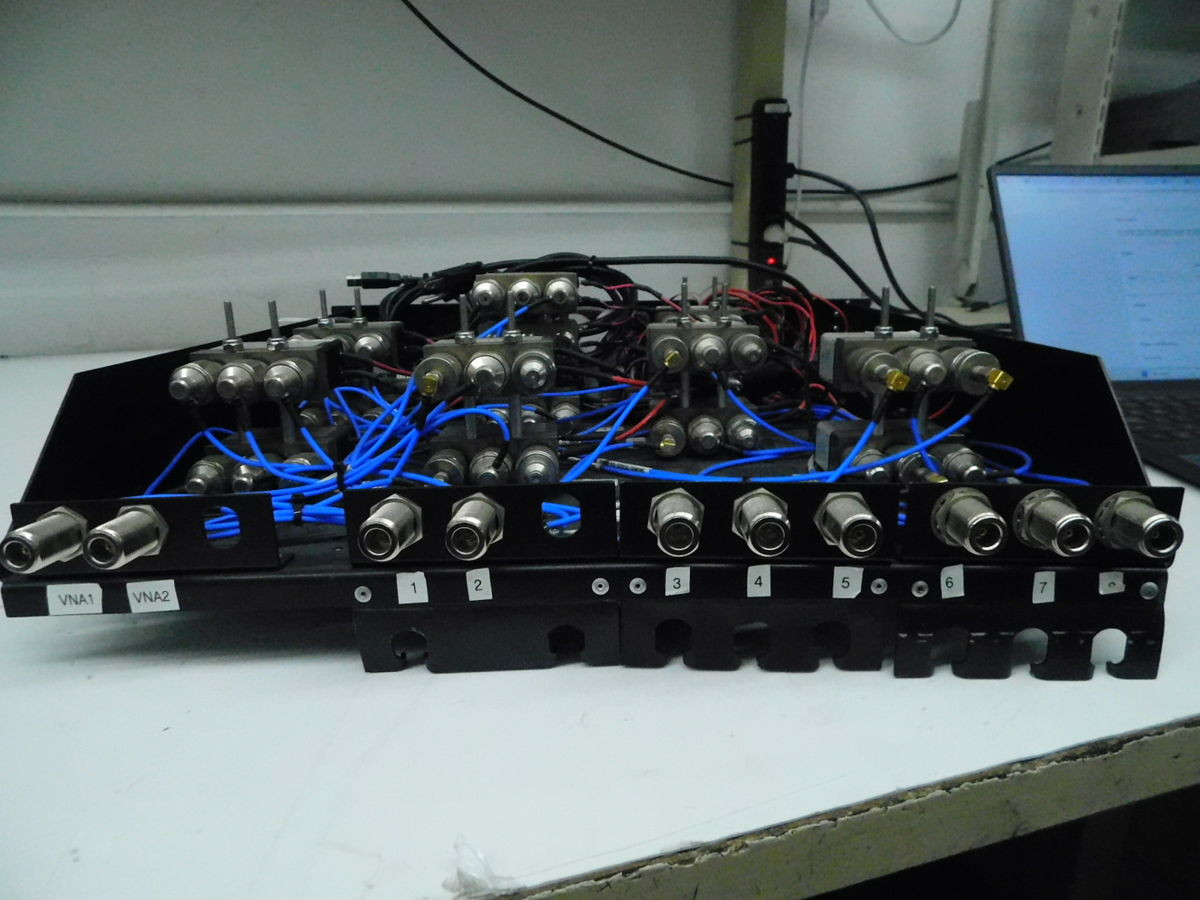

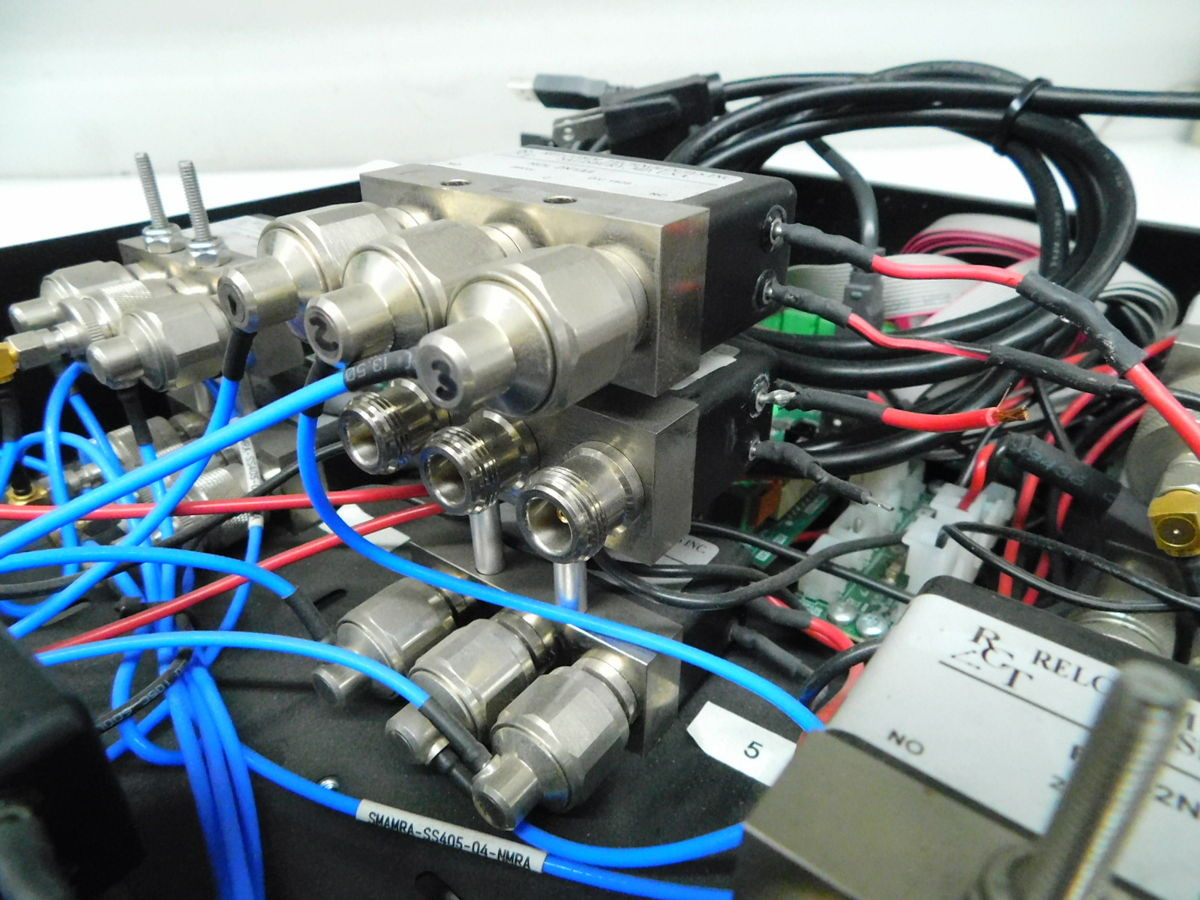

THE FIPLEX ATBFCR023 RDL-2N1A4 IS AN ELECTROMAGNETIC DEVICE, CATEGORIZED AS A LAB INSTRUMENT, PRIMARILY CONFIGURED FOR MULTI-CHANNEL RF SIGNAL ROUTING. THIS UNIT INCORPORATES TWELVE (12) RELCOMM RDL-2N1A4 HIGH-POWER, SINGLE-POLE DOUBLE-THROW (SPDT) RF RELAYS. EACH INTEGRATED RDL-2N1A4 RELAY PROVIDES A NOMINAL CHARACTERISTIC IMPEDANCE OF 50 OHMS AND OPERATES ACROSS A FREQUENCY RANGE FROM DC TO 1 GHZ. THESE RELAYS ARE RATED FOR CONTINUOUS WAVE (CW) POWER HANDLING, TYPICALLY SUPPORTING UP TO 1000W AT 30 MHZ, 500W AT 500 MHZ, AND 200W AT 1 GHZ. KEY RF PERFORMANCE SPECIFICATIONS FOR THE RDL-2N1A4 RELAYS INCLUDE AN INSERTION LOSS GENERALLY BELOW 0.2 DB, ISOLATION EXCEEDING 60 DB, AND A VSWR LESS THAN 1.3:1, ALL MEASURED AT 1 GHZ. THE RELAYS ARE EQUIPPED WITH N-TYPE FEMALE CONNECTORS FOR RF SIGNAL PATHS AND UTILIZE DC COIL ACTUATION.
