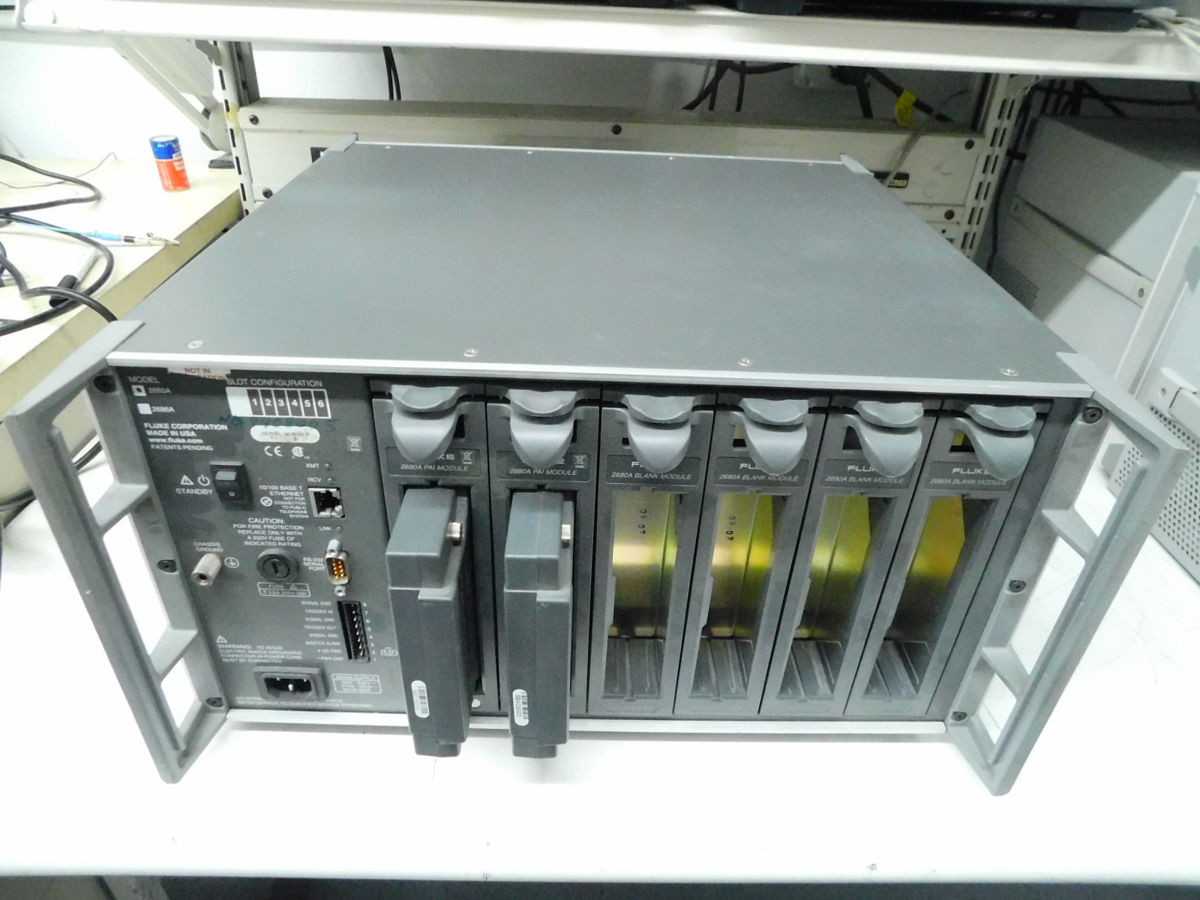

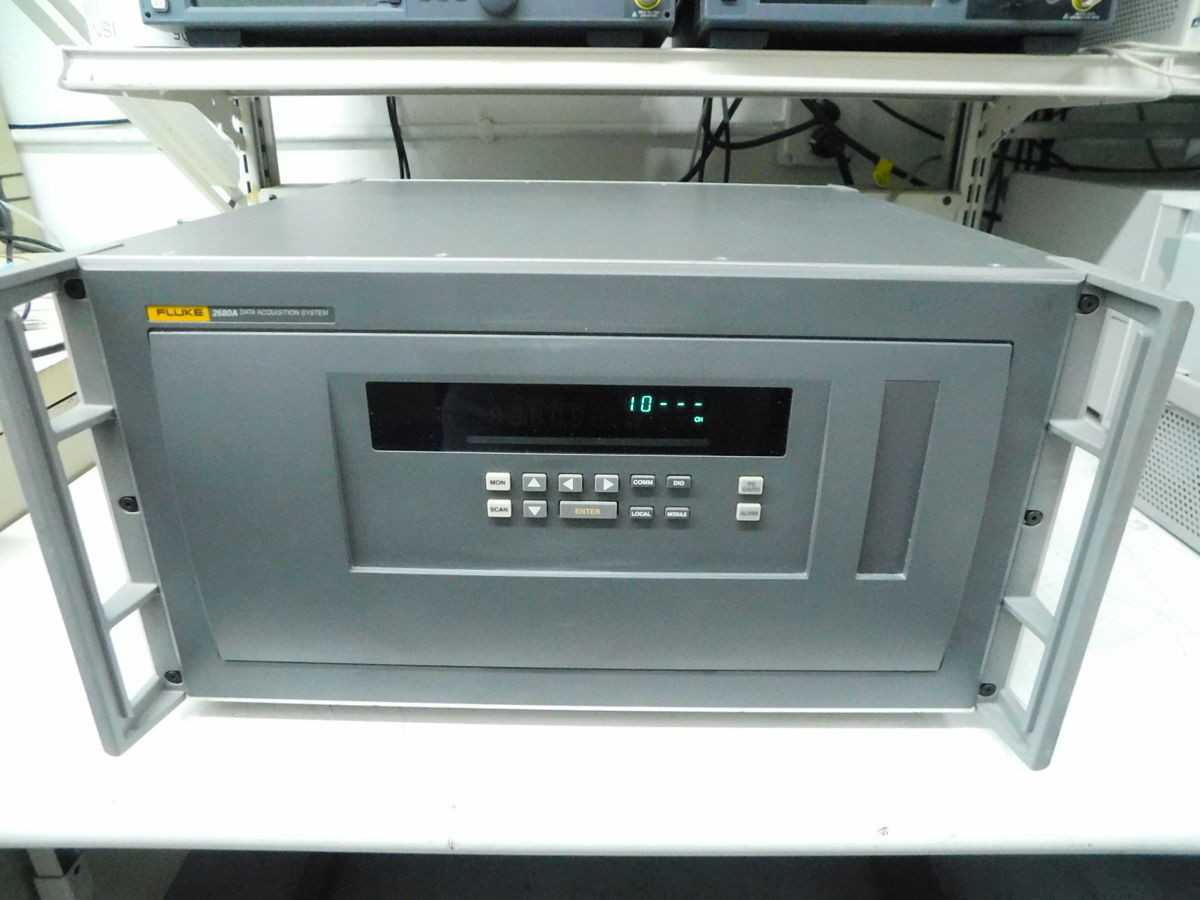

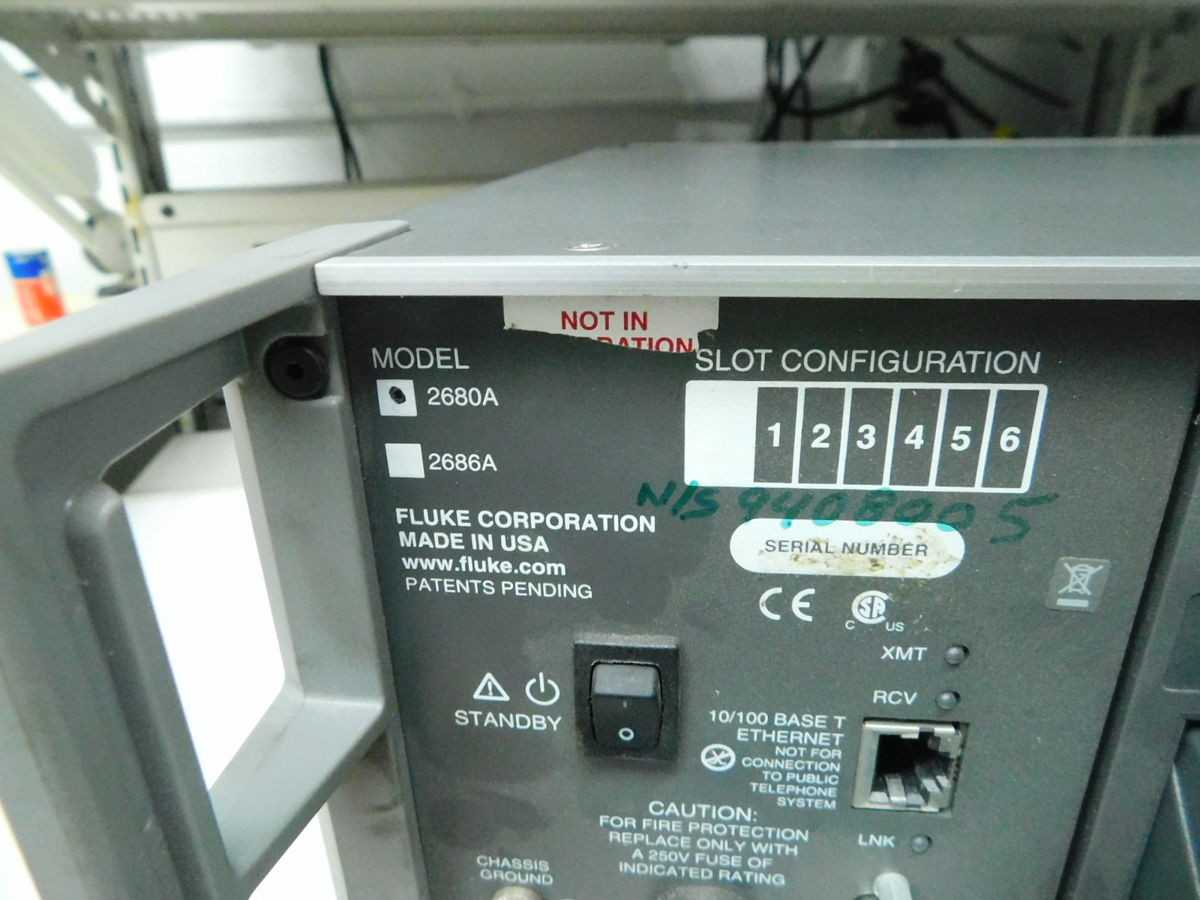

Fluke 2680A Data Acq, 120 Channels, 1000 Rps Scan Rate, 18-Bit Resolution, 120/240 VAC Power

The Fluke 2680A is a mainframe-based data acquisition system operating on a 120/240 VAC, single-phase power supply. This system is designed for high-performance data collection, supporting up to 120 channels via various plug-in modules. It facilitates diverse measurements, including voltage, current, resistance, temperature (thermocouple, RTD, thermistor), frequency, and digital I/O. The 2680A features an aggregate scan rate of up to 1000 readings per second and provides high-resolution data acquisition, typically 18-bit. Standard communication interfaces include Ethernet (LAN), RS-232, and GPIB, enabling seamless integration into networked test and measurement environments. The system is compatible with Fluke DAQ software for configuration and data management.
