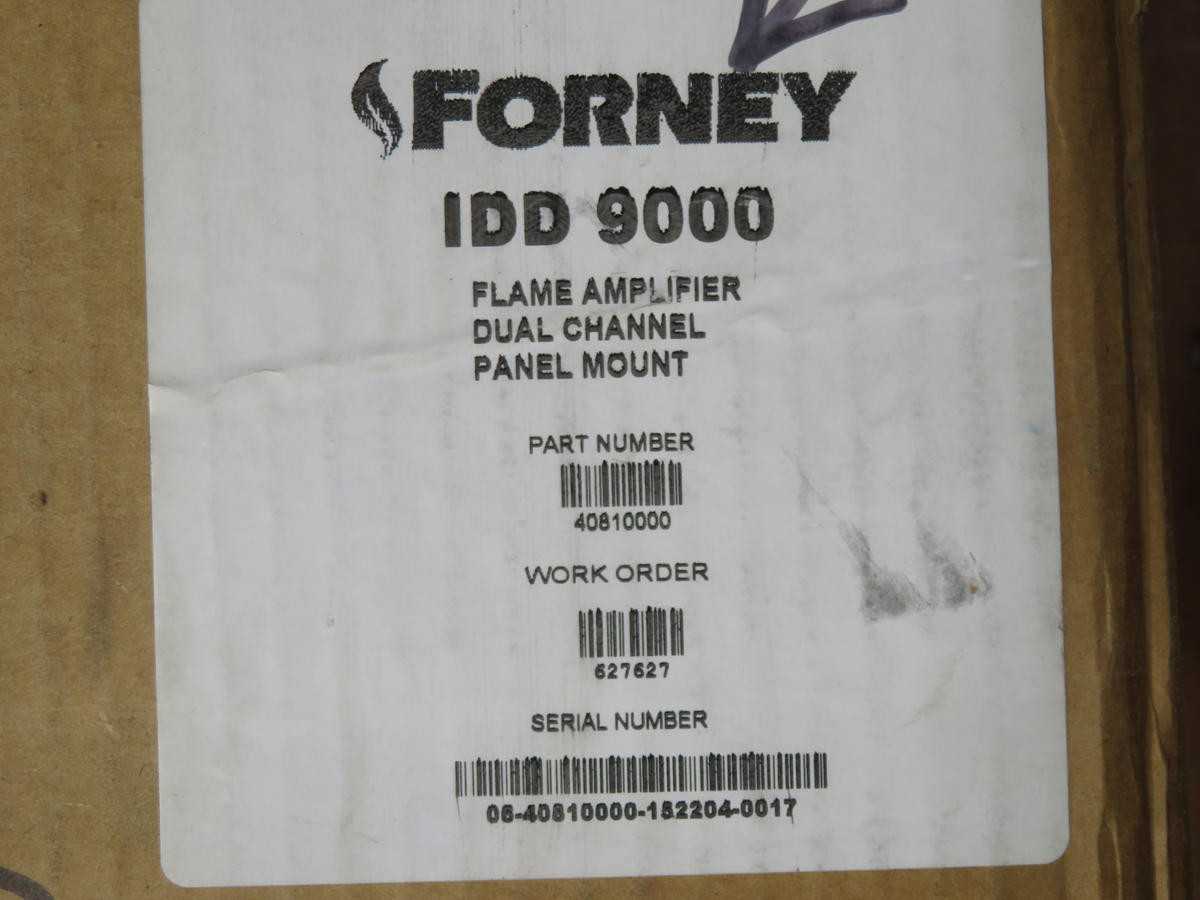

FORNEY 9000 40810000 AMP, DUAL CH, PANEL MT, UV/IR, 5A/2.5A OUT, 120/240V PWR, -20/+70C TEMP

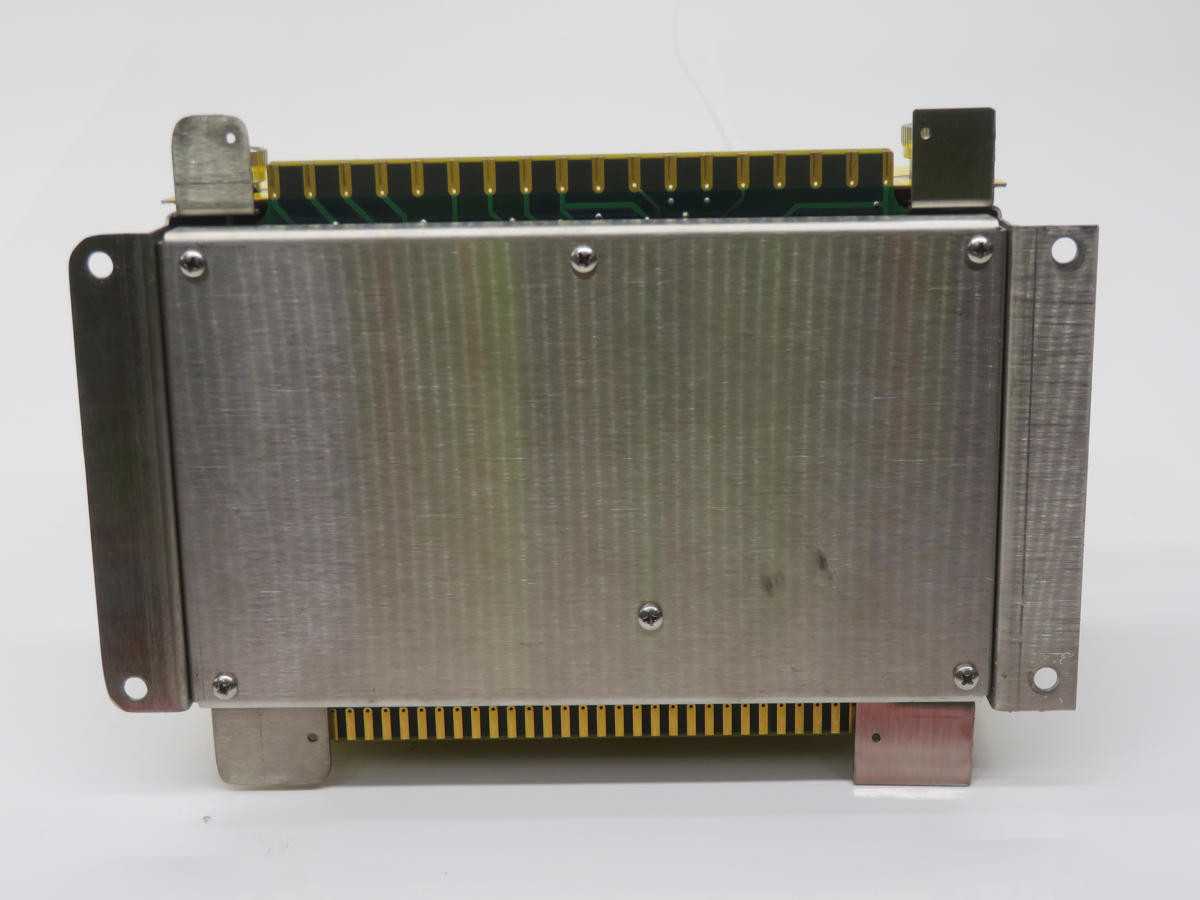

THE FORNEY IDD 9000 40810000 IS A DUAL-CHANNEL, PANEL-MOUNT, MICROPROCESSOR-BASED FLAME DETECTOR AMPLIFIER. THIS AMPLIFIER IS ENGINEERED FOR INDUSTRIAL COMBUSTION APPLICATIONS TO PRECISELY DETECT THE PRESENCE OR ABSENCE OF FLAME. IT OPERATES BY INTERFACING WITH COMPATIBLE FORNEY ULTRAVIOLET (UV) OR INFRARED (IR) FLAME SCANNERS. THE UNIT PROVIDES FLAME STATUS INDICATION THROUGH DEDICATED SINGLE-POLE, DOUBLE-THROW (SPDT) RELAY OUTPUTS, TYPICALLY RATED FOR 5 AMPERES RESISTIVE AT 120 VAC OR 2.5 AMPERES RESISTIVE AT 240 VAC. POWER REQUIREMENTS ARE SELECTABLE, COMMONLY SUPPORTING 120 VAC OR 240 VAC AT 50/60 HZ. THE DEVICE FEATURES INTEGRATED SELF-DIAGNOSTIC CAPABILITIES AND STATUS LED INDICATORS FOR OPERATIONAL MONITORING. ITS ROBUST DESIGN ALLOWS FOR RELIABLE OPERATION ACROSS AN AMBIENT TEMPERATURE RANGE OF -20°C TO +70°C.
