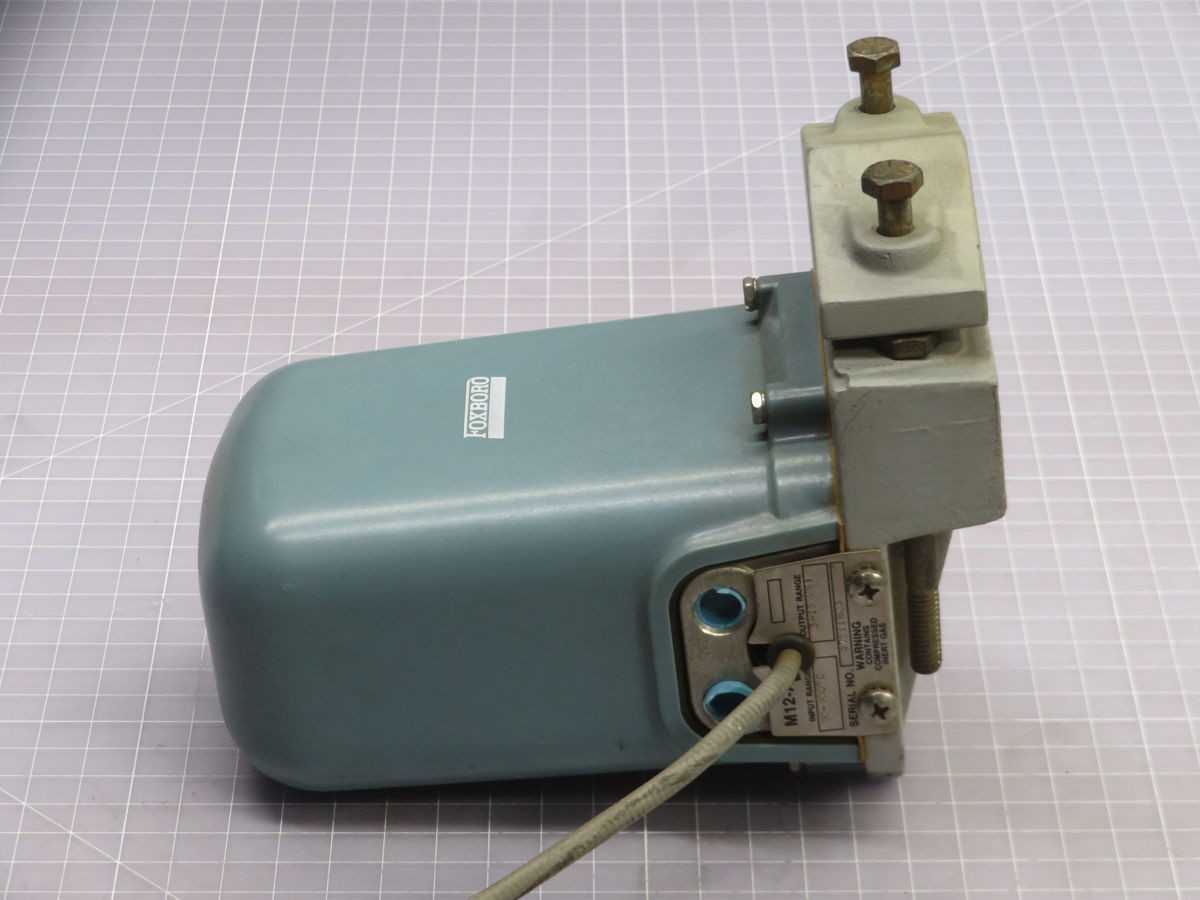

Foxboro 12A Temperature Transmitter, 50-200C Input Range, 3-15PSI Pneumatic Output, 0.5% Span Accuracy

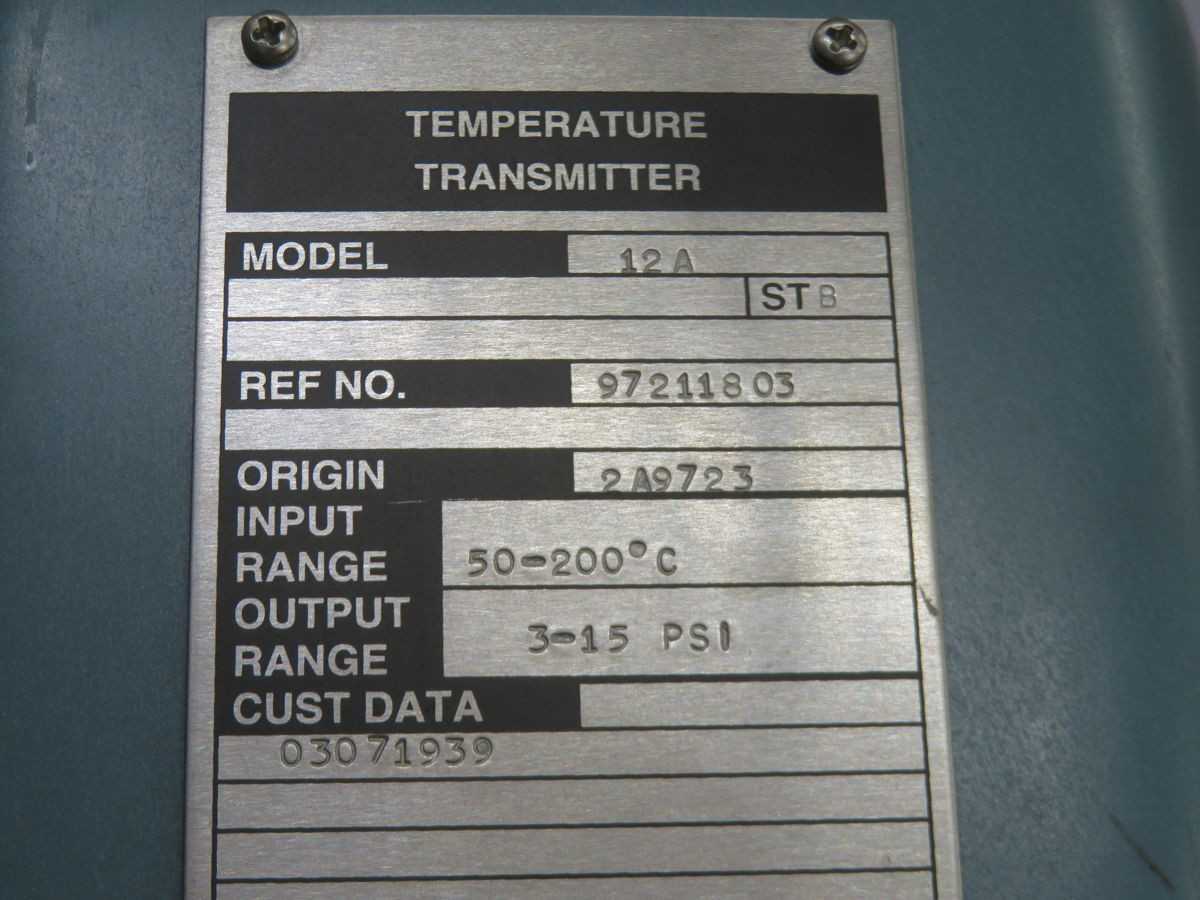

THE FOXBORO 12A IS A FORCE-BALANCE PNEUMATIC TEMPERATURE TRANSMITTER. IT UTILIZES A FILLED THERMAL SYSTEM TO CONVERT TEMPERATURE MEASUREMENTS INTO A PNEUMATIC SIGNAL. THIS UNIT IS CONFIGURED FOR AN INPUT RANGE OF 50-200°C, DELIVERING A PROPORTIONAL 3-15 PSI PNEUMATIC OUTPUT. STANDARD SPECIFICATIONS FOR THE 12A MODEL INCLUDE AN ACCURACY OF ±0.5% OF SPAN AND A REPEATABILITY OF 0.1% OF SPAN. THE TRANSMITTER OPERATES USING A NOMINAL 20 PSI INSTRUMENT AIR SUPPLY.
