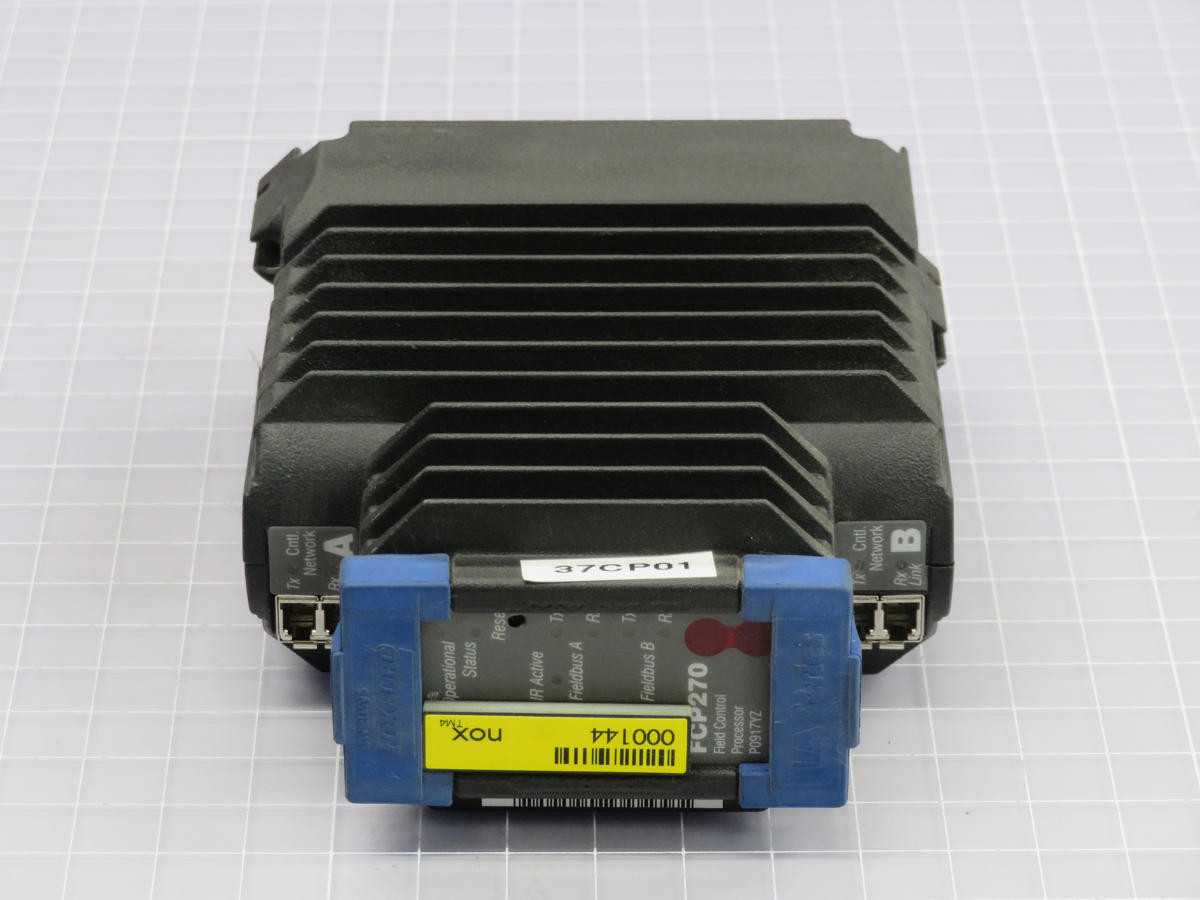

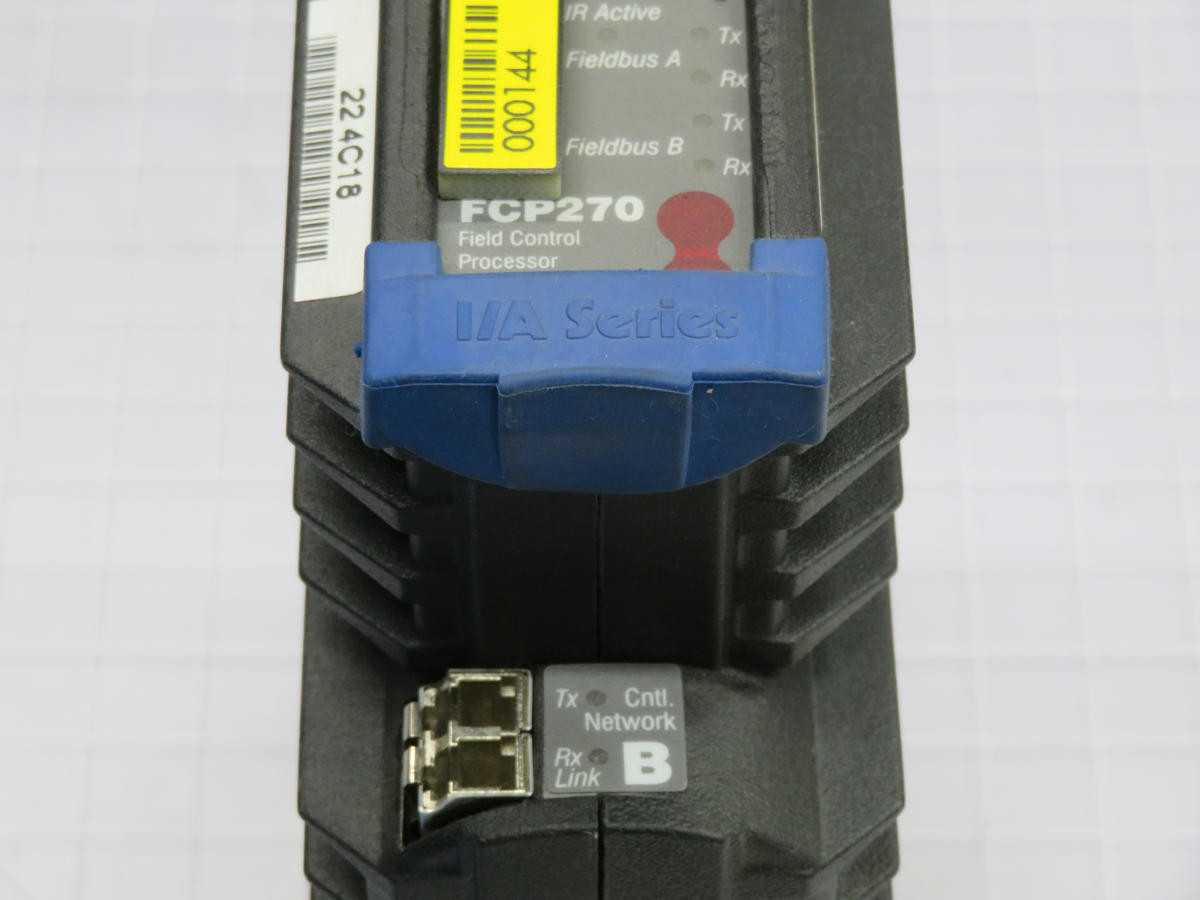

FOXBORO FCP270, 100 MHZ CPU, 16 MB RAM, 32 MB FLASH, 2 ETH, 24 VDC PWR, 20W PWR, 0.45 KG WT

THE FOXBORO FCP270 IS A FIELD CONTROL PROCESSOR MODULE EQUIPPED WITH AN AMD ELAN 520 PROCESSOR OPERATING AT 100 MHZ. IT FEATURES 16 MB OF SDRAM AND 32 MB OF FLASH MEMORY. COMMUNICATION CAPABILITIES INCLUDE TWO 100 MBPS ETHERNET PORTS FOR THE CONTROL NETWORK AND TWO RS-232 SERIAL PORTS FOR DIAGNOSTICS AND CONSOLE ACCESS. DESIGNED FOR BACKPLANE MOUNTING WITHIN AN I/A SERIES SYSTEM, THE UNIT OPERATES ON A +24 VDC POWER SUPPLY, WITH A TYPICAL POWER CONSUMPTION OF 18 W AND A MAXIMUM OF 20 W. IT FUNCTIONS WITHIN AN OPERATING TEMPERATURE RANGE OF 0 TO 60 °C (32 TO 140 °F) AND TOLERATES RELATIVE HUMIDITY FROM 5% TO 95% NON-CONDENSING. THE MODULE DIMENSIONS ARE APPROXIMATELY 193.3 MM H X 48.3 MM W X 140.7 MM D, WITH A WEIGHT OF APPROXIMATELY 0.45 KG.
