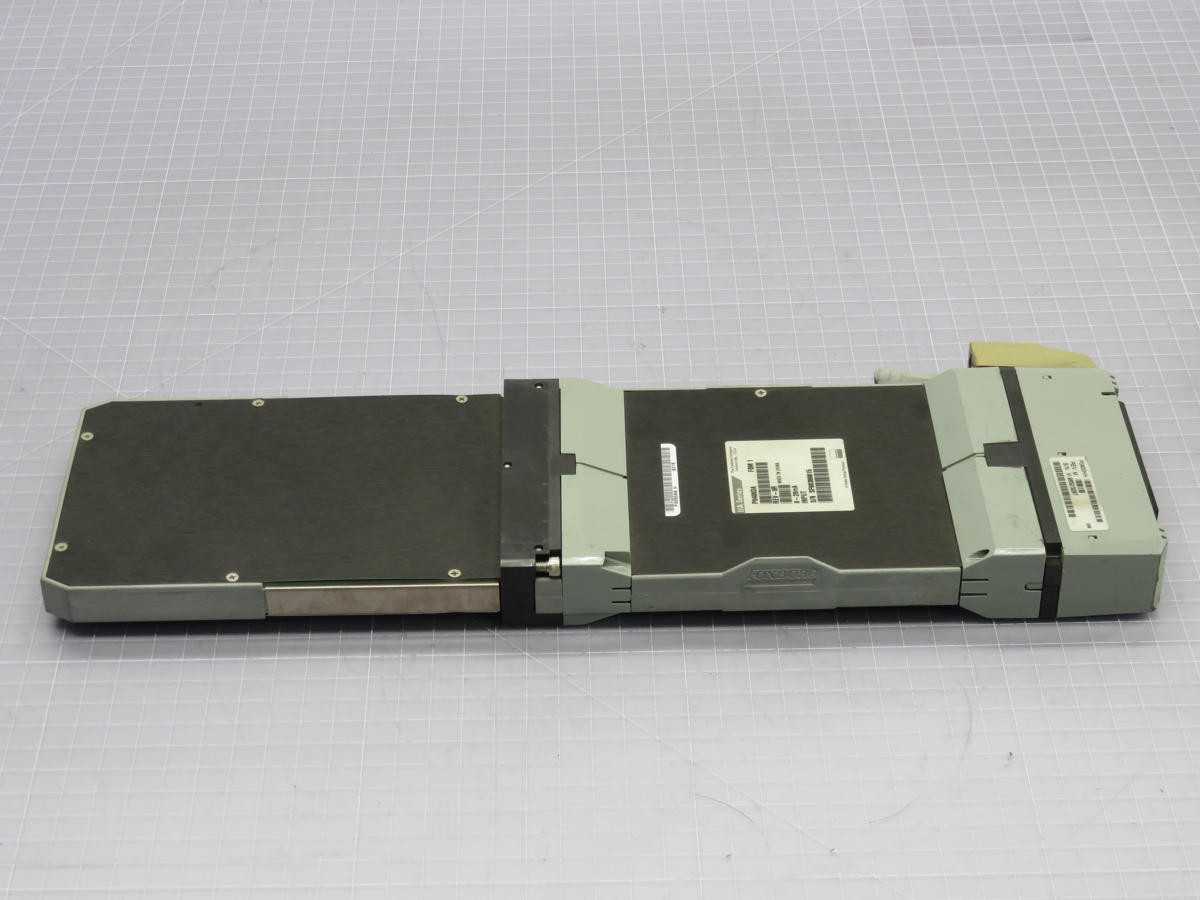

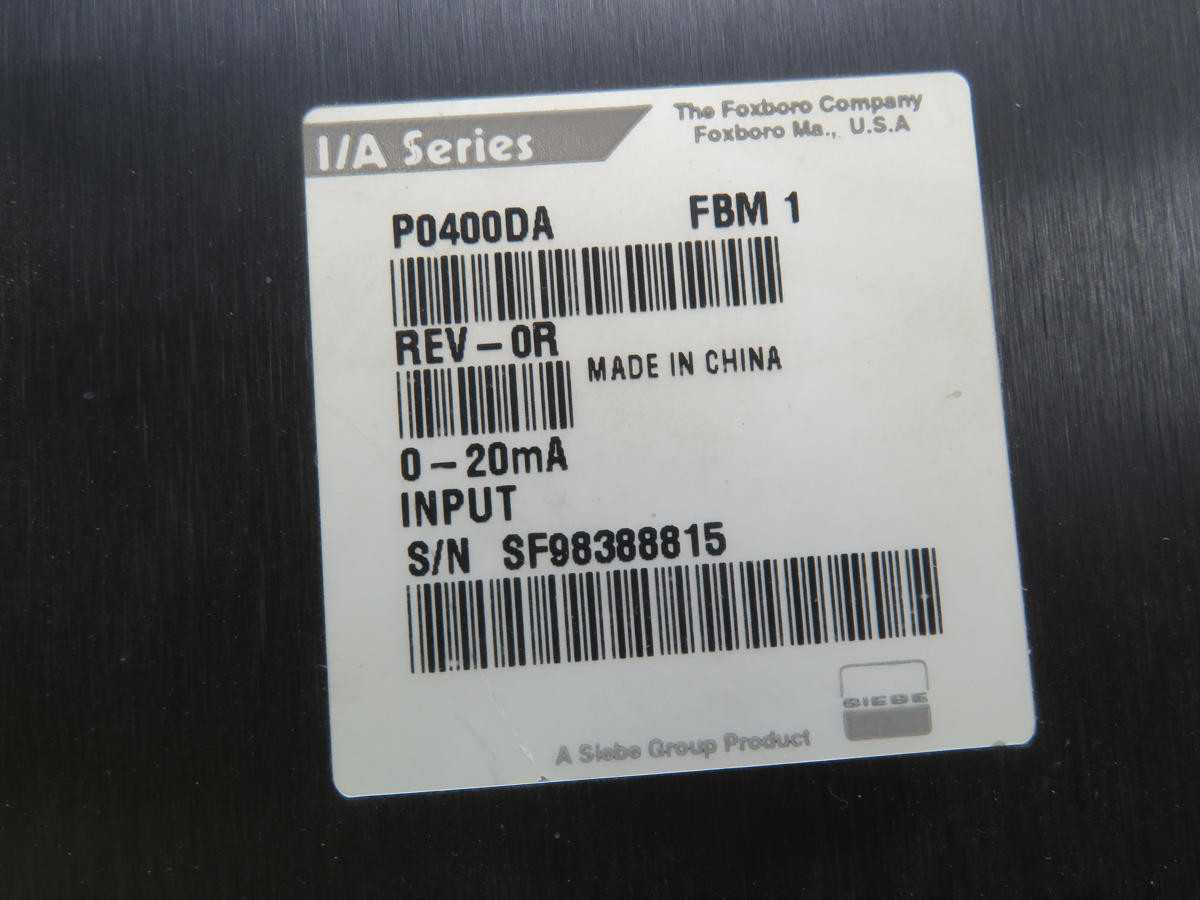

FOXBORO P0400DA 0R 0-20MA, FBM, 8 CH ANALOG INPUT, 0-20MA RANGE, 12-BIT RES, 0.1% ACC

THE FOXBORO P0400DA 0R 0-20MA IS AN 8-CHANNEL ANALOG INPUT FIELDBUS MODULE (FBM) DESIGNED FOR THE I/A SERIES INDUSTRIAL PROCESS CONTROL SYSTEM. THIS MODULE PROCESSES 0 TO 20 MA DC CURRENT SIGNALS FROM FIELD INSTRUMENTATION. IT FEATURES A 12-BIT INPUT RESOLUTION AND TYPICALLY PROVIDES AN ACCURACY OF ±0.1% OF FULL SCALE. EACH INPUT CHANNEL PRESENTS AN IMPEDANCE OF 250 OHMS. THE MODULE UPDATES ALL EIGHT CHANNELS WITHIN APPROXIMATELY 200 MILLISECONDS. IT OPERATES IN AN AMBIENT TEMPERATURE RANGE OF 0 TO 60°C (32 TO 140°F) AND REQUIRES MOUNTING ON A COMPATIBLE FBM BASEPLATE, WHICH PROVIDES POWER AND COMMUNICATION CONNECTIVITY WITHIN THE DISTRIBUTED CONTROL ARCHITECTURE.
