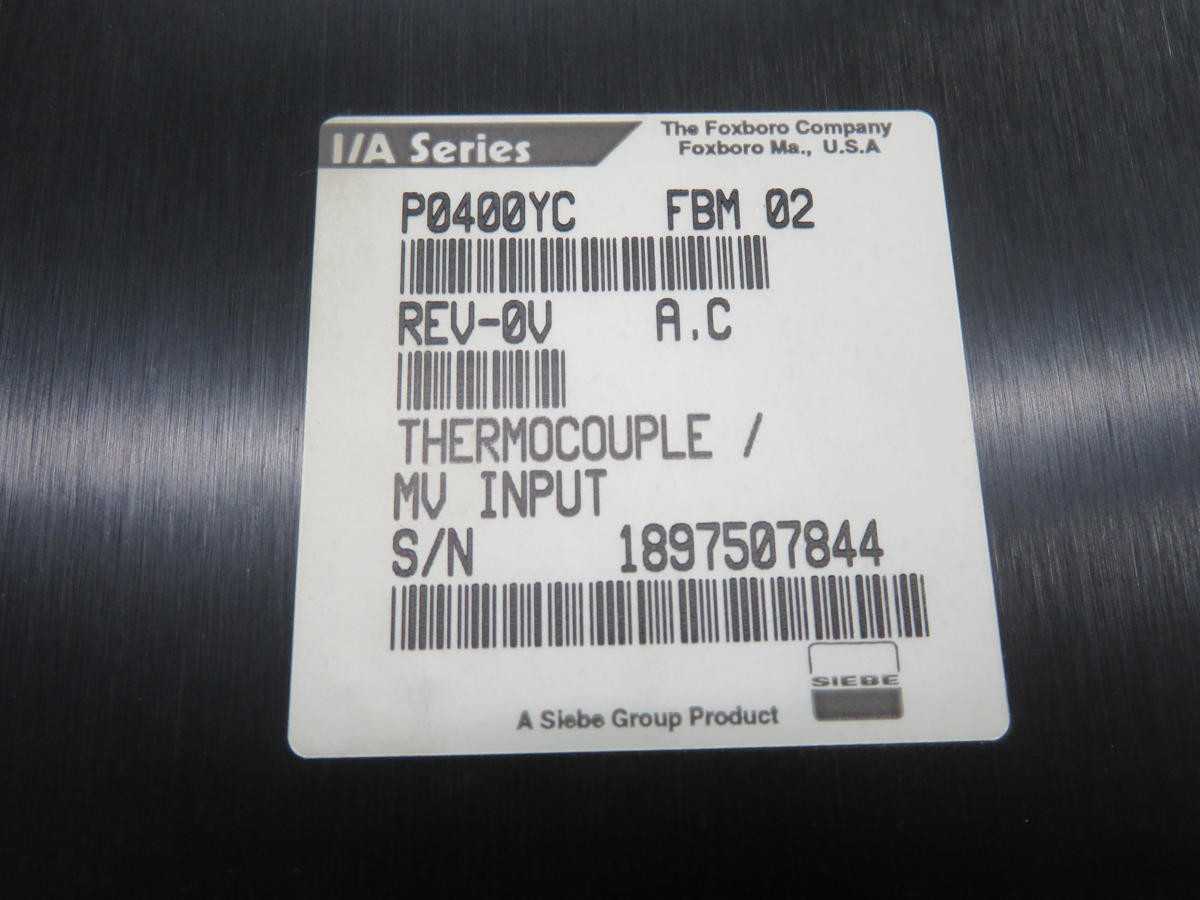

FOXBORO P0400YC FBM 02, 8 CH, TC/MV IN, -10/+110 MV RANGE, 15 BIT RES, ±0.05% ACC, 0.5S UPDATE

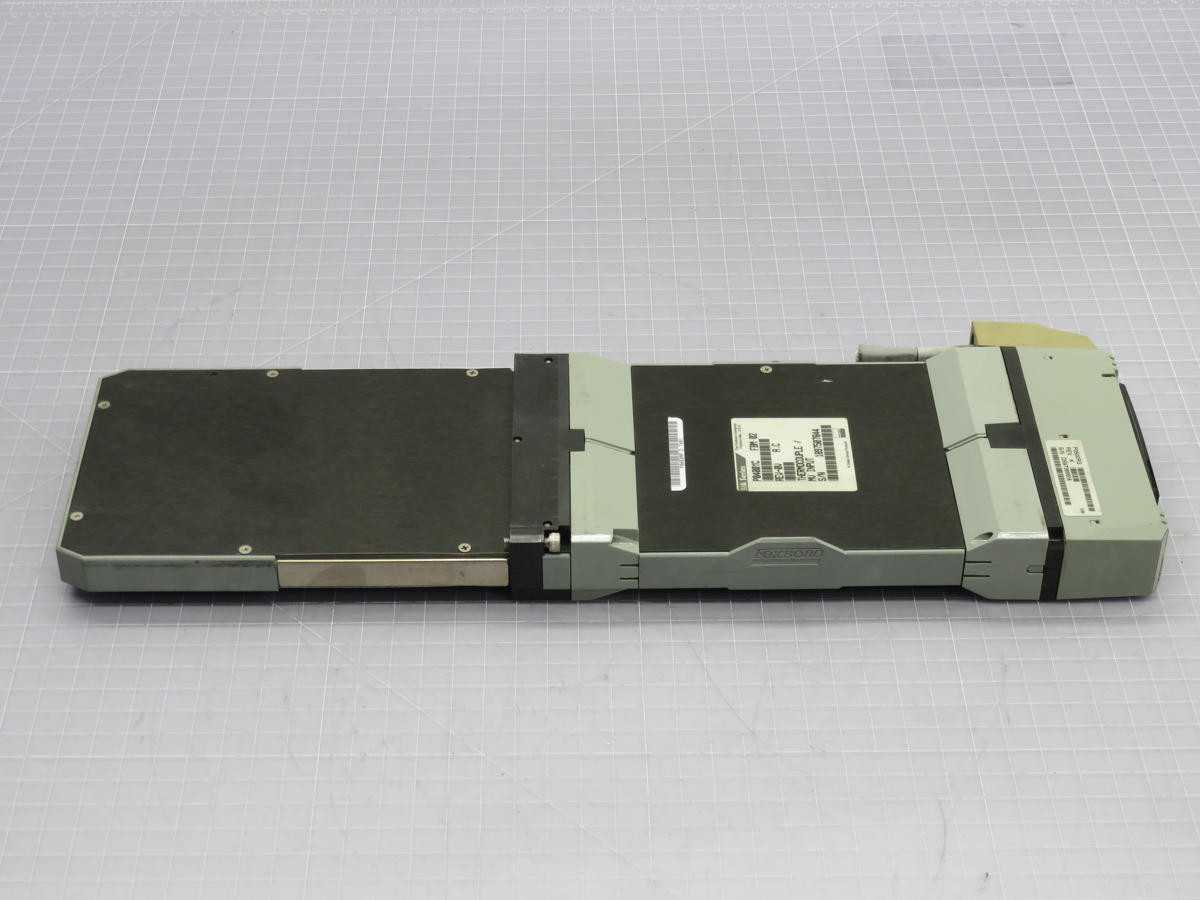

THE FOXBORO P0400YC FBM 02 IS AN 8-CHANNEL FIELDBUS MODULE DESIGNED FOR THERMOCOUPLE AND MILLIVOLT INPUT WITHIN THE FOXBORO I/A SERIES AUTOMATION SYSTEM. EACH OF ITS EIGHT INPUT CHANNELS IS INDIVIDUALLY ISOLATED. THE MODULE SUPPORTS VARIOUS THERMOCOUPLE TYPES, INCLUDING B, C, E, J, K, N, R, S, AND T, ALONG WITH MILLIVOLT INPUTS. IT FEATURES INTEGRAL COLD JUNCTION COMPENSATION FOR ACCURATE THERMOCOUPLE MEASUREMENTS. THE MILLIVOLT INPUT RANGE IS -10 MV TO +110 MV. ANALOG-TO-DIGITAL CONVERSION PROVIDES 15-BIT PLUS SIGN RESOLUTION. THE TYPICAL MEASUREMENT ACCURACY IS ±0.05% OF THE INPUT SPAN. ALL EIGHT CHANNELS ARE UPDATED AT A RATE OF 0.5 SECONDS.
