FUTEK TRS300, Sensors, 20 N-M Capacity, 7000 RPM Speed, -50/100C Temp

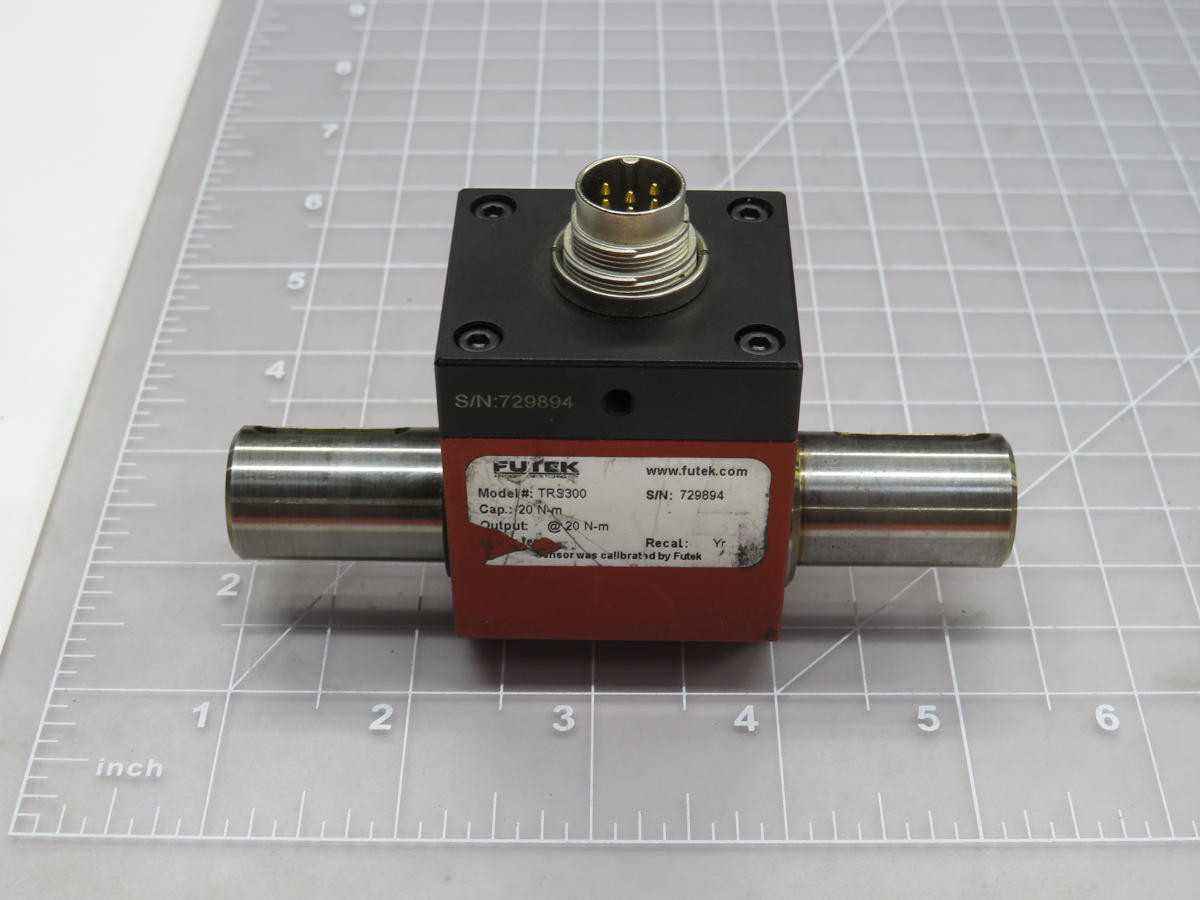

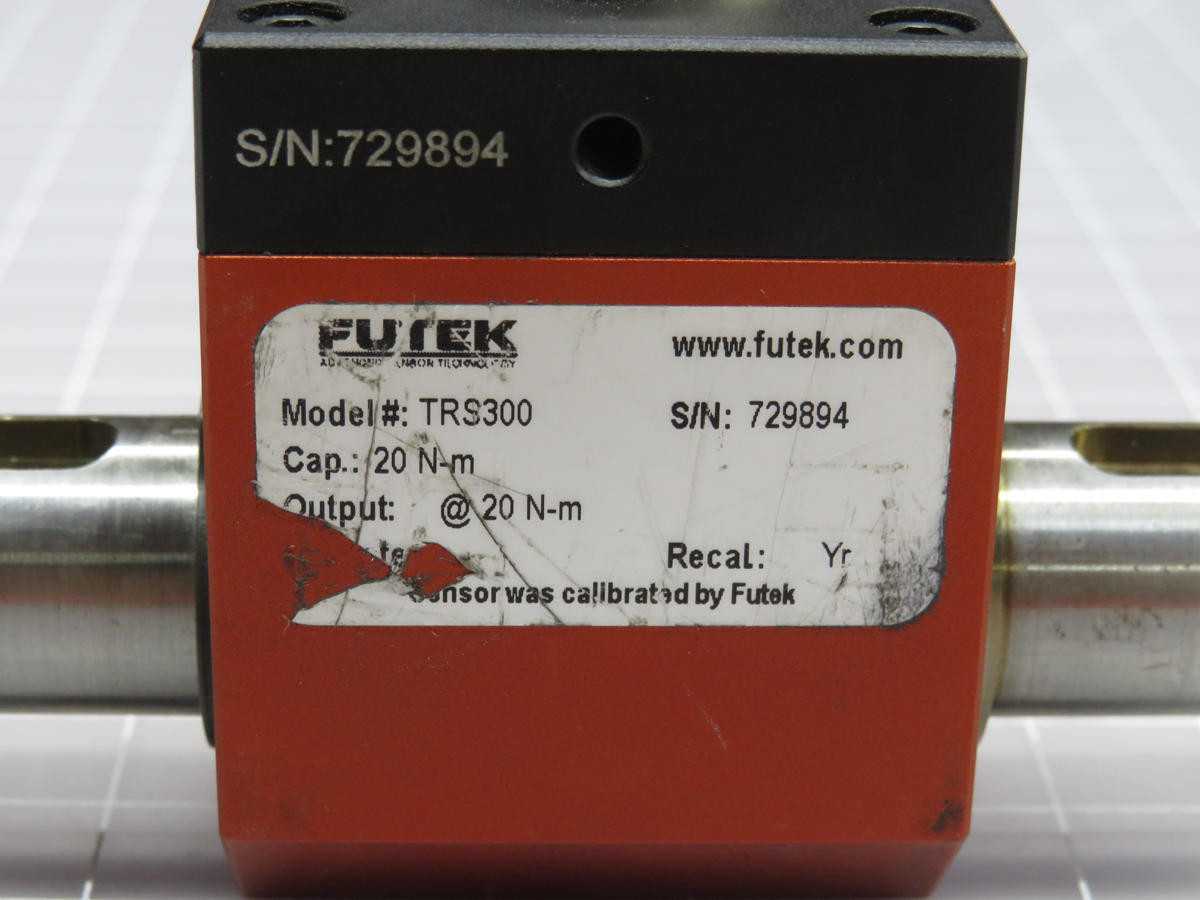

THE FUTEK TRS300 IS A ROTARY SHAFT TORQUE SENSOR WITH A RATED CAPACITY OF 20 N-M. IT FEATURES A NOMINAL RATED OUTPUT OF 2 MV/V, A NON-LINEARITY OF ±0.1% OF RATED OUTPUT, AND HYSTERESIS OF ±0.1% OF RATED OUTPUT. THE SENSOR OPERATES WITHIN A TEMPERATURE RANGE OF -50 TO 100°C AND CAN WITHSTAND A SAFE OVERLOAD OF 150% OF ITS RATED CAPACITY. IT IS DESIGNED FOR OPERATIONAL SPEEDS UP TO 7,000 RPM AND EXHIBITS A TORSIONAL STIFFNESS OF 14,000 N-M/RAD. THE CONSTRUCTION UTILIZES STAINLESS STEEL.
