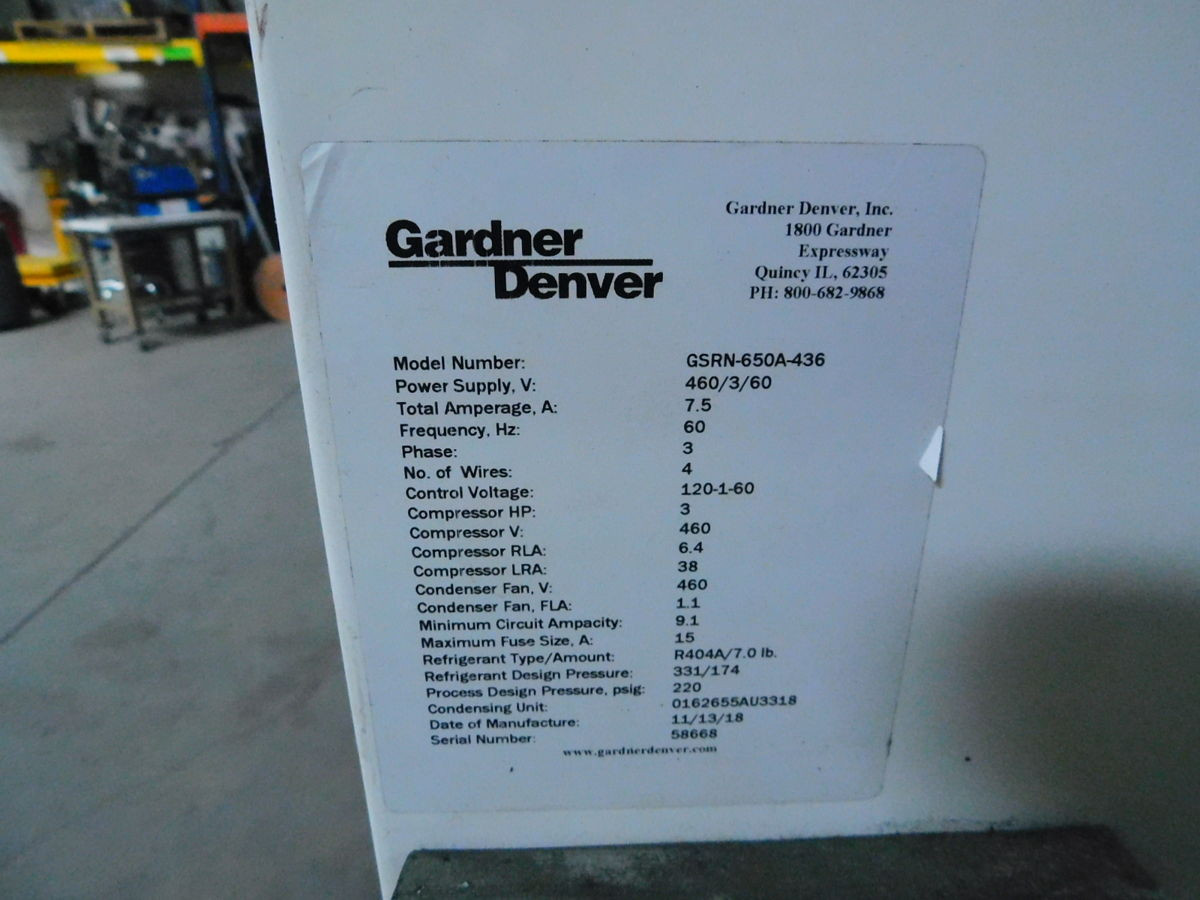

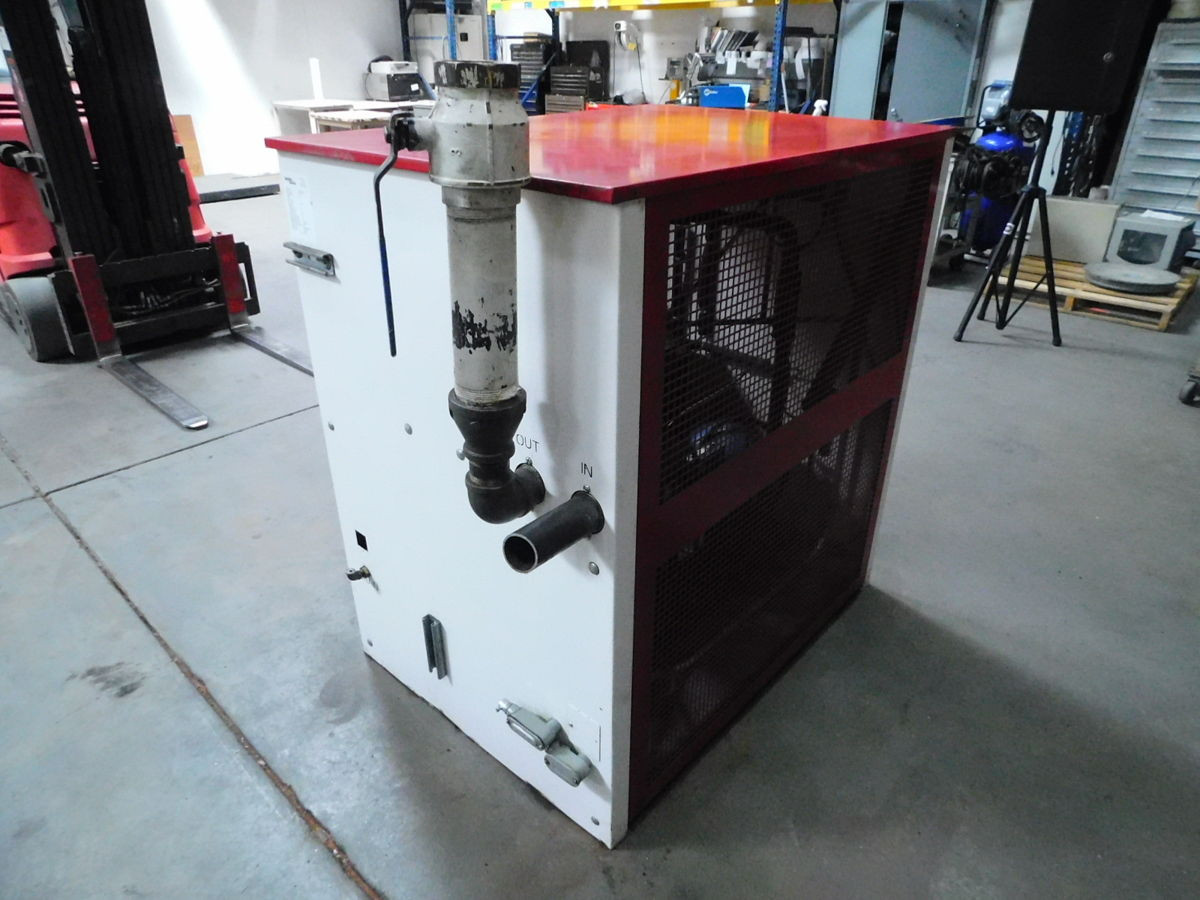

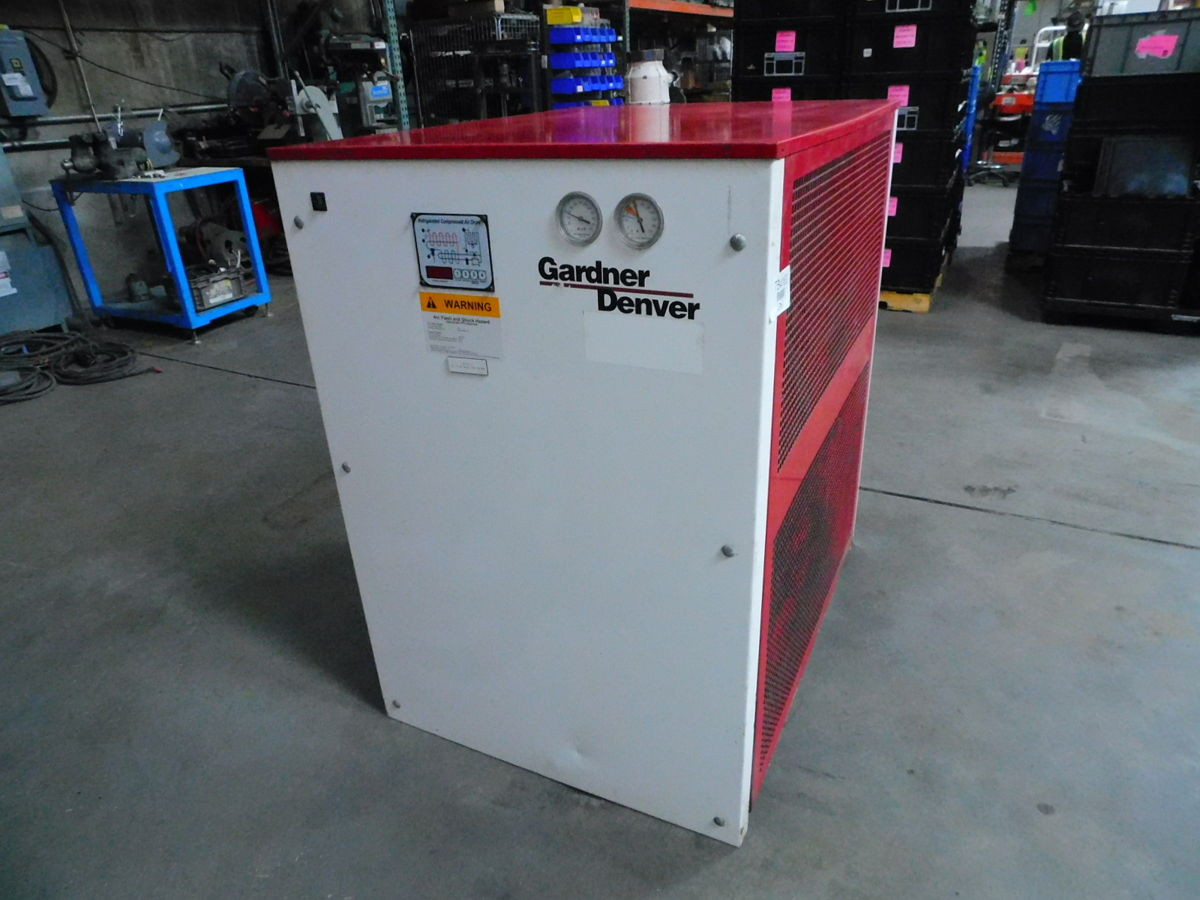

GARDNER-DENVER GSRN-650A-436 AIR DRYER, 650 SCFM, 480 VAC, 3-PHASE, 232 PSI MAX

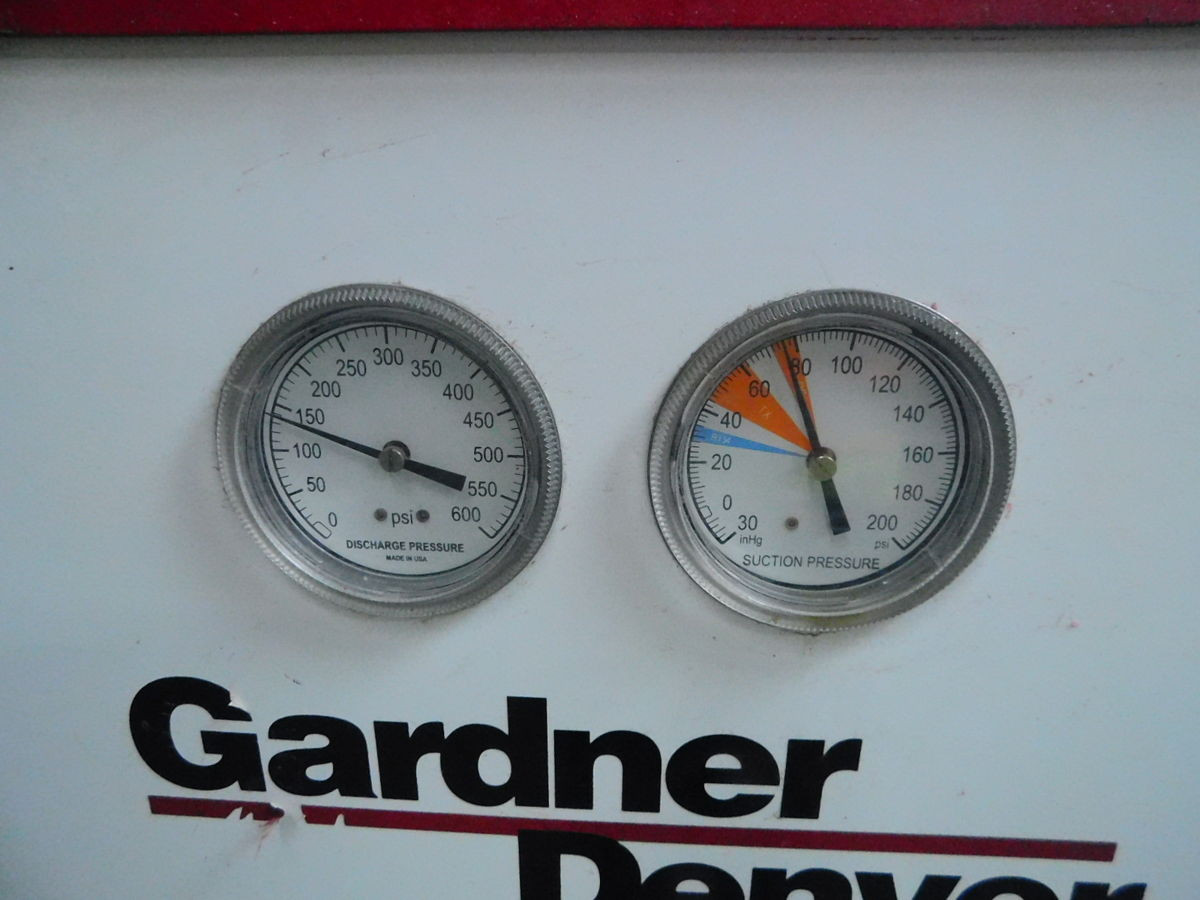

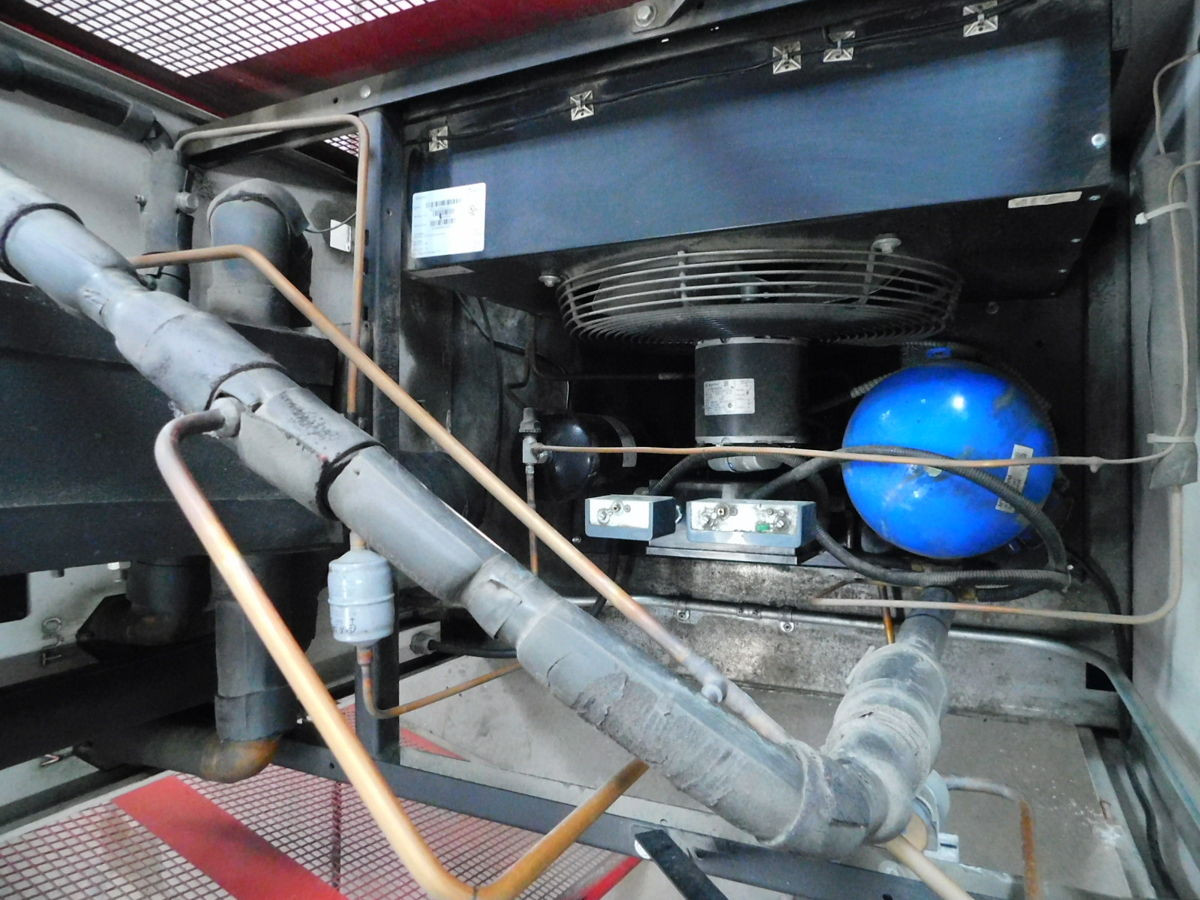

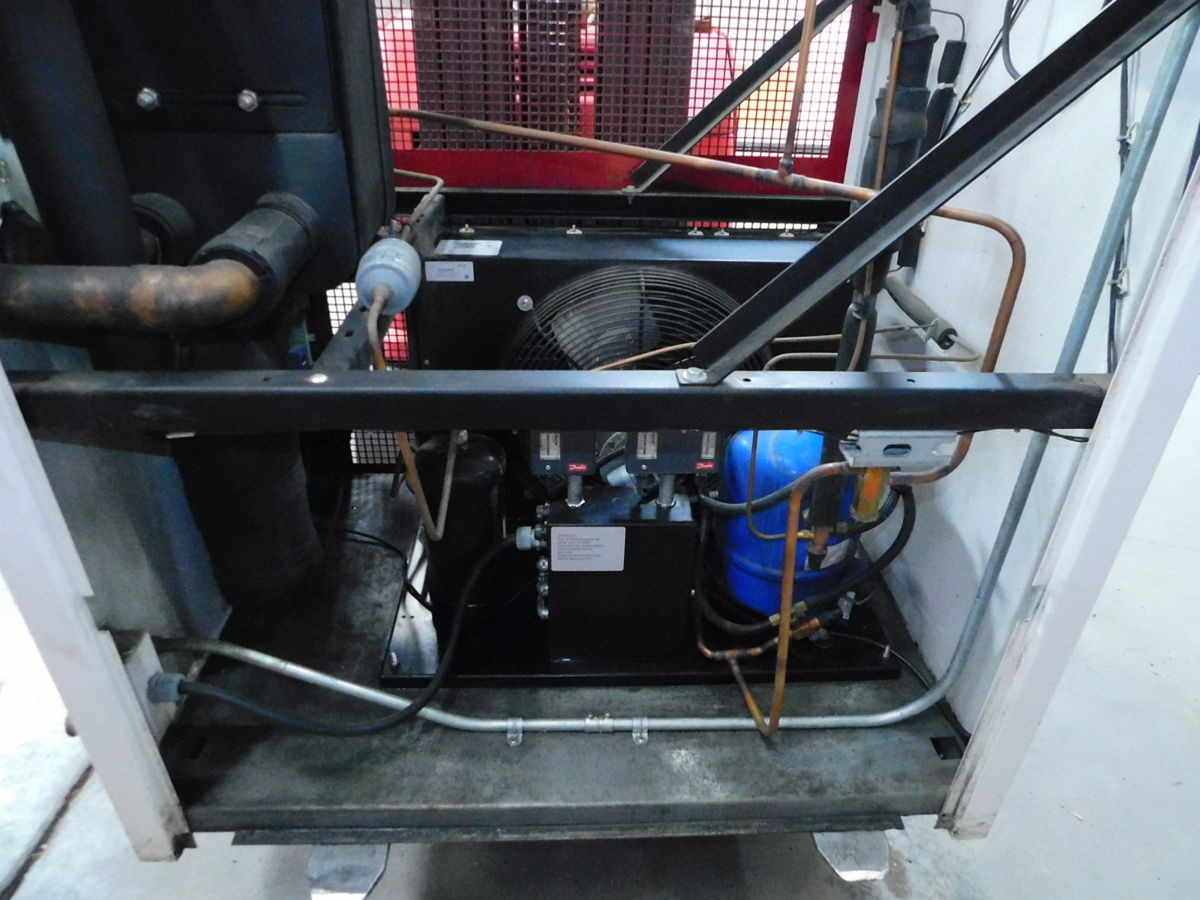

THIS GARDNER-DENVER GSRN-650A-436 IS A REFRIGERATED AIR DRYER DESIGNED FOR INDUSTRIAL COMPRESSED AIR SYSTEMS. IT OPERATES ON A 480 VAC, 3-PHASE POWER SUPPLY AND UTILIZES R404A REFRIGERANT. THE UNIT PROVIDES A NOMINAL AIR TREATMENT CAPACITY OF 650 SCFM. IT IS ENGINEERED TO ACHIEVE A PRESSURE DEW POINT OF 38°F (3°C) AND CAN ACCOMMODATE A MAXIMUM INLET WORKING PRESSURE OF 232 PSI. DURING OPERATION, THE REFRIGERANT CIRCUIT TYPICALLY EXHIBITS A DISCHARGE PRESSURE AROUND 200 PSI AND A SUCTION PRESSURE OF APPROXIMATELY 45 PSI.
