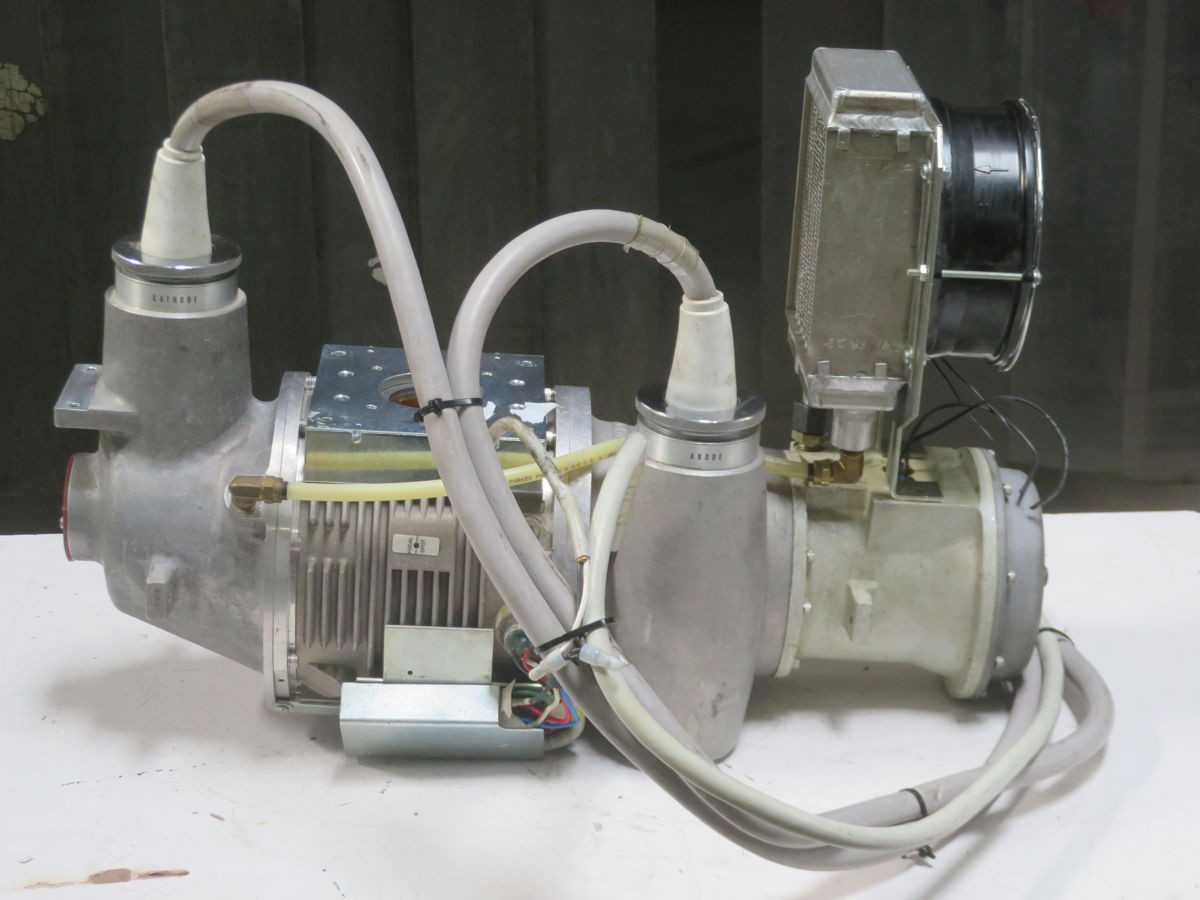

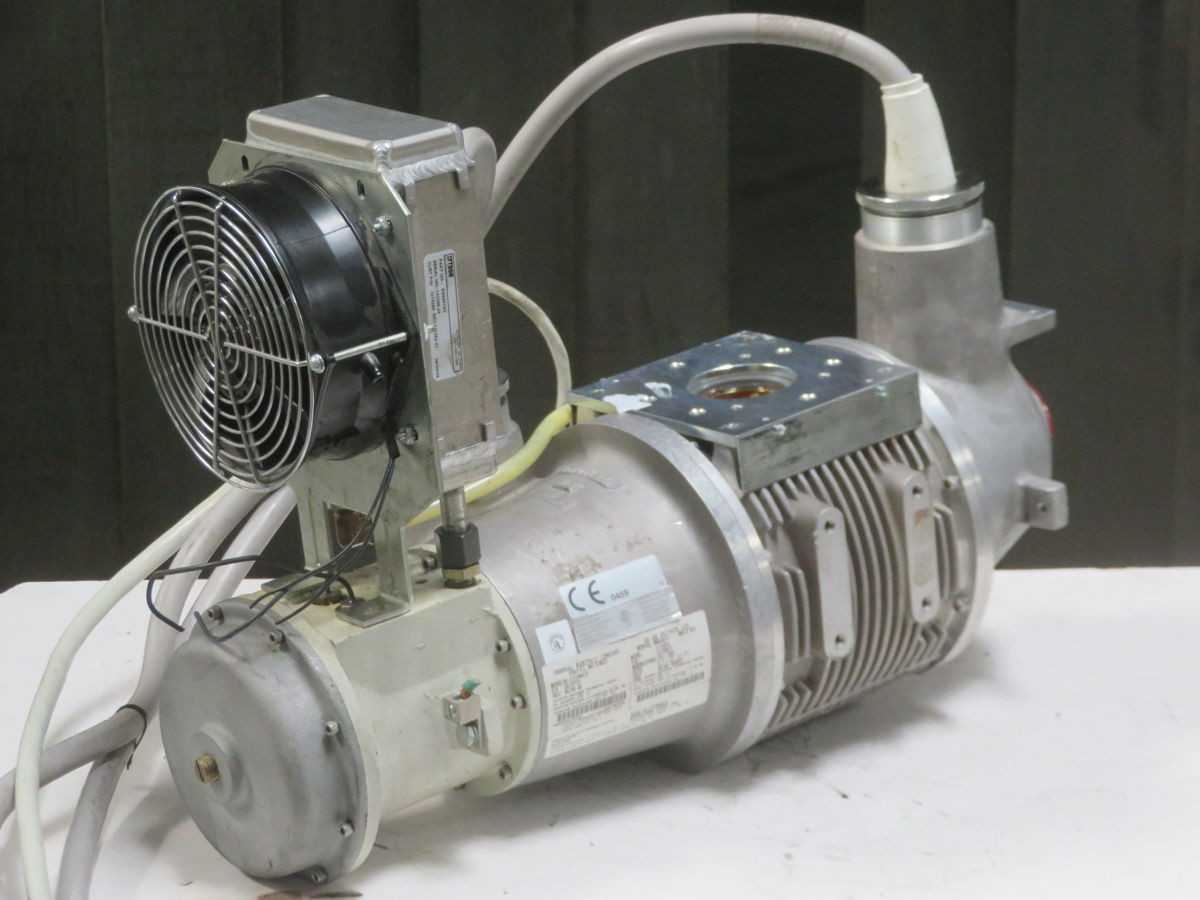

GE 2336058 46-155500G18 x-Ray Tube, 150 Kv, 0.6/1.2 mm Focal, 100 kW Anode Pwr

The General Electric 2336058 46-155500G18 is an MX100 insert X-ray tube assembly designed for medical imaging applications. It features a maximum anode-to-cathode potential of 150 kV and incorporates aluminum filtration equivalent at 150 kV. The tube assembly utilizes a tungsten-rhenium alloy target with a 7-degree target angle. It provides dual focal spots measuring 0.6 mm and 1.2 mm, supporting a maximum anode input power of 100 kW. The anode possesses a heat capacity of 6.3 MHU (mega heat units), while the housing heat capacity is 1.4 MJ.
