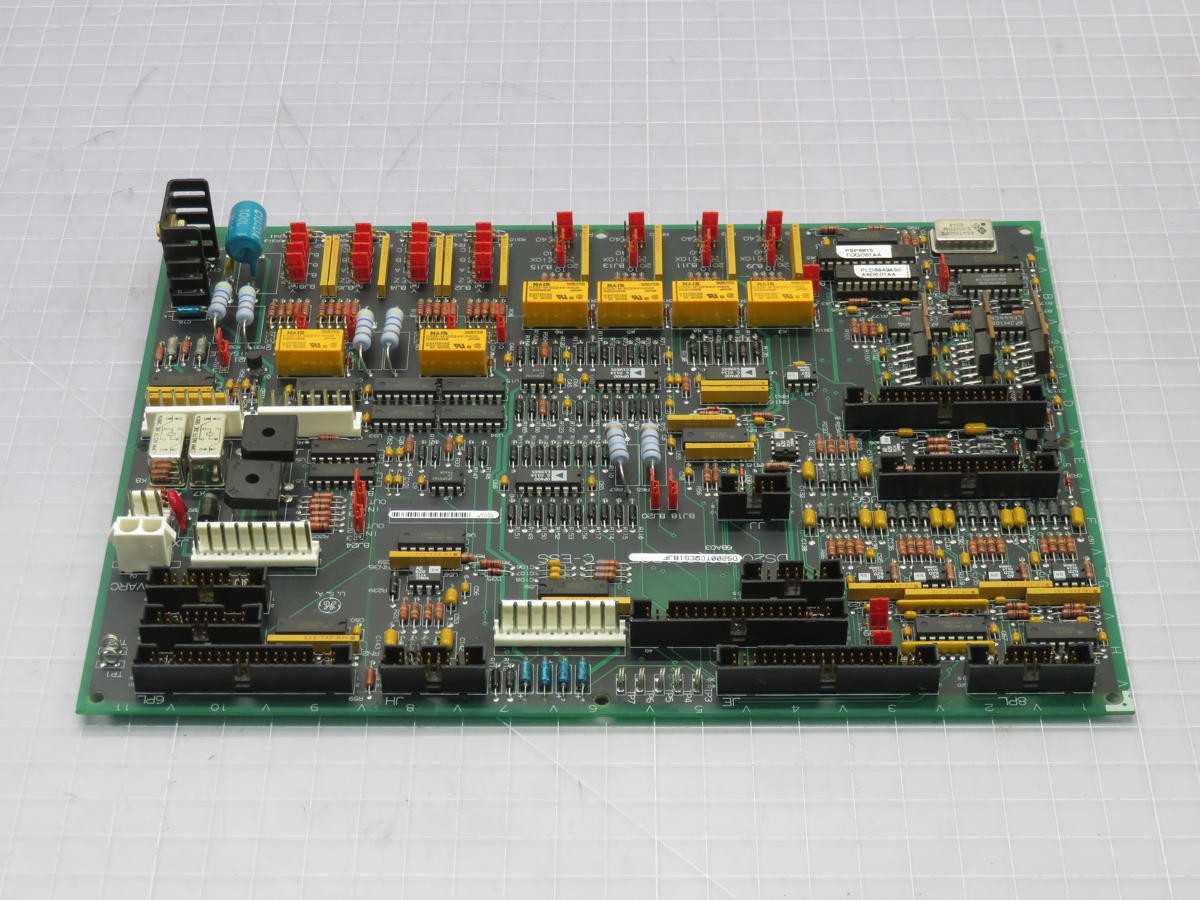

GE DS200TCQCG1B CIRCUIT BOARD, THERMOCOUPLE INPUT, 12 INPUT CHANNELS, ANALOG TO DIGITAL, BACKPLANE INTERFACE

THE GENERAL ELECTRIC DS200TCQCG1B IS A PC BOARD FUNCTIONING AS A THERMOCOUPLE INPUT CARD WITHIN INDUSTRIAL CONTROL SYSTEMS, PRIMARILY FOR GE MARK V SERIES TURBINE CONTROL APPLICATIONS. THIS ADD-ON BOARD PROVIDES AN INTERFACE FOR TWELVE THERMOCOUPLE INPUT CHANNELS, DESIGNED TO MEASURE TEMPERATURE. IT PROCESSES ANALOG SIGNALS FROM THE CONNECTED THERMOCOUPLES, CONVERTING THEM INTO DIGITAL DATA FOR INTEGRATION AND COMMUNICATION WITH THE MAIN CONTROL SYSTEM. THE BOARD DIRECTLY PLUGS INTO THE SYSTEM BACKPLANE, FACILITATING TEMPERATURE DATA ACQUISITION CRITICAL FOR TURBINE MONITORING AND CONTROL.
