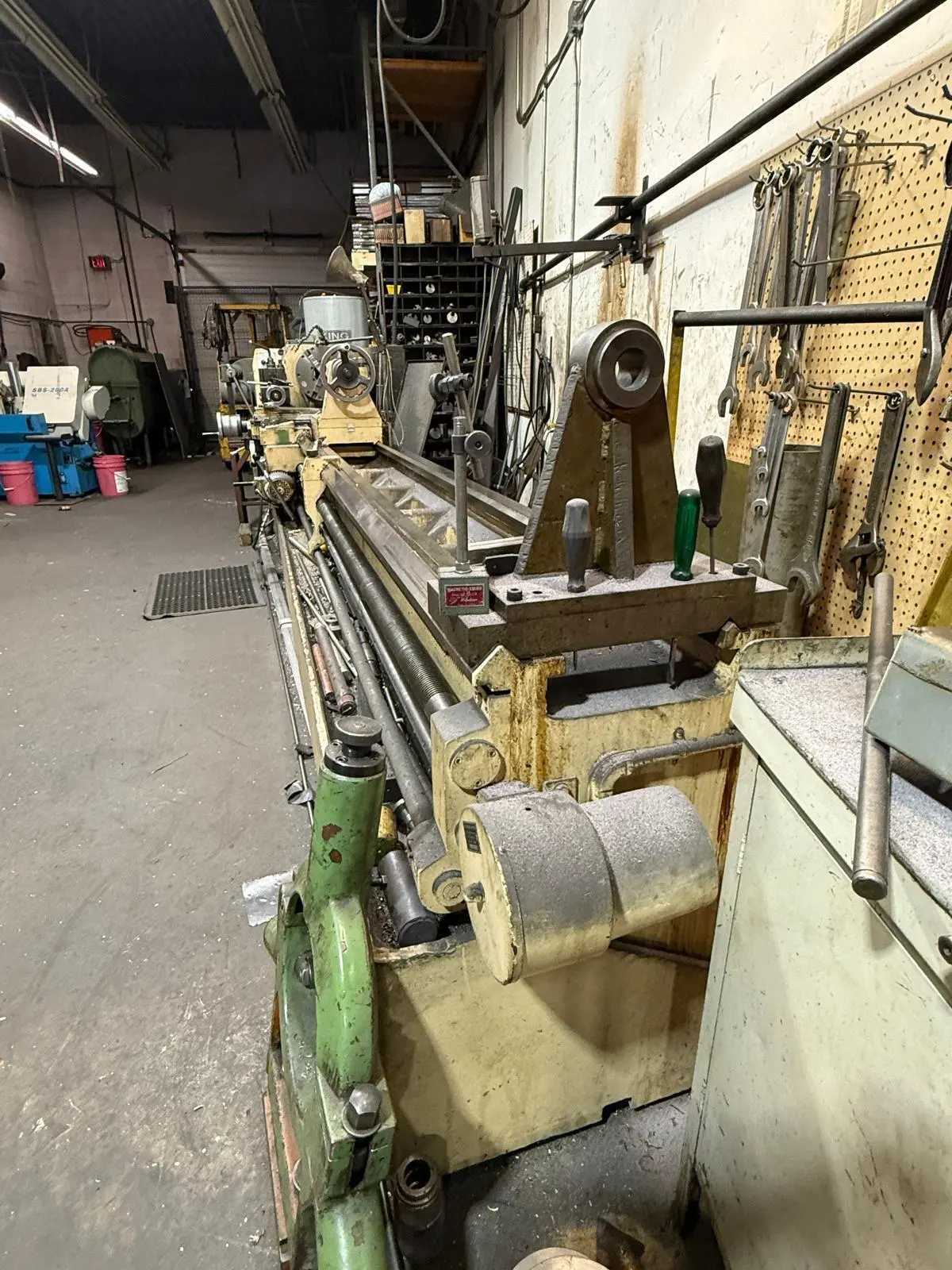

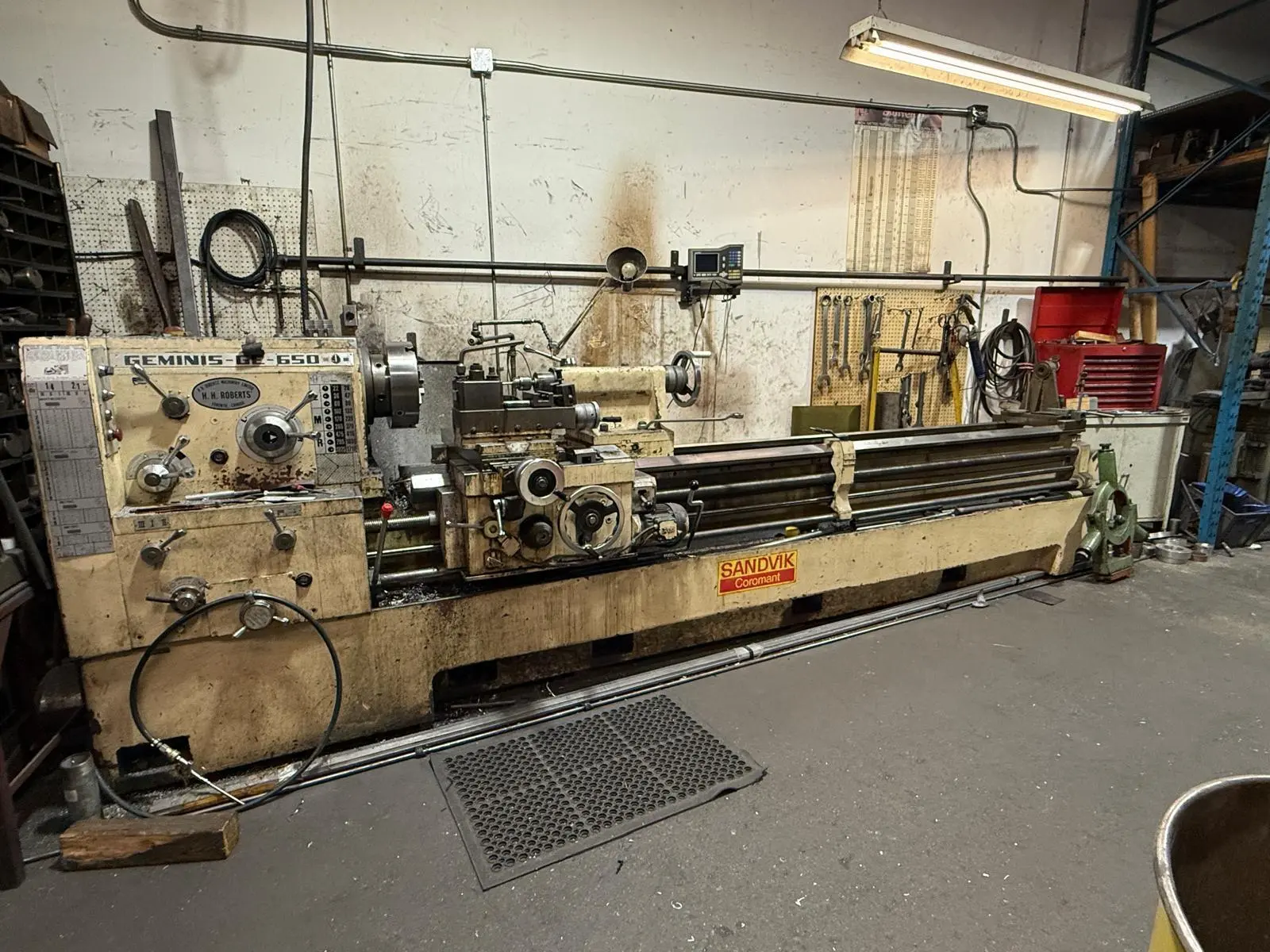

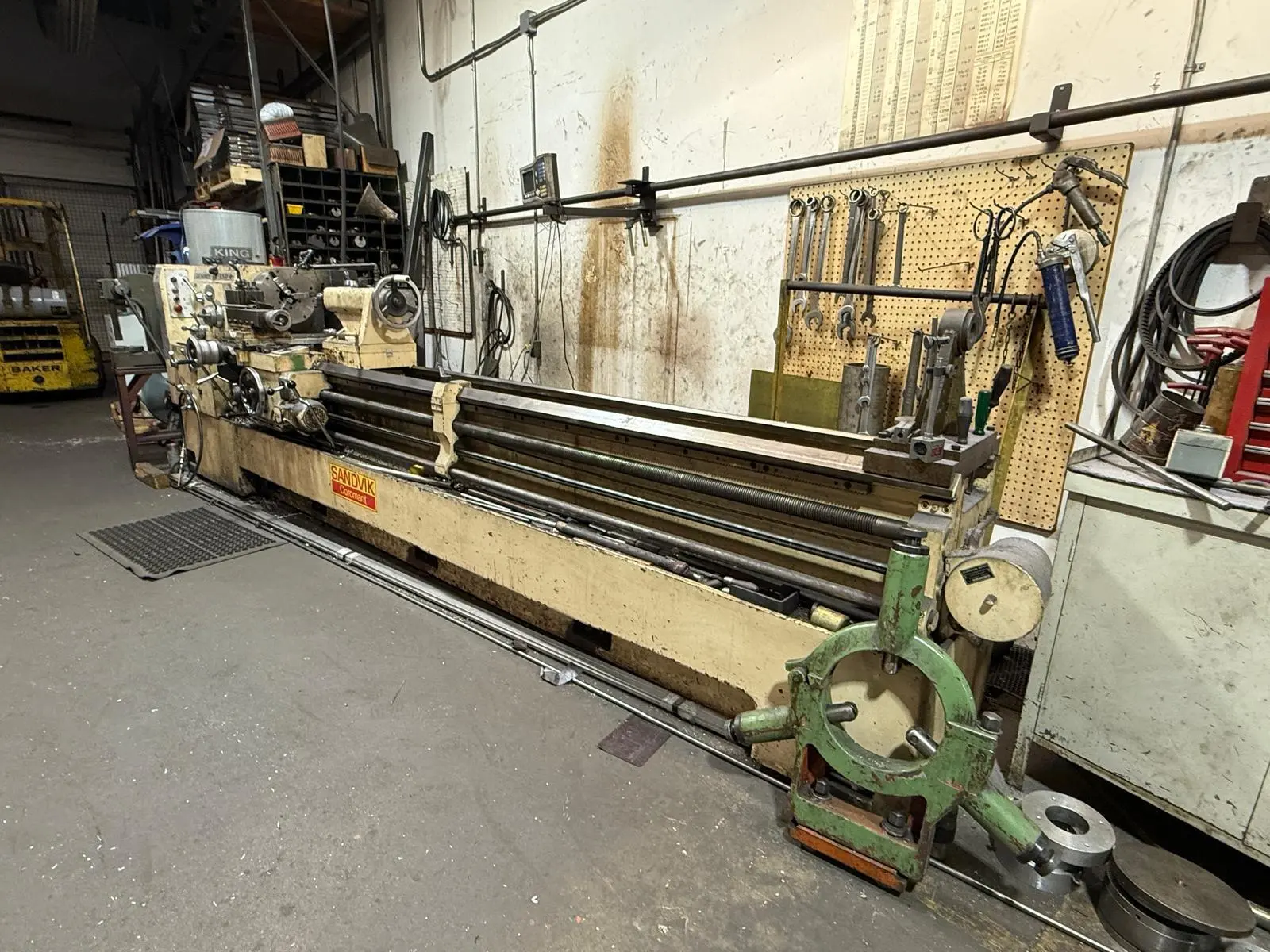

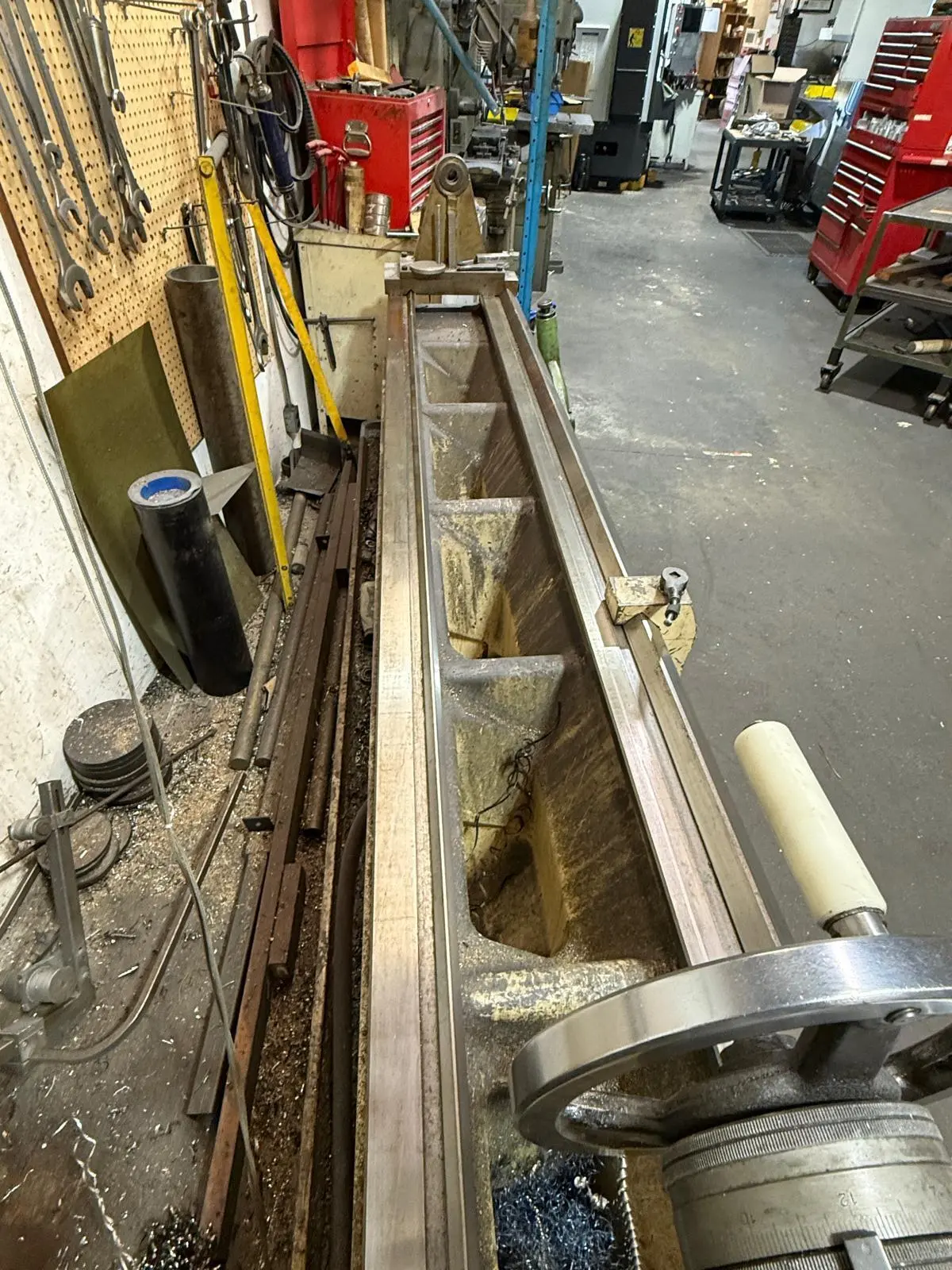

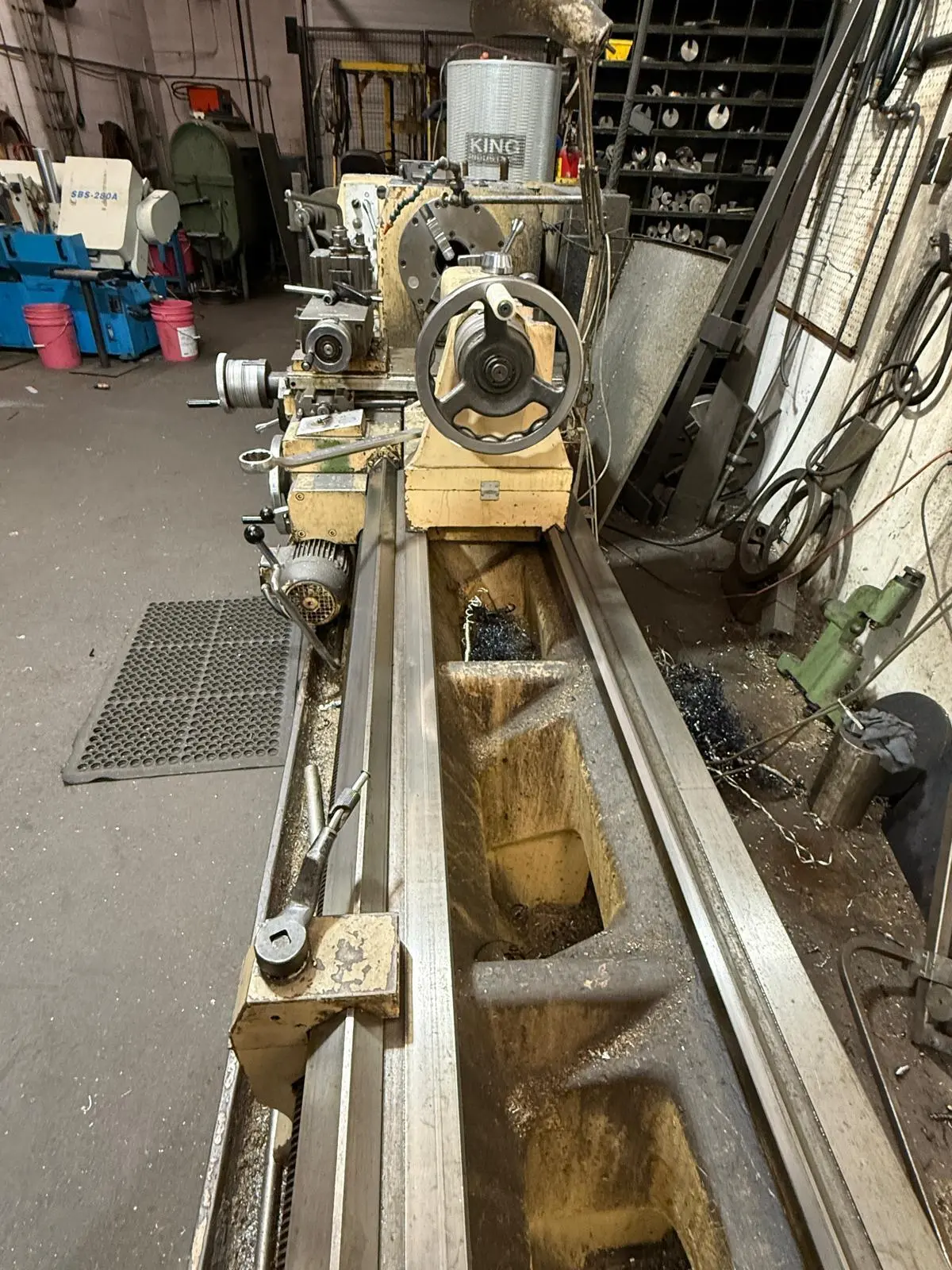

GEMINIS GE-650 MANUAL ENGINE LATHE 27IN SWING 120IN DCC 15HP

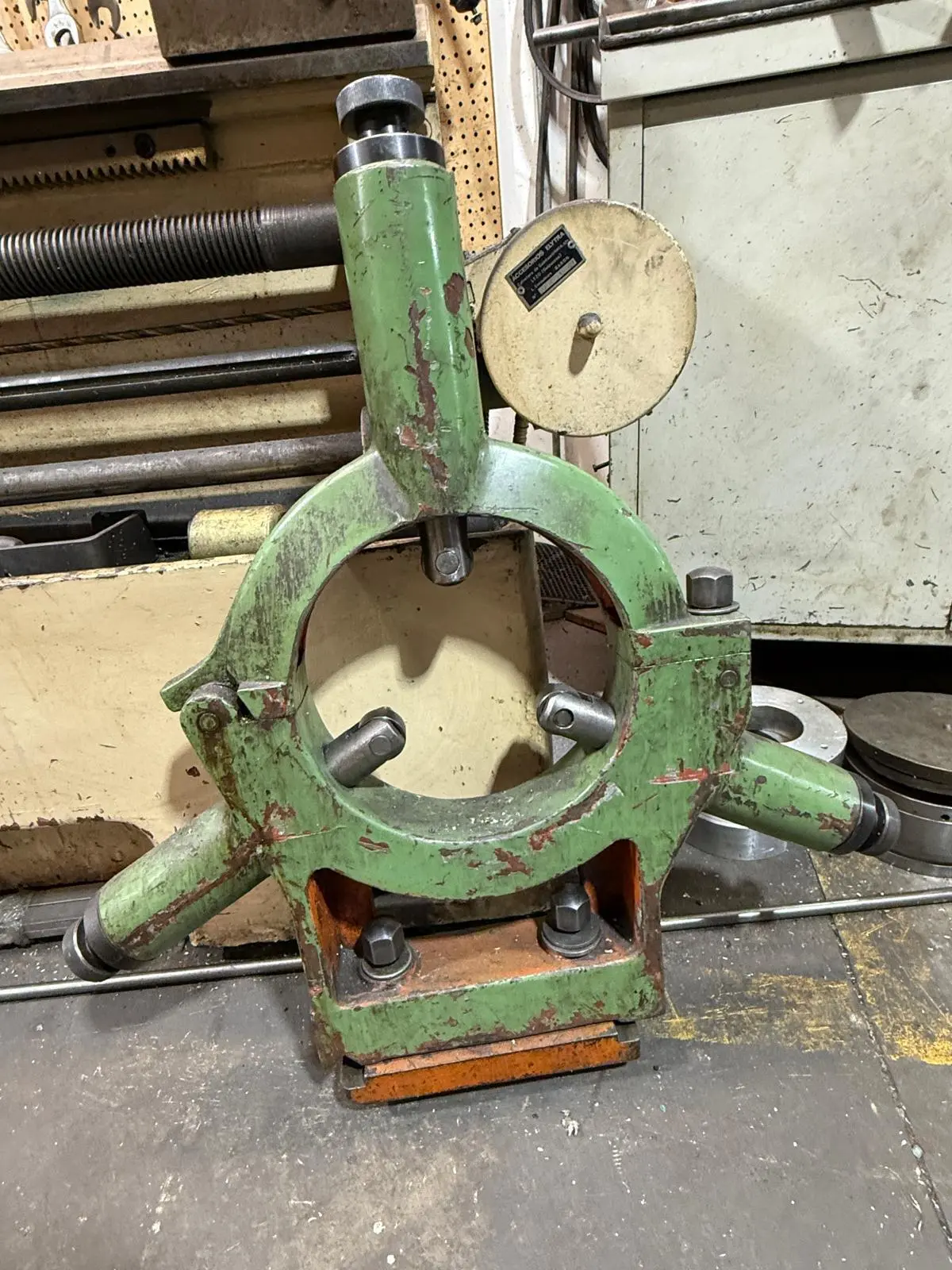

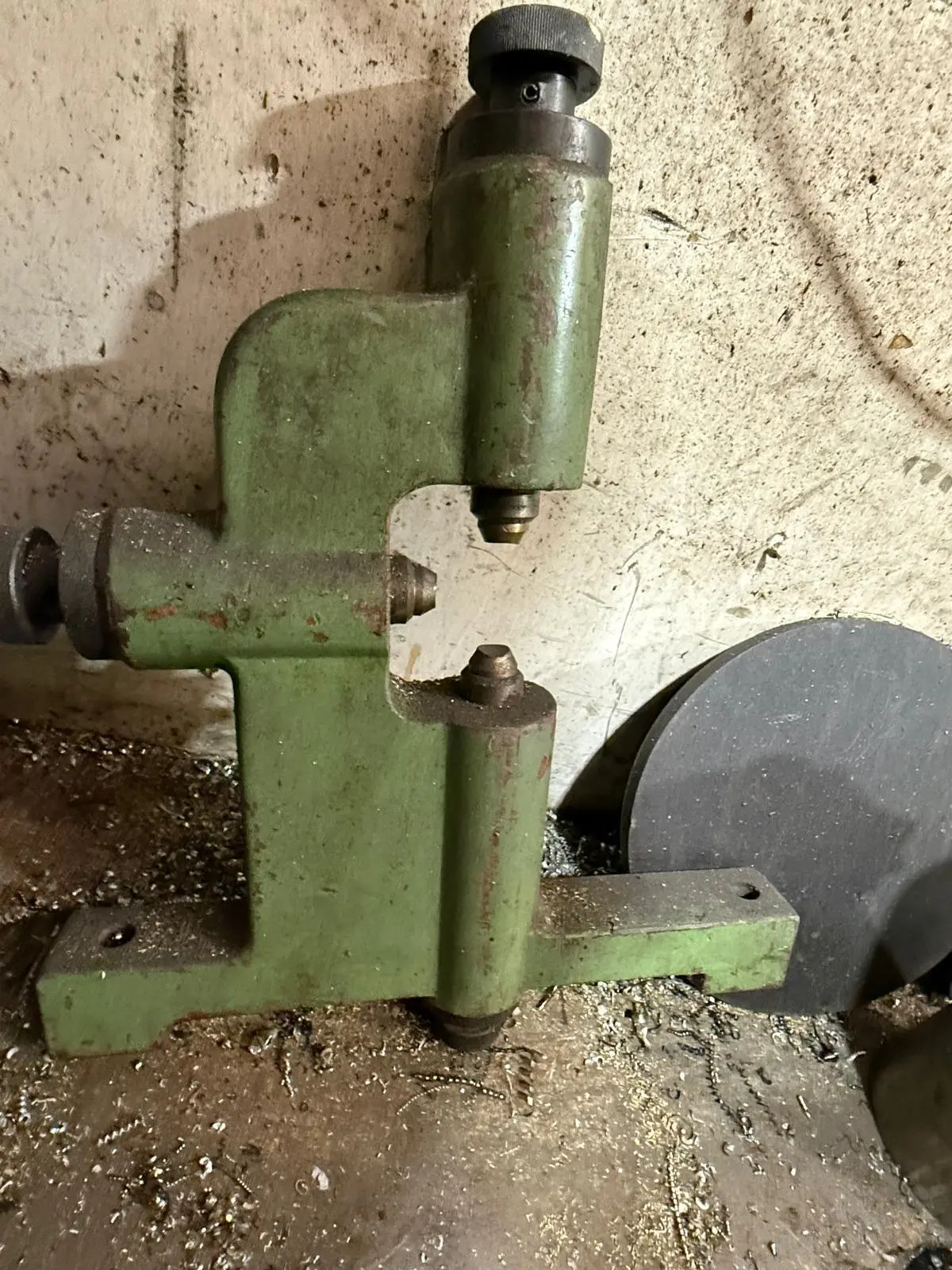

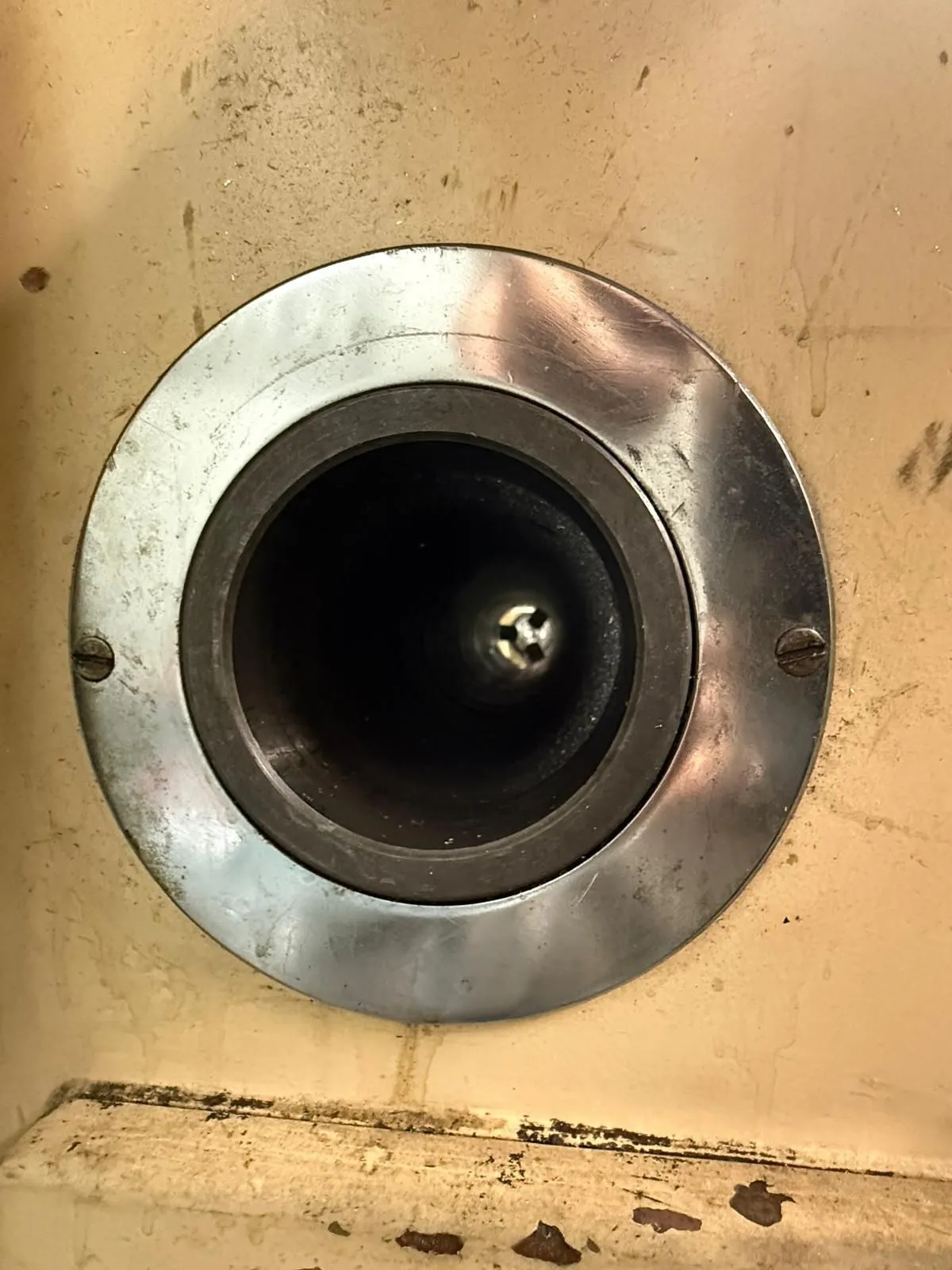

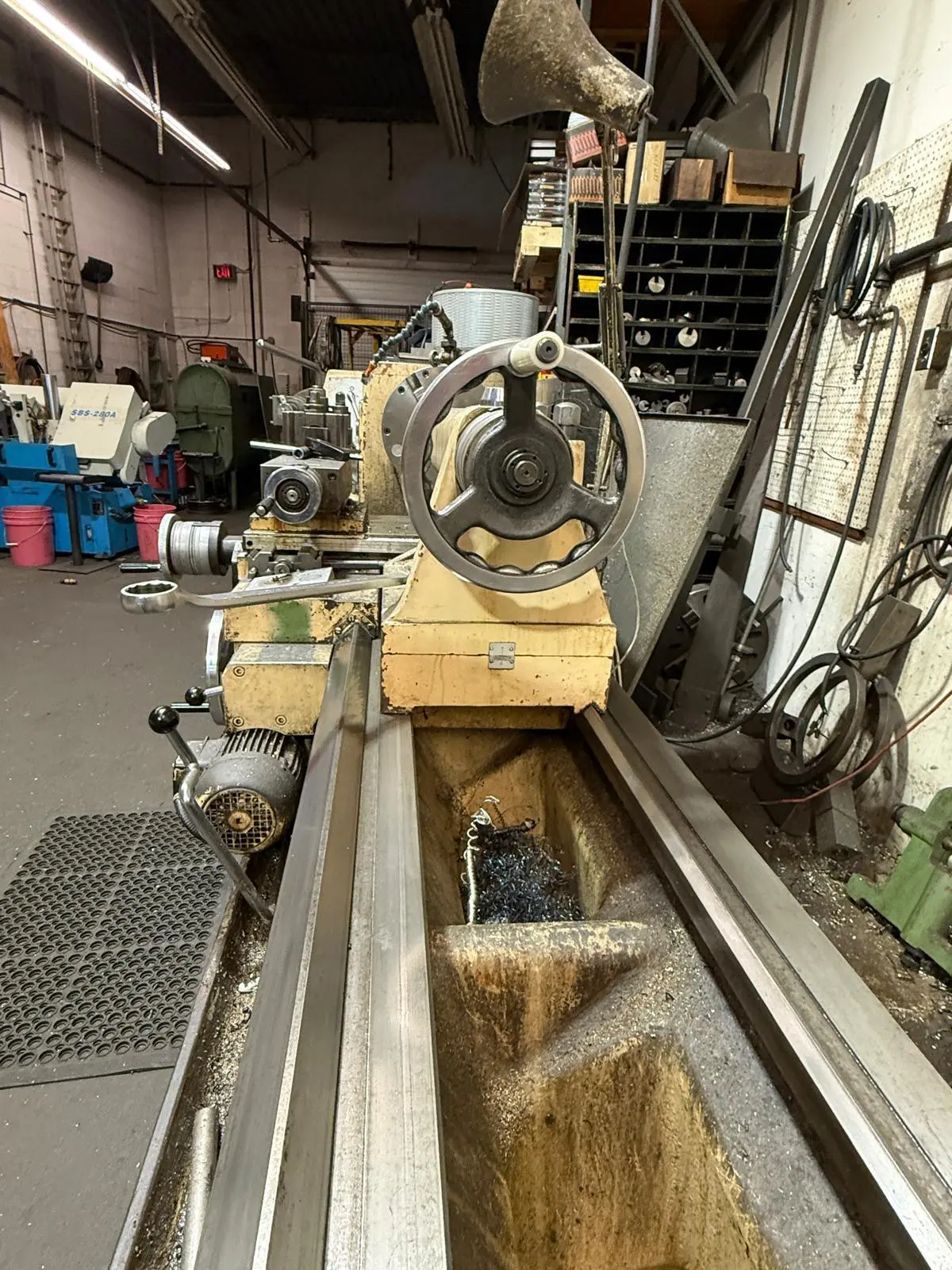

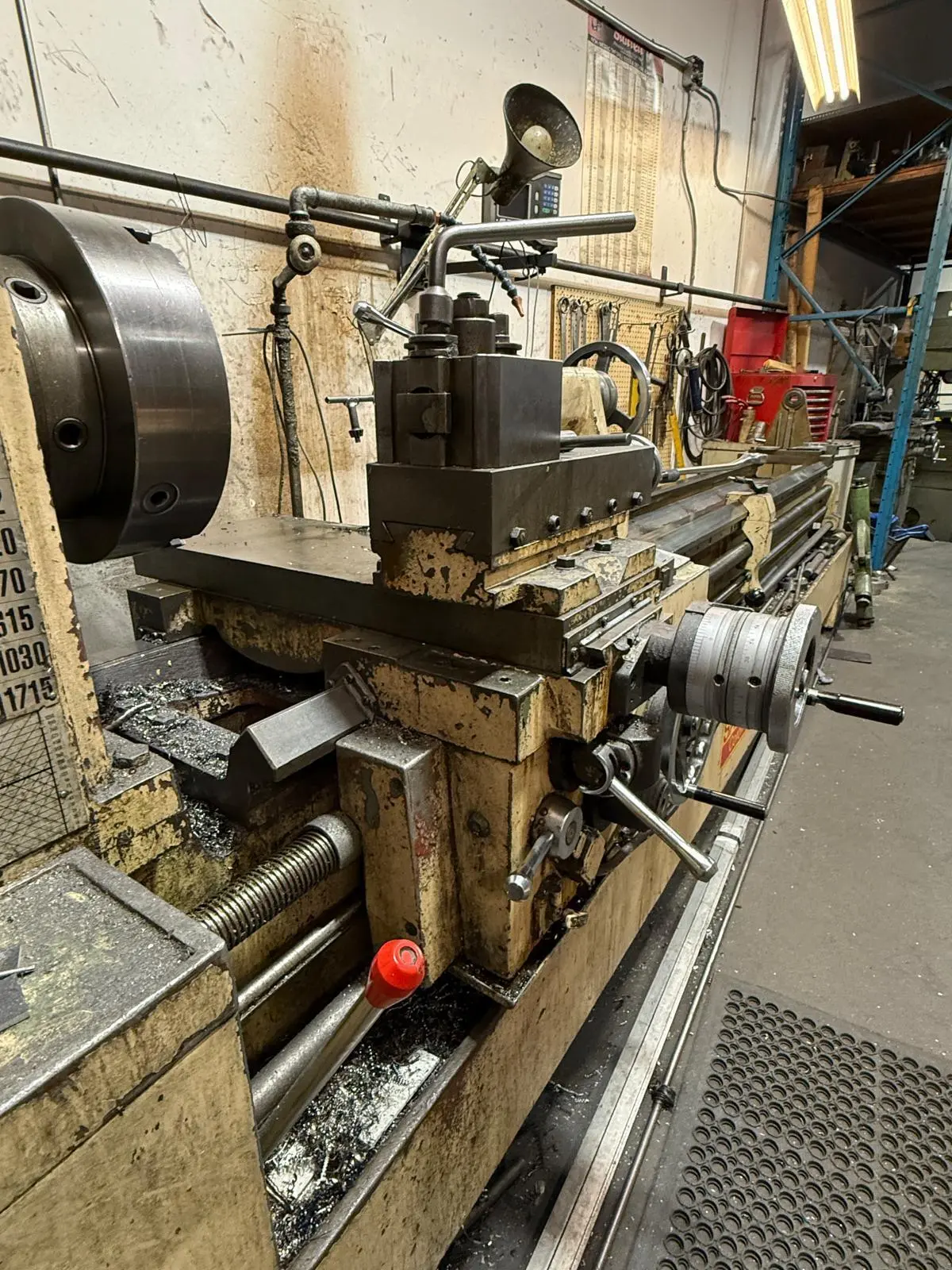

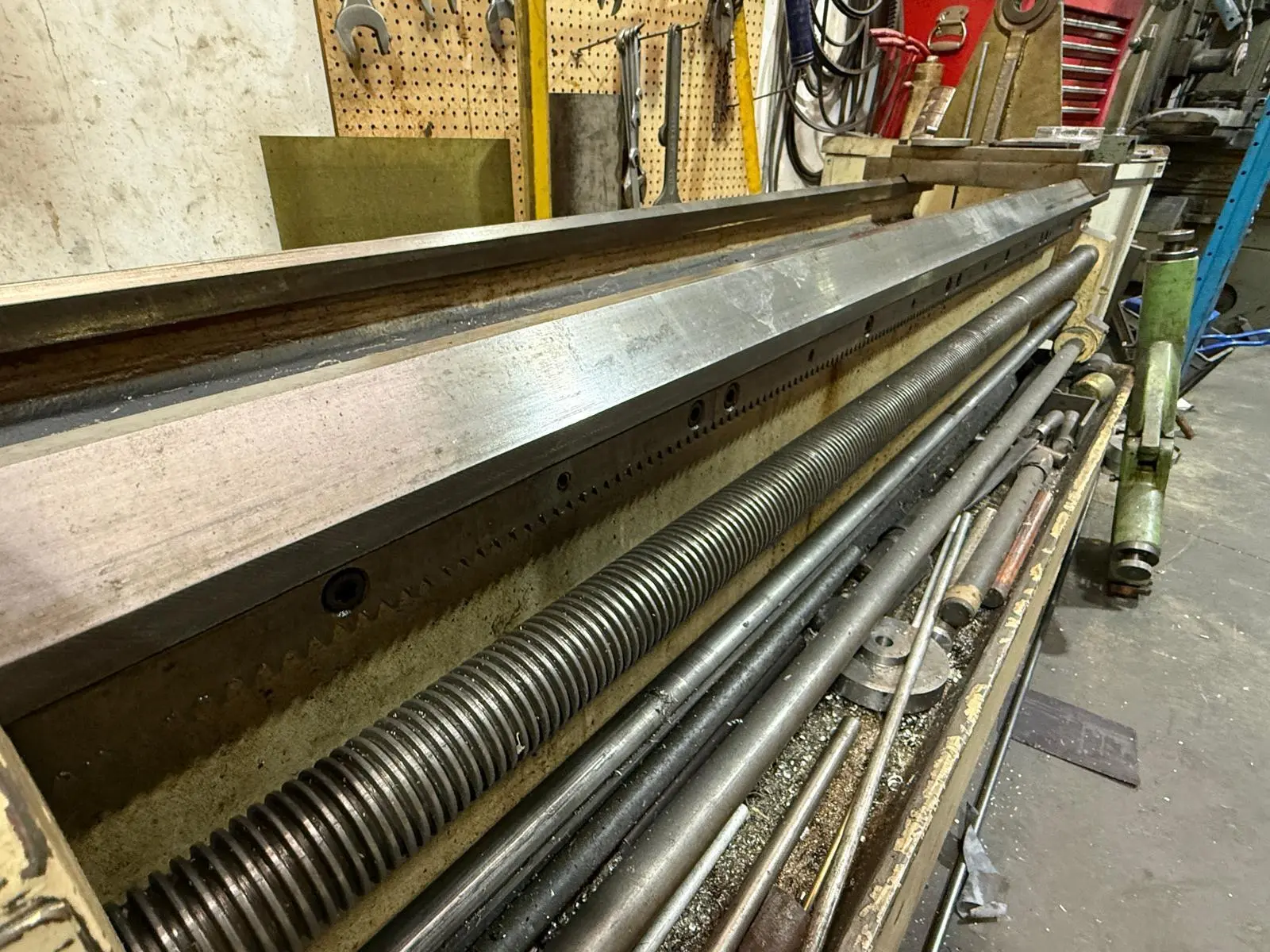

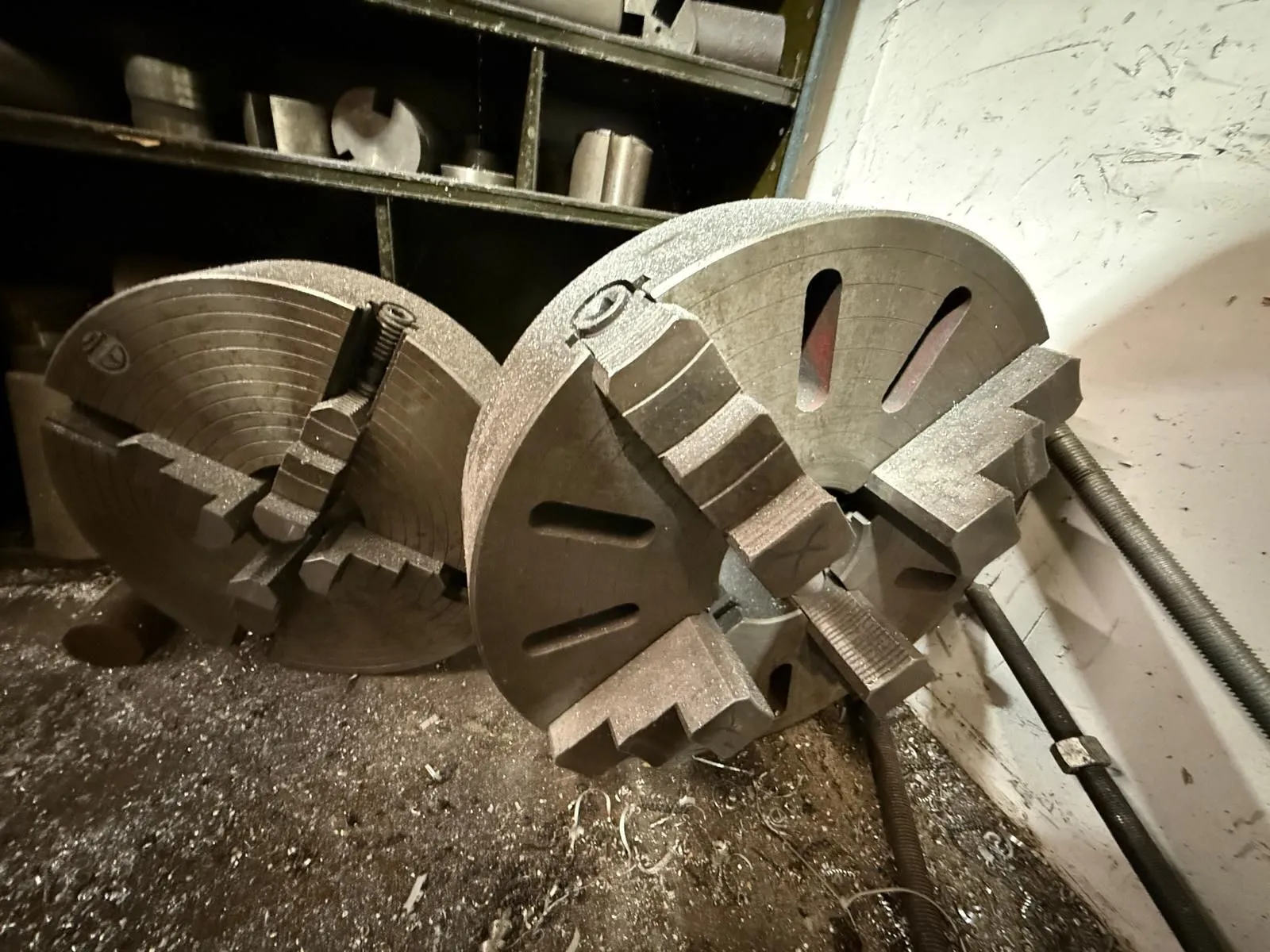

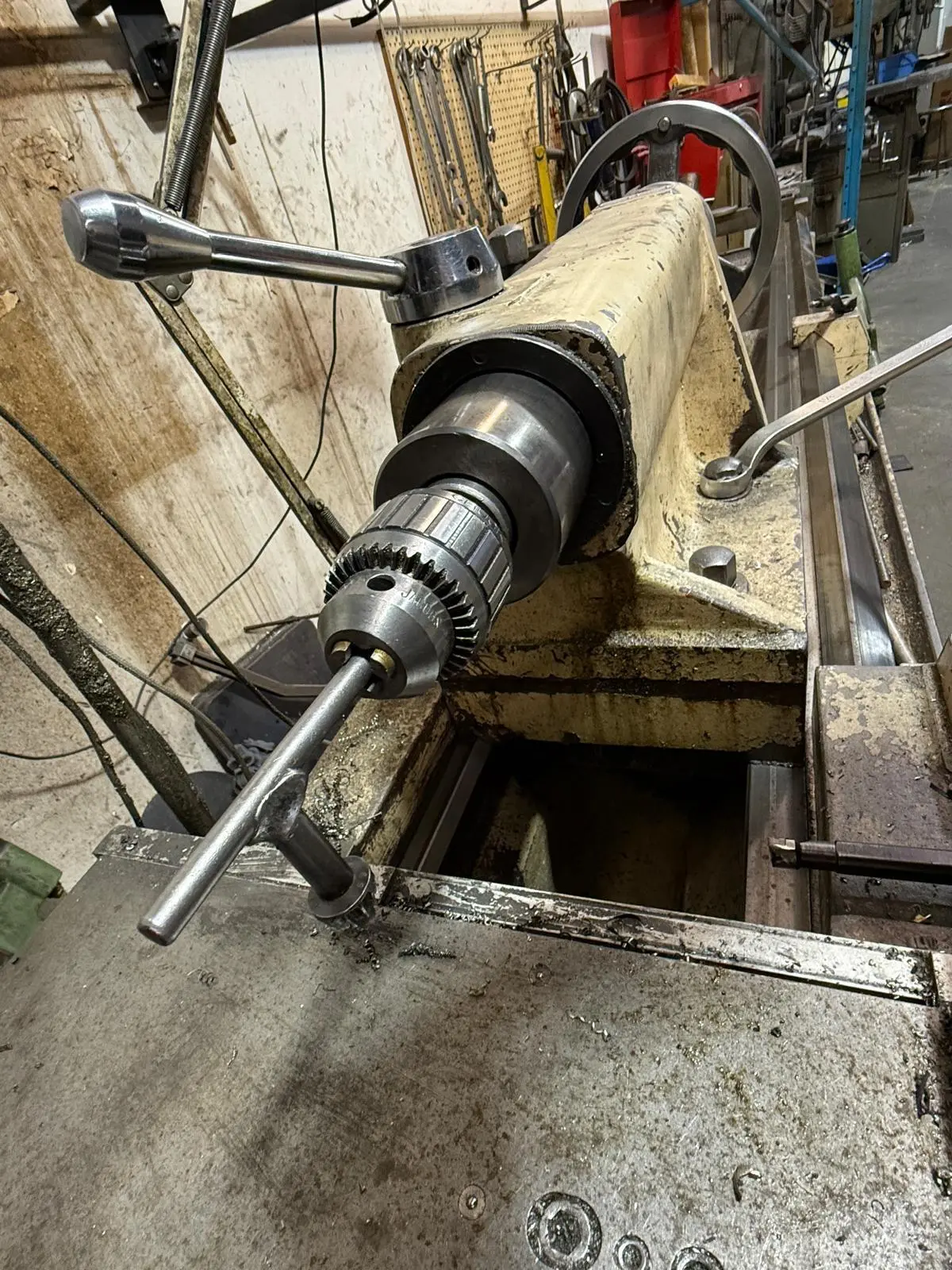

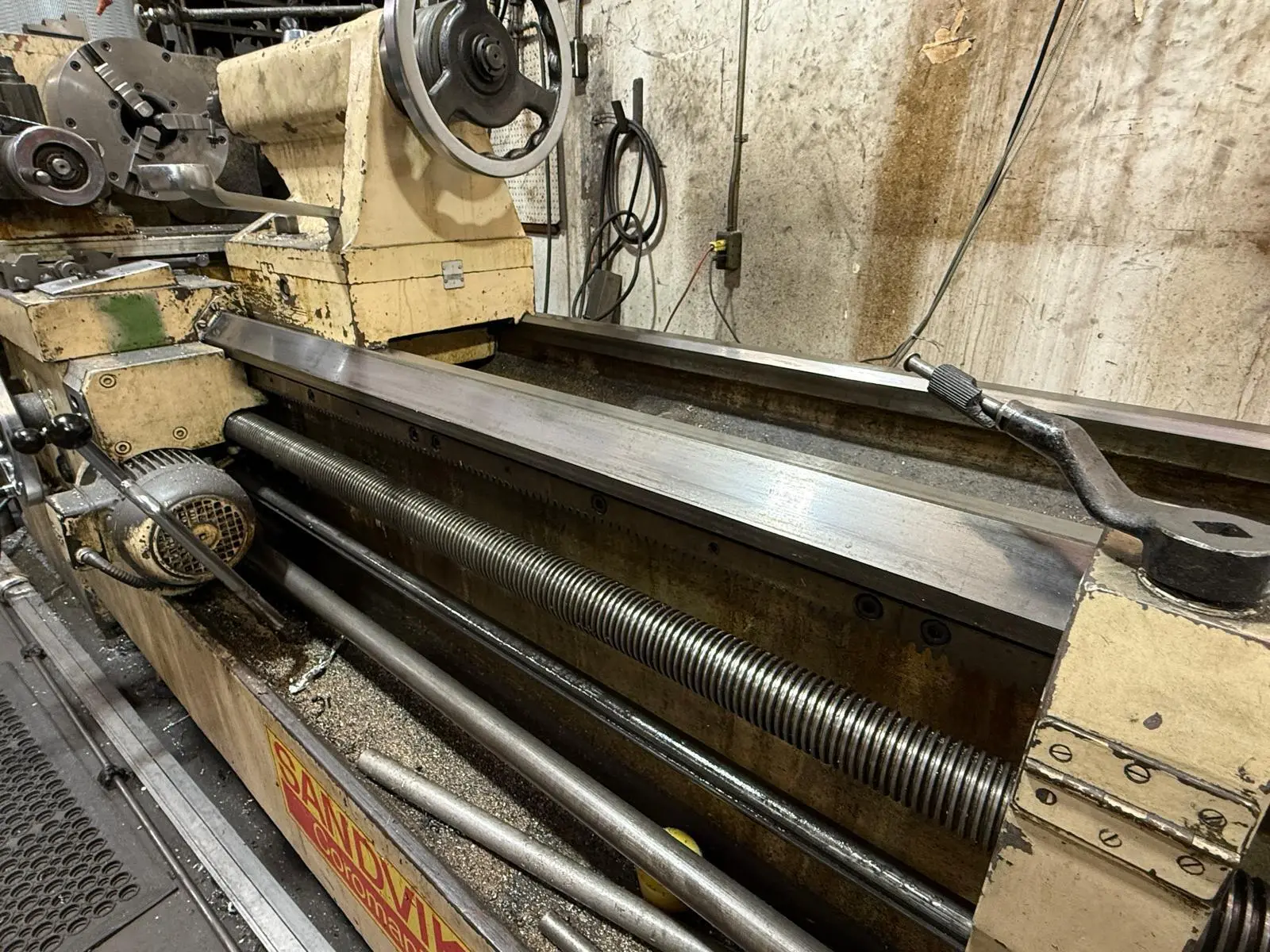

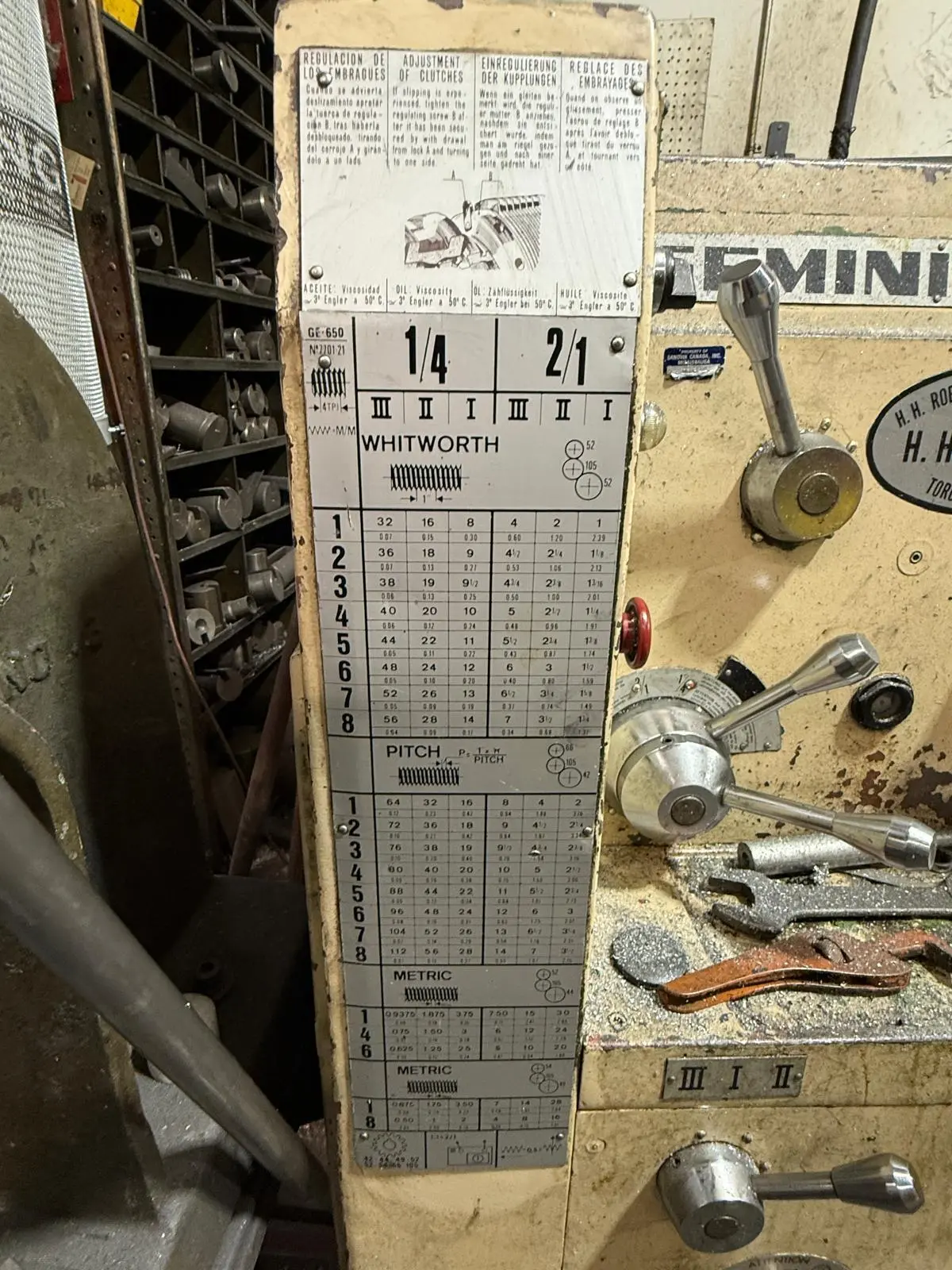

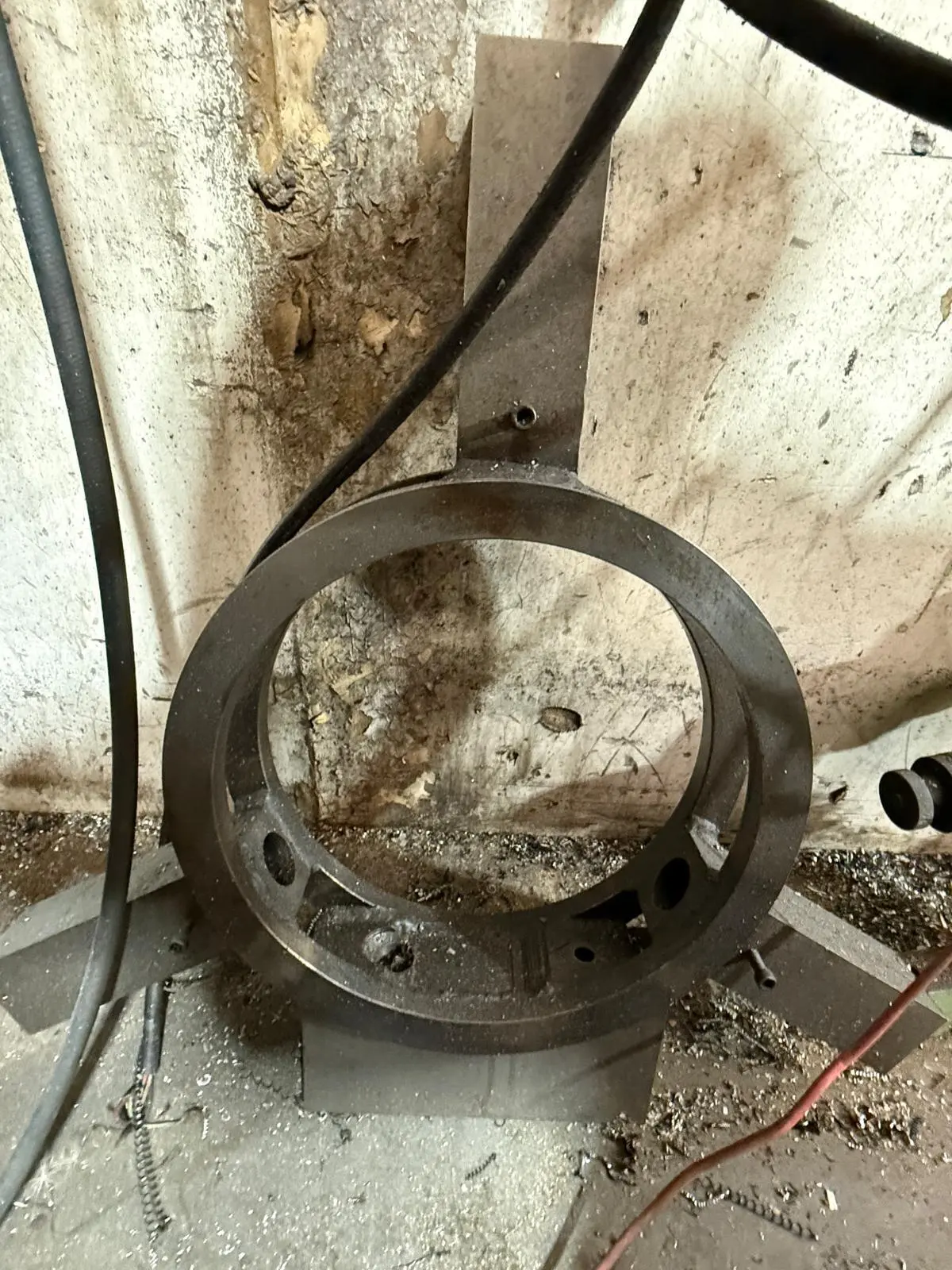

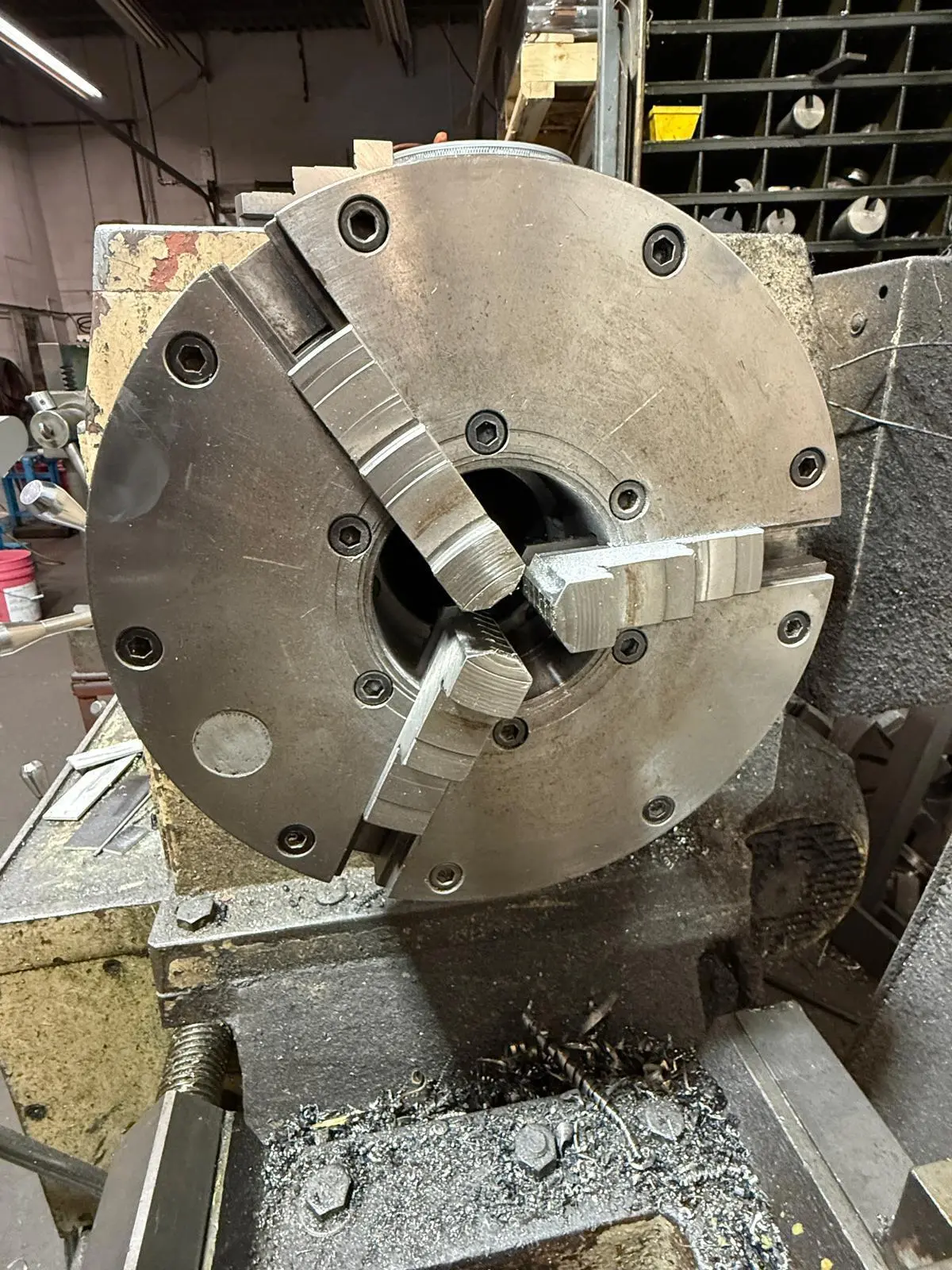

THE GEMINIS GE-650 10'FT MANUAL ENGINE LATHE OPERATES ON 575V, 60HZ, 3PH POWER AND IS DRIVEN BY AN 11 KW (15 HP) MAIN MOTOR. IT OFFERS A CAPACITY OF 27IN (650 MM) SWING OVER BED, 15.7 IN (400 MM) SWING OVER CROSS SLIDE, AND APPROXIMATELY 120 IN DISTANCE BETWEEN CENTERS. THE SPINDLE FEATURES A ~4.1 IN (105 MM) BORE, CAMLOCK D1-8 NOSE, AND SPEEDS RANGING FROM APPROXIMATELY 12–1,200 RPM. FEEDS AND THREADING CAPABILITIES INCLUDE WIDE MULTI-RANGE LONGITUDINAL FEEDS, CROSS FEEDS, AND THREADING FOR BOTH METRIC AND IMPERIAL (WHITWORTH) THREADS, UTILIZING A FULL-LENGTH PRECISION LEAD SCREW AND SEPARATE FEED ROD. THE CARRIAGE AND SLIDES FEATURE AN APRON WITH POWER LONGITUDINAL AND CROSS FEED, A THREAD DIAL INDICATOR, AND A SWIVELING COMPOUND REST. THE TAILSTOCK HAS A ~4.7 IN (120 MM) QUILL DIAMETER, ~9.8 IN (250 MM) QUILL TRAVEL, MT5 TAPER, AND OFFSET CAPABILITY. THE MACHINE WEIGHS 15,000 LBS AND HAS DIMENSIONS OF 204'' X 75'' X 78''. ACCESSORIES INCLUDE A 3-JAW CHUCK, TWO 4-JAW CHUCKS, AND A STEADY REST.
