GOULDS PUMPS 3196 CENTRIFUGAL PUMP, 3X4-8, 665 GPM, 150.2FT HEAD, 2684 RPM, 316 SS

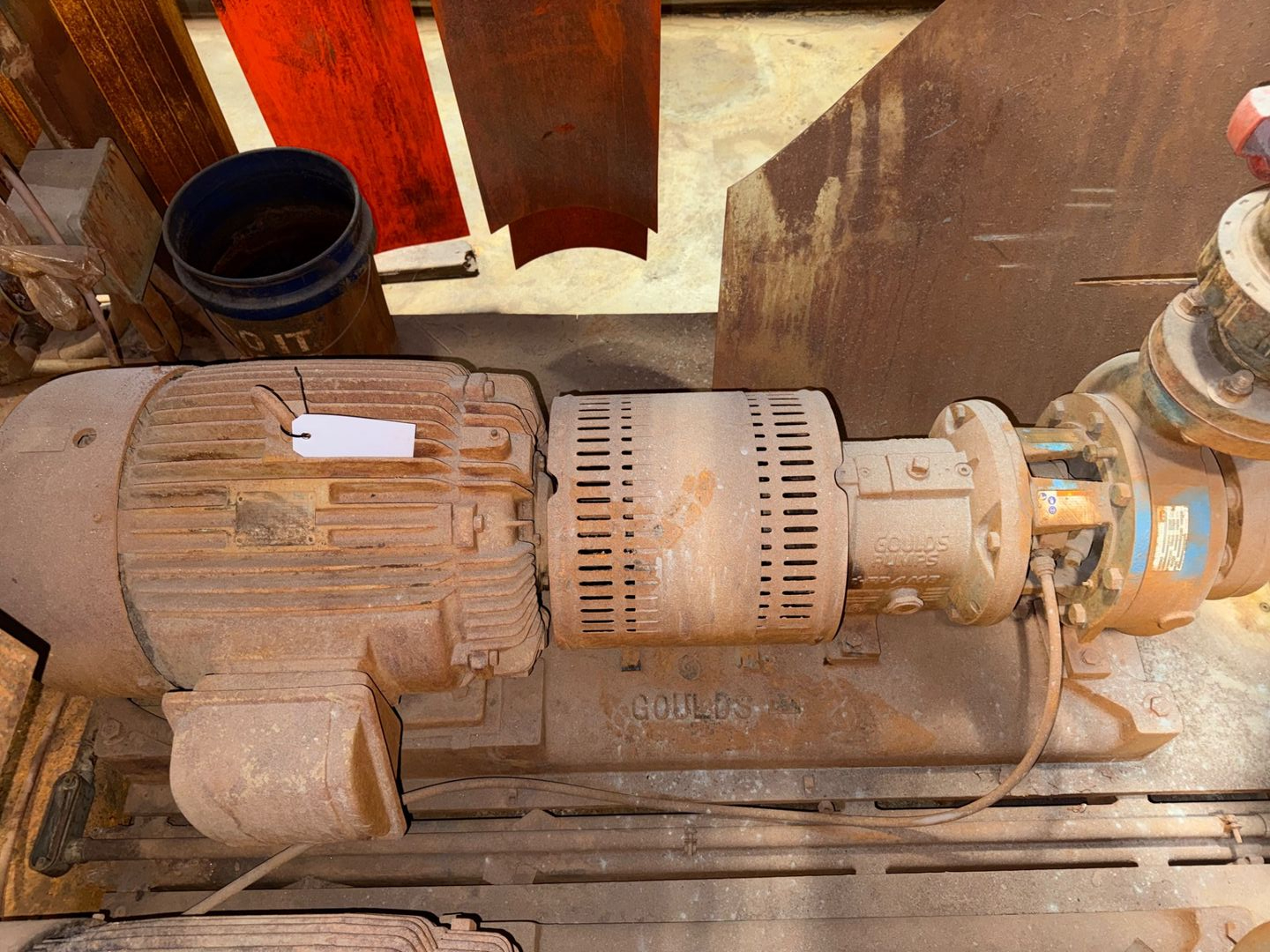

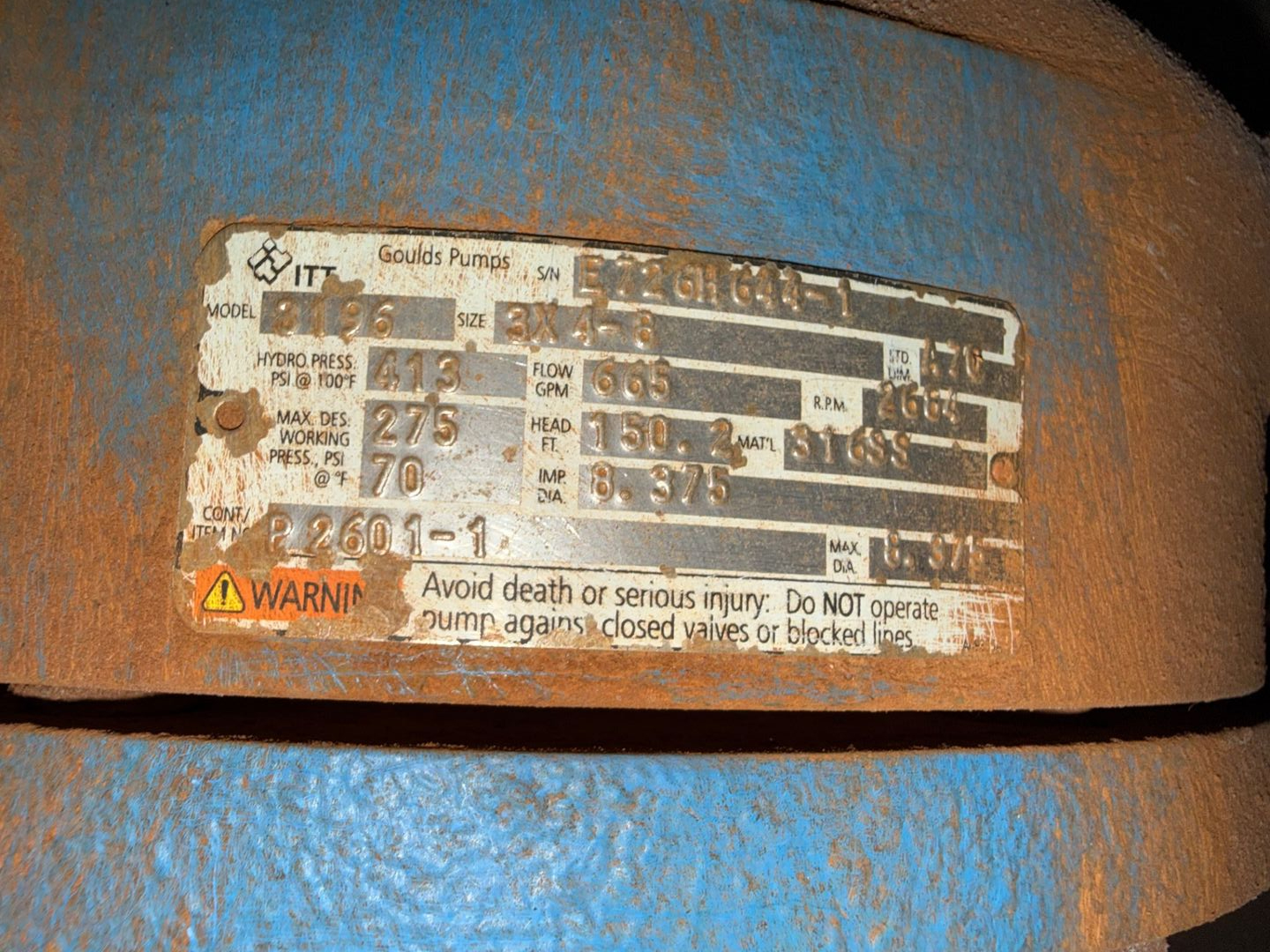

THE GOULDS PUMPS MODEL 3196 IS AN ANSI STANDARD DIMENSION, BACK PULL-OUT CENTRIFUGAL PROCESS PUMP DESIGNED FOR INDUSTRIAL APPLICATIONS. THIS 3 X 4 - 8 SIZE UNIT FEATURES A 316 STAINLESS STEEL CONSTRUCTION AND IS EQUIPPED WITH A 8.375-INCH FULLY OPEN IMPELLER. TECHNICAL PERFORMANCE SPECIFICATIONS FOR THIS SPECIFIC CONFIGURATION INCLUDE A FLOW RATE OF 665 GPM, A HEAD OF 150.2 FEET, AND AN OPERATING SPEED OF 2684 RPM. THE PUMP IS RATED FOR A MAXIMUM DESIGN WORKING PRESSURE OF 275 PSI AT 70°F, WITH A HYDROSTATIC TEST PRESSURE OF 413 PSI AT 100°F. THE DESIGN INCORPORATES AN I-FRAME POWER END FOR EQUIPMENT HEALTH MONITORING AND AN A70 STANDARD DIMENSION FRAME. ENGINEERED FOR CHEMICAL AND GENERAL INDUSTRIAL SERVICES, THE 3196 MODEL UTILIZES A FULLY OPEN IMPELLER TO HANDLE CORROSIVES, ABRASIVES, AND STRINGY FIBERS WHILE ALLOWING FOR THE RESTORATION OF CLEARANCES. THE BACK PULL-OUT DESIGN FACILITATES MAINTENANCE BY ALLOWING THE REMOVAL OF THE POWER END AND IMPELLER WITHOUT DISTURBING PIPING OR THE MOTOR.
