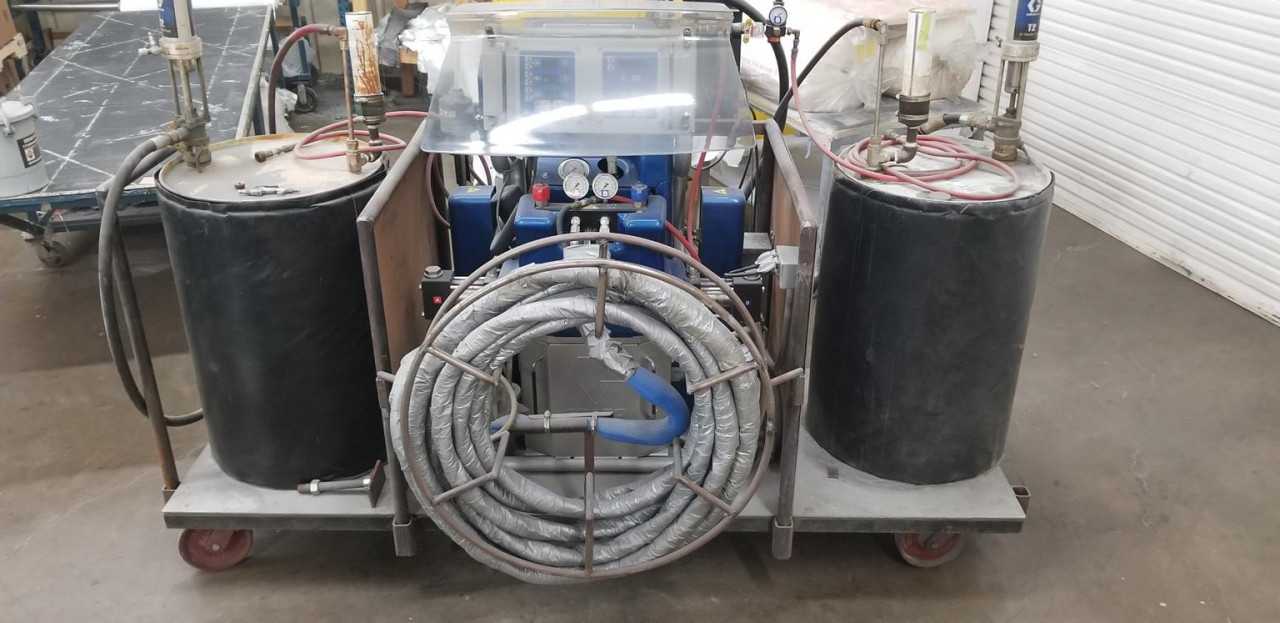

Graco Reactor H-XP3 Foam Spray Machine

Graco Reactor H-XP3 Foam Spray Machine Reactor 2 Hydraulic Proportioning System Maximum Fluid Working Pressure for Bare Proportioners Models H-XP2 and H-XP3 24.1 MPa, 241 bar Minimum Fluid Working Pressure for Bare Proportioners H-XP2 8.2 MPa, 82 bar H-XP3 5.8 MPa, 58 bar Fluid: Oil Pressure Ratio Models H-XP2 and H-XP3 2.79 : 1 Fluid Inlets Component A (ISO) 3/4 npt(f), 2.07 MPa, 20.7 bar maximum Component B (RES) 3/4 npt(f), 2.07 MPa, 20.7 bar maximum Fluid Outlets Component A (ISO) #8 1/2 in. JIC, with #5 5/16 in. JIC adapter Component B (RES) #10 5/8 in. JIC, with #6 3/8 in. JIC adapter Fluid Circulation Ports 1/4 npsm(m) 1.75 MPa, 17.5 bar Maximum Fluid Temperature 88° C Maximum Output (10 weight oil at ambient temperature) Model H-XP2 5.7 liter/min (60 Hz) Model H-XP3 10.6 liter/min (60 Hz) Output Per Cycle (A and B) Models H-XP2 and H-XP3 0.16 liter Supply Voltage Tolerance 200–240V nominal, 1 phase 195–264 VAC, 50/60 Hz 200–240V nominal, 3 phase 195–264 VAC, 50/60 Hz 650–415V nominal, 3 phase 338–457 VAC, 50/60 Hz Amperage Requirement (phase) See the Models listing in the manual. Heater Power (A and B heaters total) See the Models listing in the manual. Hydraulic Reservoir Capacity 13.6 liters Recommended Hydraulic Fluid Citgo, A/W Hydraulic Oil, ISO Grade 46 Sound Power, per ISO 9614–2 90.2 dB(A) Sound Pressure 1 m From Equipment 82.6 dB(A) Weight H-XP3, 272 kg H-XP2, 15 kW 252 kg Wetted Parts Aluminum, stainless steel, zinc-plated carbon steel, brass, carbide, chrome, fluoroelastomer, PTFE, ultra-high molecular weight polyethylene, chemically resistant o-rings
