GUSHER PUMPS CL1X1.5-8SELCDMBDP CENTRIFUGAL PUMP

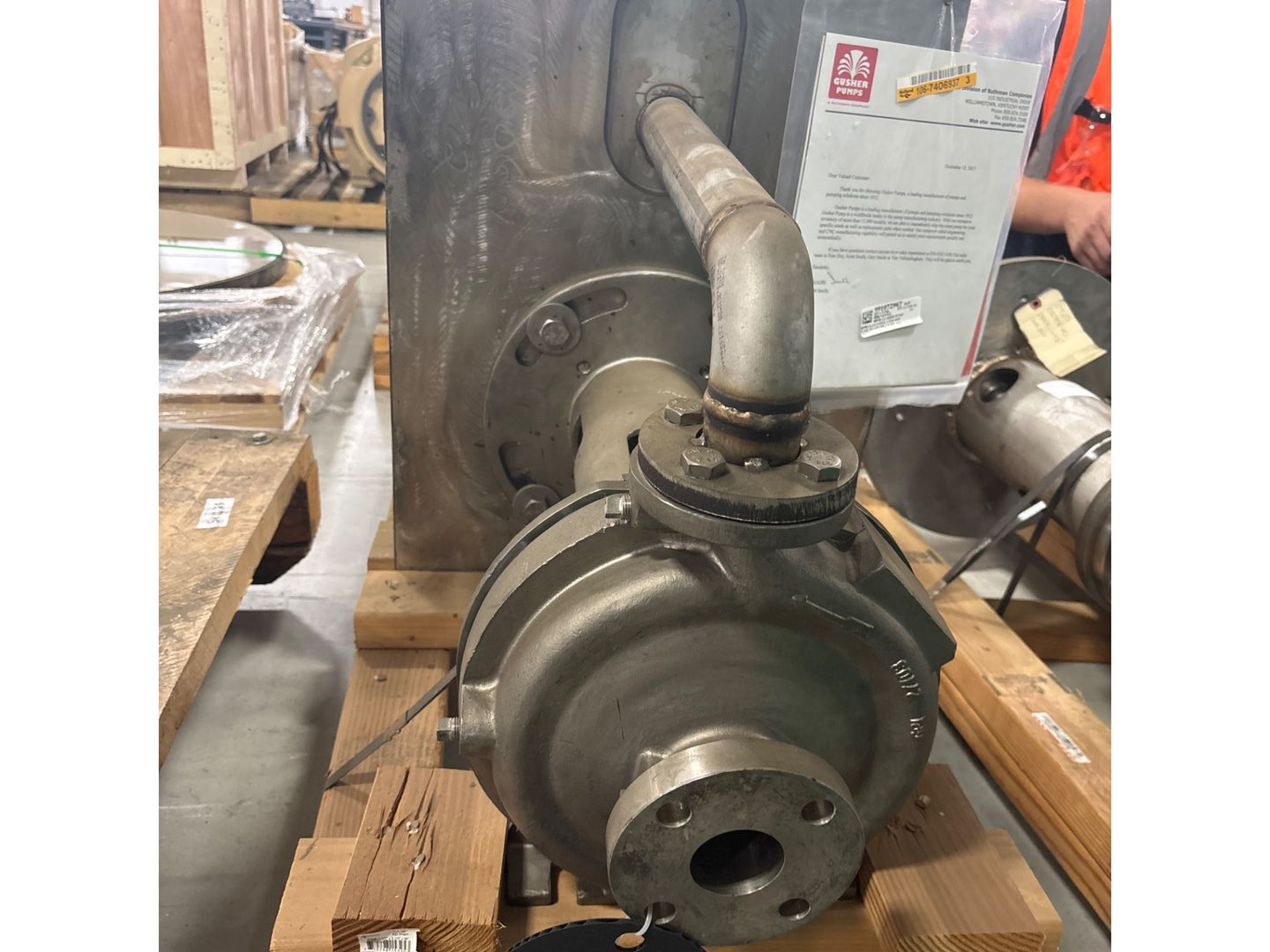

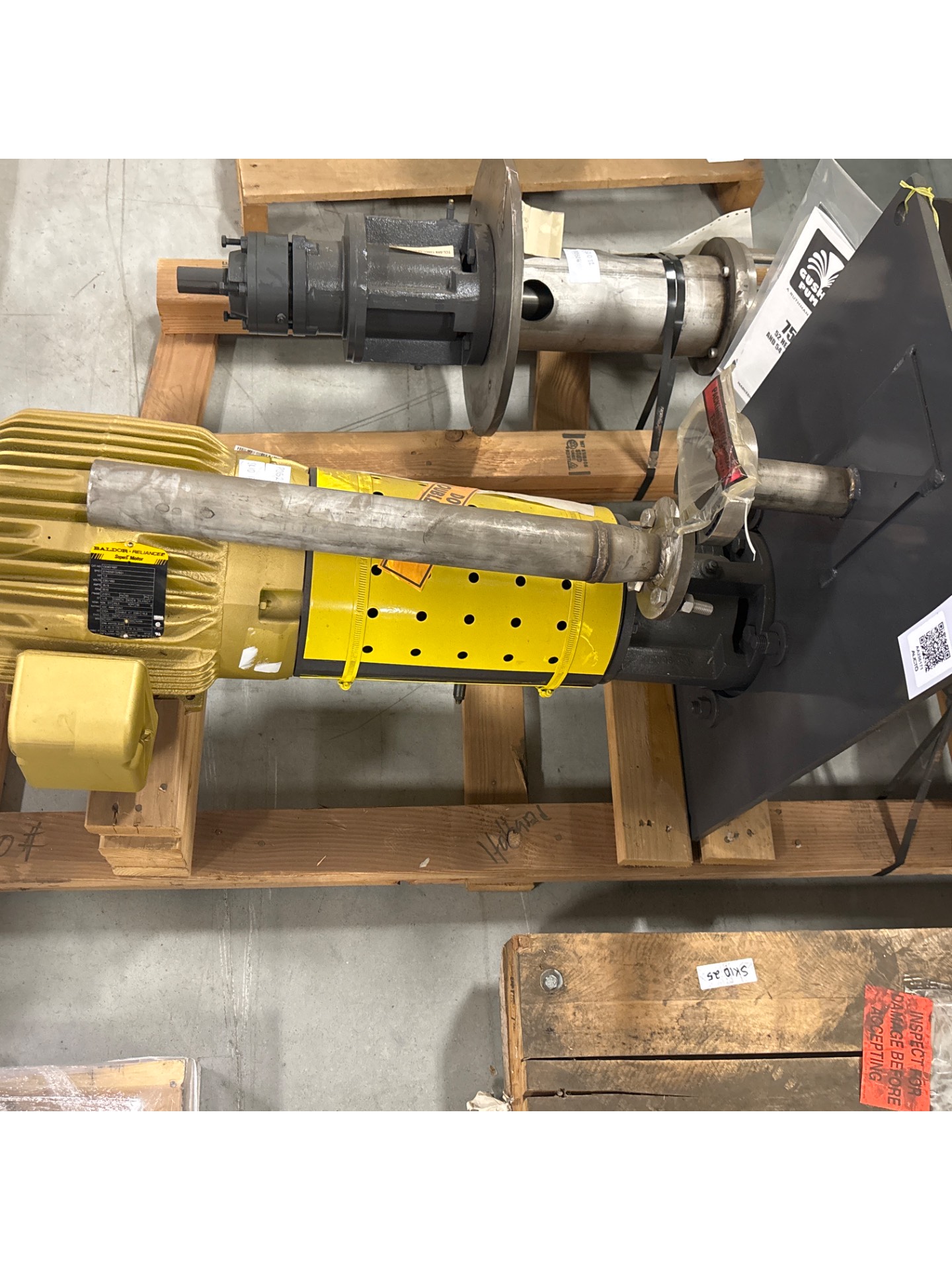

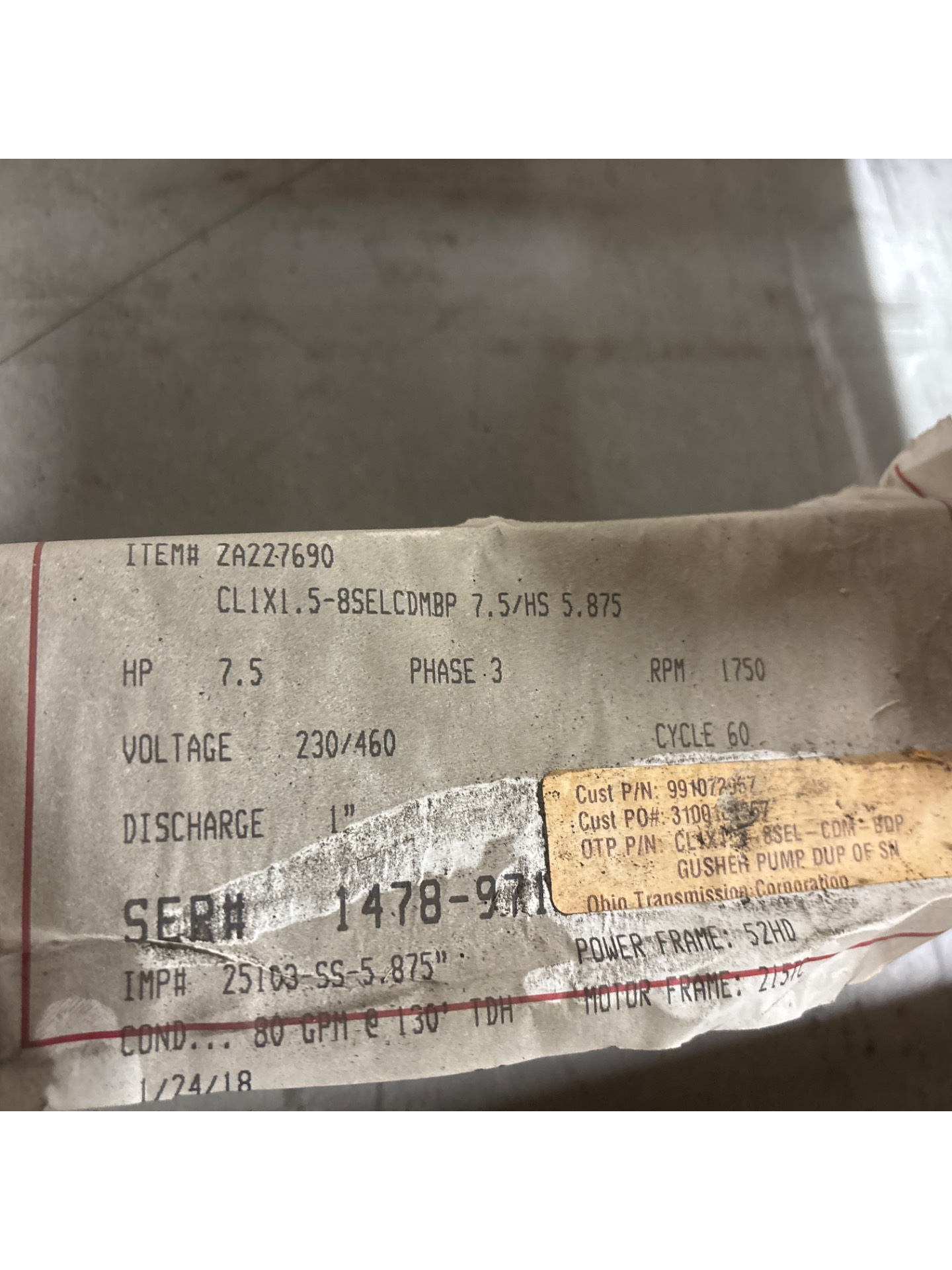

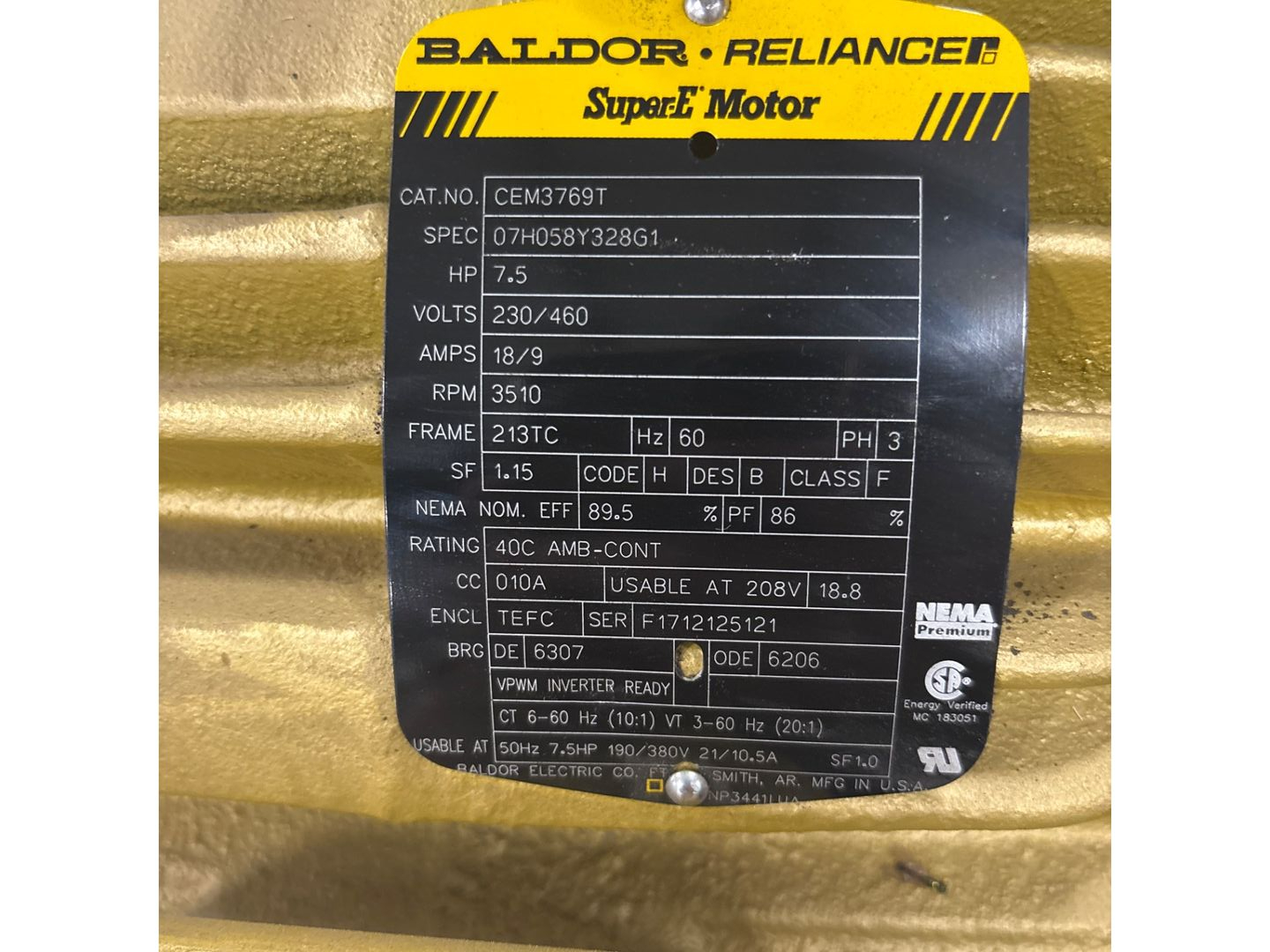

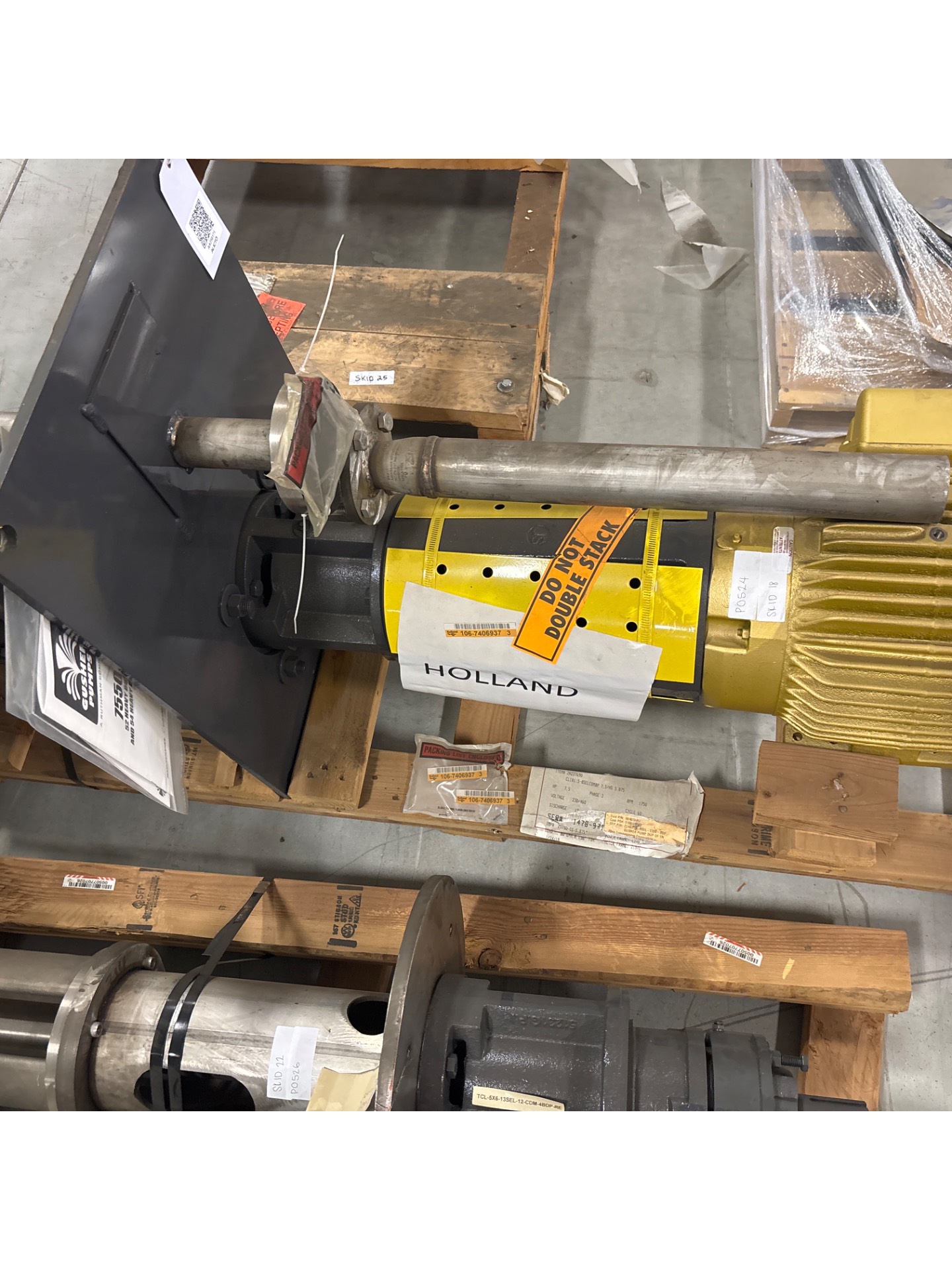

THIS UNIT IS A GUSHER CENTRIFUGAL PUMP, MODEL CL1X1.5-8SELCDMBP, WITH A 7.5 HP BALDOR RELIANCE SUPER-E MOTOR. THE PUMP CONSTRUCTION IS ALL STAINLESS STEEL AND IS EQUIPPED WITH A 52 VHD POWER FRAME AND A STAINLESS STEEL LINED COVER PLATE (18 × 26). IT HAS A DISCHARGE SIZE OF 1 INCH AND AN IMPELLER MEASURING 5.875 INCHES (25103-SS). THE PUMP IS RATED AT 80 GPM WITH 130 TDH. THE MOTOR IS BALDOR RELIANCE SUPER-E, CATALOG NUMBER CEM3769T, RATED AT 7.5 HP, DUAL VOLTAGE 230/460V, AND 18/9 AMPS. IT OPERATES AT 3510 RPM, 3-PHASE, 60 HZ, FRAME 213TC, WITH A 1.15 SERVICE FACTOR. IT IS TEFC (TOTALLY ENCLOSED FAN-COOLED), CLASS F INSULATION, NOMINAL EFFICIENCY OF 89.5%, AND INVERTER READY FOR OPERATION IN THE 6–60 HZ RANGE. BEARINGS ARE 6307 (DRIVE END) AND 6206 (OPPOSITE END).
