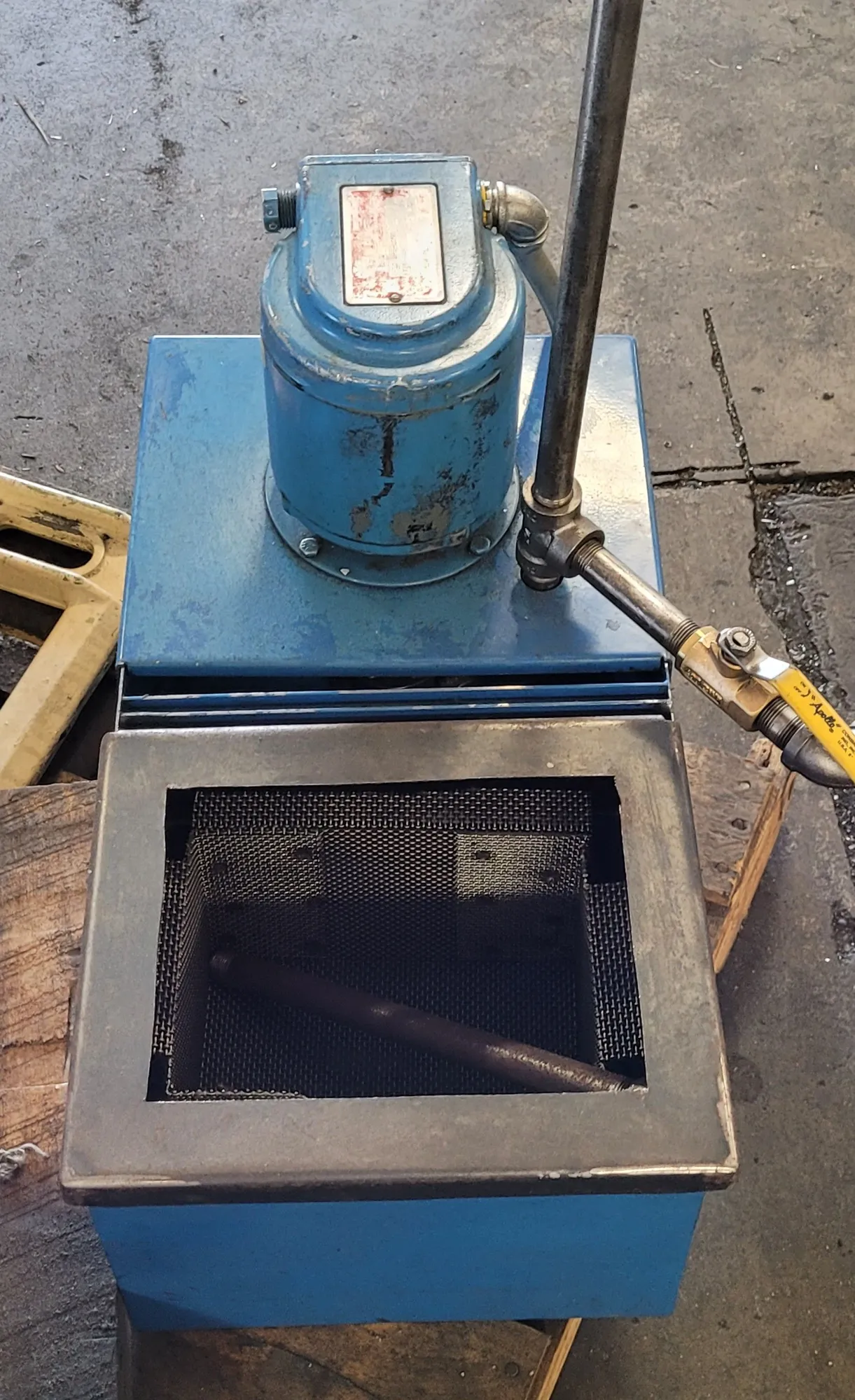

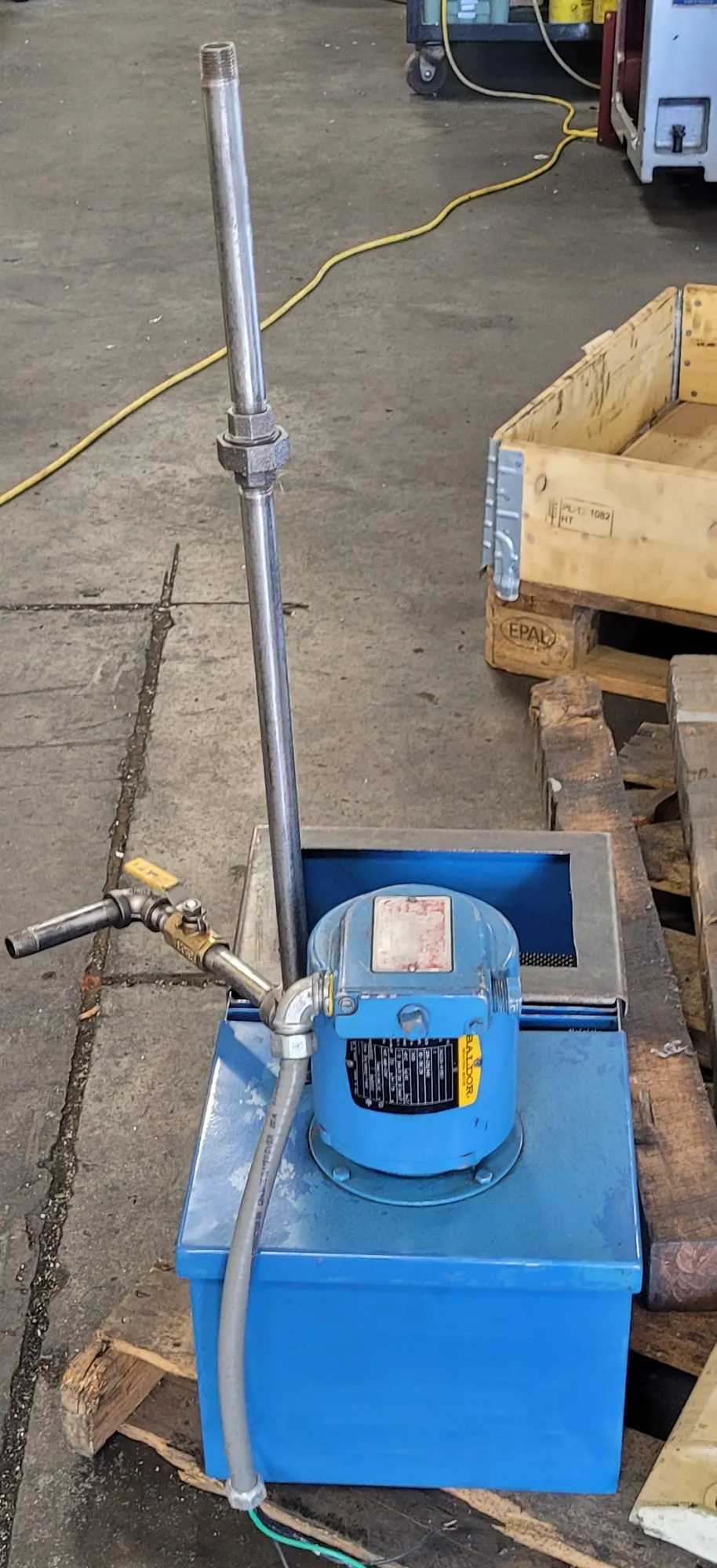

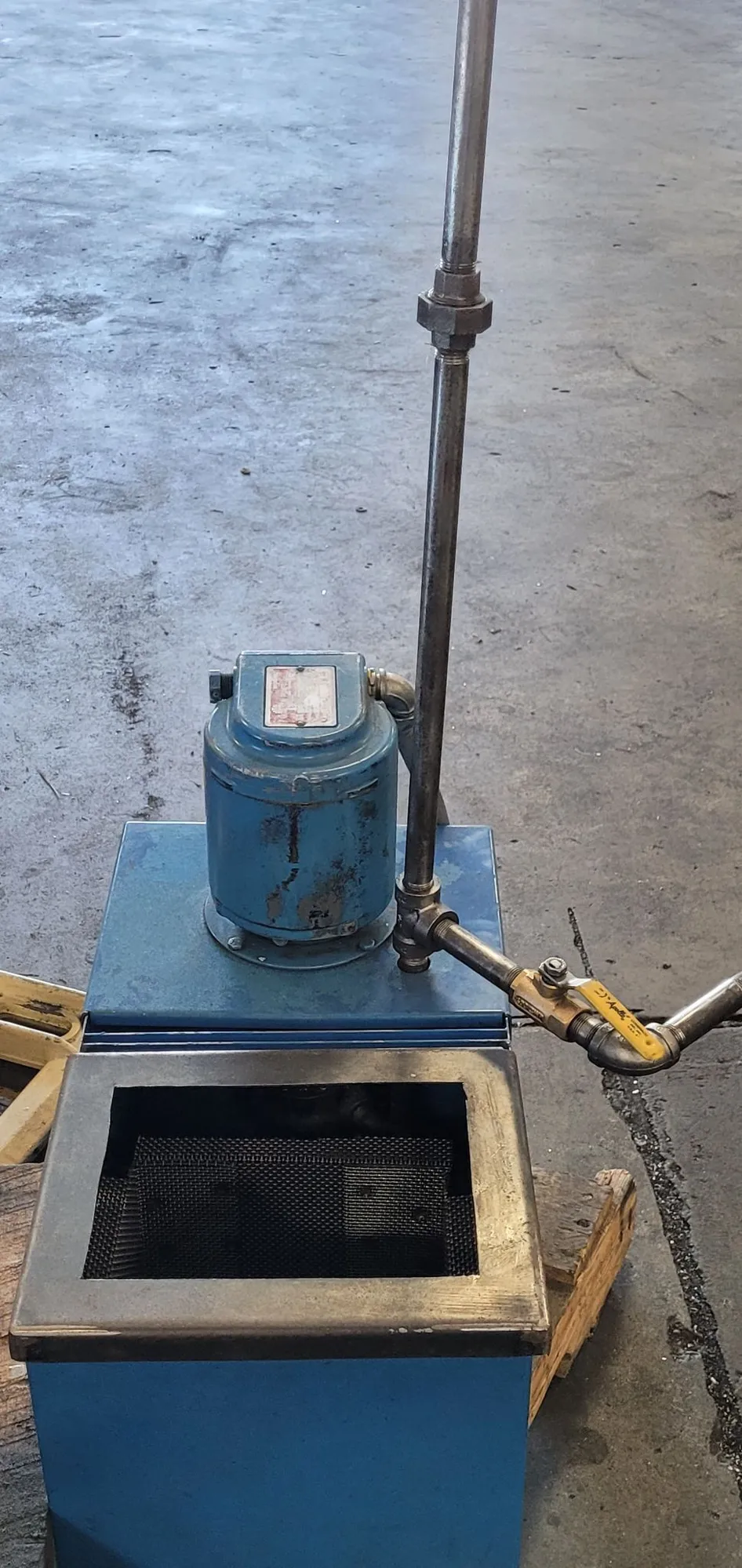

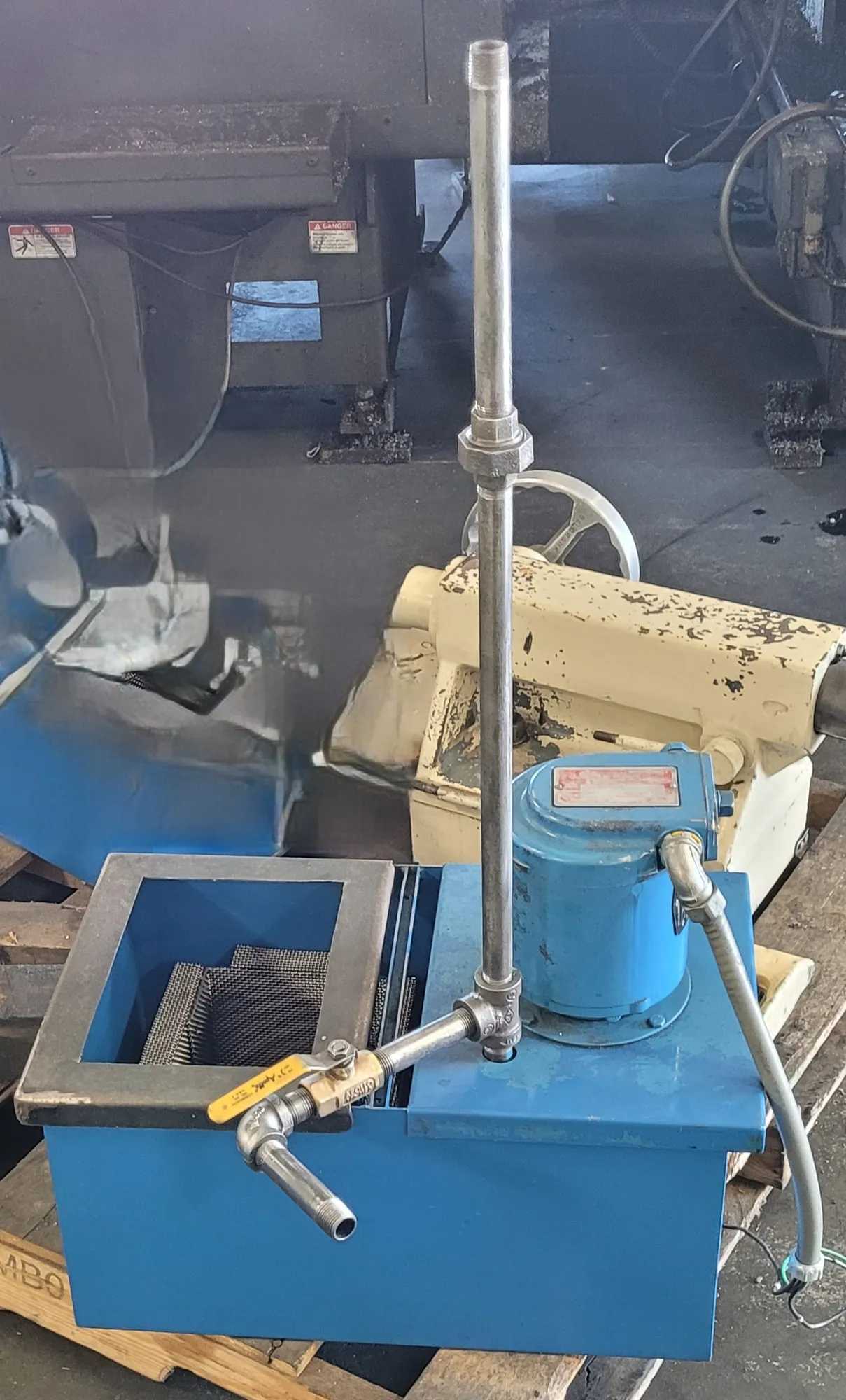

GUSHER T-10 1P3-LONG VERTICAL IMMERSION COOLANT PUMP, 1/10 HP, 115/230V, 9-GALLON TANK

THE GUSHER PUMPS T-10 1P3-LONG IS A RUGGED, VERTICAL IMMERSION COOLANT PUMP AND TANK UNIT DESIGNED FOR HEAVY-DUTY INDUSTRIAL APPLICATIONS, SUCH AS SUPPLYING COOLANT TO MACHINE TOOLS. POWERED BY A 1/10 HP, SINGLE-PHASE MOTOR OPERATING AT 3450 RPM, THE PUMP SUPPORTS DUAL-VOLTAGE OPERATION AT 115/230V WITH AN AMPERAGE DRAW OF 2.2A / 1.1A AT 60 HZ. THE MOTOR IS HOUSED IN A TOTALLY ENCLOSED NON-VENTILATED (TENV) ENCLOSURE. THE UNIT FEATURES A SEALLESS, VERTICAL IMMERSION STYLE DESIGN WITH A HEAVY-DUTY, ONE-PIECE SHAFT THAT REQUIRES NO COUPLINGS TO ALIGN OR SPECIAL ADJUSTMENTS, ALLOWING FOR A HIGHLY RELIABLE AND LOW-MAINTENANCE OPERATION. THE HYDRAULIC SYSTEM IS EQUIPPED WITH A STANDARD PLASTIC IMPELLER AND A 1/2-INCH NPT DISCHARGE PORT. IT DELIVERS A FLOW RATE OF UP TO 10 GALLONS PER MINUTE (GPM) AT A 2-FOOT HEAD PRESSURE, AND UP TO APPROXIMATELY 18 GPM AT ZERO HEAD. WHEN INTEGRATED AS PART OF THE COMPLETE T-10 UNIT, IT INCLUDES A HEAVY-DUTY 9-GALLON CAPACITY RESERVOIR TANK. DESIGNED TO HANDLE GRIT AND ABRASIVE-LADEN LIQUIDS WITHOUT OVERLOADING, THE PUMP PROVIDES IMMEDIATE COOLANT FLOW THAT CAN BE SAFELY THROTTLED WITHOUT DAMAGE TO THE MOTOR.
