Aucto ID: #307
Auction
Verified Seller
Haas SL-10T CNC Turning Center
Starting Bid:
Sale Ended
Delivery Options
Rigging · Buyer
Loading · Buyer
Shipping · Buyer
Product Description
Equipped With:

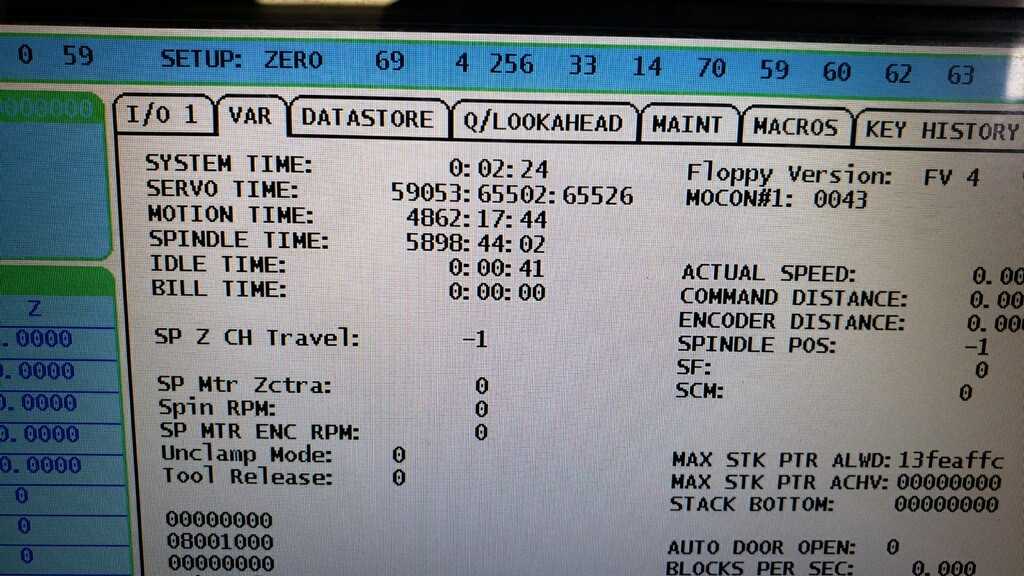

Haas CNC Control
Rigid Tap
Spindle Orientation
6" 3-Jaw Chuck

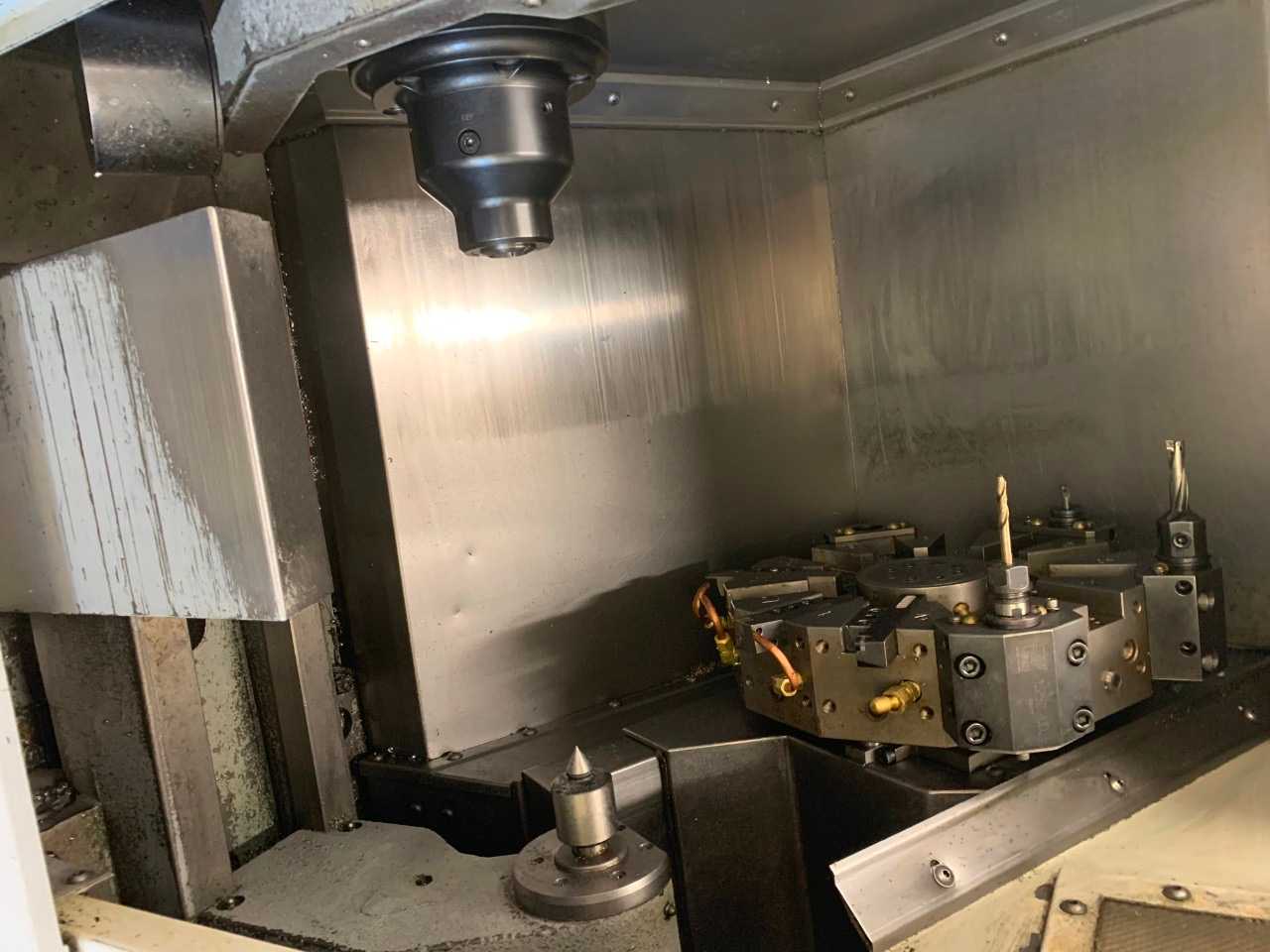

12 Position Turret
General Specifications:
Max Swing Over Front: 16.25"
Swing over cross slide: 8"
Max. cutting dia: 11"
Max. cutting length: 14"
Between centers: 16.5"
Chuck size: 6.5"
Standard bar cap.: 1.75"
X travel: 6.25"
Z travel: 14"
Rapid traverse: 1,200 ipm
X axis motor thrust: 2,400 lb
Y axis motor thrust: 3,700 lb
Spindle speeds: 6,000 rpm
Spindle motor: 15 hp
Spindle nose: a2-5
Spindle bore: 2.31"
Draw tube bore: 1.81"
Tool size: .75"
Index time (one tool): 1 second
Positioning: +/- .0002"
Repeatability: +/- .0001"
Power req.: 14kva
Volts/phase: 208 3-phase
Core Specifications
Category:
MACHINING
→ LATHES
→ CNC LATHES
