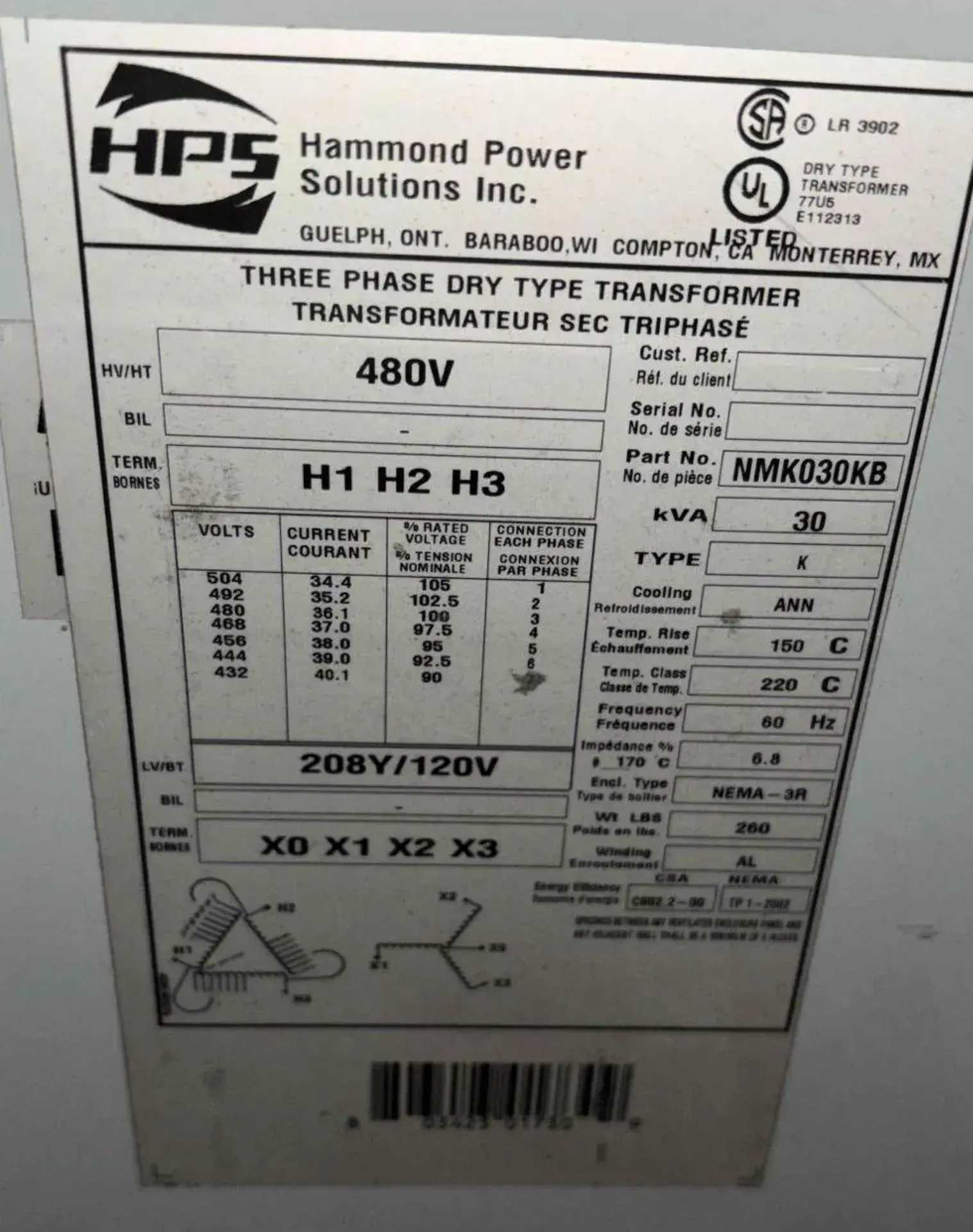

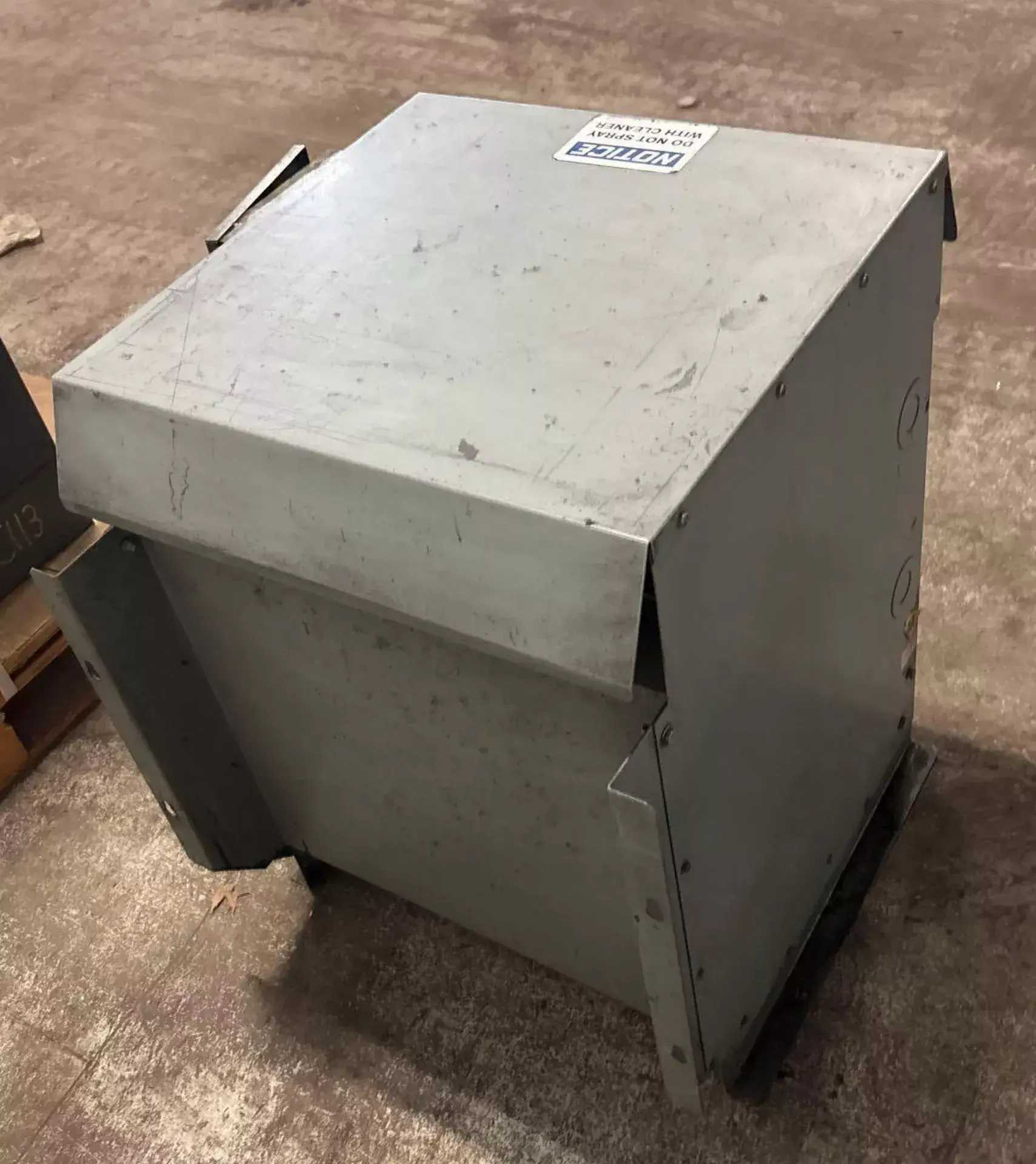

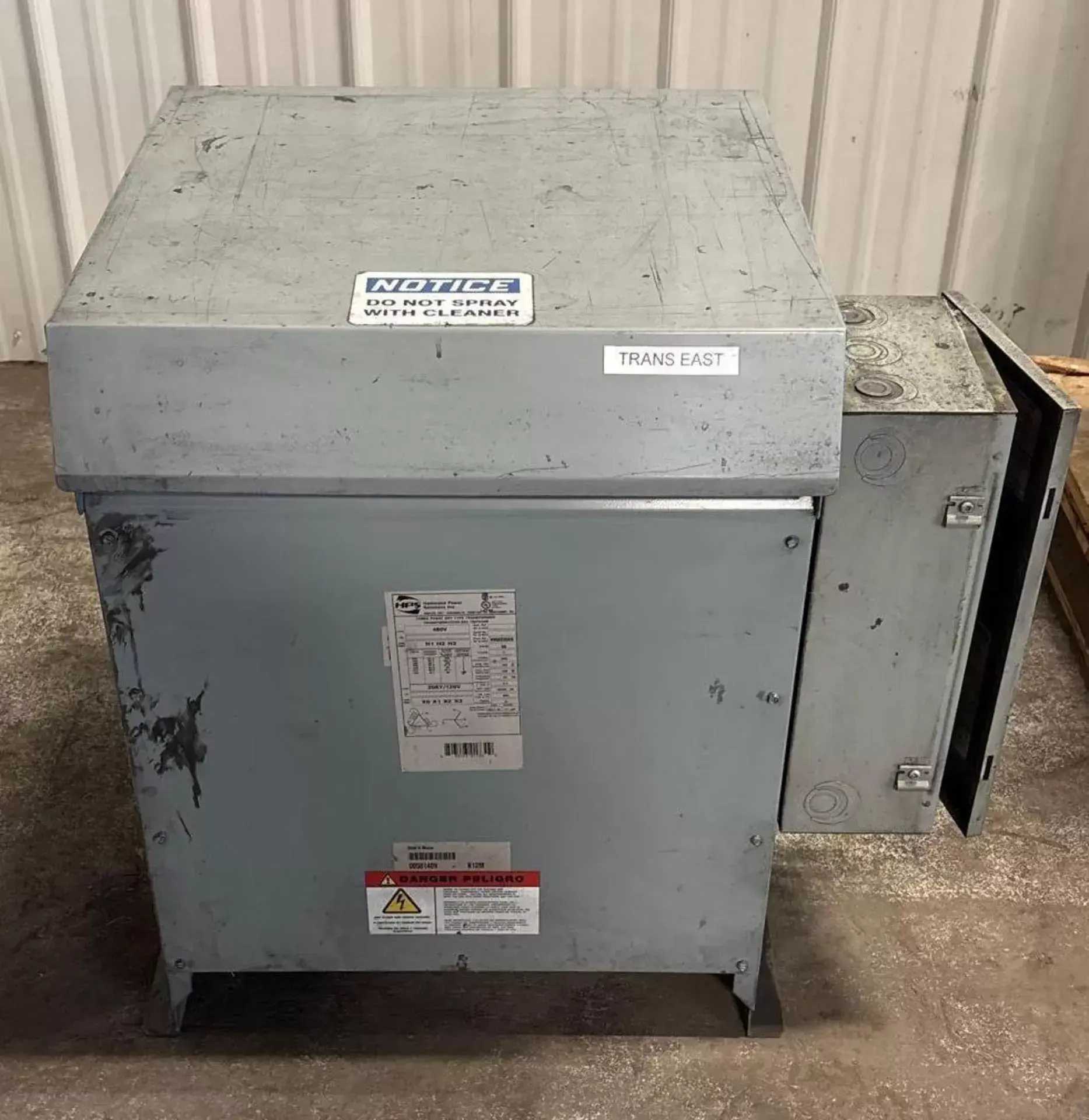

HAMMOND POWER SOLUTIONS NMK030KB TRANSFORMER, 30 KVA, 480V/208Y, 3-PHASE, NEMA 3R, 60HZ

THE HAMMOND POWER SOLUTIONS SENTINEL SERIES NMK030KB IS A 30 KVA ENERGY-EFFICIENT, GENERAL-PURPOSE DISTRIBUTION TRANSFORMER DESIGNED FOR LINEAR LOADS IN COMMERCIAL APPLICATIONS. THIS THREE-PHASE UNIT FEATURES A PRIMARY VOLTAGE OF 480 VAC DELTA AND A SECONDARY VOLTAGE OF 208Y/120 VAC. BUILT WITH A HEAVY-DUTY VENTILATED NEMA TYPE 3R ENCLOSURE, IT IS SUITABLE FOR FLOOR OR PANEL MOUNTING AND UTILIZES AN ENCAPSULATED CONFIGURATION. OPERATING AT A FREQUENCY OF 60 HZ, THE TRANSFORMER IS CULUS CERTIFIED AND INCLUDES LEADWIRE TERMINATIONS. THE UNIT HAS AN APPROXIMATE WEIGHT OF 280 LBS.
