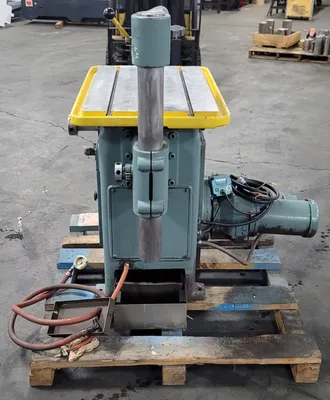

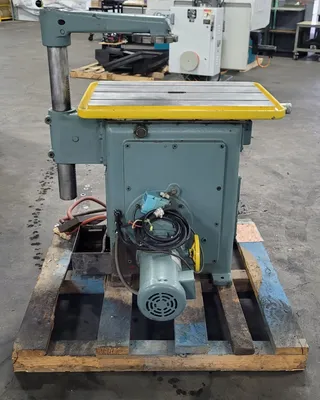

HANSFORD DAVIS D-4235 KEYSEATER 1-1/2IN X 20

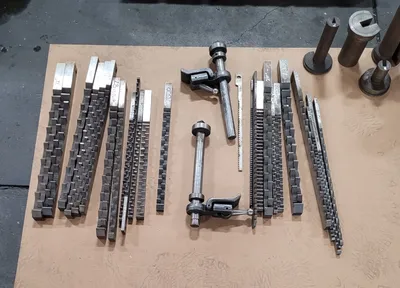

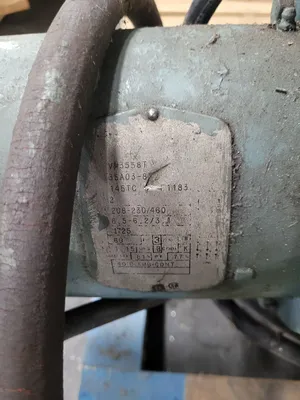

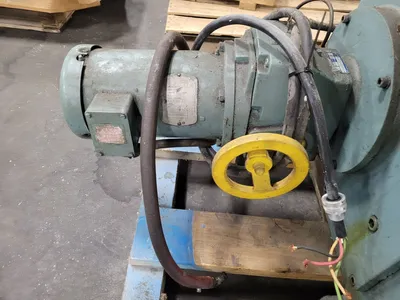

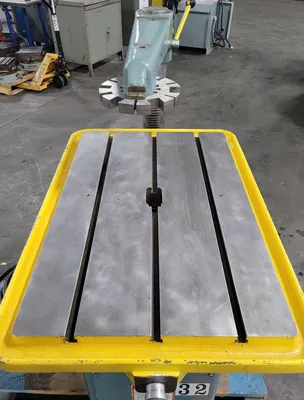

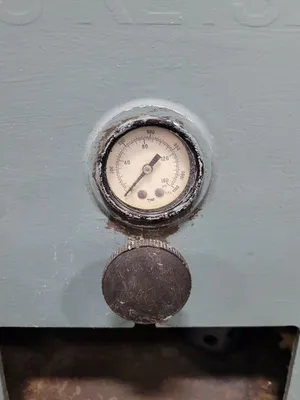

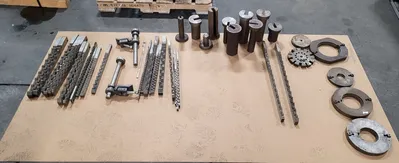

THIS HANSFORD DAVIS KEYSEATER, MODEL 15A, FEATURES A KEYWAY CUTTING CAPACITY RANGING FROM 1/16″ TO 1–1/2″ IN STEEL. THE MACHINE HAS A STANDARD THROAT DEPTH OF 19″, WHICH CAN EXTEND TO 22″ WITH THE OPTIONAL DA-60 EXTRA THROAT DEPTH ASSEMBLY. THE MAXIMUM HEIGHT OF WORK IS 12″ STANDARD, OR 18″ WITH THE D-1701 ARM POST OPTION. MAXIMUM LENGTH OF CUT VARIES BY CUTTER LENGTH: 4″ FOR A 16″ CUTTER, 8″ FOR A 20″ CUTTER, 12″ FOR A 24″ CUTTER, AND 18″ FOR A 30″ CUTTER. THE KEYSEATER IS EQUIPPED WITH A 2 HP MOTOR. THE TABLE SIZE IS 20″ X 31″, WITH 1–1/2″ OF TRAVEL AND 3 T-SLOTS. STROKES PER MINUTE, WITH A STROKE OF 4–1/2”, ARE 45 STANDARD, OR 11–56 WITH THE DA-27 VARIABLE SPEED DRIVE. AUTOMATIC FEED REQUIRES 80PSI MINIMUM AIR PRESSURE AND CONSUMES 3SCFM. THE NET WEIGHT OF THE MACHINE IS 1250 LBS. IT INCLUDES 27 KEYSEATING BROACH SIZES IN BOTH METRIC (2MM TO 32MM) AND INCH SIZES.
