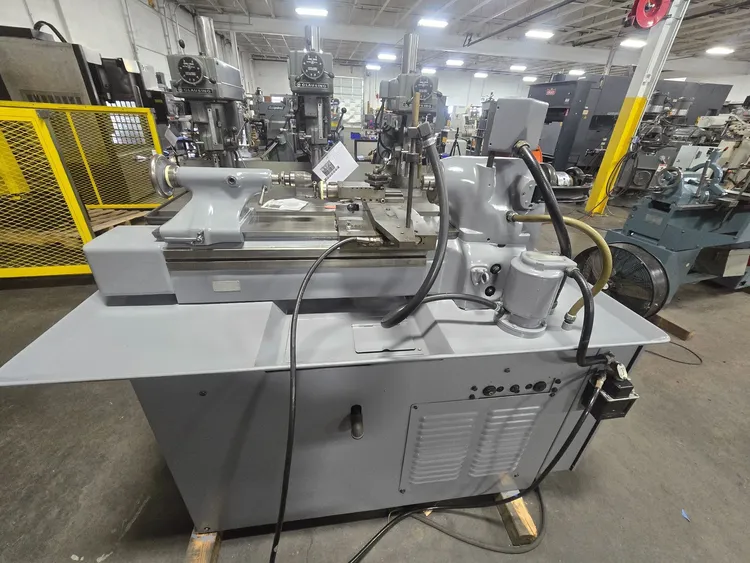

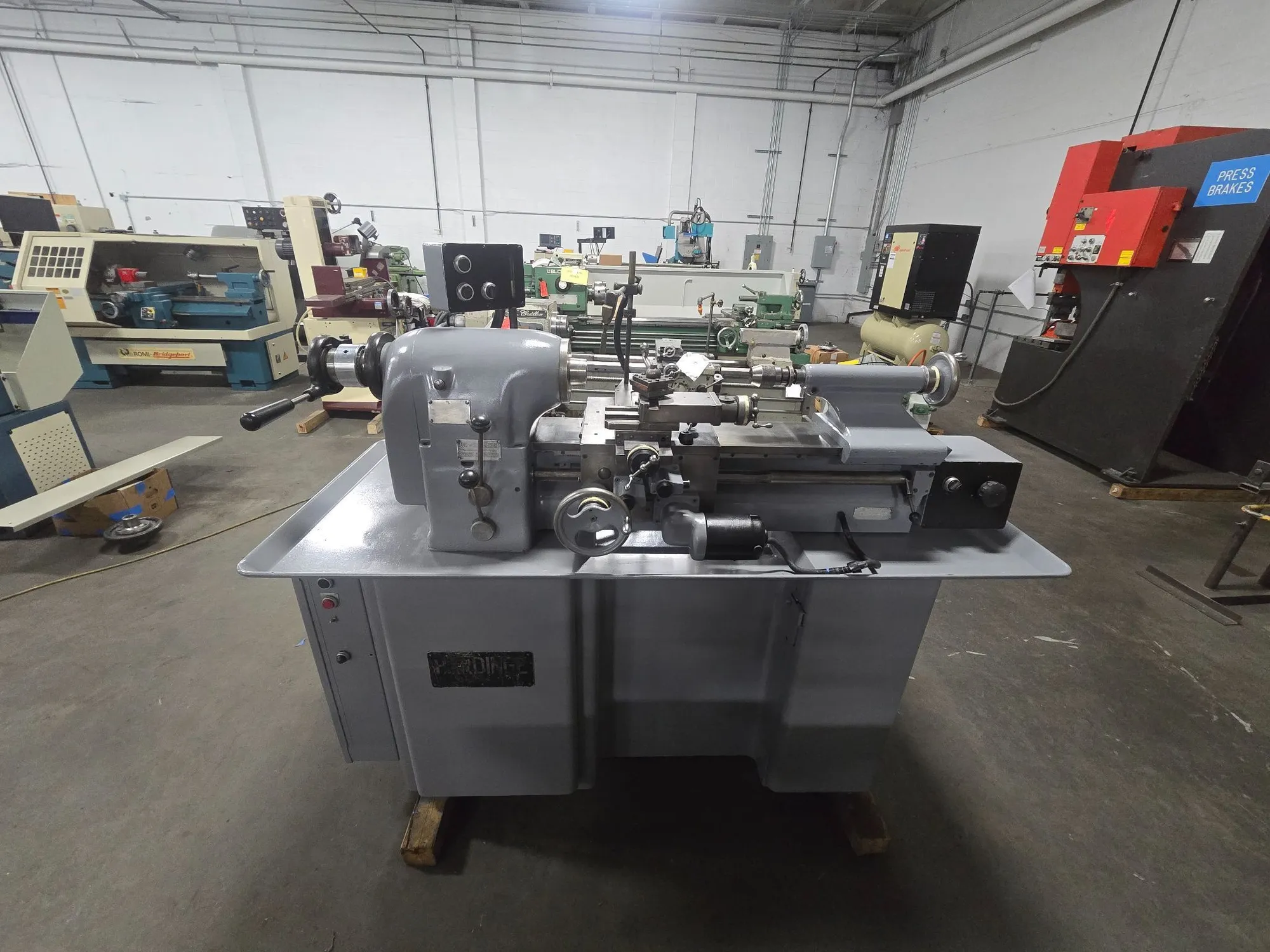

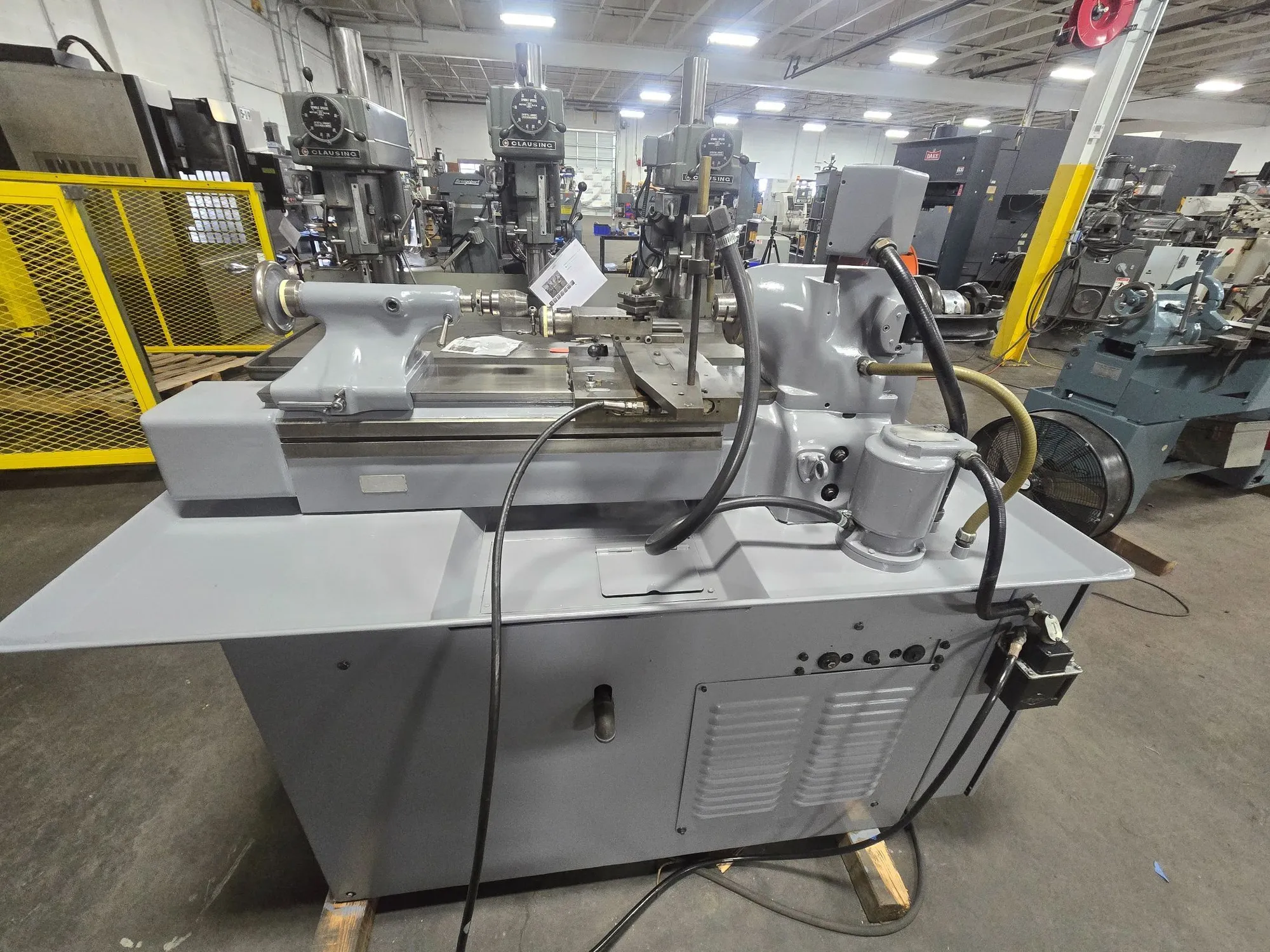

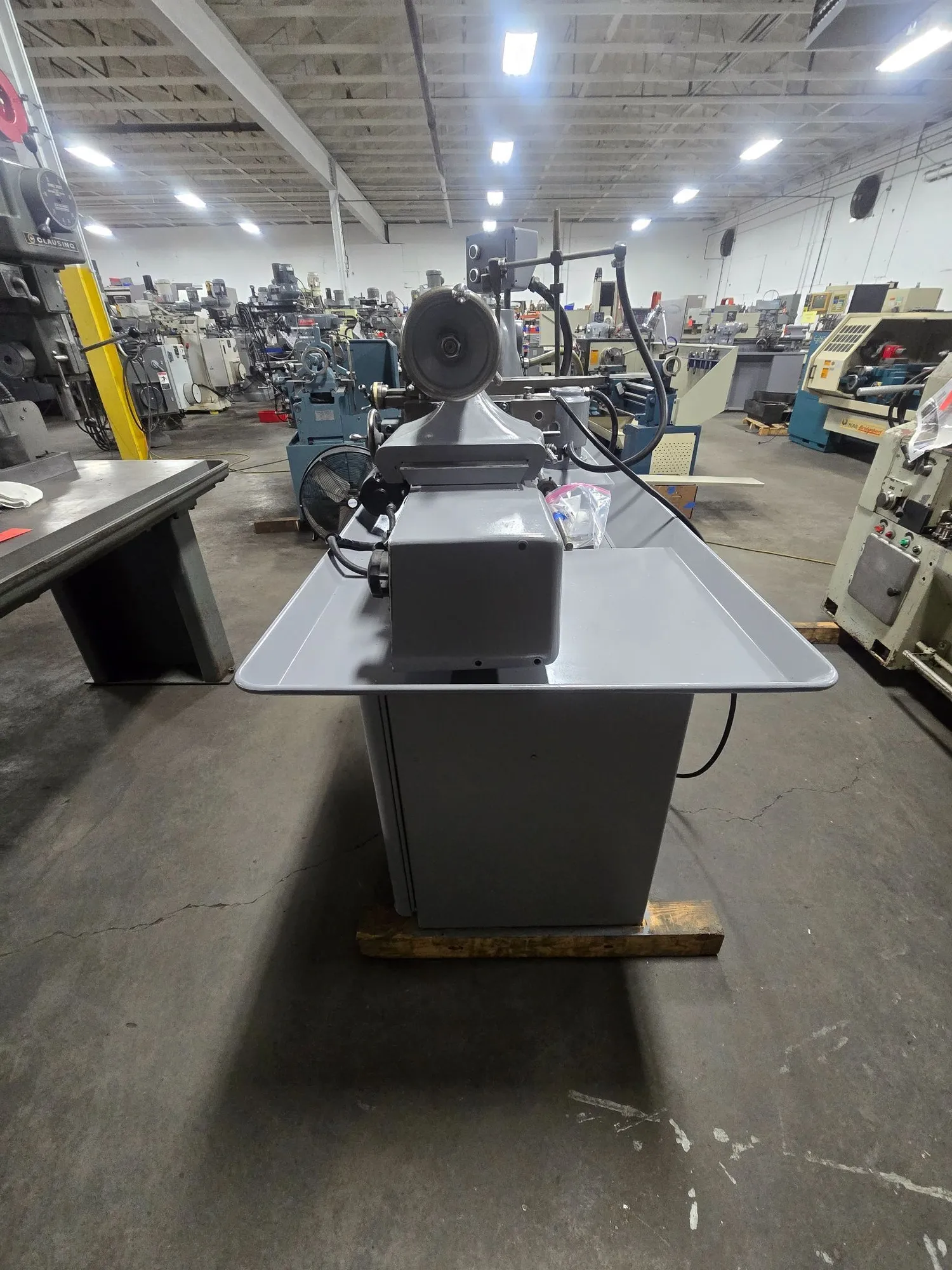

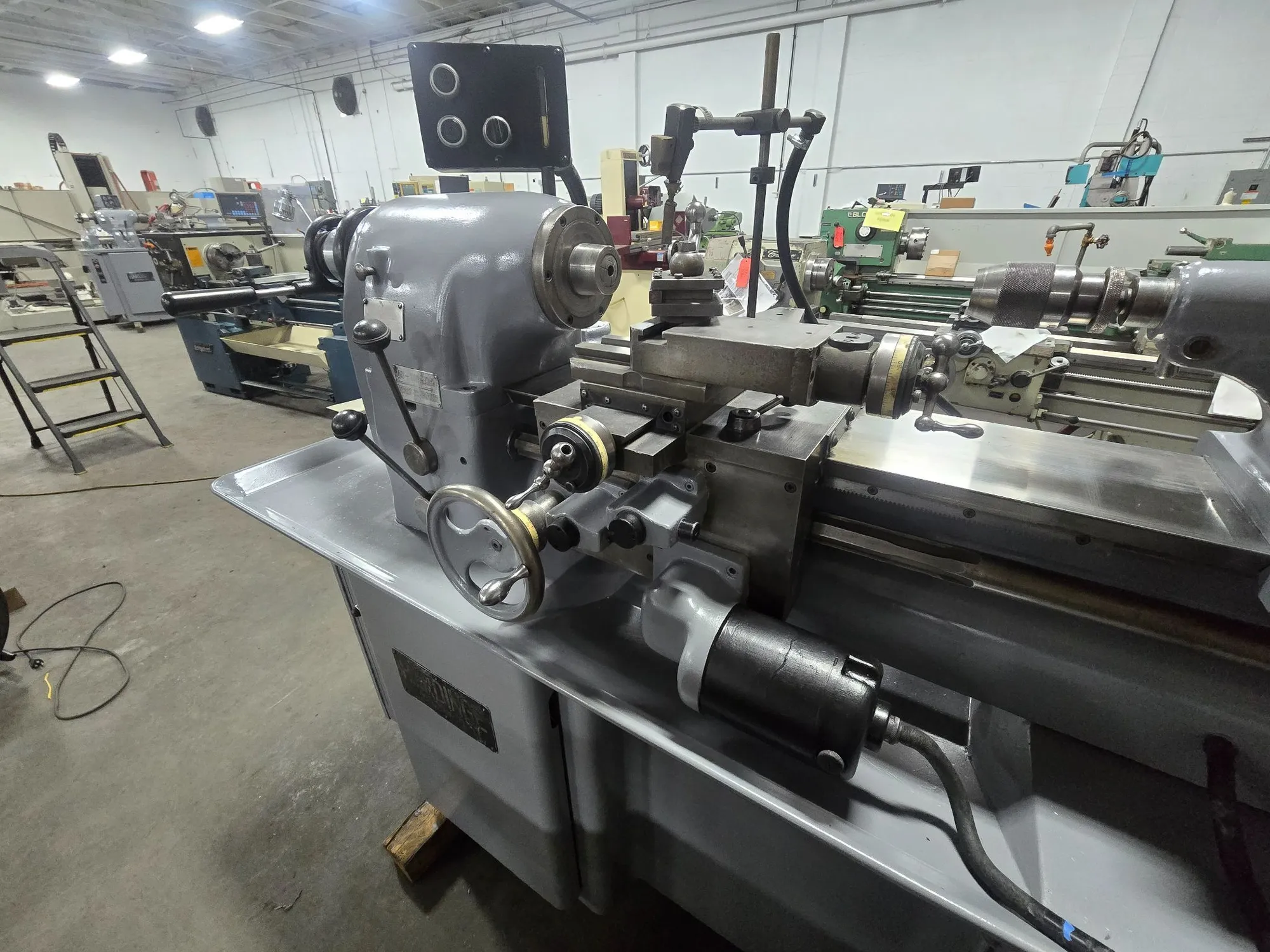

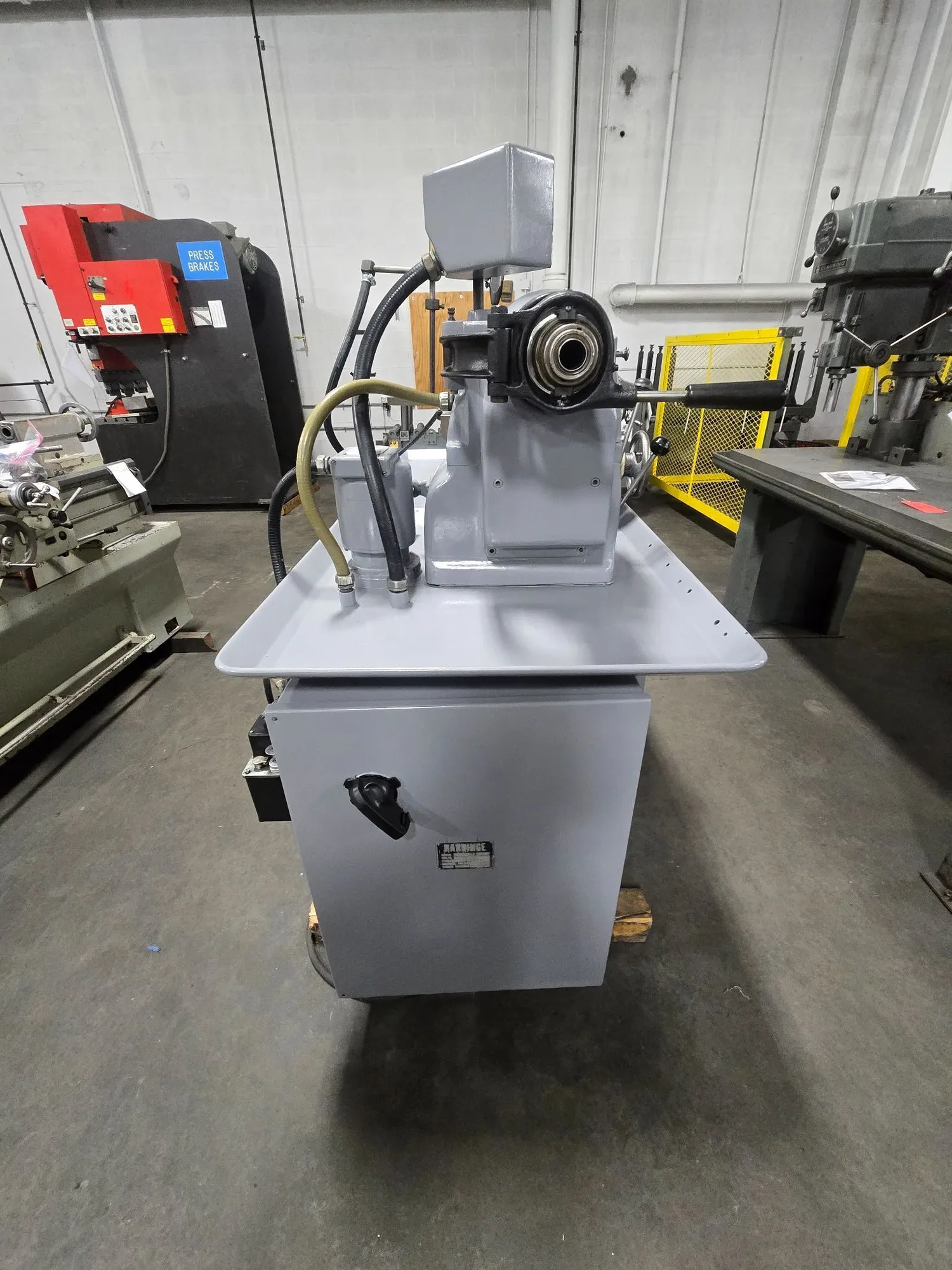

HARDINGE TFB-H TOOLROOM LATHE, 11" SWING, 18" CTRS, 1.5 HP, 125-3000 RPM

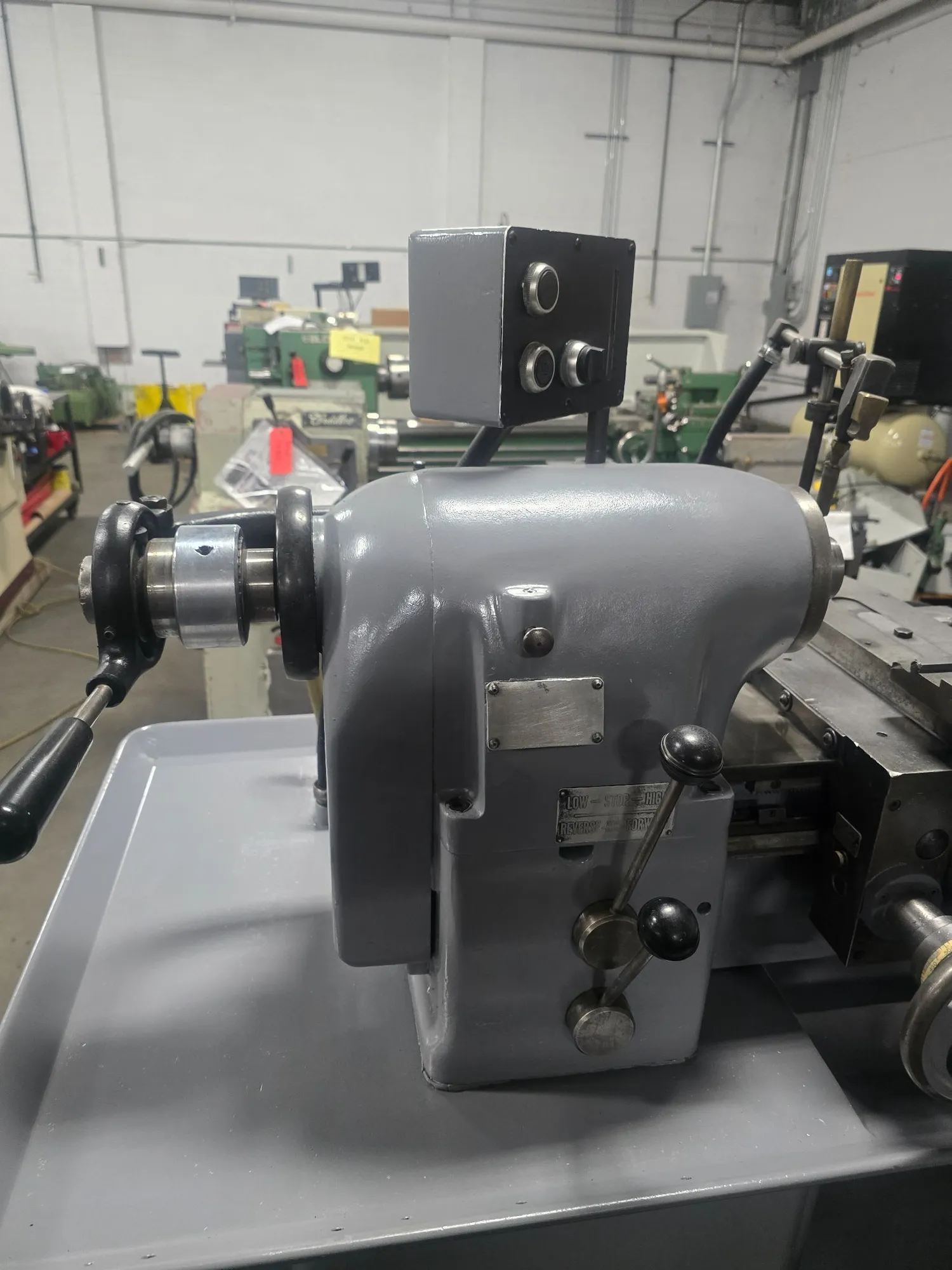

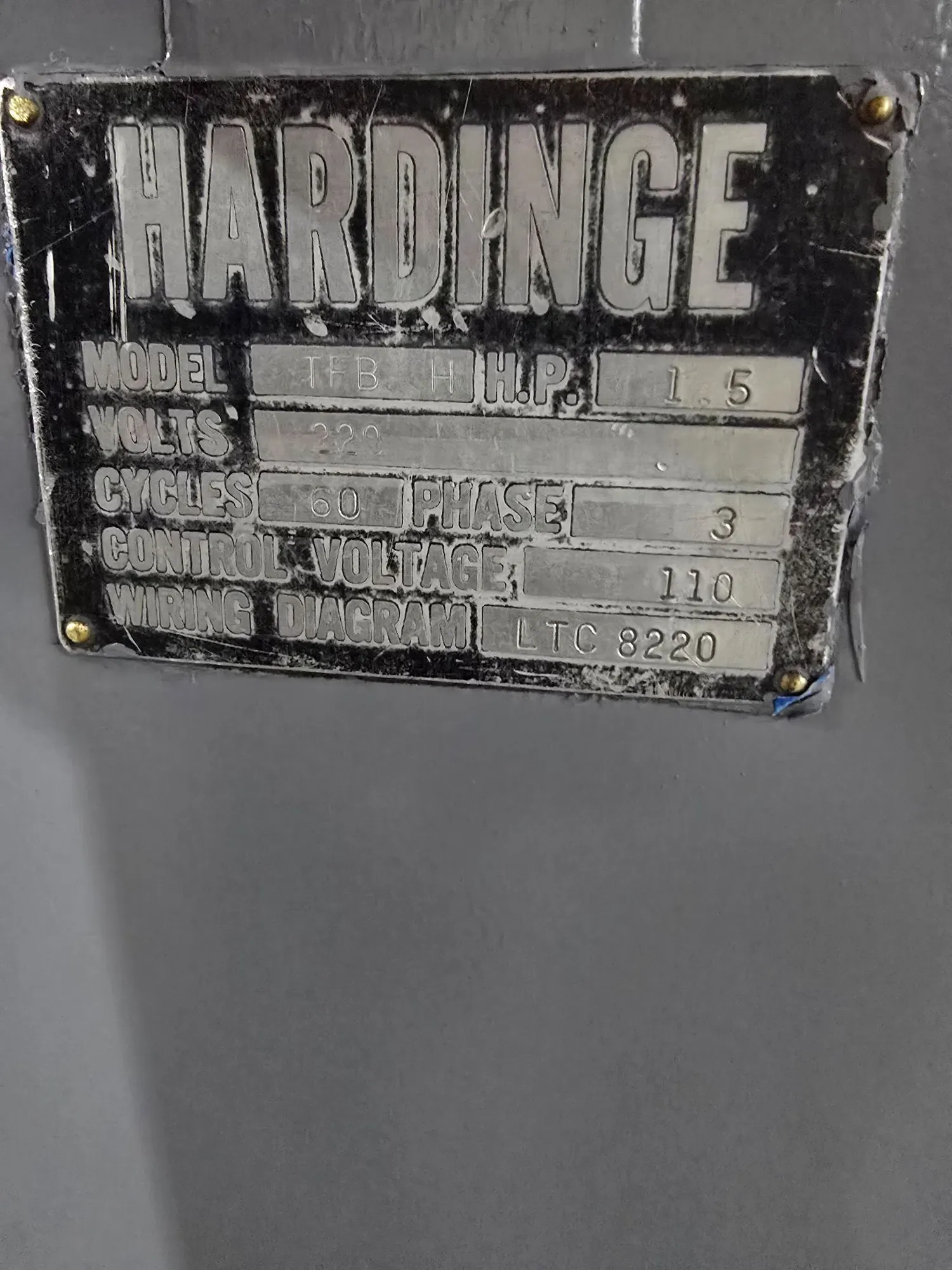

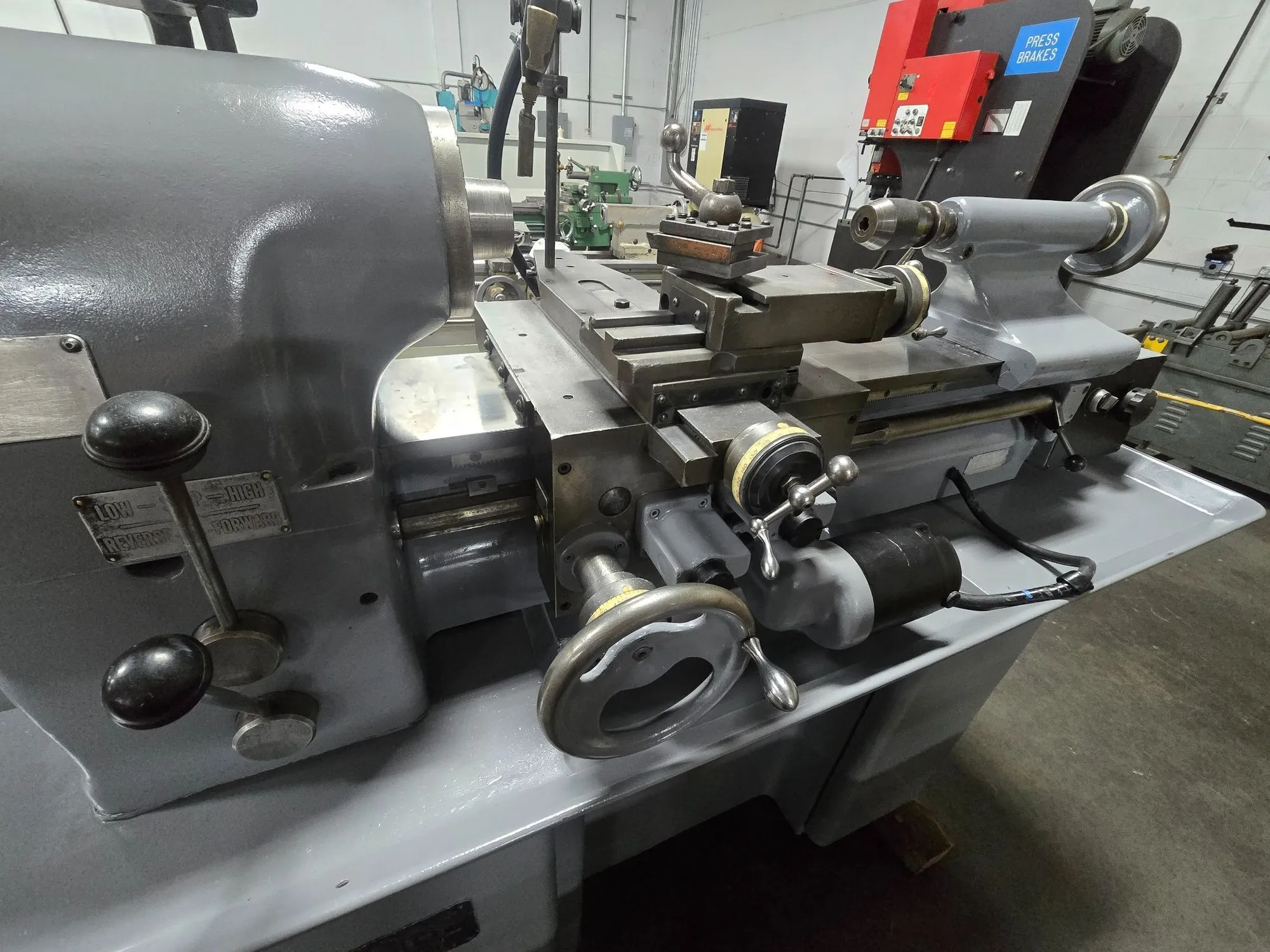

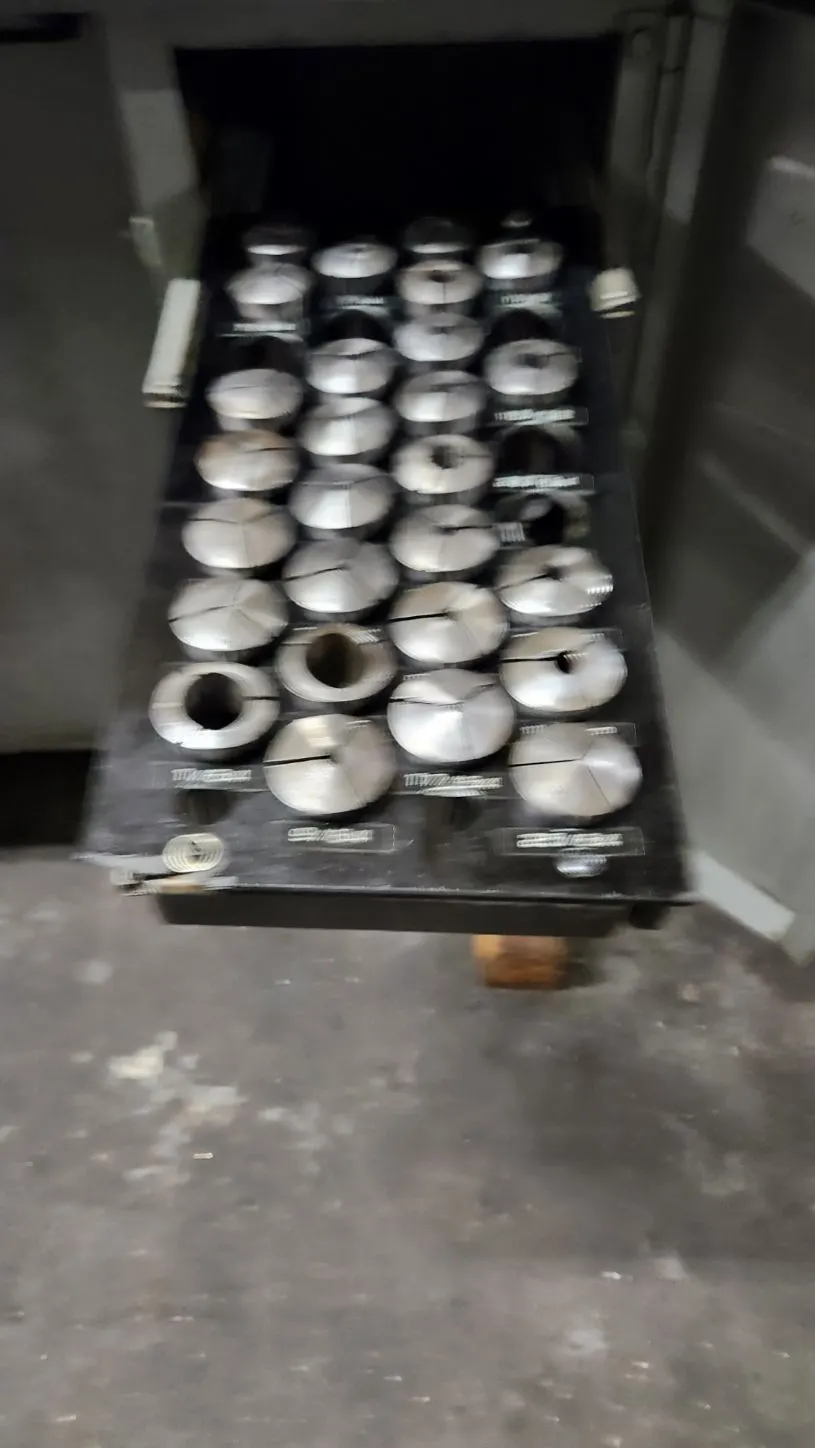

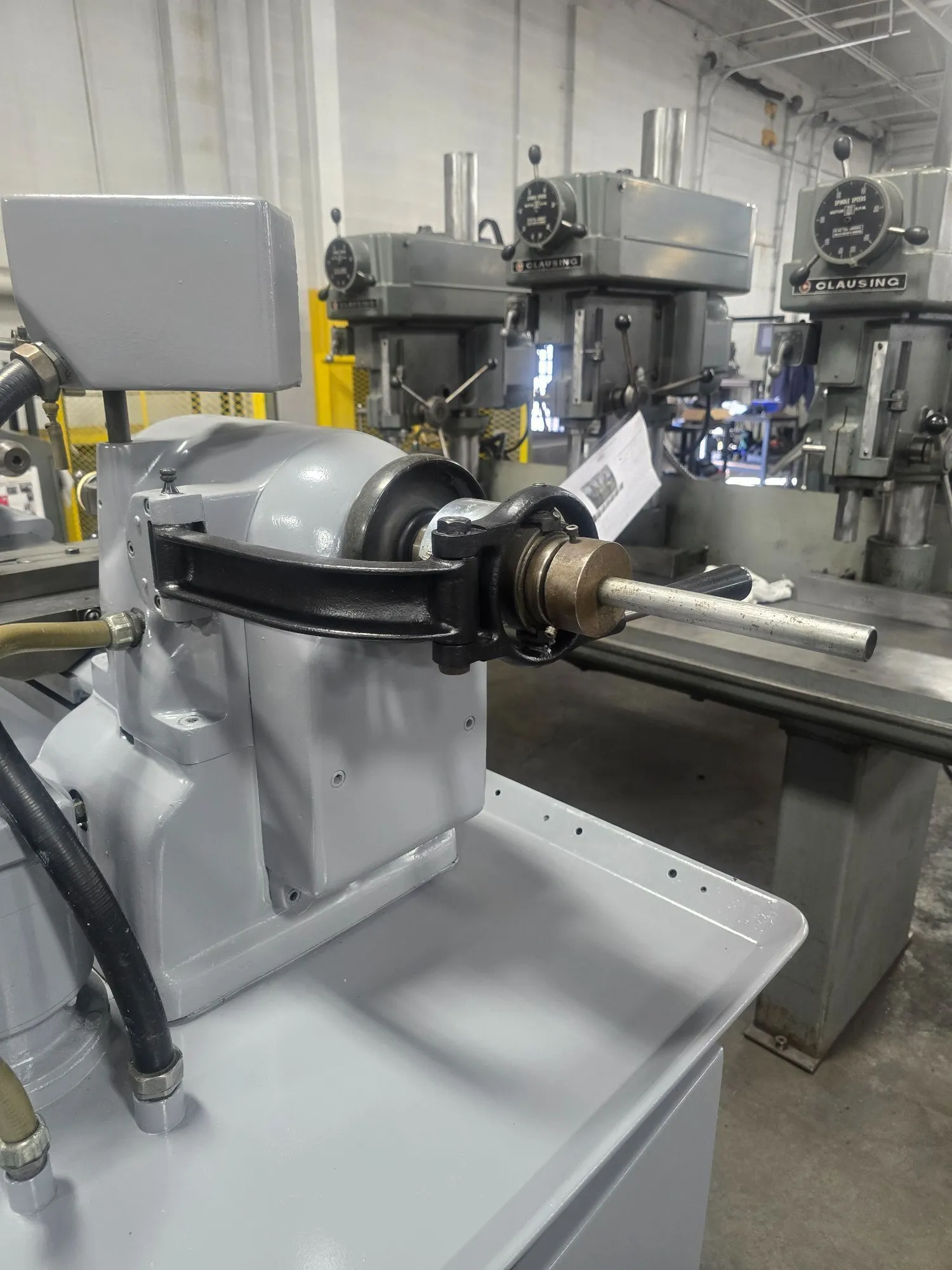

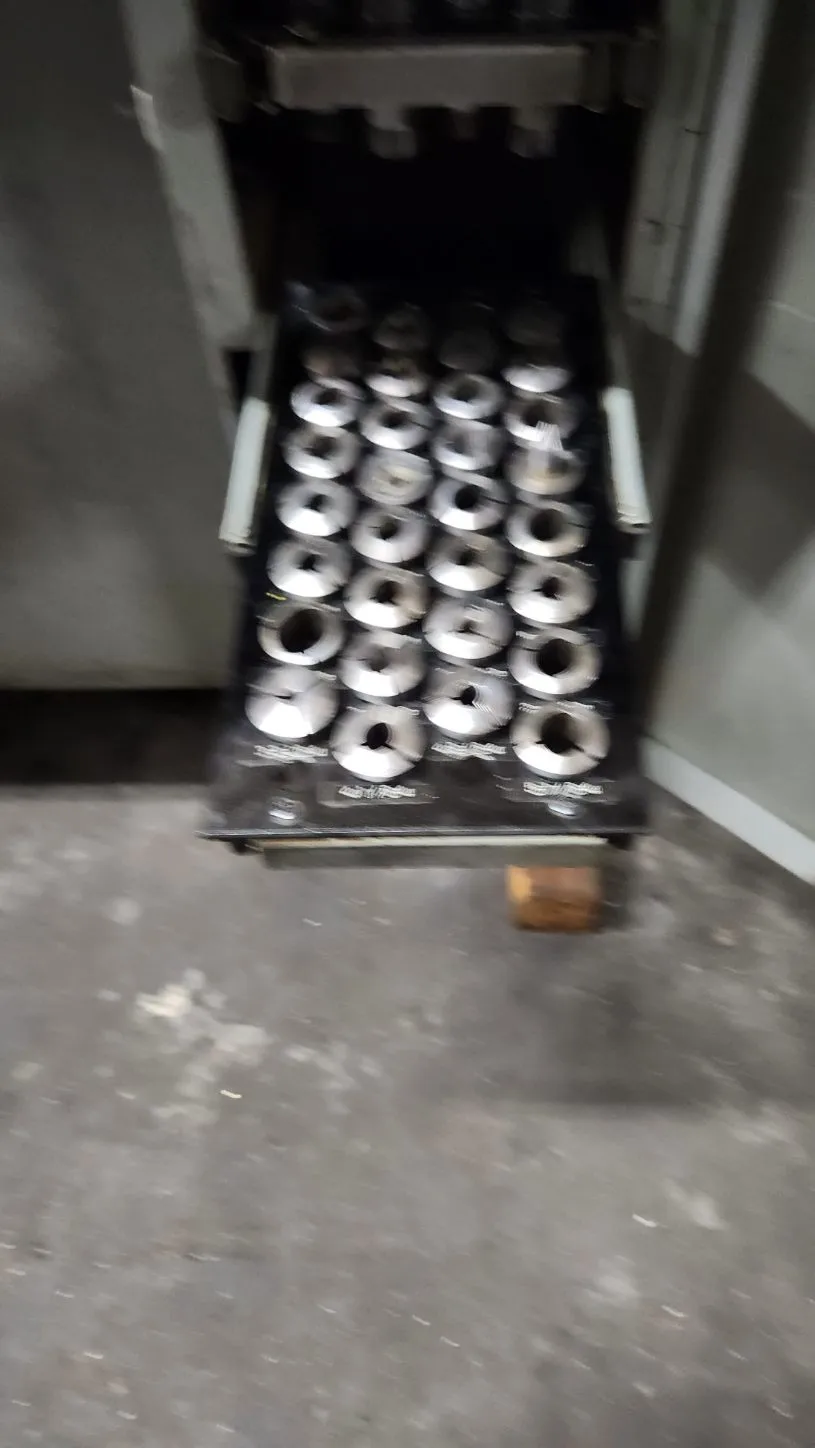

THE HARDINGE SUPER PRECISION TOOLROOM LATHE, MODEL TFB-H (OR TBF-H), FEATURES AN 11-INCH SWING OVER THE BED, A 9-INCH SWING OVER THE CARRIAGE, AND A 6-INCH SWING OVER THE CROSS SLIDE, WITH AN 18-INCH DISTANCE BETWEEN CENTERS. IT IS POWERED BY A 1.5 HP, 220V, 3-PHASE, 60 HZ SPINDLE MOTOR, OFFERING A SPEED RANGE OF 125 TO 3,000 RPM. THE SPINDLE HAS A 1.25-INCH THRU HOLE, UTILIZES A HARDINGE 5C NOSE TAPER, AND PROVIDES A MAXIMUM COLLET CAPACITY OF 1.0625 INCHES. TAILSTOCK SPECIFICATIONS INCLUDE 3.75 INCHES OF TRAVEL AND A #2 MORSE TAPER. THE LATHE HAS A 3-INCH COMPOUND SLIDE TRAVEL AND A POWER FEED RANGE OF 0.25 TO 7 INCHES PER MINUTE (IPM). THE MACHINE'S CONTROL VOLTAGE IS 115V. APPROXIMATE MACHINE DIMENSIONS ARE 72 INCHES BY 34 INCHES BY 65 INCHES. THE UNIT INCLUDES A TAPER ATTACHMENT AND COLLETS AND TOOLING.
