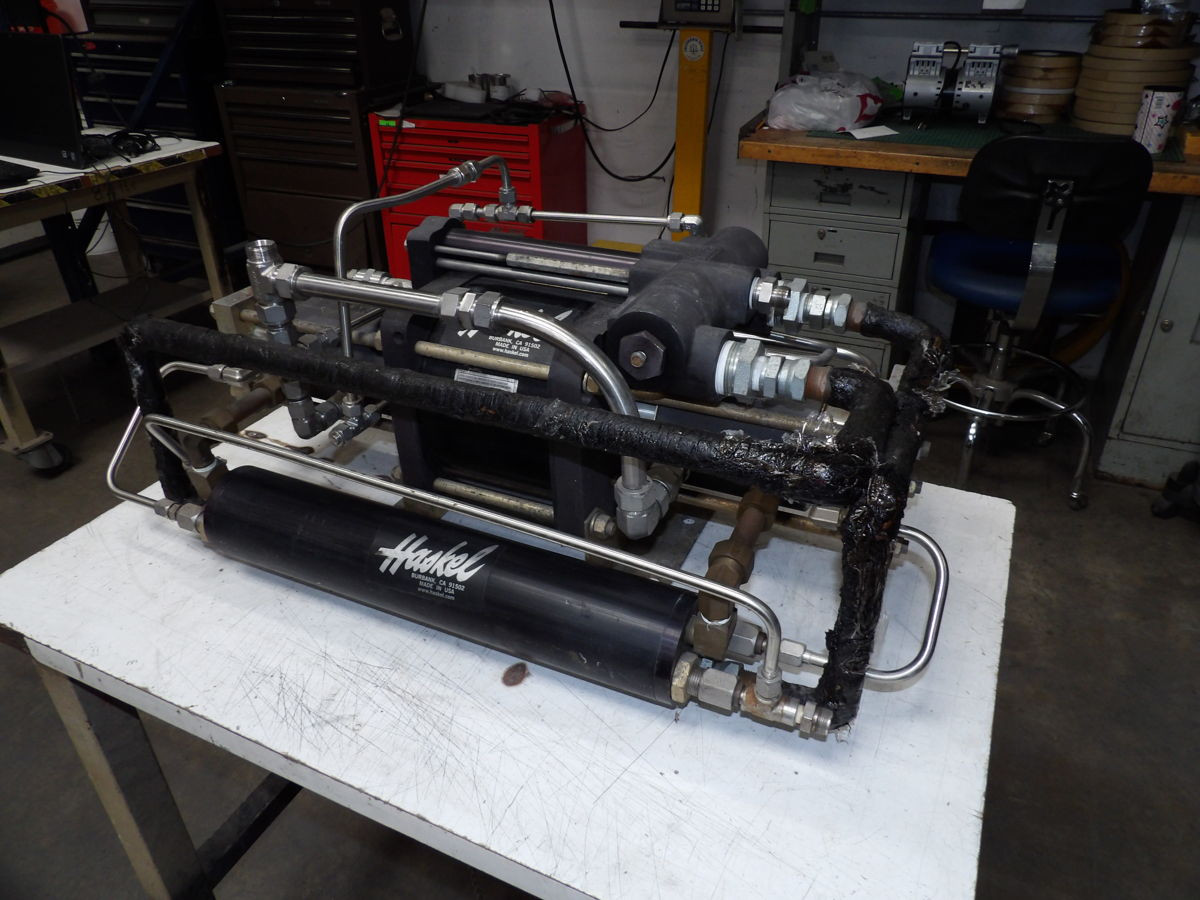

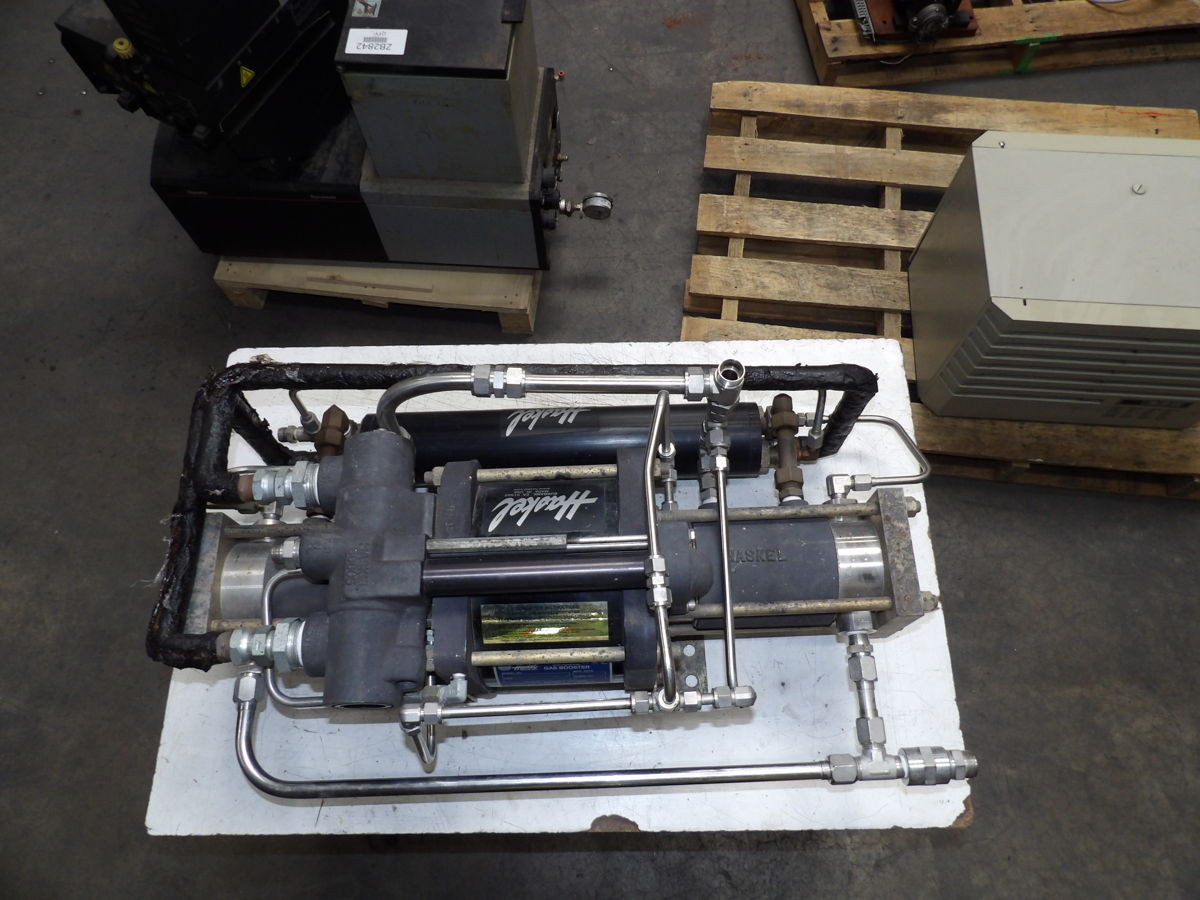

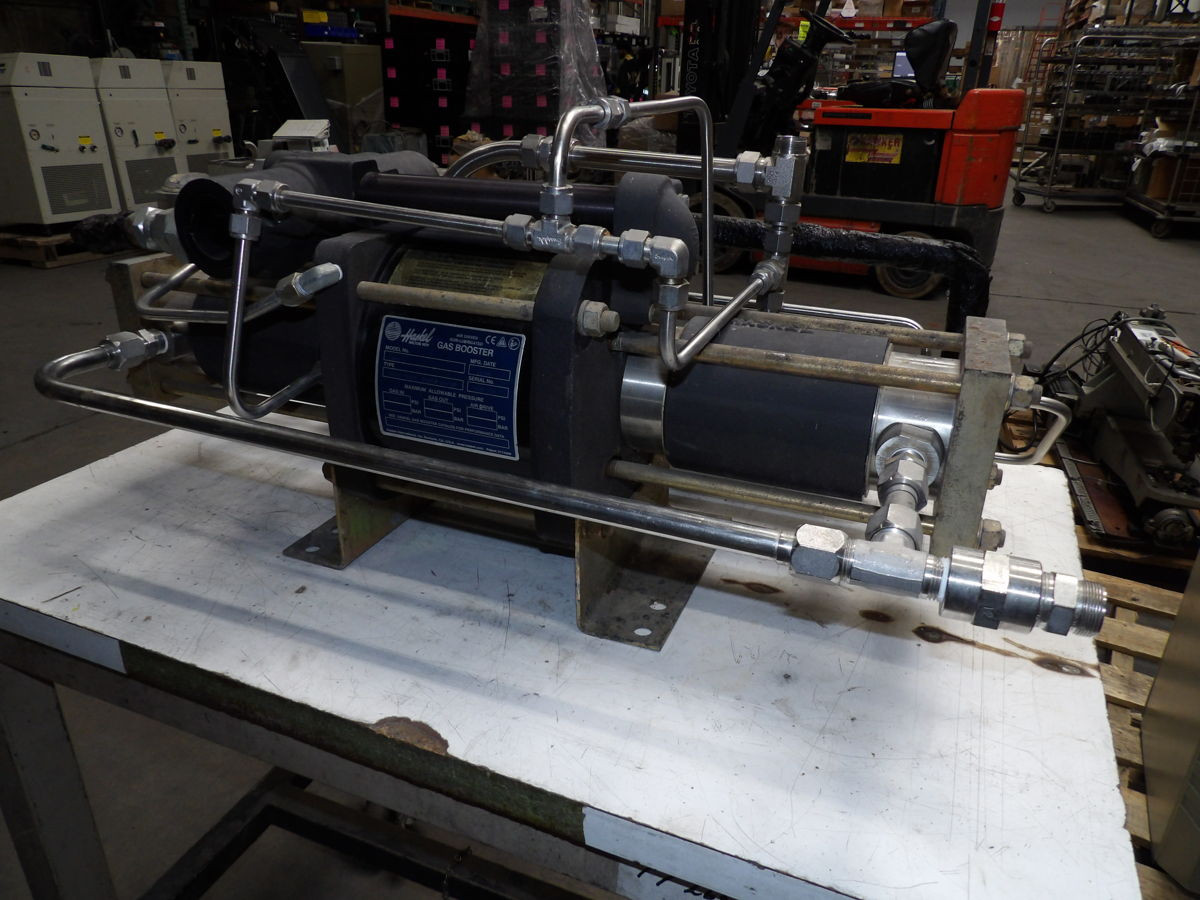

HASKEL 8AGD-5 GAS BOOSTER, RATIO: 8.0:1, MAX OUTLET: 12,000 PSI

THE HASKEL 8AGD-5 IS A DOUBLE-ACTING, SINGLE-STAGE AIR-DRIVEN GAS BOOSTER ENGINEERED FOR HIGH-PRESSURE GAS APPLICATIONS. OPERATING WITH A NOMINAL COMPRESSION RATIO OF 8.0:1, THE UNIT UTILIZES A DRIVE AIR PRESSURE RANGE OF 15 TO 150 PSI (1 TO 10 BAR). IT IS CAPABLE OF GENERATING MAXIMUM GAS OUTLET PRESSURES UP TO 12,000 PSI (827 BAR) FROM AN INLET GAS PRESSURE TYPICALLY NOT EXCEEDING 1,500 PSI (103 BAR), DEPENDENT ON THE SUPPLIED AIR DRIVE PRESSURE. THE DOUBLE-ACTING DESIGN PROVIDES A DISPLACEMENT OF APPROXIMATELY 0.70 CUBIC INCHES (11.5 CM³) PER CYCLE. CONNECTION PORTS INCLUDE A 1/2" NPT FOR DRIVE AIR INLET, AND 1/4" NPT FOR BOTH GAS INLET AND GAS OUTLET.
