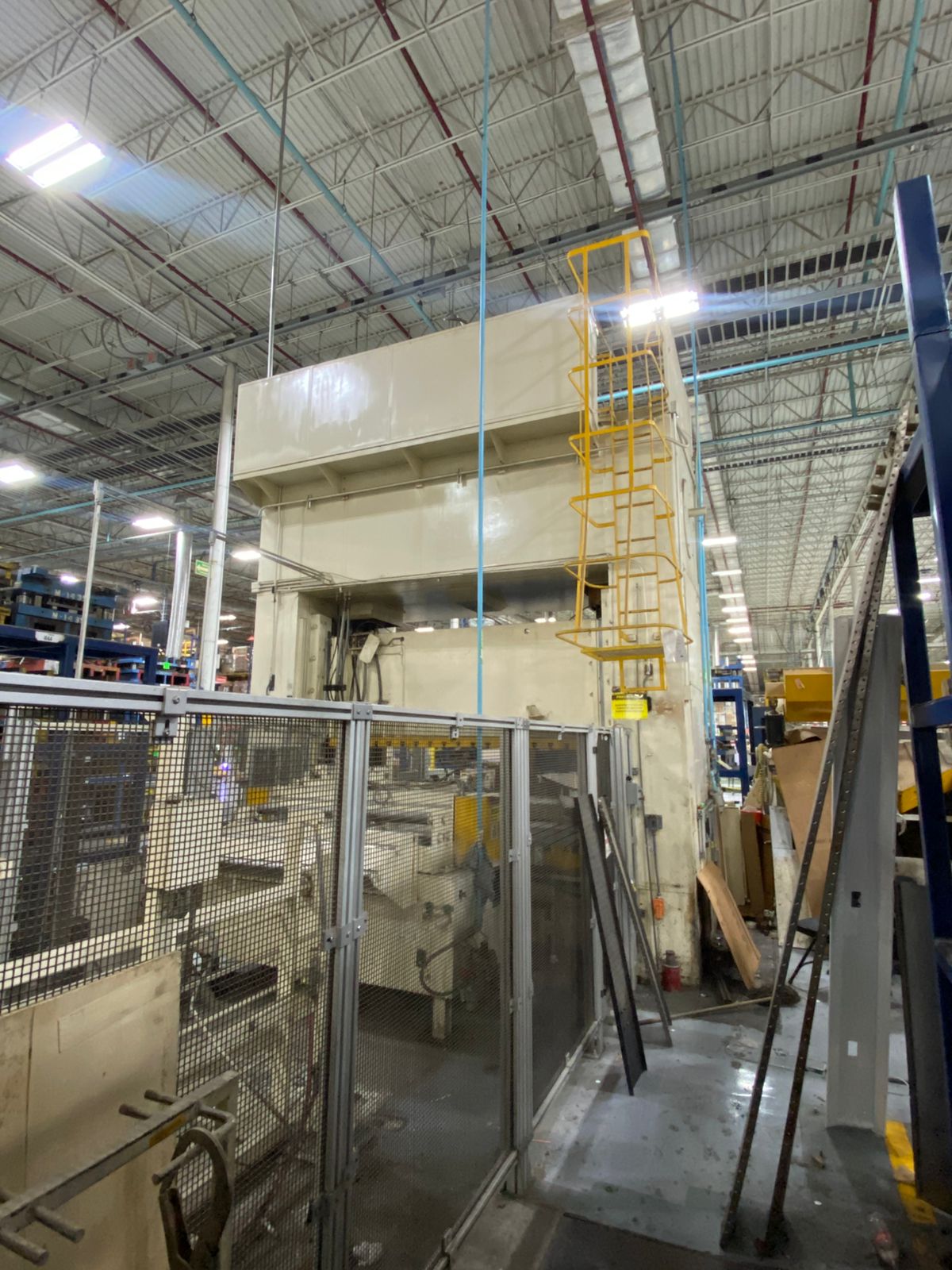

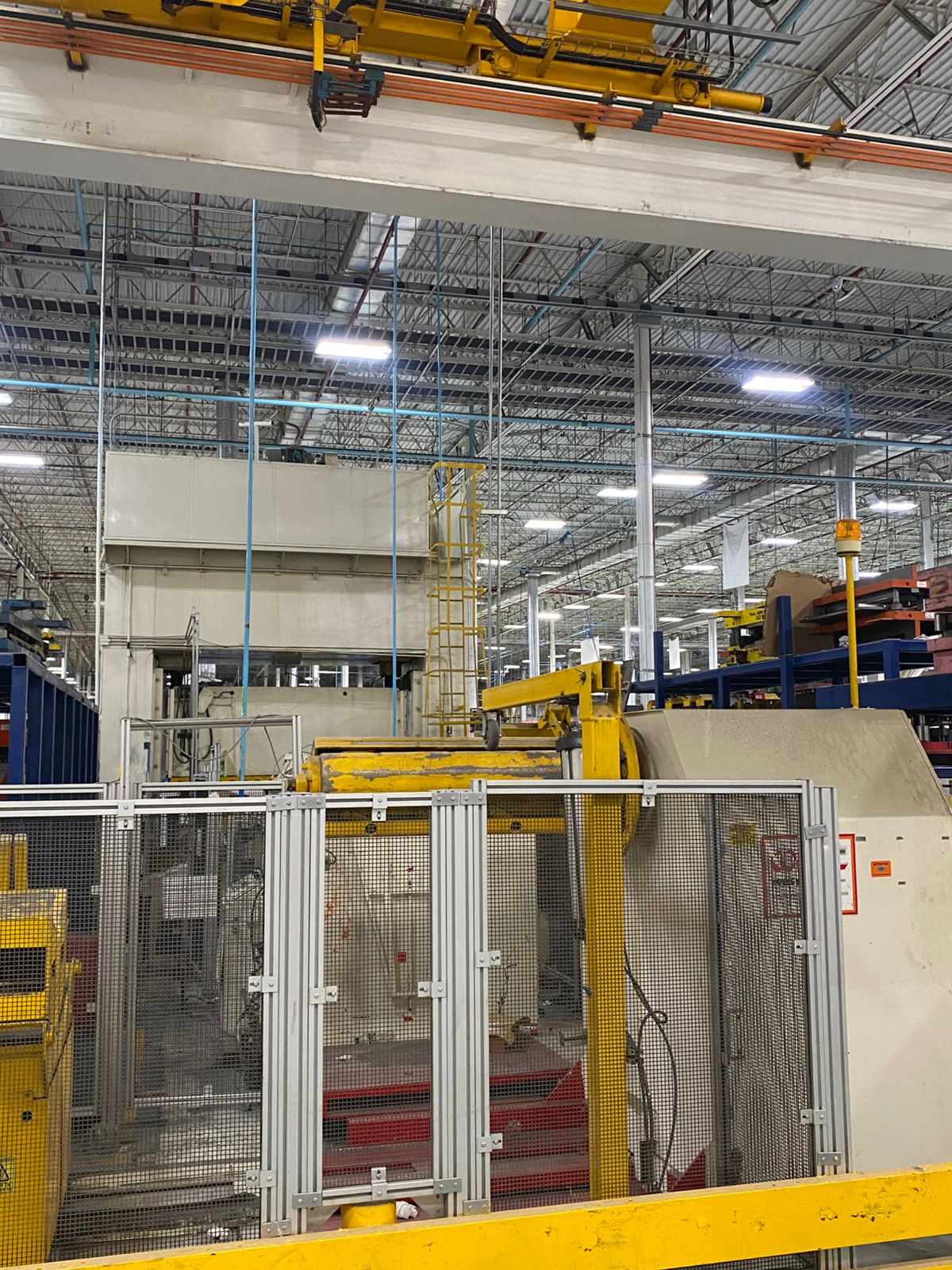

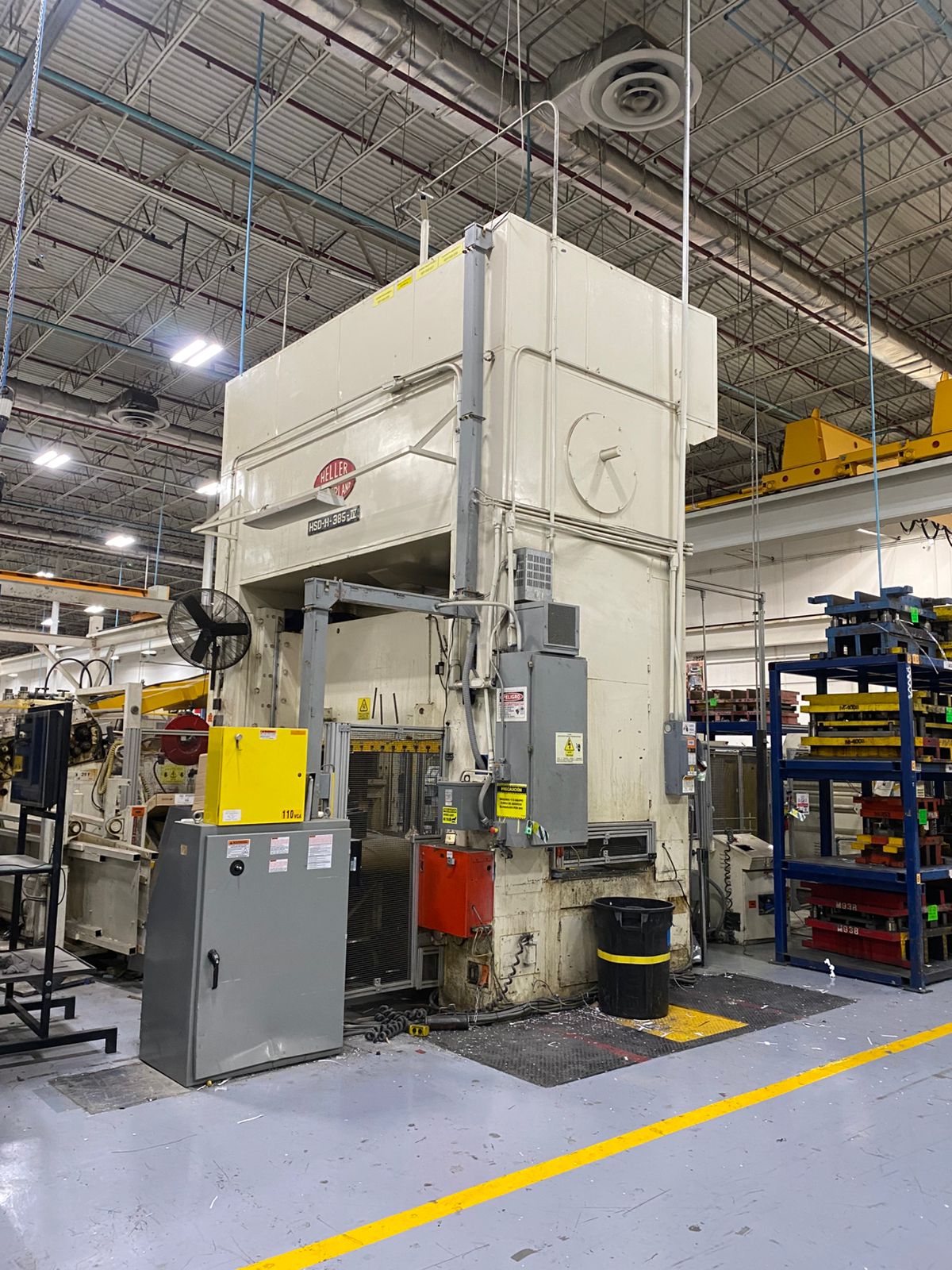

HELLER-SUTHERLAND S016 280-TON MECHANICAL PRESS, 10" STROKE, 30" DIE HEIGHT, 122X60 BOLSTER

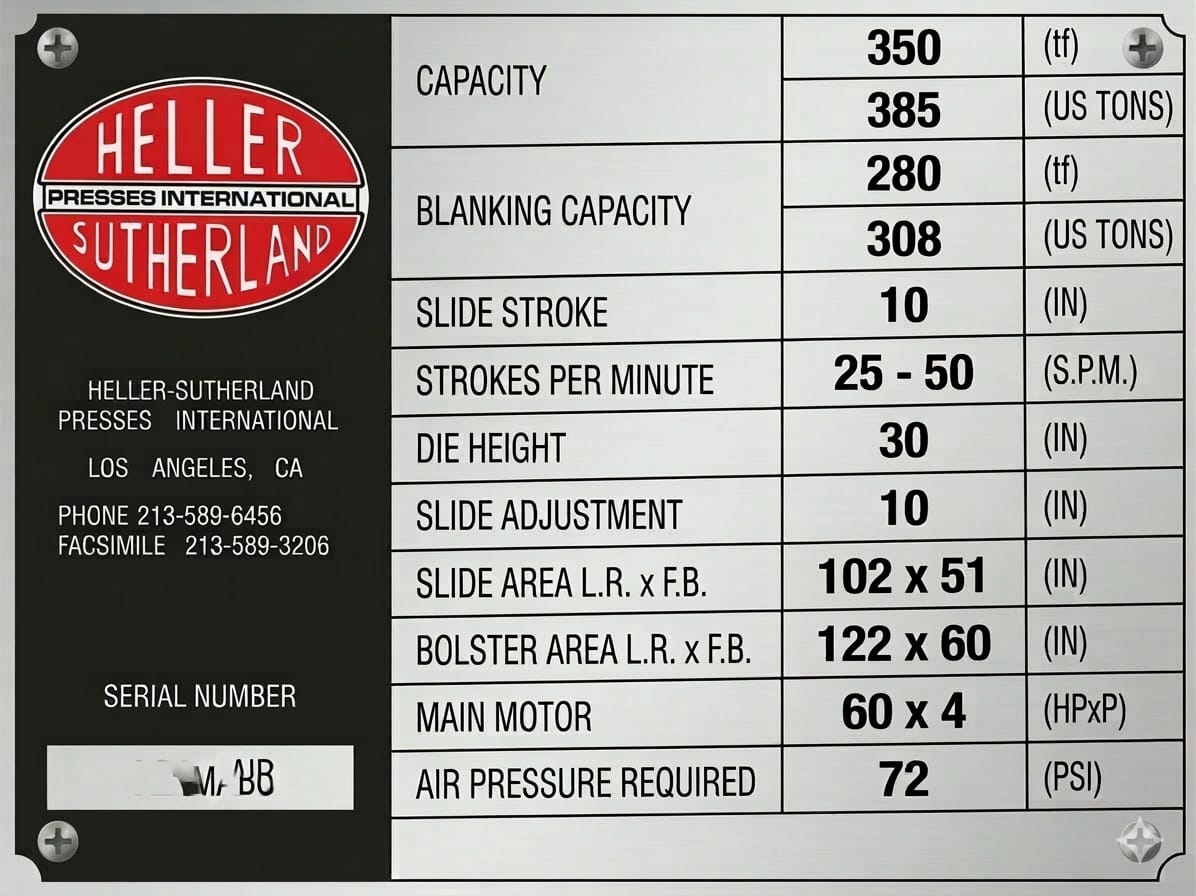

THIS HELLER-SUTHERLAND MODEL S016 IS A MECHANICAL PRESS WITH A CAPACITY OF 350 TF (385 US TONS) AND A BLANKING CAPACITY OF 280 TF (308 US TONS). THE MACHINE FEATURES A 10-INCH SLIDE STROKE AND A 10-INCH SLIDE ADJUSTMENT, WITH AN OPERATING SPEED RANGING FROM 25 TO 50 STROKES PER MINUTE. IT OFFERS A DIE HEIGHT OF 30 INCHES. THE SLIDE AREA MEASURES 102 X 51 INCHES (L.R. X F.B.), WHILE THE BOLSTER AREA PROVIDES 122 X 60 INCHES (L.R. X F.B.). POWER IS SUPPLIED BY A 60 X 4 HPXP MAIN MOTOR, AND THE SYSTEM REQUIRES 72 PSI OF AIR PRESSURE FOR OPERATION.
