Hoffman A30H2410SS6LP Enclosures, 762x610x254 mm, 304 SS, NEMA 3R, 4, 4X, 12

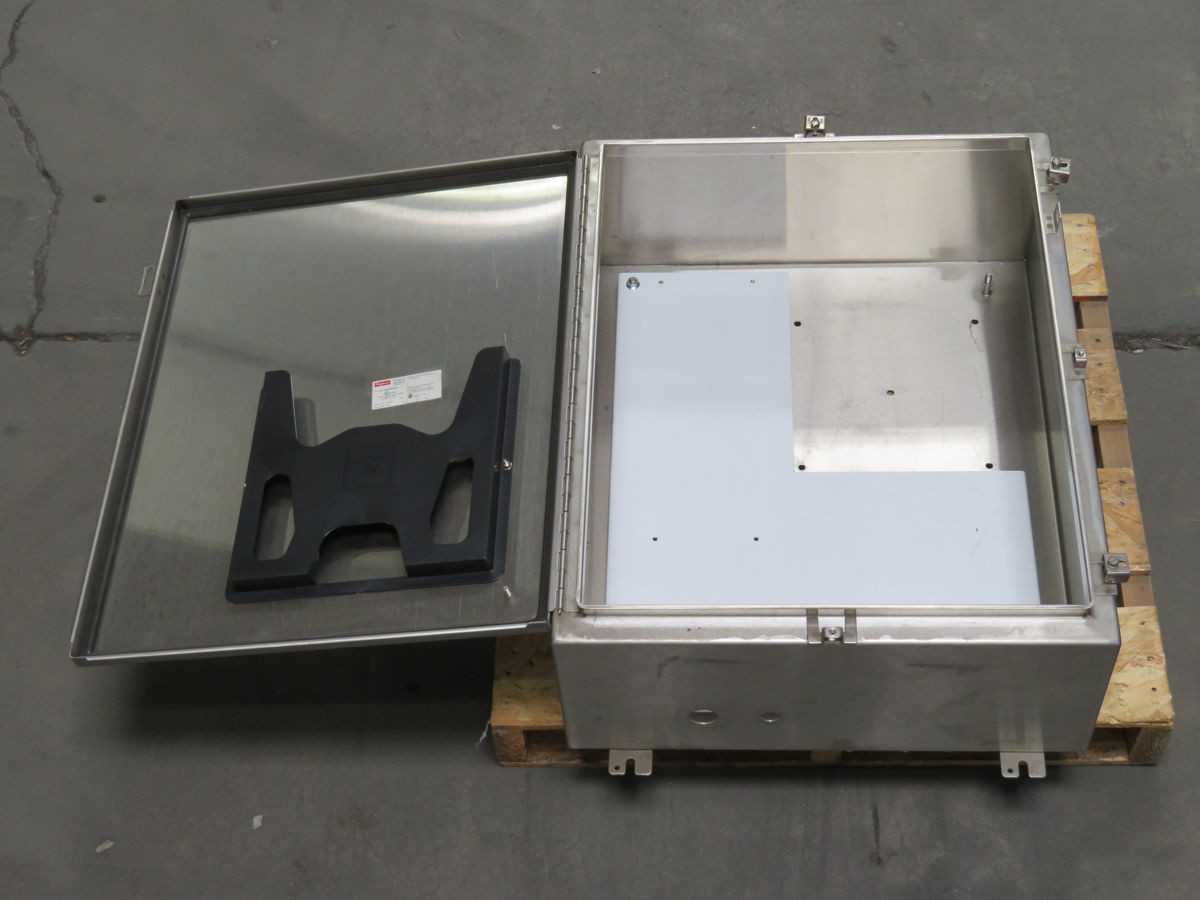

THE HOFFMAN A30H2410SS6LP IS AN INDUSTRIAL CONTROL PANEL ENCLOSURE CONSTRUCTED FROM 304 STAINLESS STEEL WITH CONTINUOUSLY WELDED SEAMS, DESIGNED TO HOUSE ELECTRICAL AND ELECTRONIC CONTROLS. ITS EXTERNAL DIMENSIONS ARE 30.00 INCHES IN HEIGHT, 24.00 INCHES IN WIDTH, AND 10.00 INCHES IN DEPTH. THE ENCLOSURE FEATURES A SINGLE, HINGED DOOR SECURED BY TYPE 316 STAINLESS STEEL QUARTER-TURN LATCHES AND UTILIZES A SEAMLESS, POURED-IN-PLACE GASKET FOR ENVIRONMENTAL SEALING. IT IS RATED FOR NEMA TYPE 3R, 4, 4X, AND 12 APPLICATIONS, PROVIDING PROTECTION AGAINST DUST, DIRT, OIL, WATER, ICE FORMATION, AND CORROSIVE AGENTS. THE DESIGN INCORPORATES EXTERNAL MOUNTING FEET AND INCLUDES PROVISIONS FOR AN INTERNAL PANEL.
