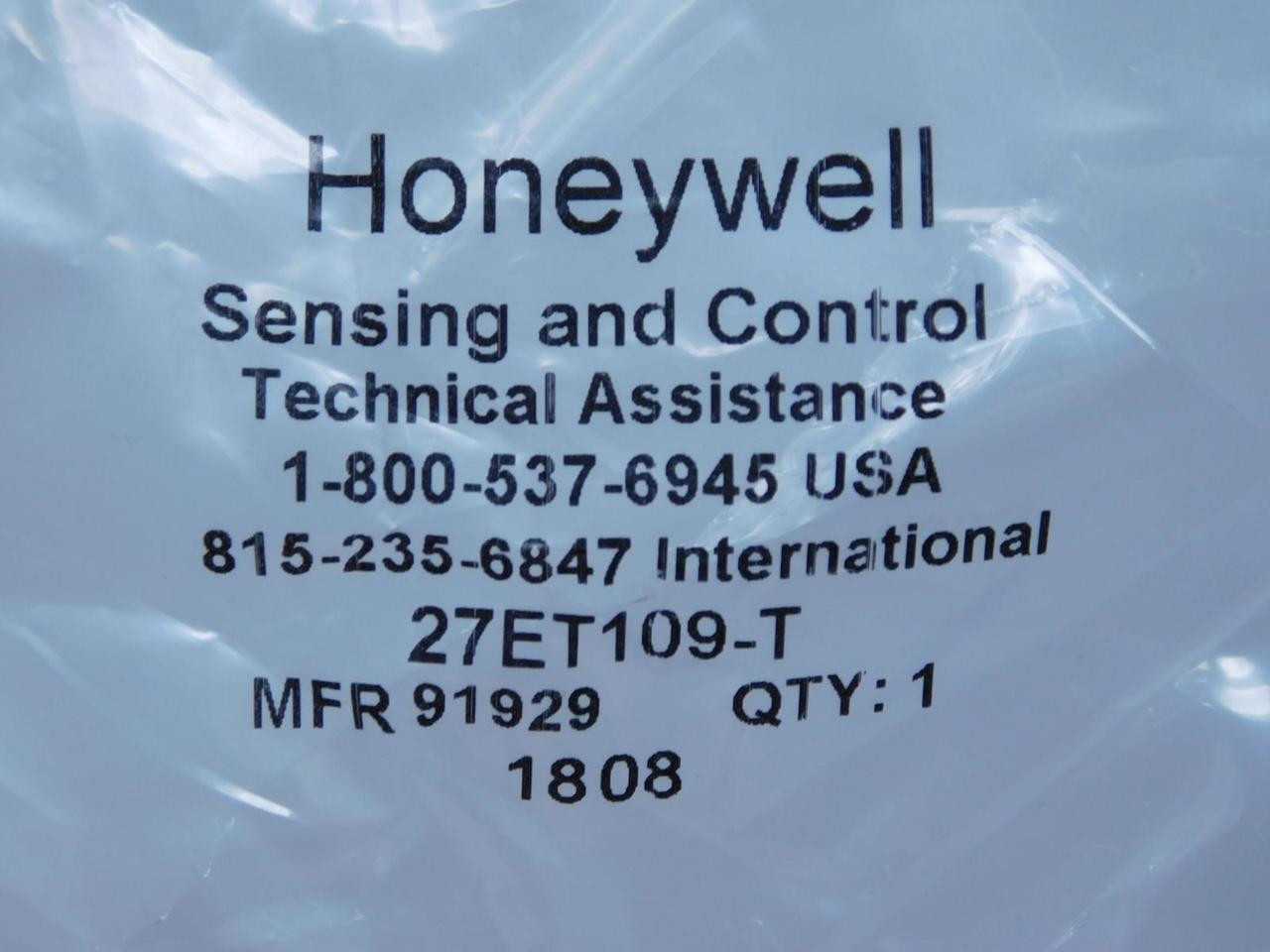

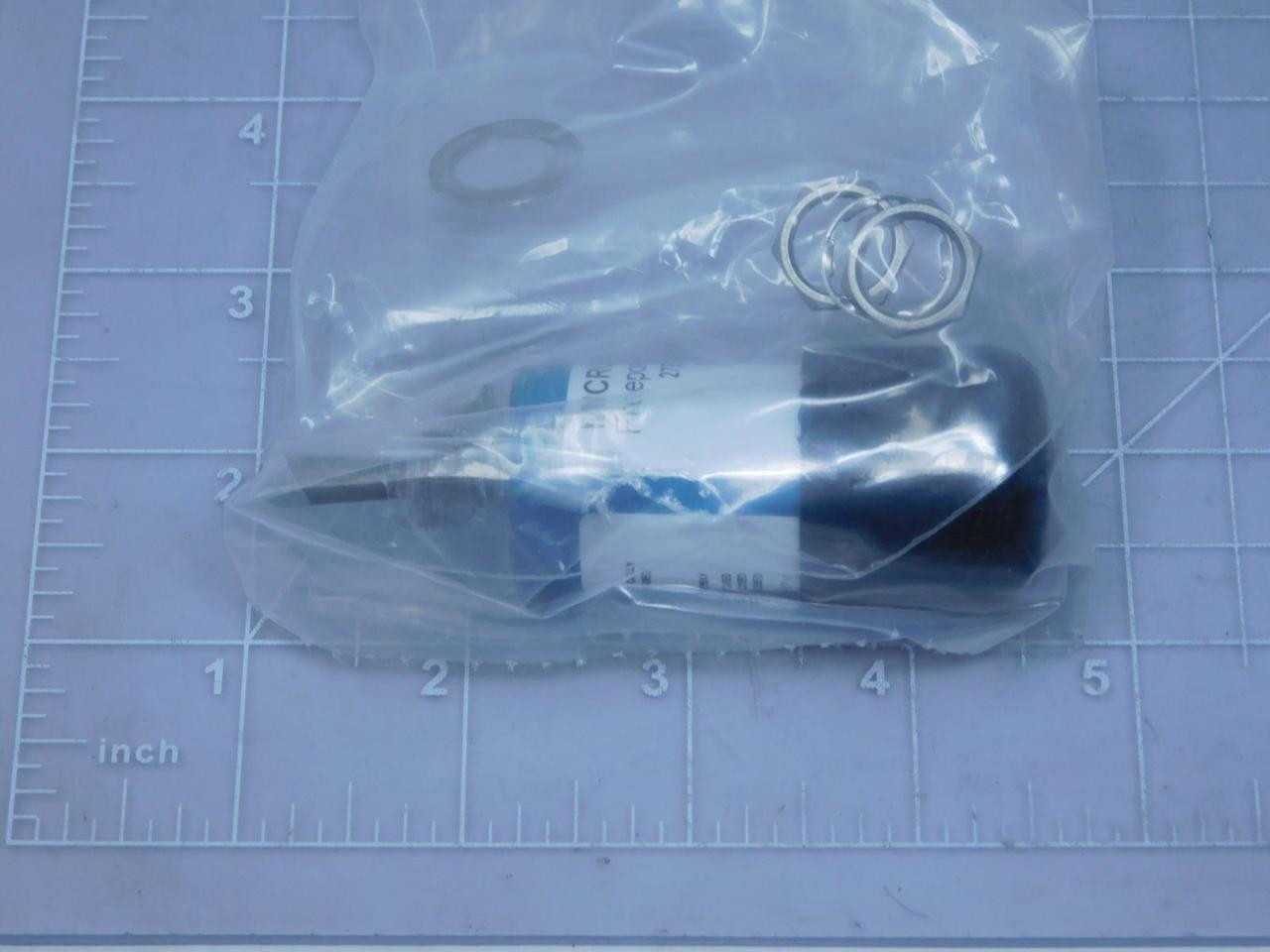

HONEYWELL 27ET109-T TOGGLE SWITCHES, SPDT CONFIG, LEVER, 7A, 28VDC RATING, -54C/+71C TEMP, HERMETIC

THE HONEYWELL 27ET109-T IS A SINGLE POLE DOUBLE THROW (SPDT) TOGGLE SWITCH WITH A LEVER ACTUATOR. IT IS RATED FOR 7 A INDUCTIVE/RESISTIVE LOADS AT 28 VDC. THE SWITCH HAS AN ELECTRICAL LIFE OF 25,000 CYCLES AT FULL LOAD AND A MECHANICAL LIFE OF 100,000 CYCLES. DESIGNED FOR DEMANDING ENVIRONMENTS, IT OPERATES WITHIN A TEMPERATURE RANGE OF -54°C TO +71°C (-65°F TO +160°F) AND IS HERMETICALLY SEALED. TERMINATION IS ACCOMPLISHED VIA SCREW TERMINALS, AND IT MOUNTS THROUGH A 15/32-32 NS-2A THREADED BUSHING. THE DEVICE EXHIBITS A DIELECTRIC STRENGTH OF 1000 VAC RMS AT SEA LEVEL AND AN INSULATION RESISTANCE OF 1000 MEGOHMS MINIMUM. ITS CONTACTS ARE COMPOSED OF SILVER CADMIUM OXIDE.
