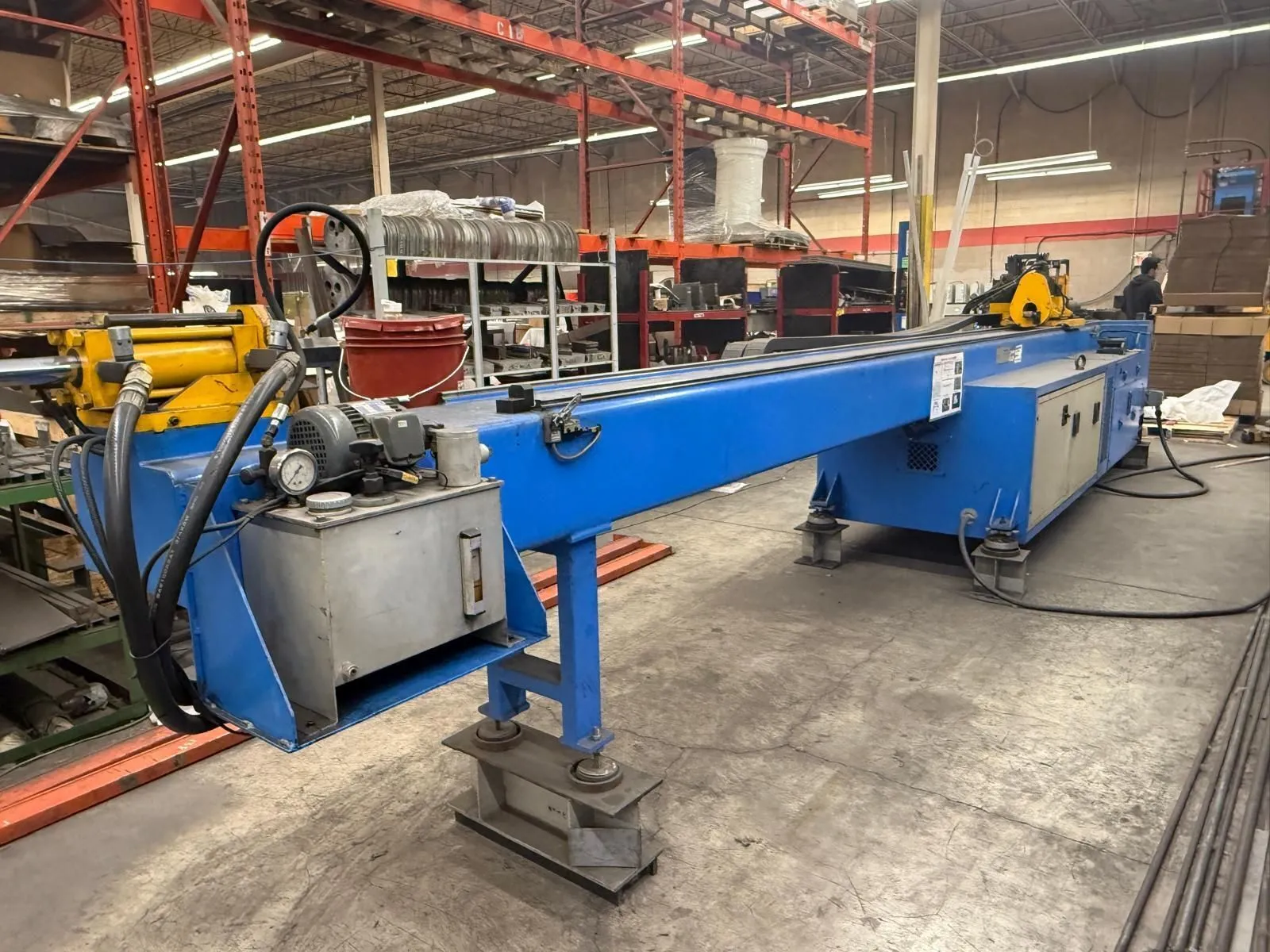

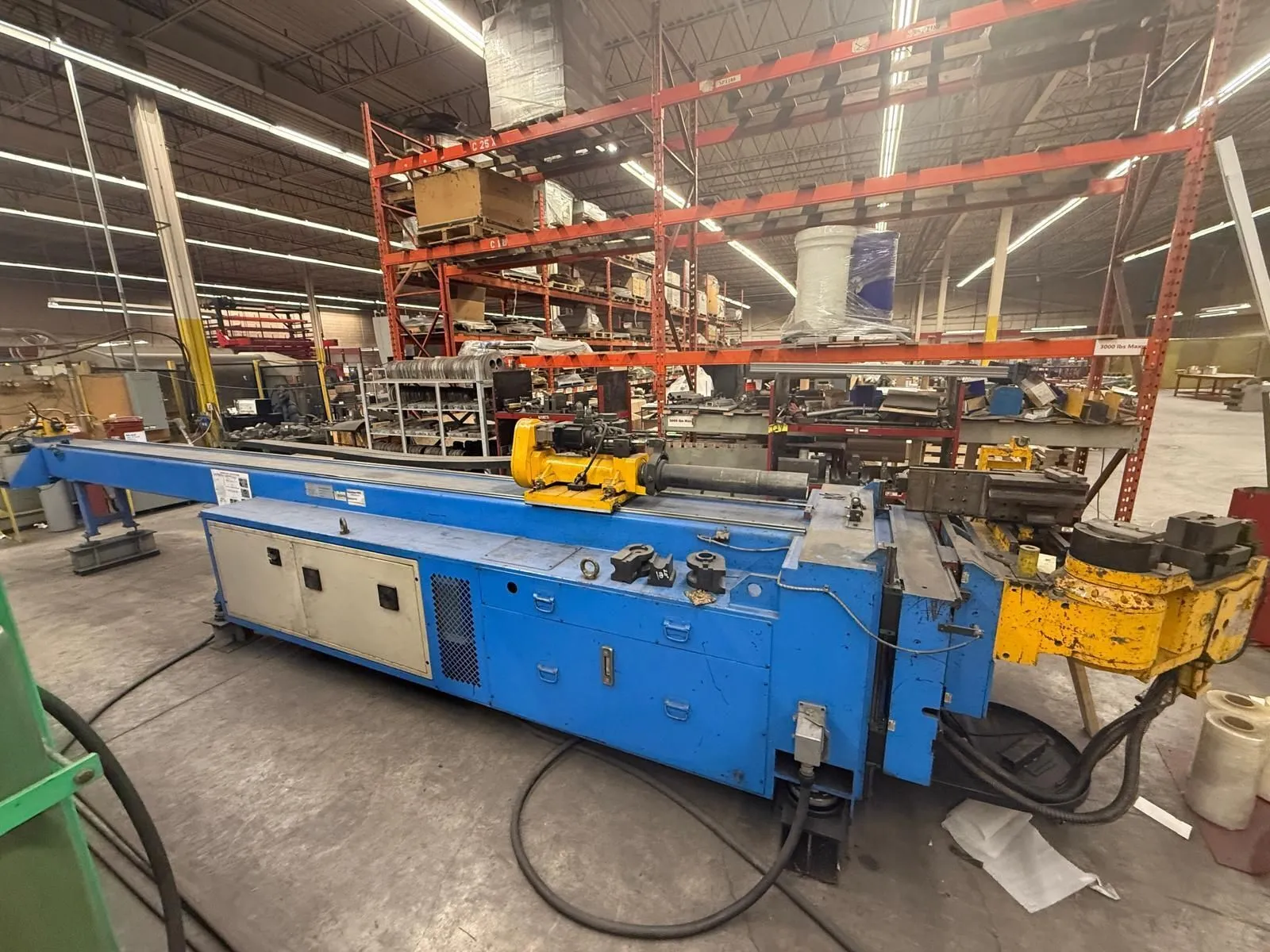

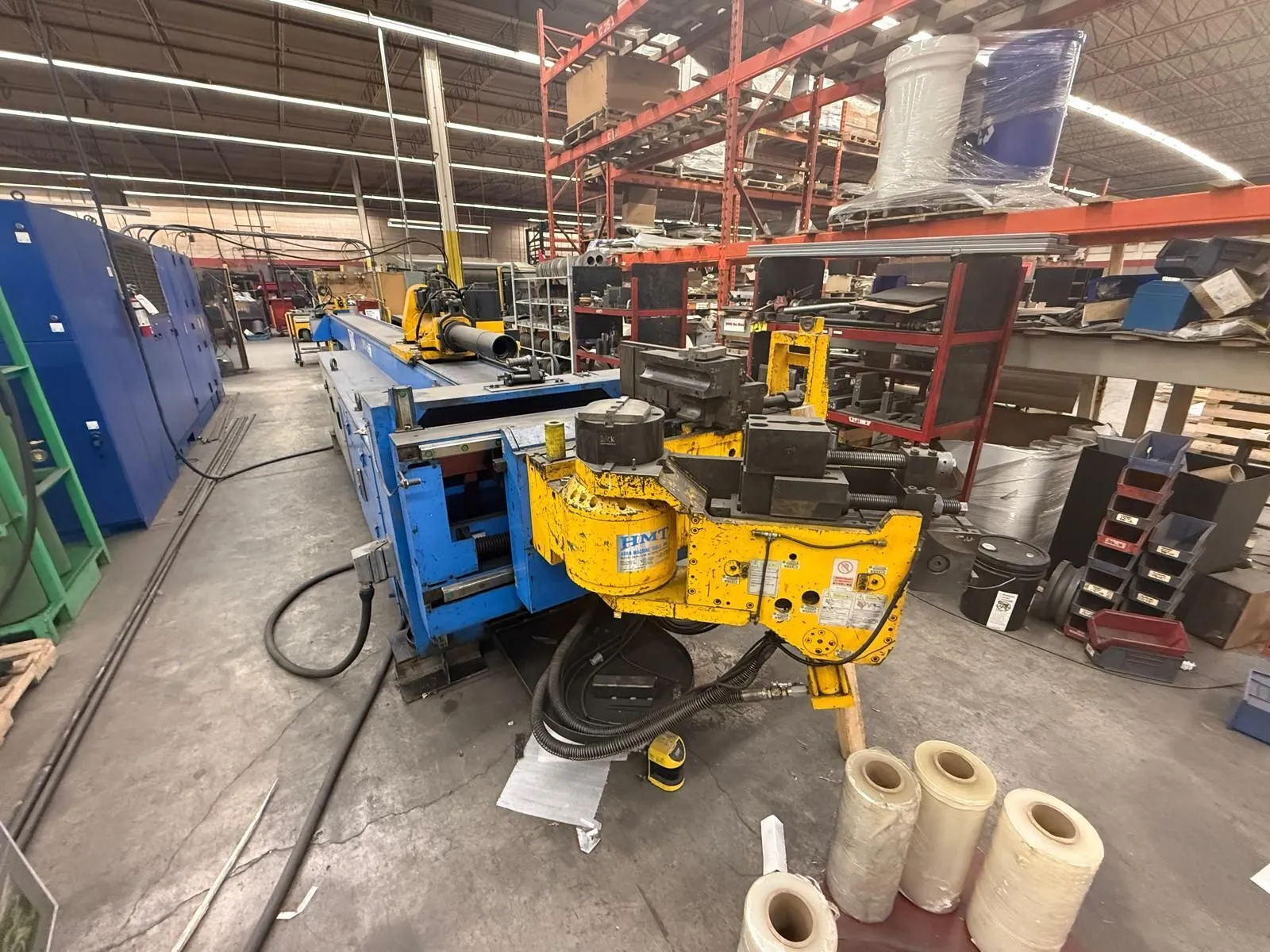

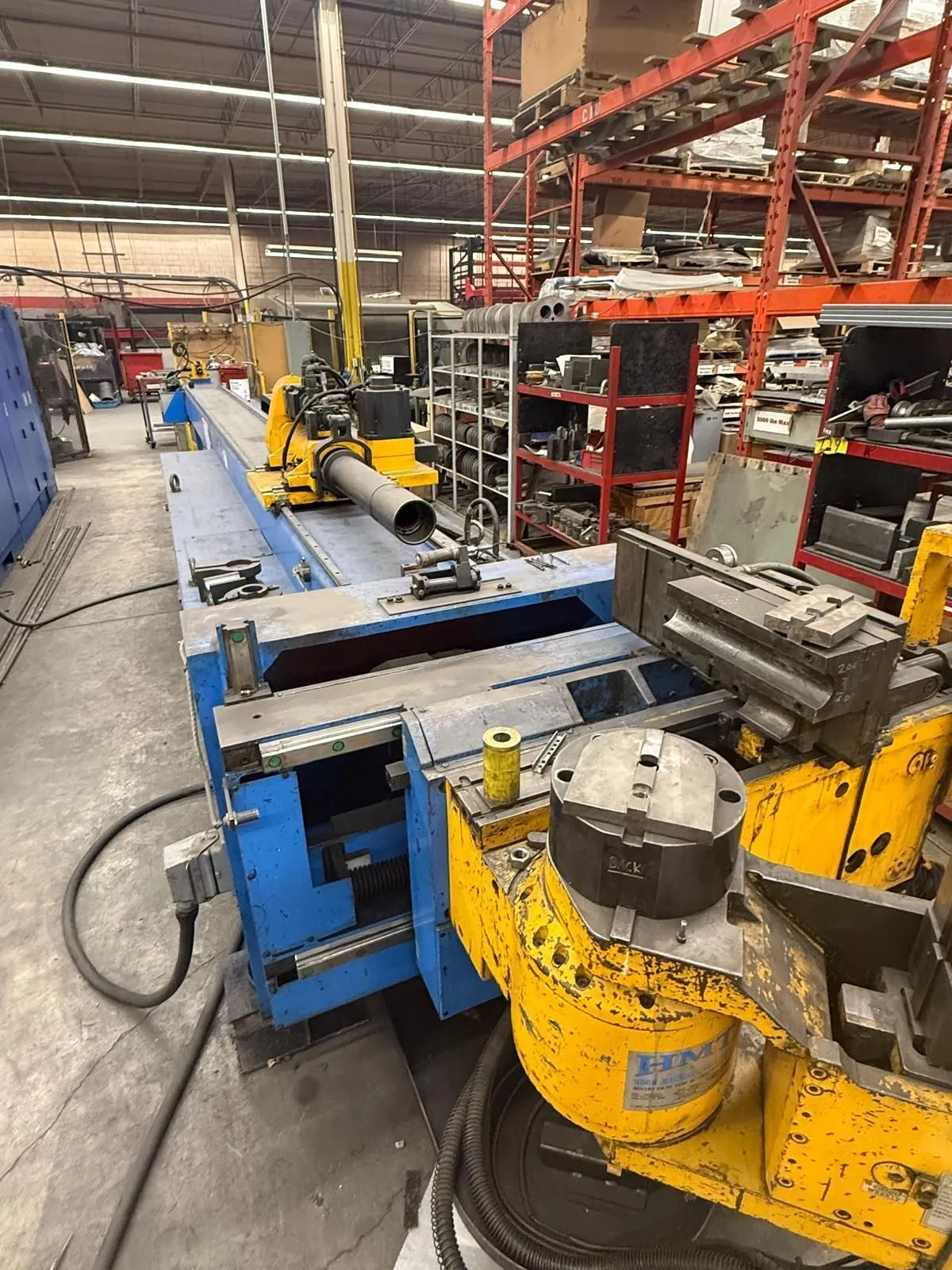

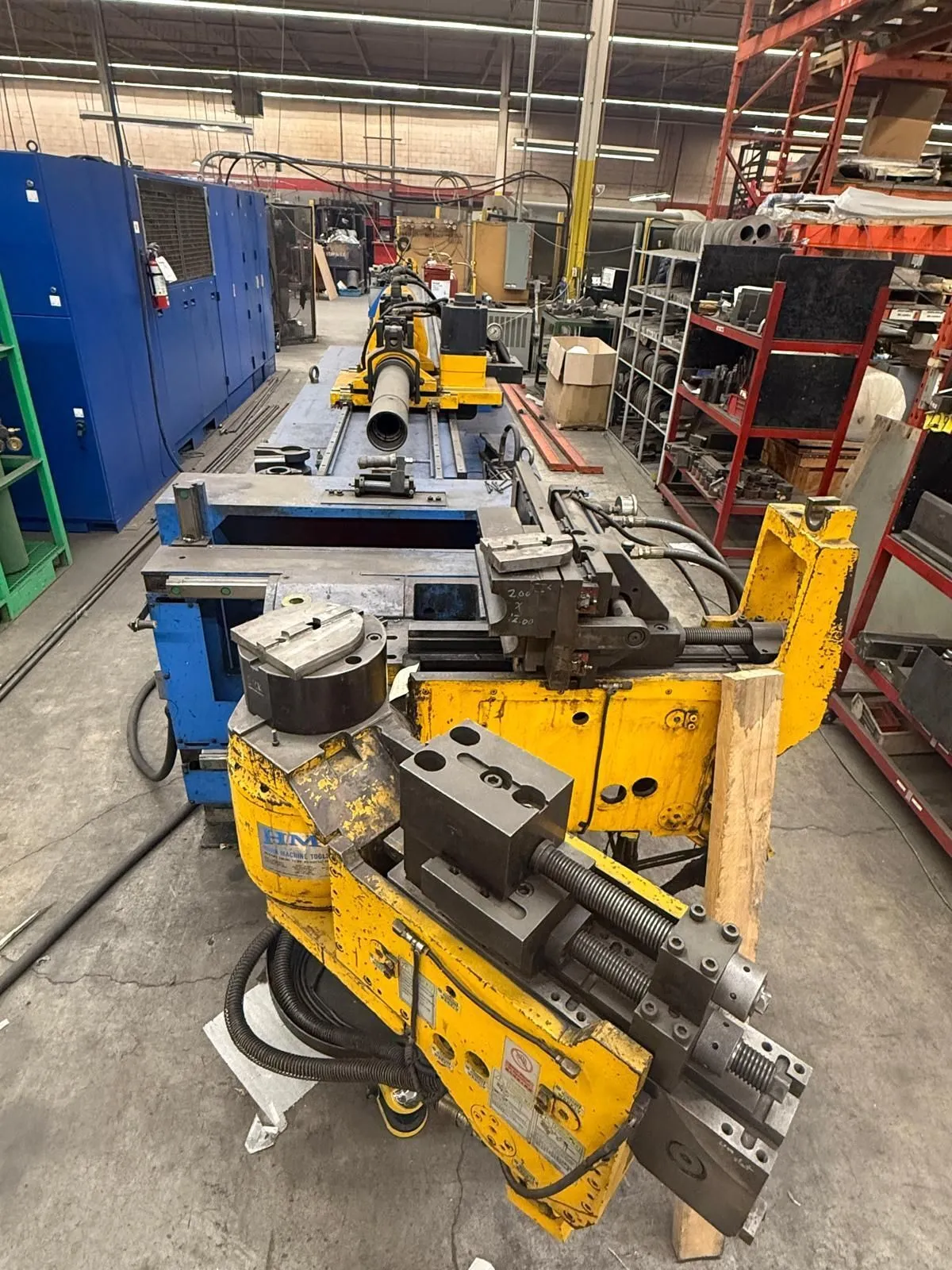

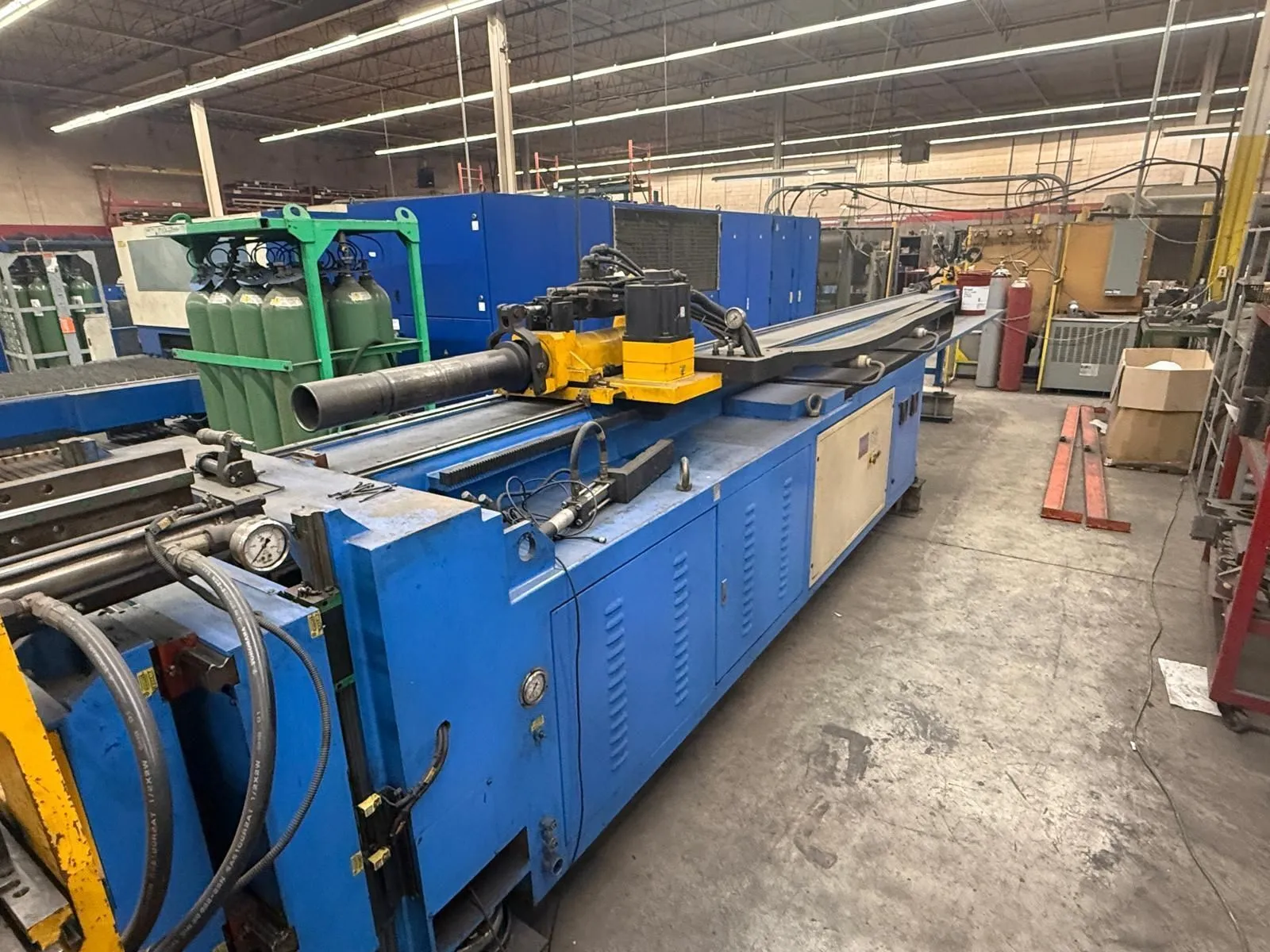

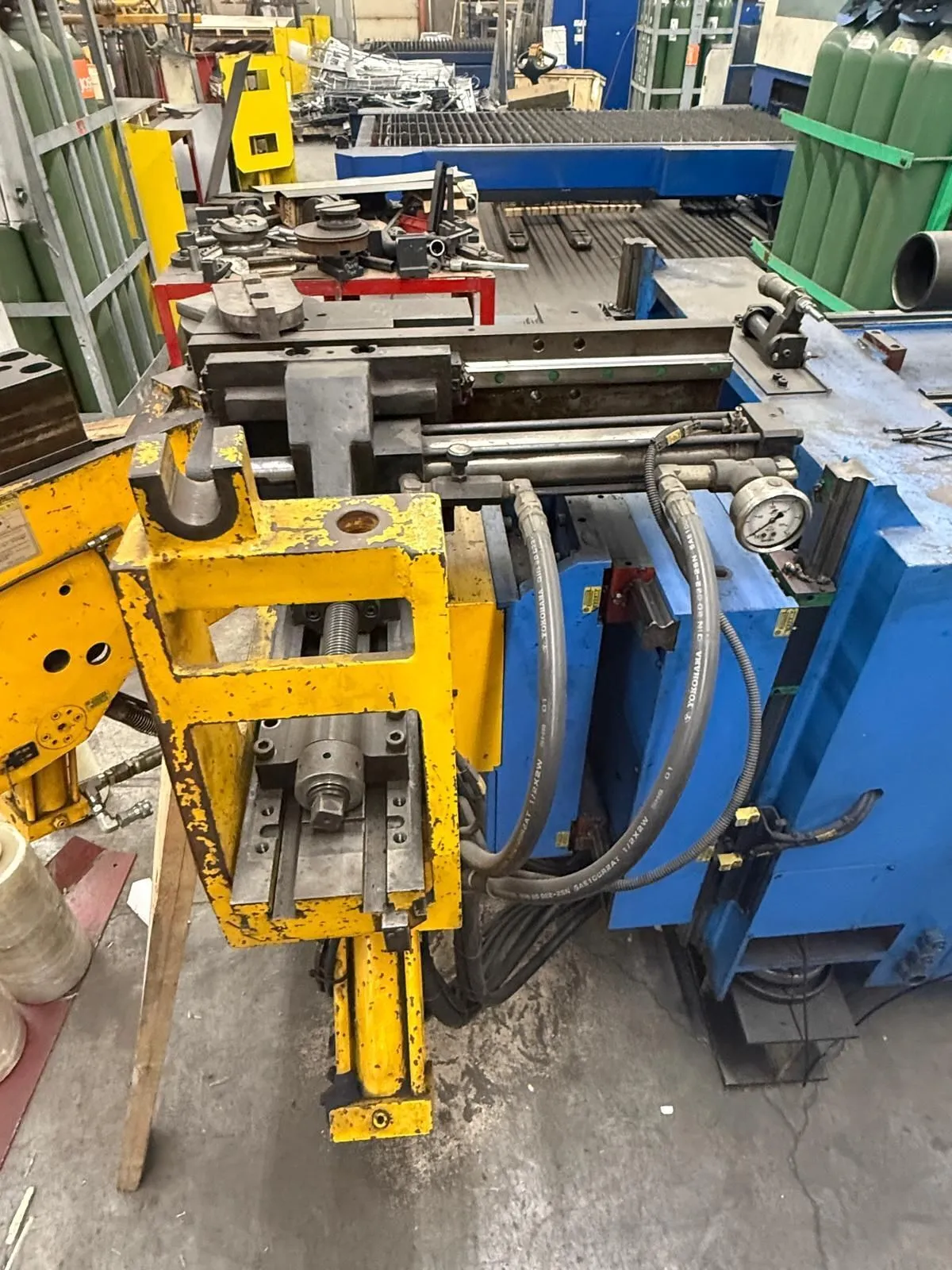

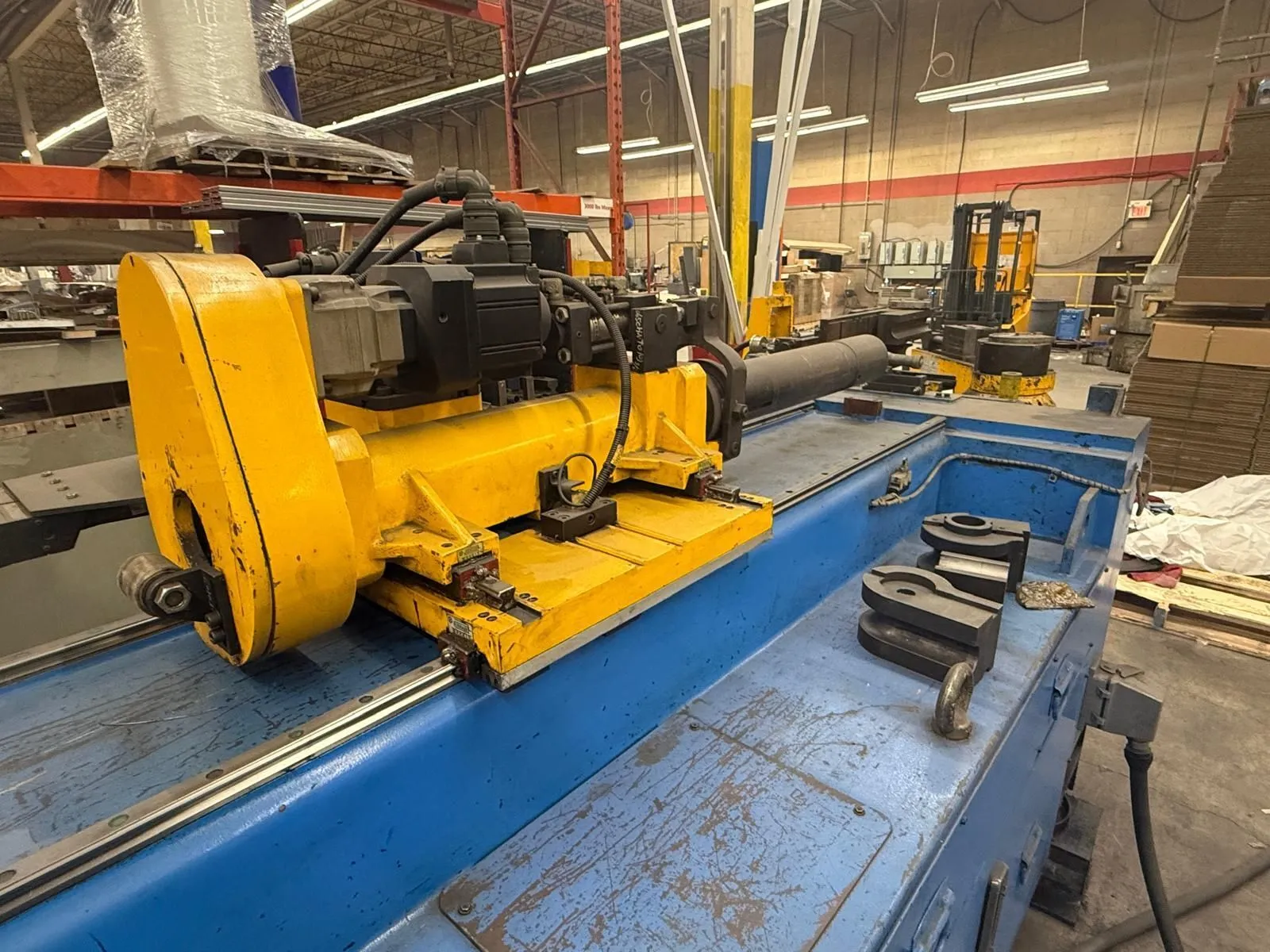

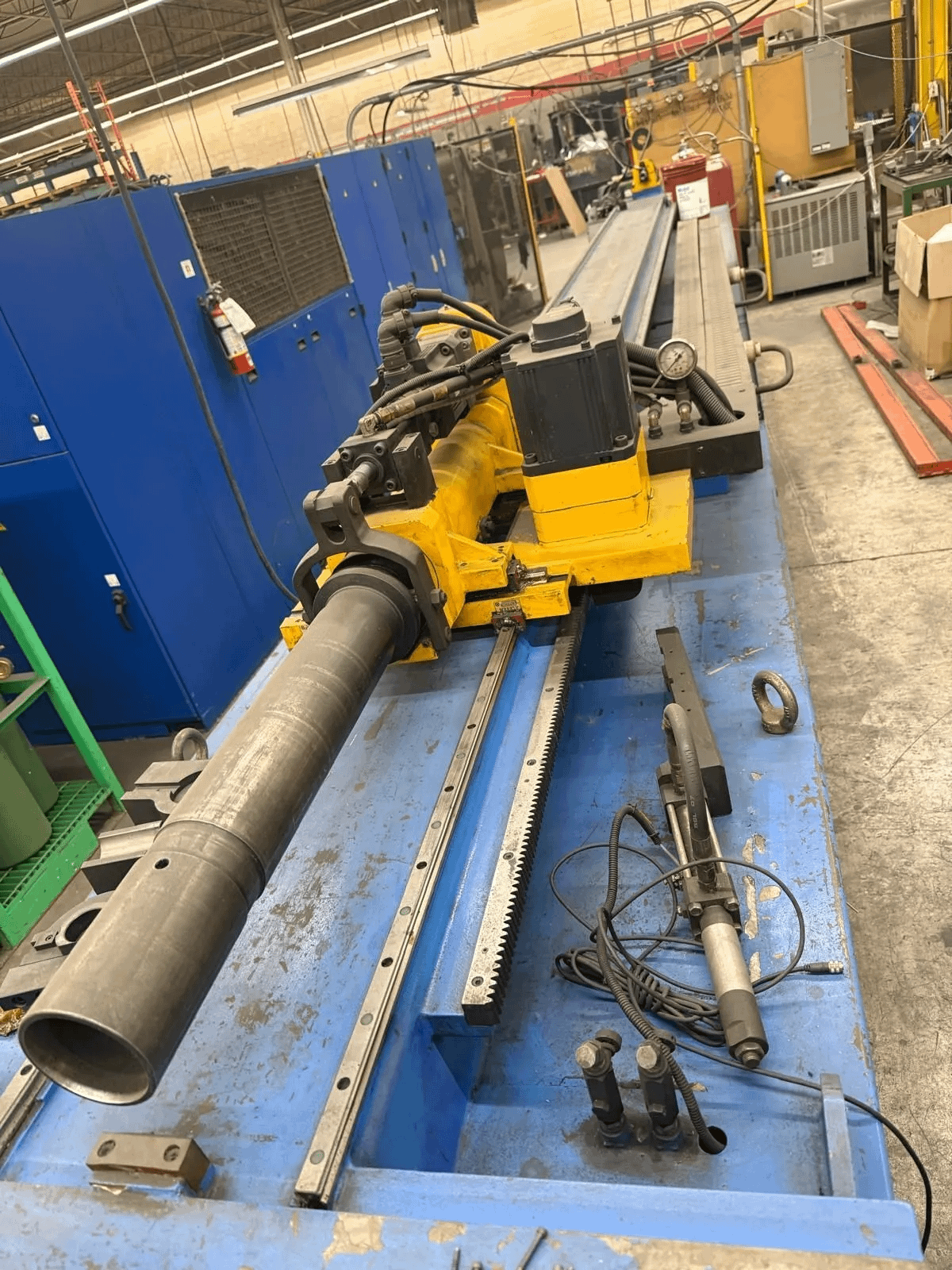

HORN CNC65TBRE 5-AXIS HYBRID TUBE BENDER, 2.5" OD, BENDPRO CNC, 128" MANDREL, DUAL-STACK

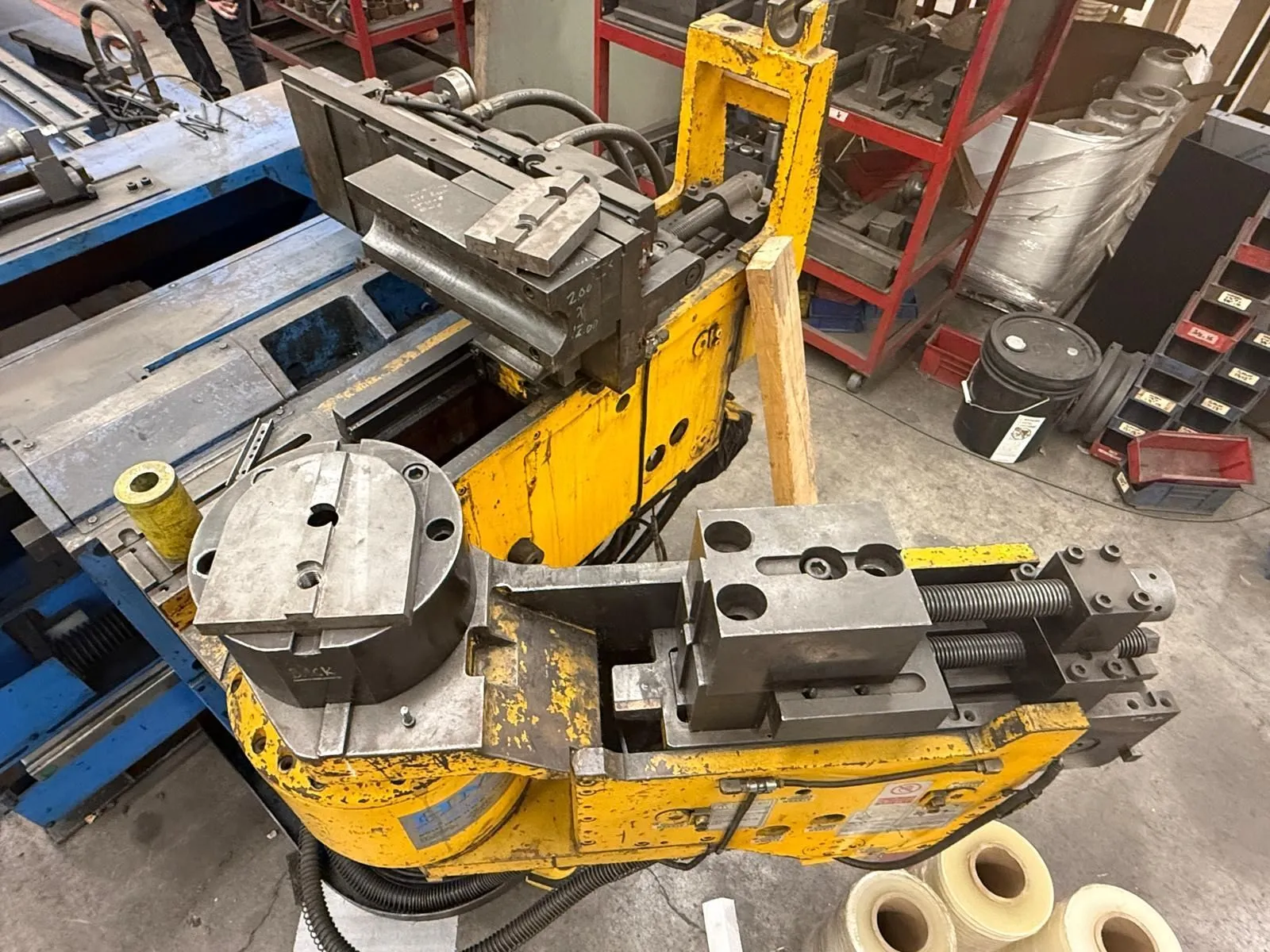

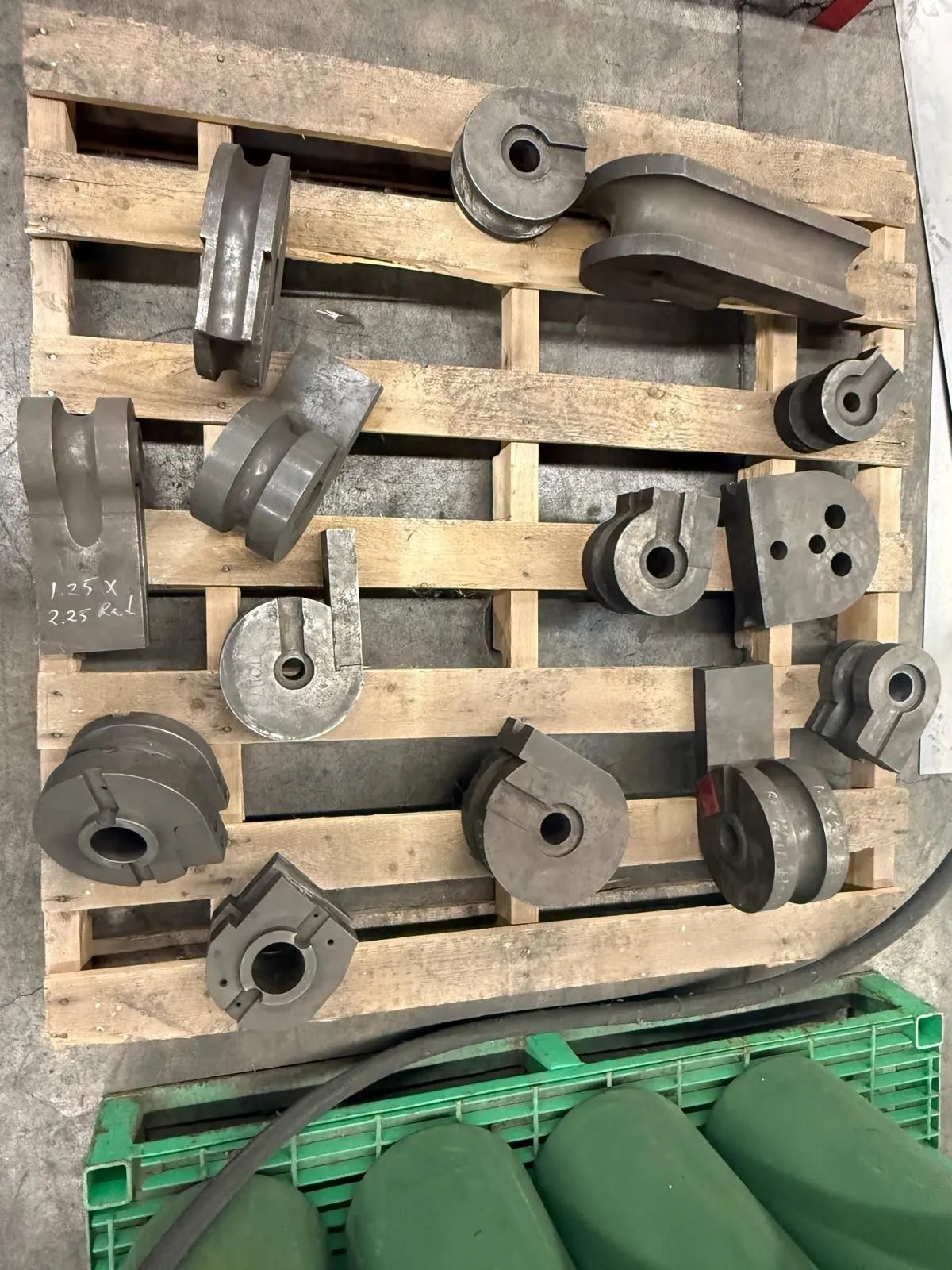

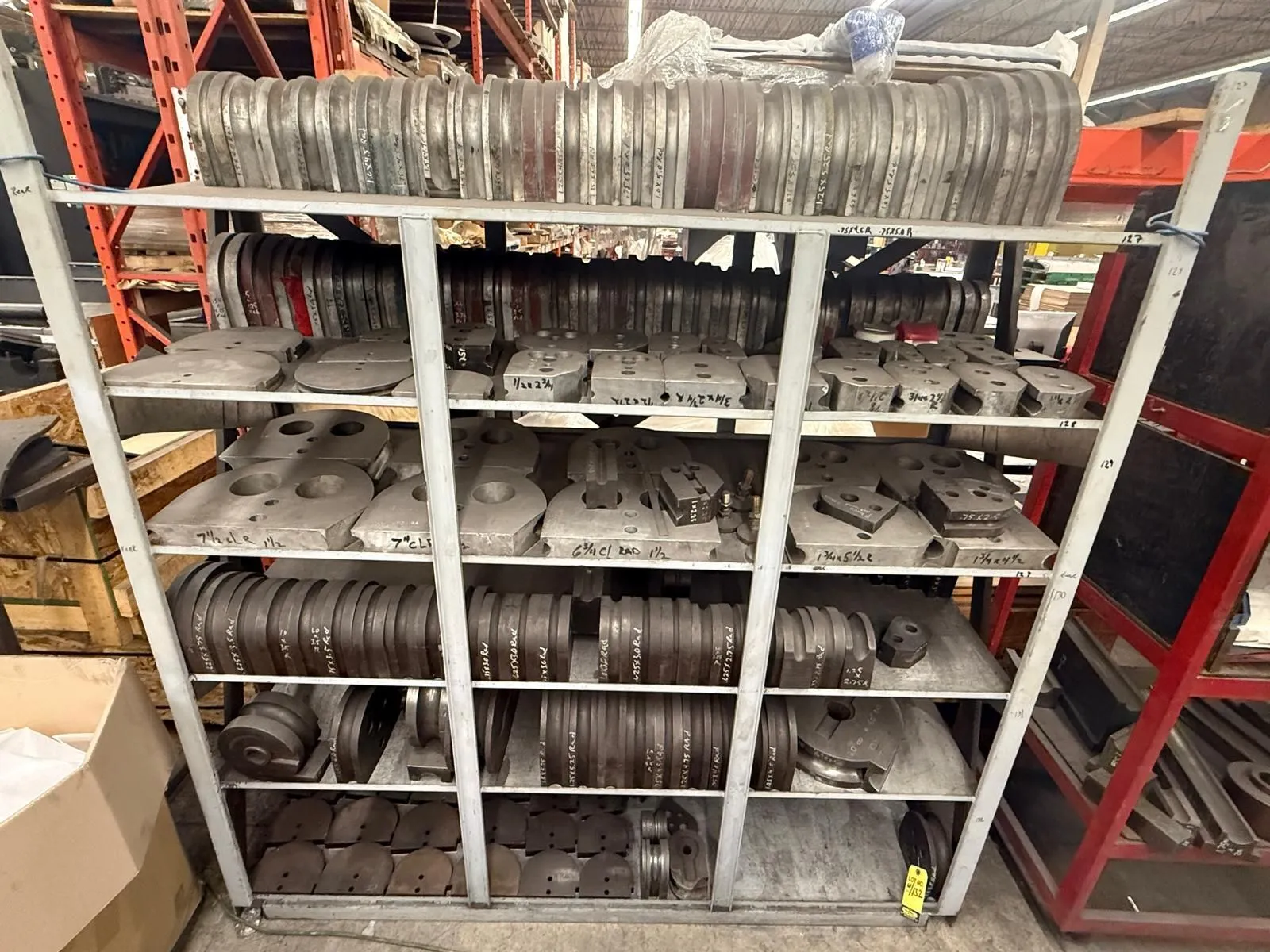

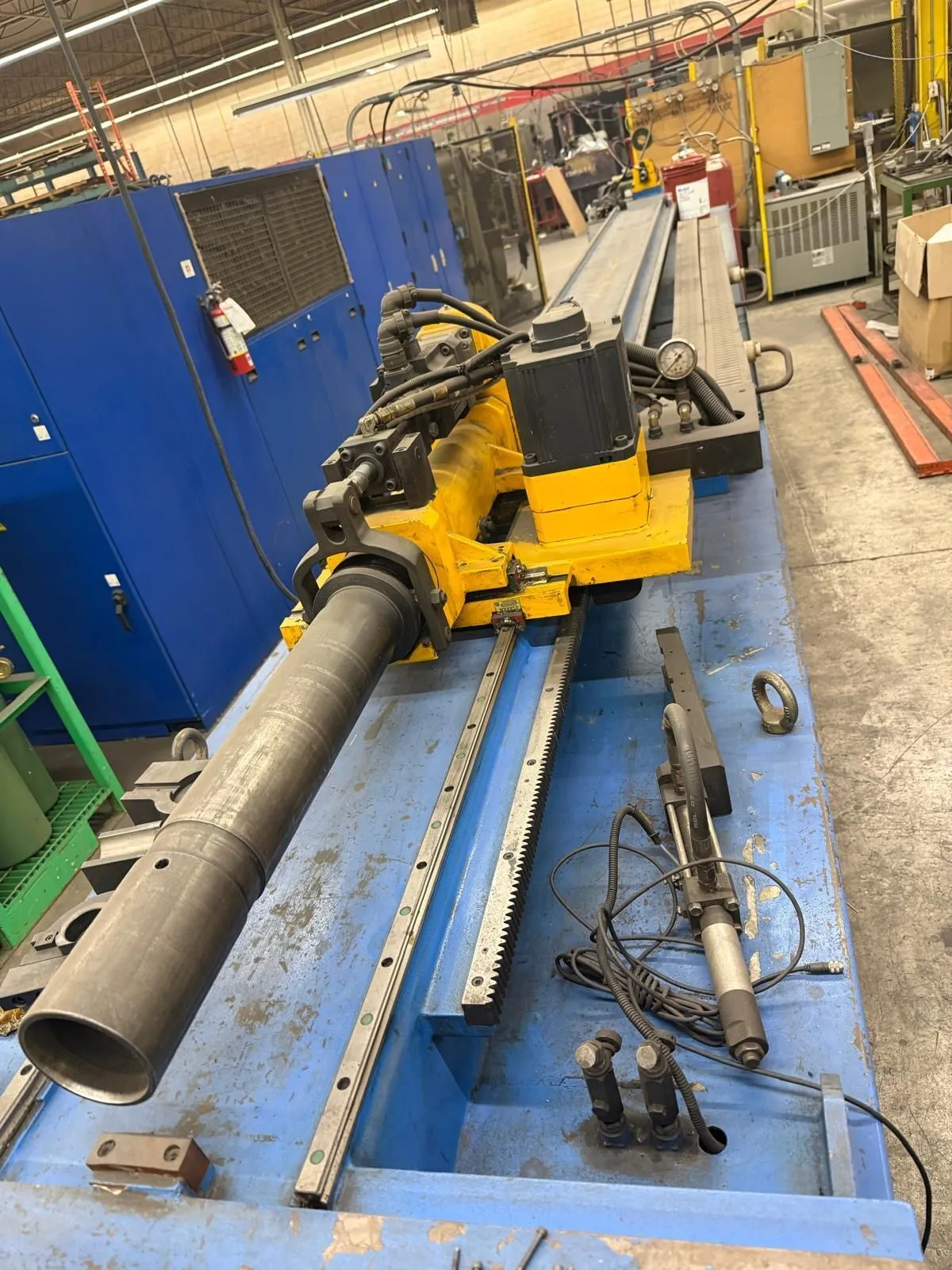

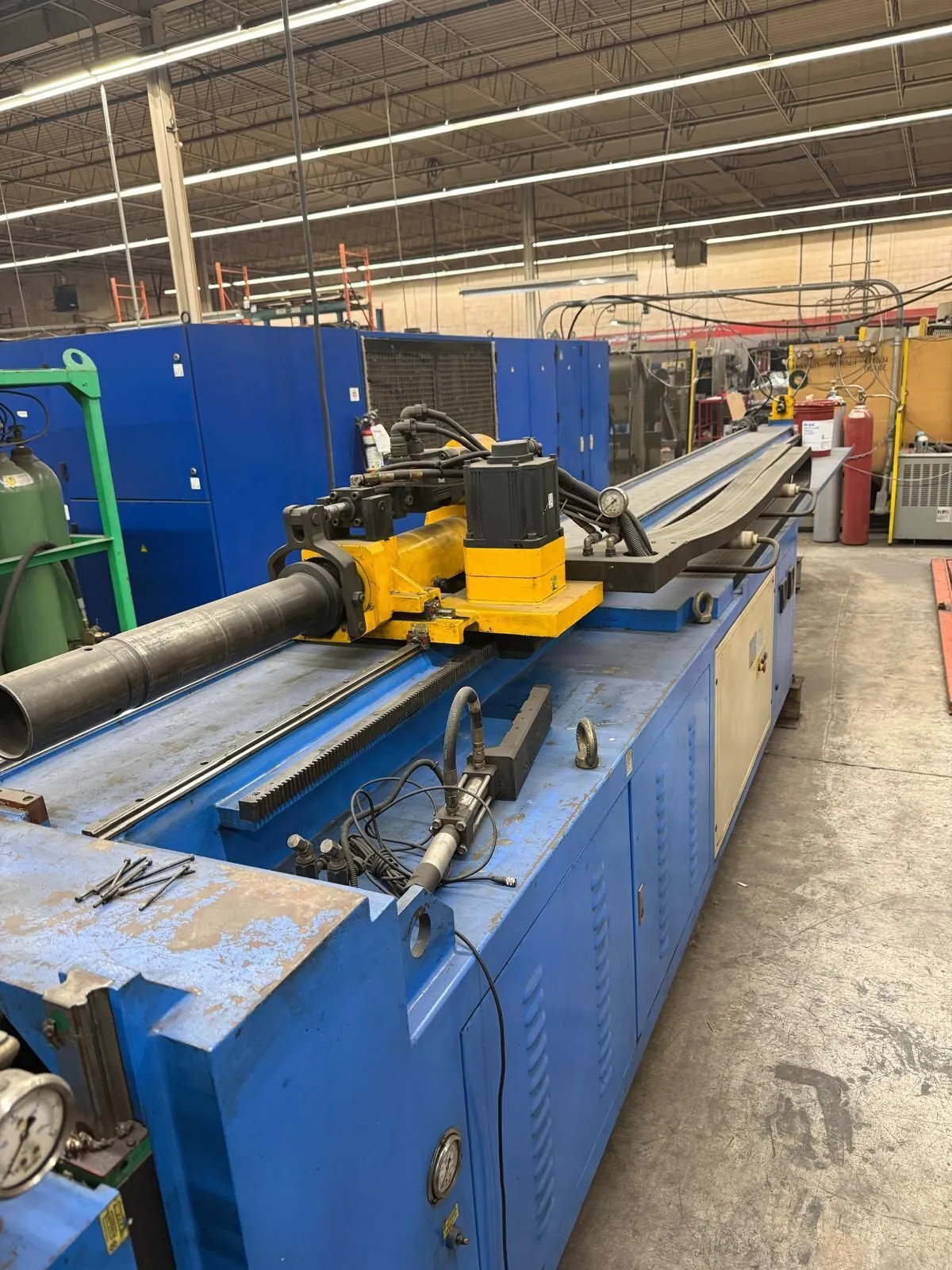

THE HORN CNC65TBRE IS A HEAVY-DUTY 5-AXIS HYBRID ELECTRIC/HYDRAULIC TUBE BENDING MACHINE DESIGNED FOR PRECISION INDUSTRIAL MANUFACTURING. IT FEATURES A MAXIMUM BENDING CAPACITY FOR ROUND MILD STEEL TUBING OF 2.50 INCHES OD WITH A 0.079-INCH WALL THICKNESS, AND NON-FERROUS TUBING UP TO 2.50 INCHES OD WITH A 0.138-INCH WALL THICKNESS. THE MACHINE IS ALSO CAPABLE OF PROCESSING STAINLESS STEEL TUBING UP TO 2.50 INCHES OD BY 0.055-INCH WALL, SQUARE TUBING UP TO 1.96 INCHES, AND SOLID BAR UP TO 1.18 INCHES. THE SYSTEM UTILIZES FIVE CONTROLLED AXES, INCLUDING ELECTRIC SERVO-DRIVEN TUBE ROTATION (B-AXIS), BEND ARM (C-AXIS), AND CARRIAGE FEED (Y-AXIS), WHILE EMPLOYING HYDRAULIC SYSTEMS FOR CLAMP DIE, PRESSURE DIE, AND MANDREL ACTUATION. THIS HYBRID CONFIGURATION SUPPORTS DUAL-STACK TOOLING, ENABLING BOTH TIGHT-RADIUS MANDREL BENDING AND LARGE-RADIUS ROLL BENDING IN A SINGLE SETUP. TECHNICAL SPECIFICATIONS INCLUDE A MAXIMUM BEND ANGLE OF 180 DEGREES PLUS SPRINGBACK COMPENSATION, WITH A MAXIMUM LENGTH OVER MANDREL OF 128 INCHES WHEN END-CHUCKED OR 176 INCHES THROUGH THE CARRIAGE. THE BENDER ACHIEVES POSITIONING ACCURACY BETWEEN 0.005 AND 0.010 INCHES. STANDARD FEATURES INCLUDE A BENDPRO CNC CONTROL SYSTEM, PRESSURE DIE ASSIST, AUTOMATIC MANDREL LUBRICATION, AND AN AUTOMATIC TUBE SUPPORT SYSTEM. THE UNIT OPERATES ON 230/460V, 60 HZ, 3-PHASE POWER, WEIGHING APPROXIMATELY 12,000 LBS.
