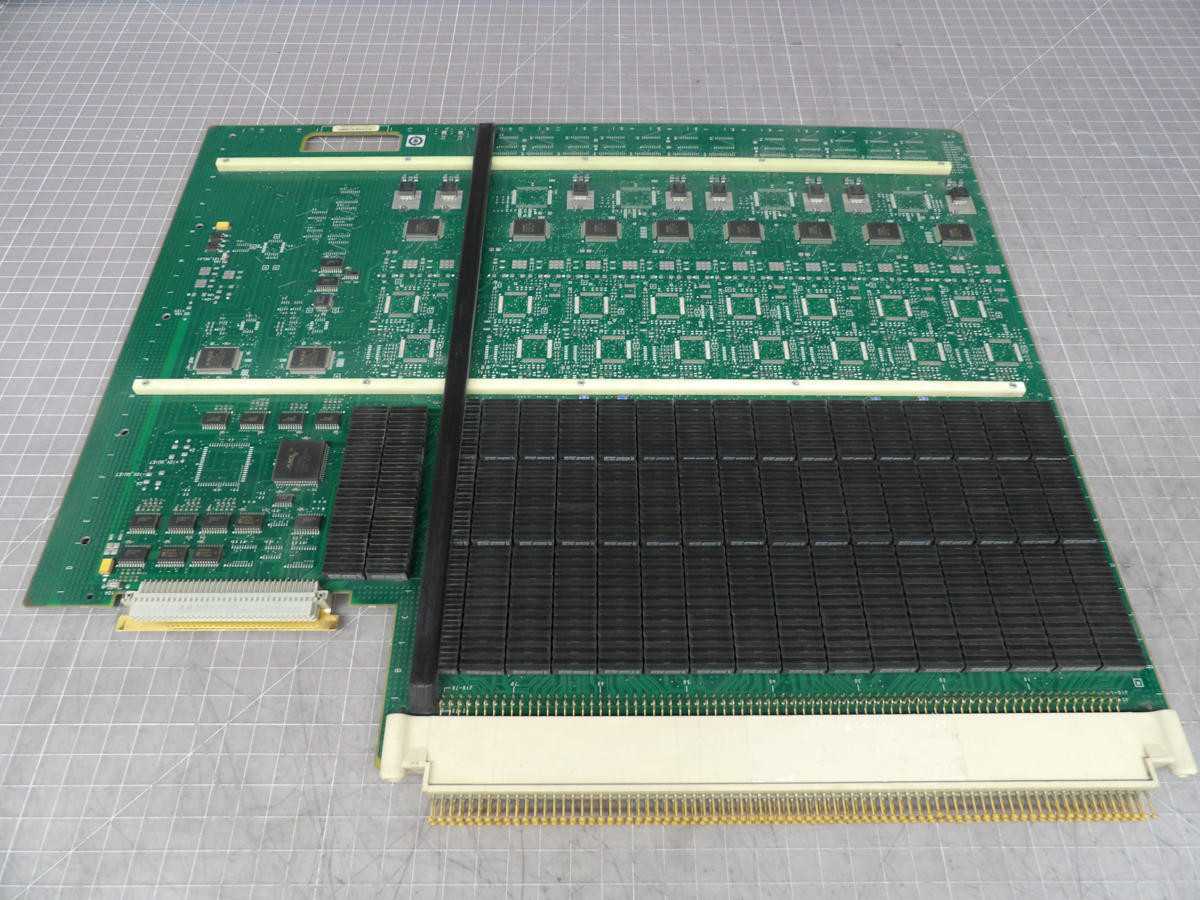

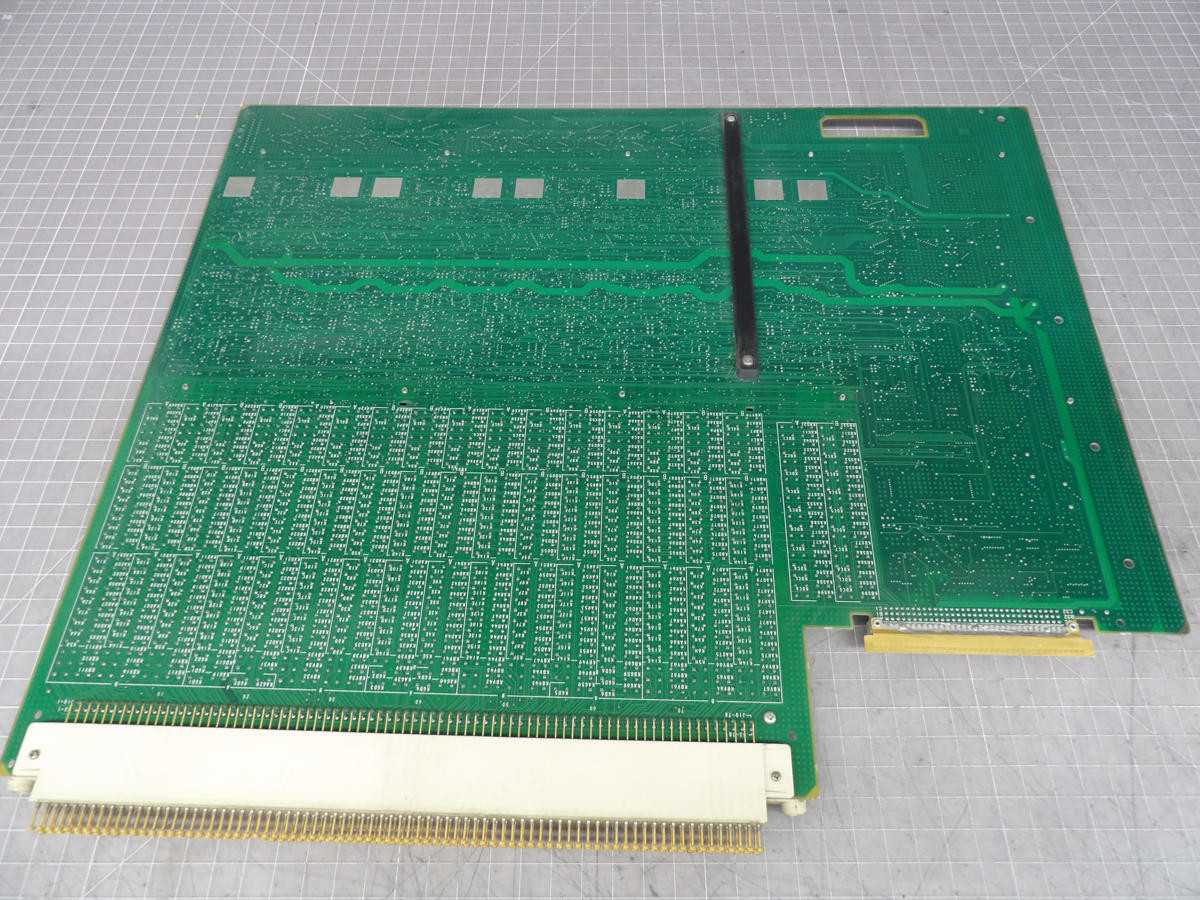

HP E4000-66550, CIRCUIT BOARD, MEASUREMENT, ICT DATA ACQUISITION, HP 3070 SERIES III COMPATIBILITY

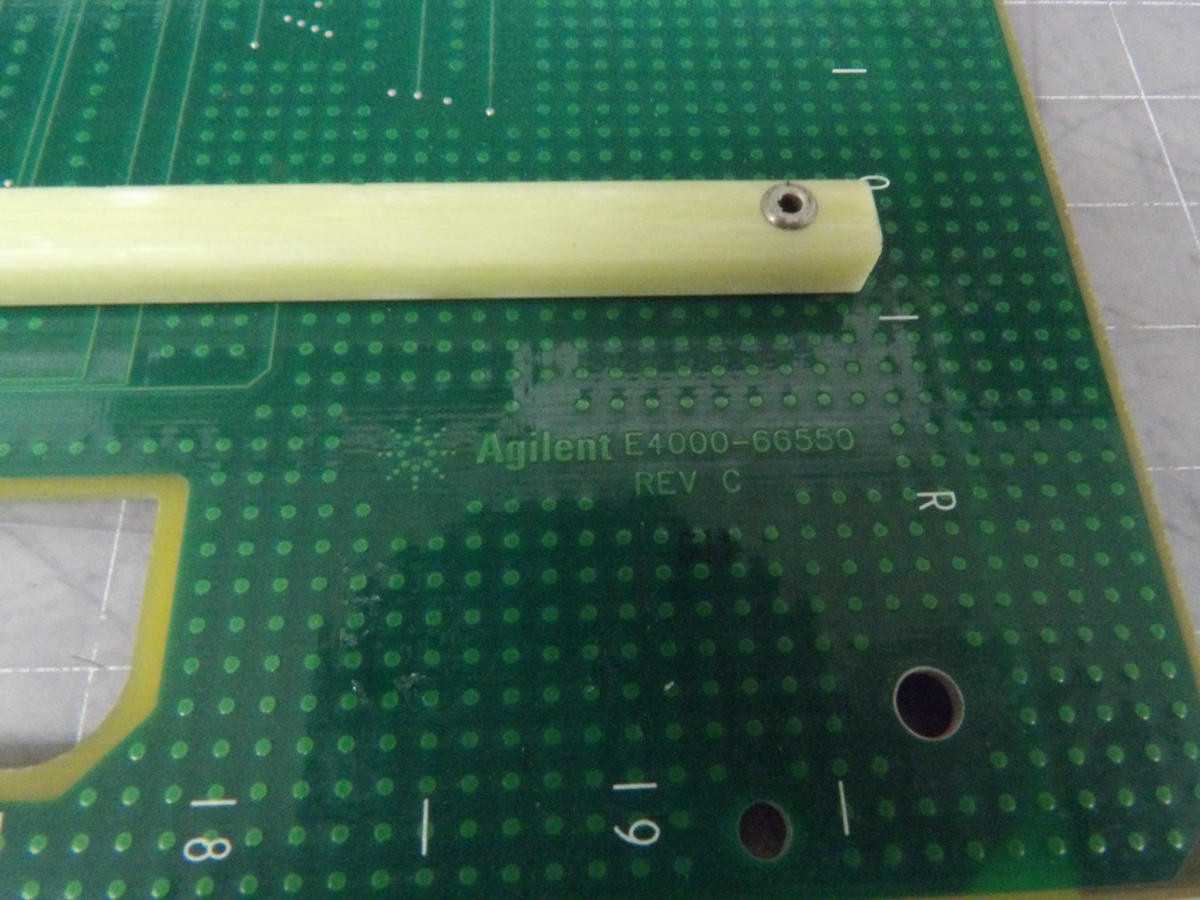

THE HP E4000-66550, OR ITS REVISION E4000-66551, IS A CIRCUIT BOARD DESIGNED FOR INTEGRATION INTO THE HP 3070 SERIES III IN-CIRCUIT TEST (ICT) SYSTEM. THIS BOARD SERVES AS A CORE COMPONENT WITHIN THE AUTOMATED TEST EQUIPMENT (ATE), FUNCTIONING PRIMARILY AS A MEASUREMENT BOARD. IT INTEGRATES THE NECESSARY DIGITAL AND ANALOG CIRCUITRY TO PERFORM IN-CIRCUIT MEASUREMENTS AND ACQUIRE TEST DATA FROM PRINTED CIRCUIT BOARD ASSEMBLIES. THE BOARD PROVIDES THE FOUNDATIONAL MEASUREMENT CAPABILITIES REQUIRED FOR COMPREHENSIVE COMPONENT-LEVEL AND FUNCTIONAL VERIFICATION PROCESSES WITHIN THE HP 3070 SERIES III PLATFORM.
