HP E4000-66550 CIRCUIT BOARDS, SYSTEM CONTROLLER FUNCTION, A REVISION, M4421 COMPONENT REFERENCE

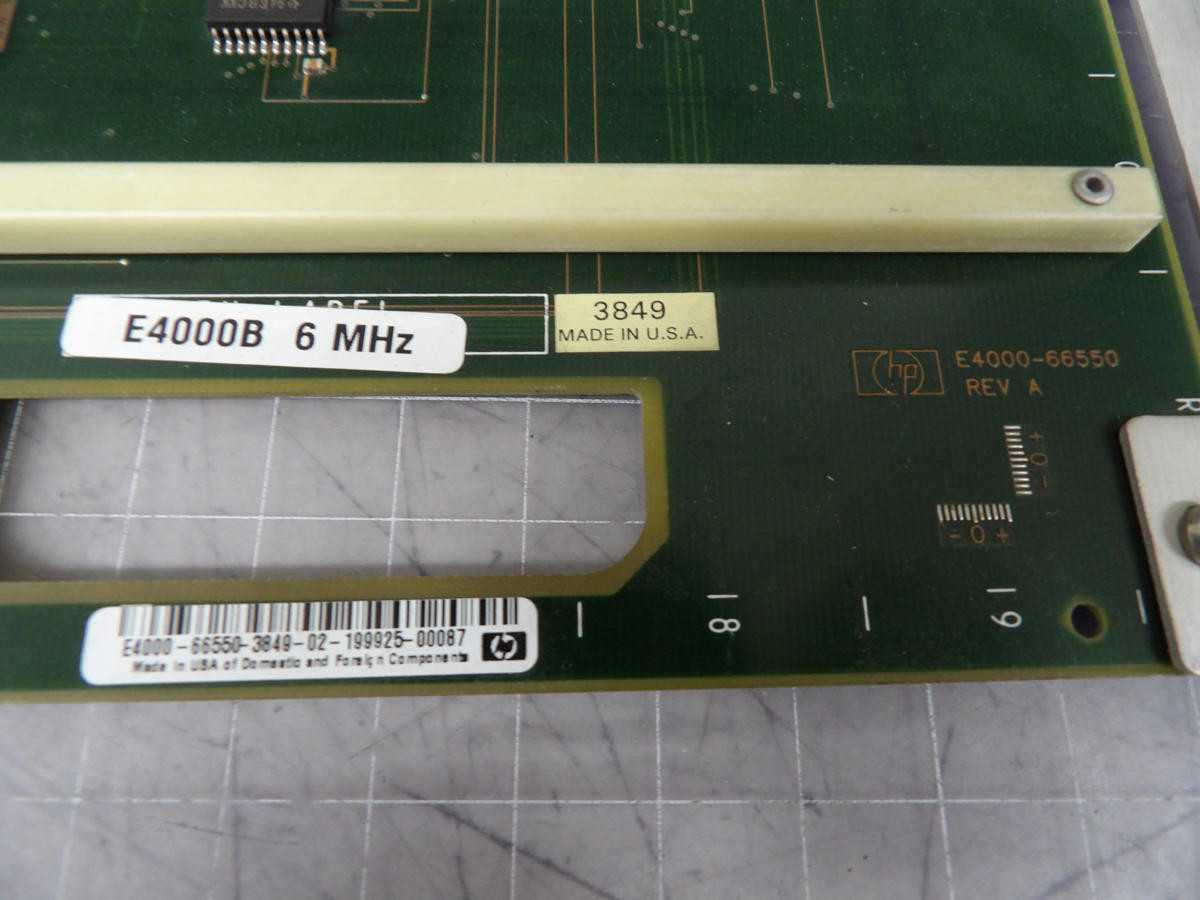

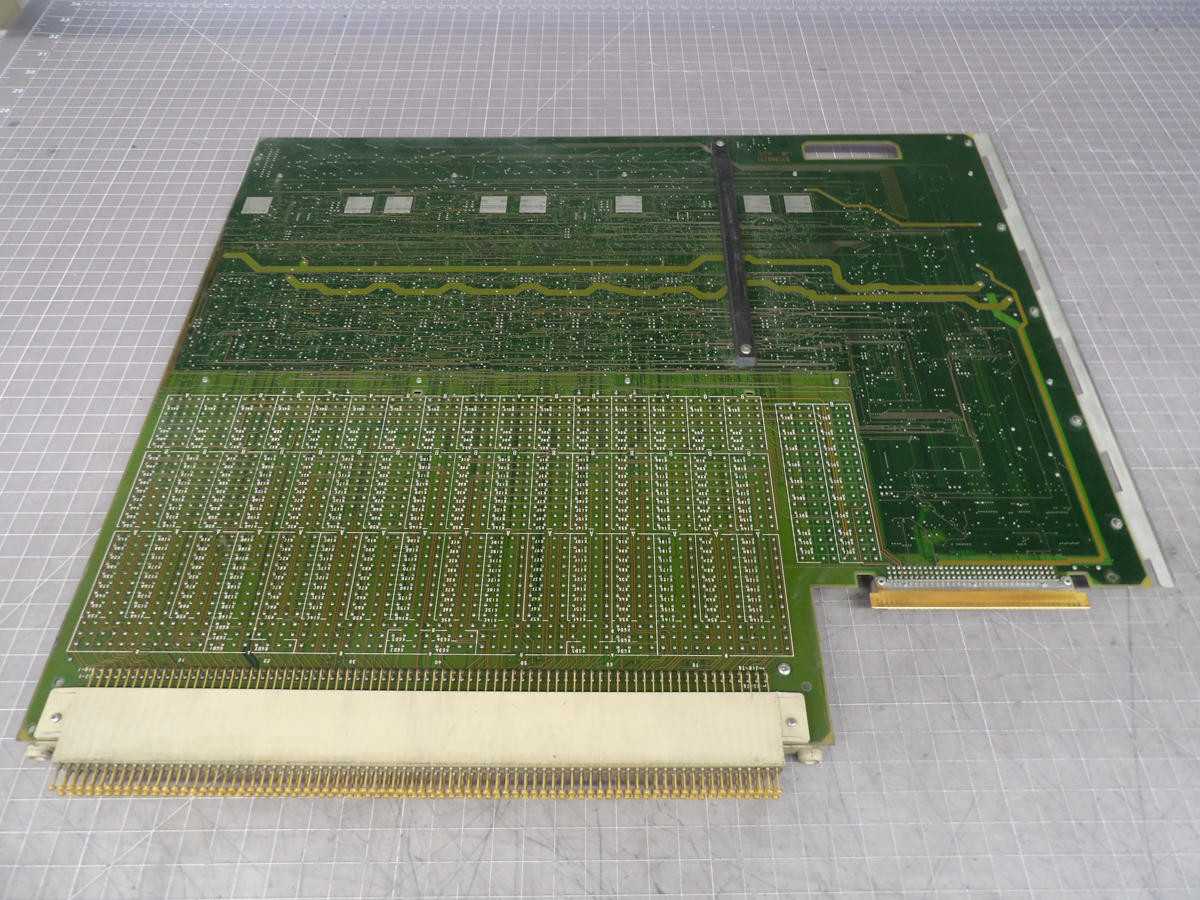

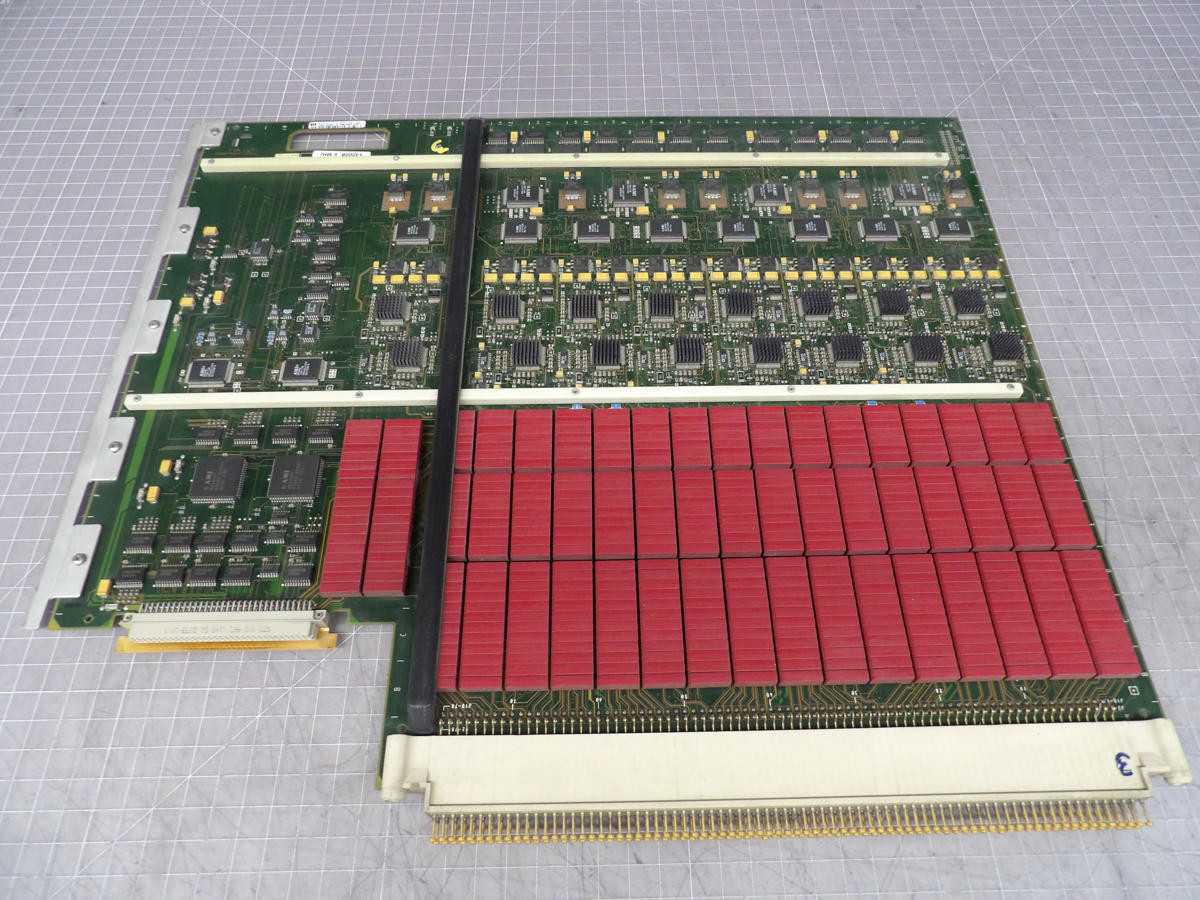

THE HP E4000-66550, ALSO DESIGNATED AS E4000B, IS A CIRCUIT BOARD MANUFACTURED BY HP FOR THE HP 3070 SERIES III IN-CIRCUIT TEST (ICT) SYSTEM. THIS MODULE SERVES AS THE PRIMARY SYSTEM CONTROLLER BOARD, ORCHESTRATING TEST PROGRAM EXECUTION, DATA ACQUISITION, AND COMPREHENSIVE OPERATIONAL MANAGEMENT FOR THE AUTOMATIC TEST EQUIPMENT (ATE) PLATFORM. IT INTEGRATES CORE PROCESSING FUNCTIONALITIES AND MANAGES THE INTERFACE BETWEEN VARIOUS TEST INSTRUMENTATION COMPONENTS AND INTERNAL DATA BUSES OF THE SYSTEM. THE BOARD IS SPECIFIED WITH PART NUMBER E4000-66550 REV A AND IS IDENTIFIED WITHIN THE HP 3070 SERIES III CONTEXT BY THE COMPONENT REFERENCE M4421.
