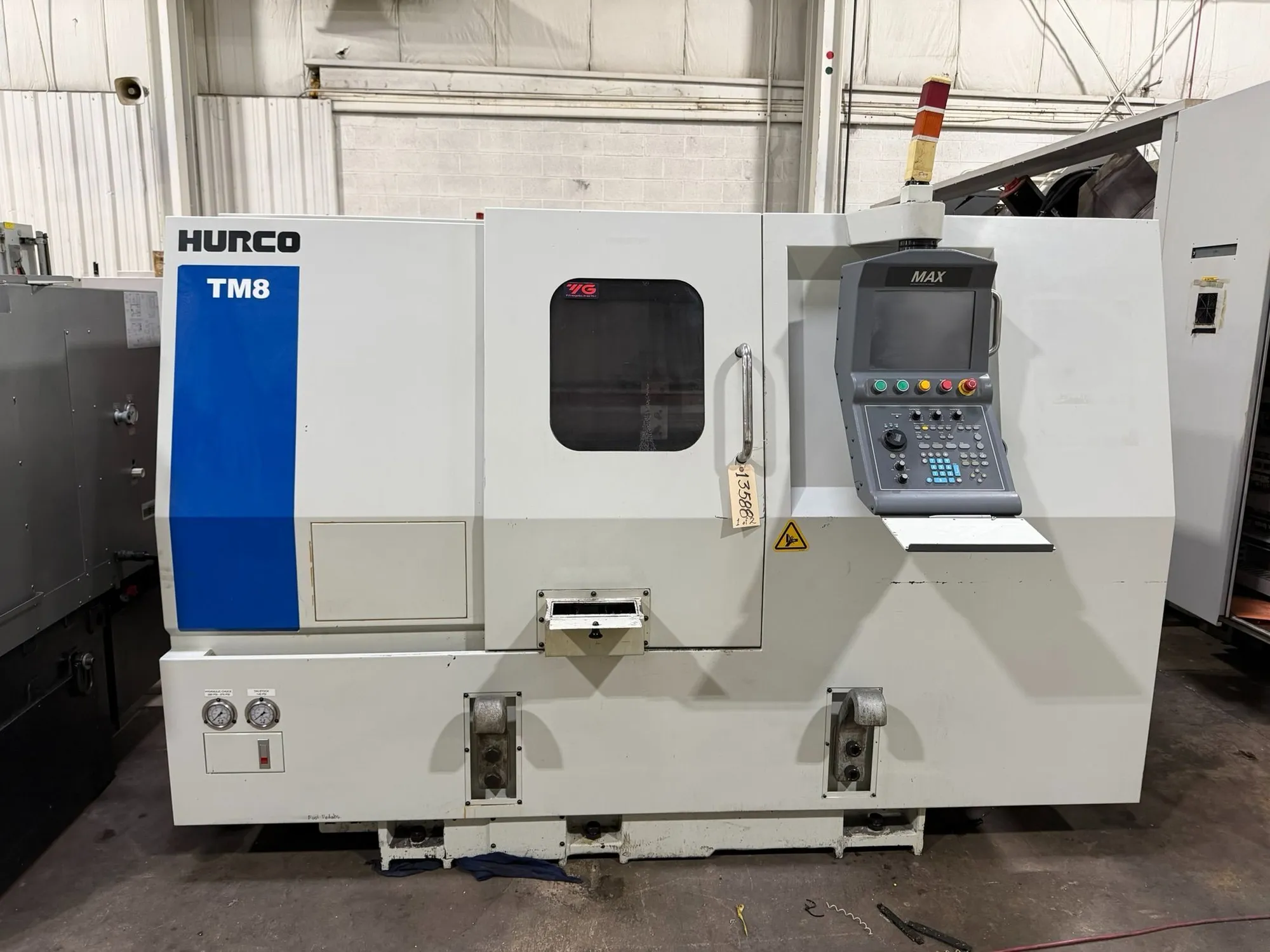

Hurco TM8 2-Axis CNC Lathe Turning Center, New 2012

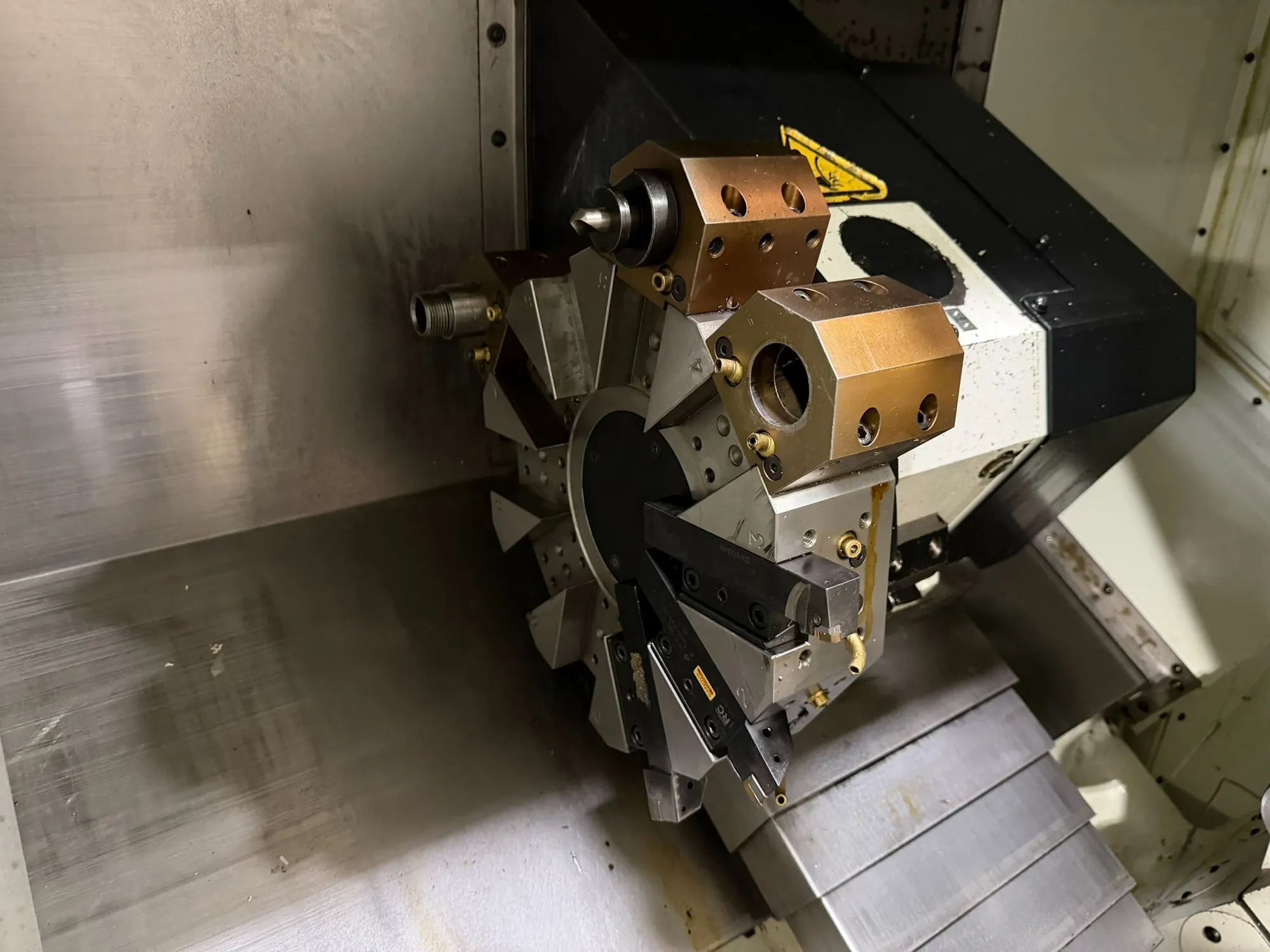

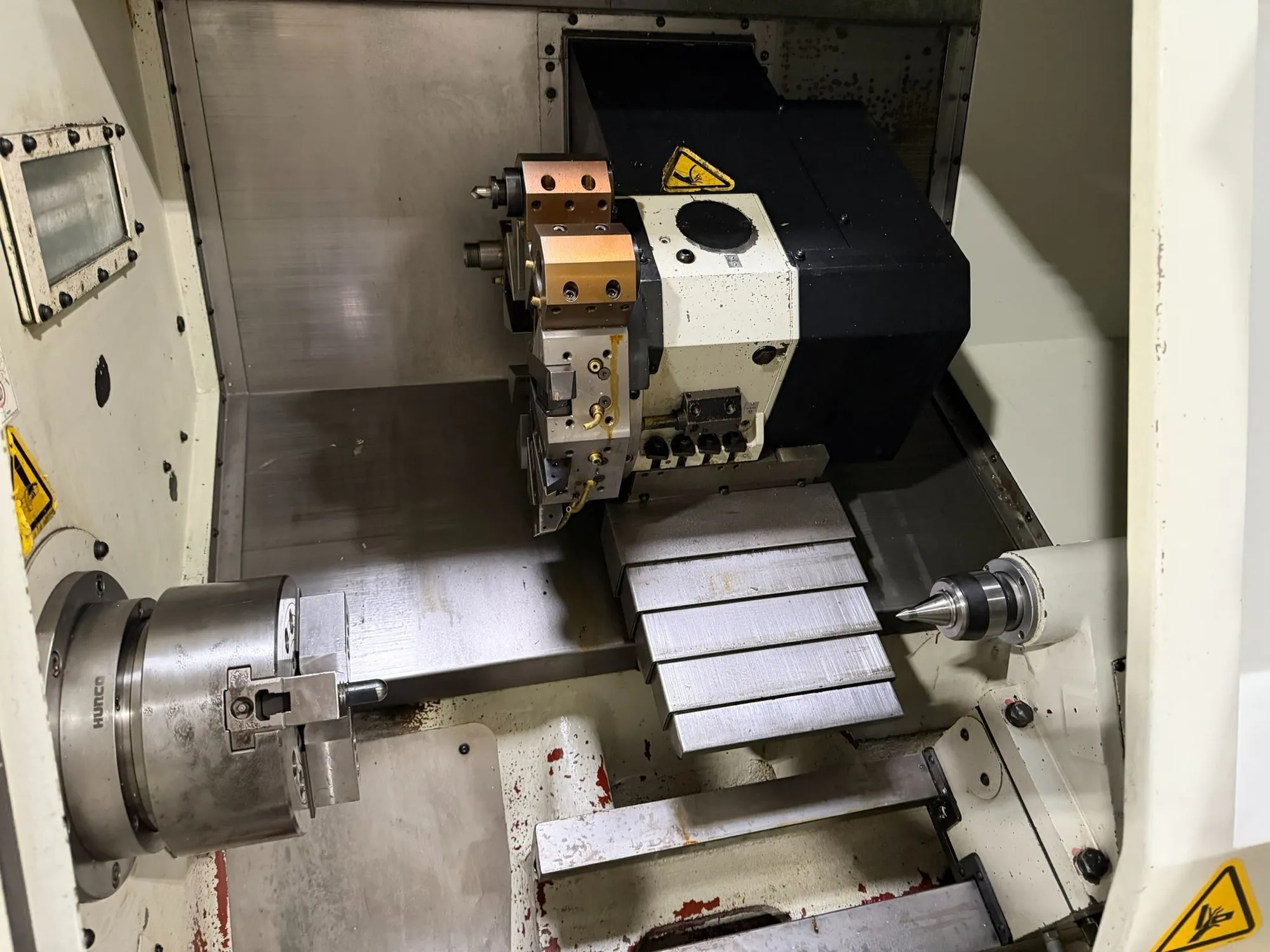

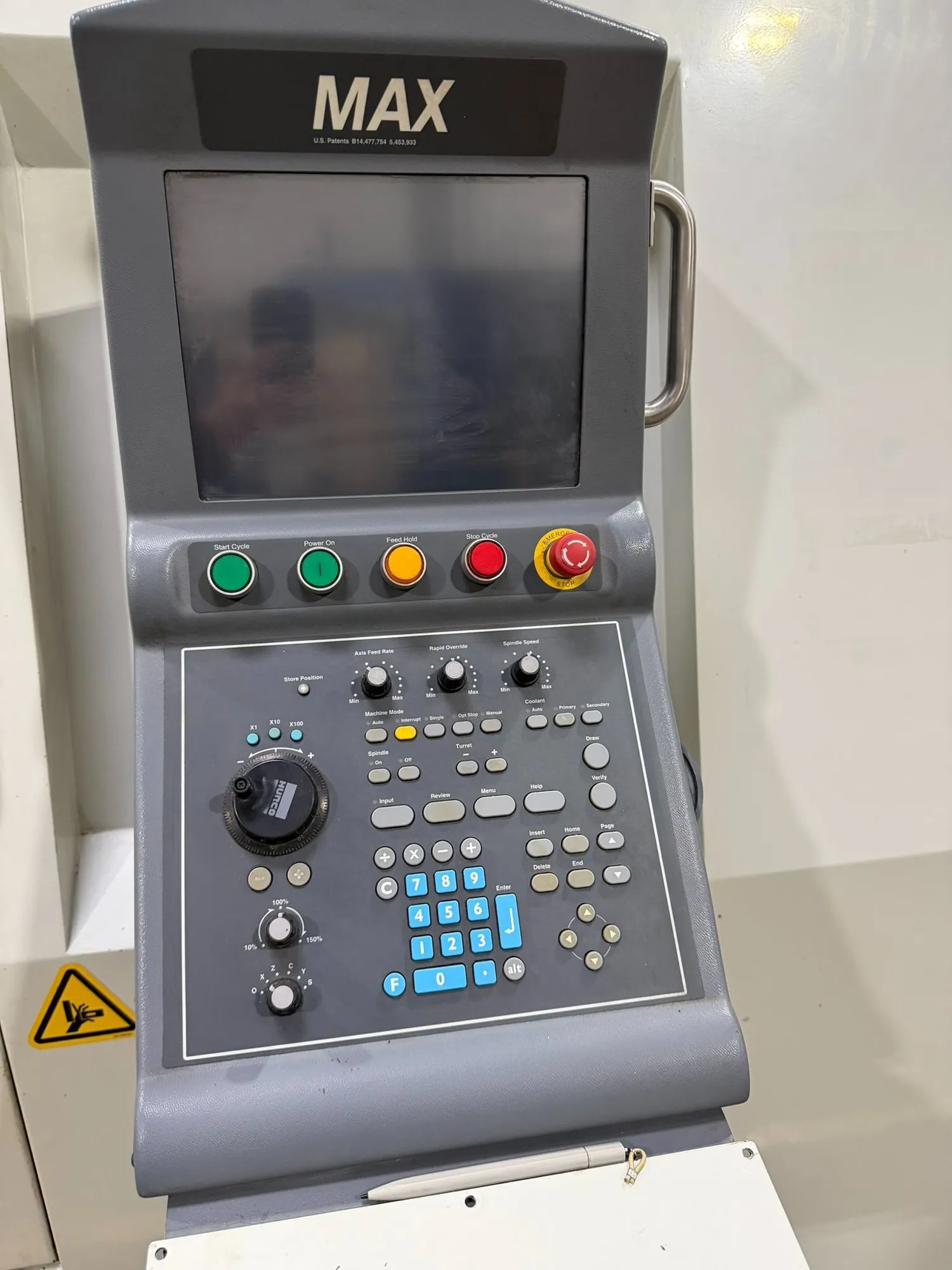

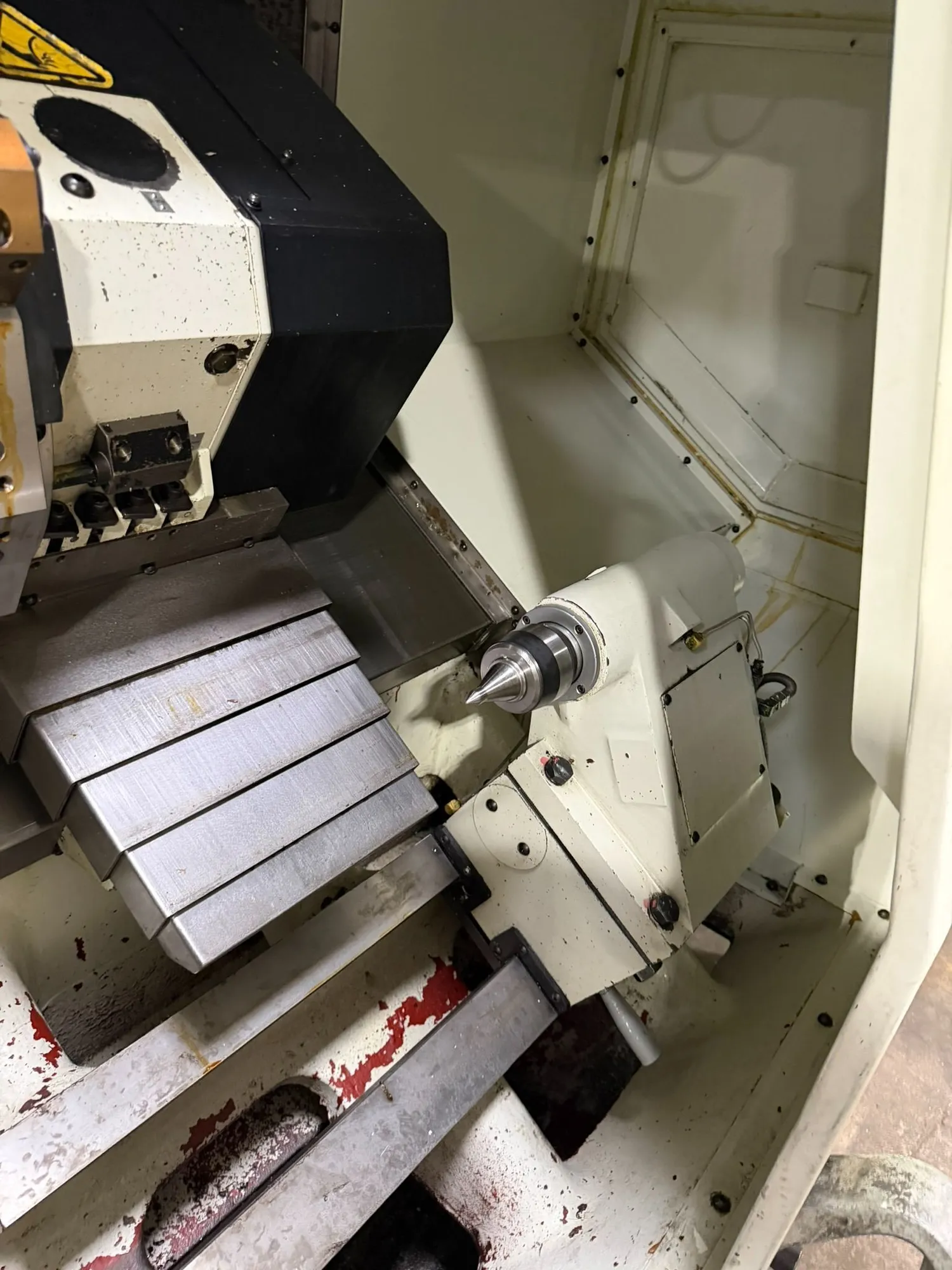

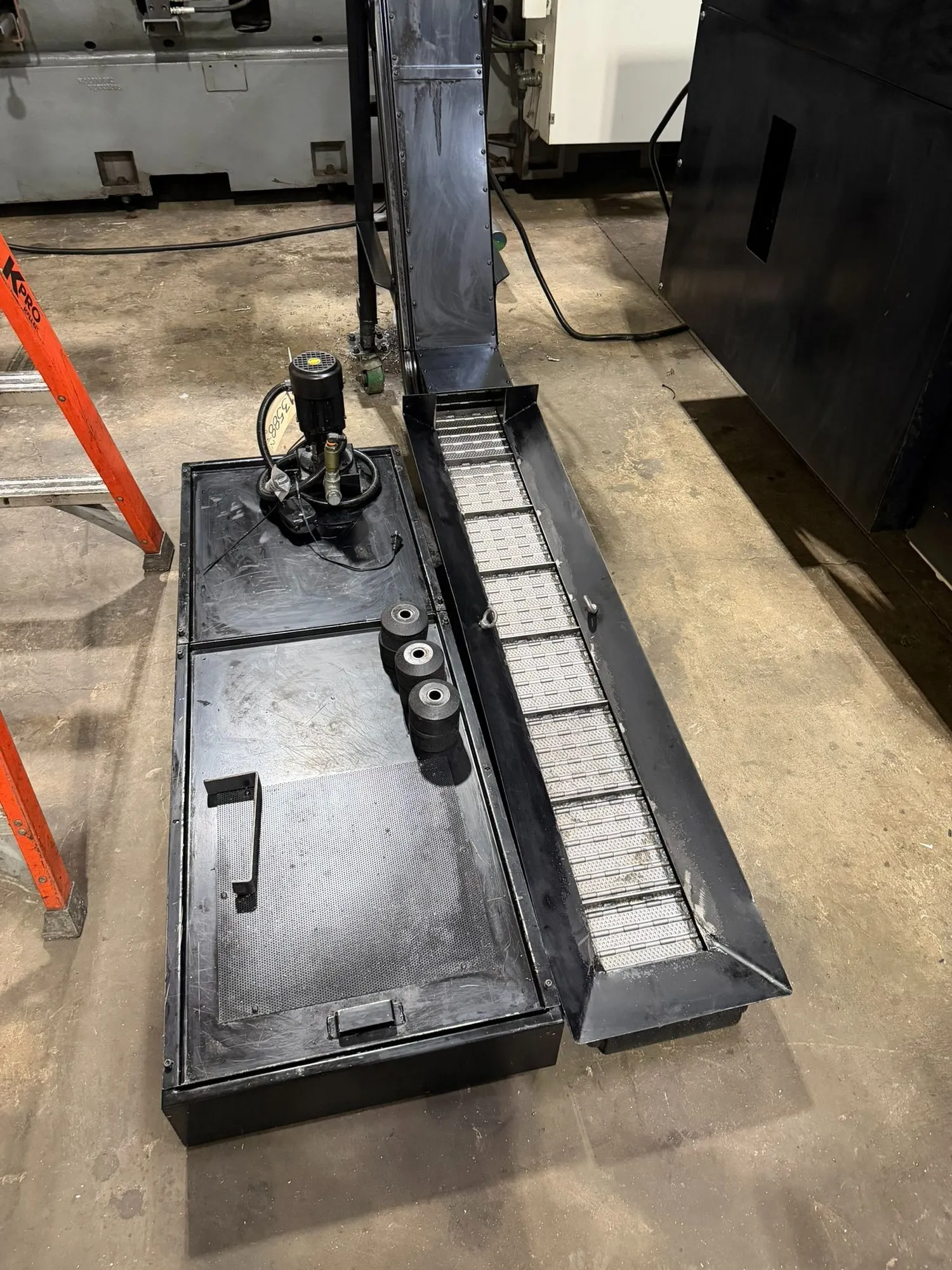

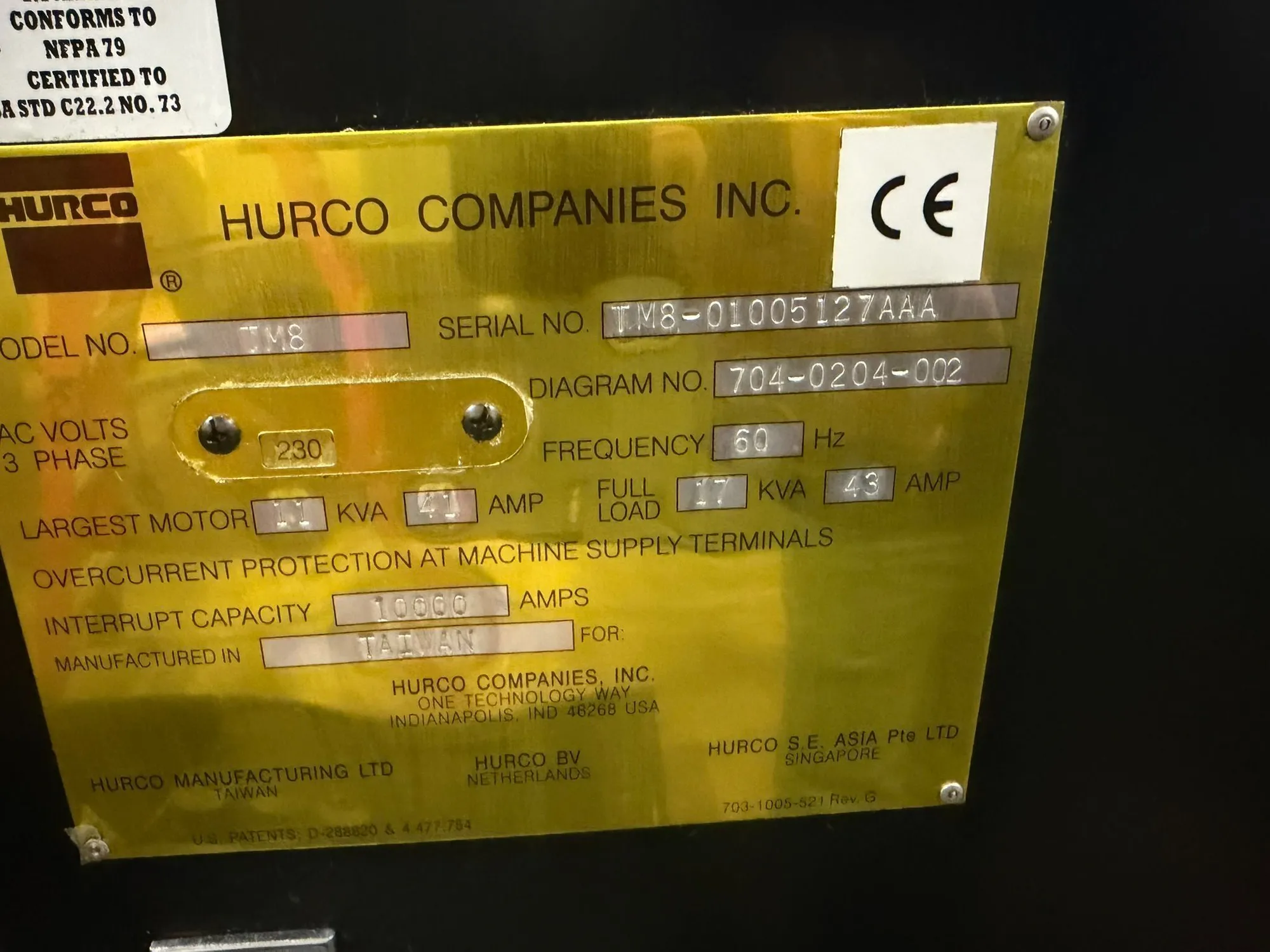

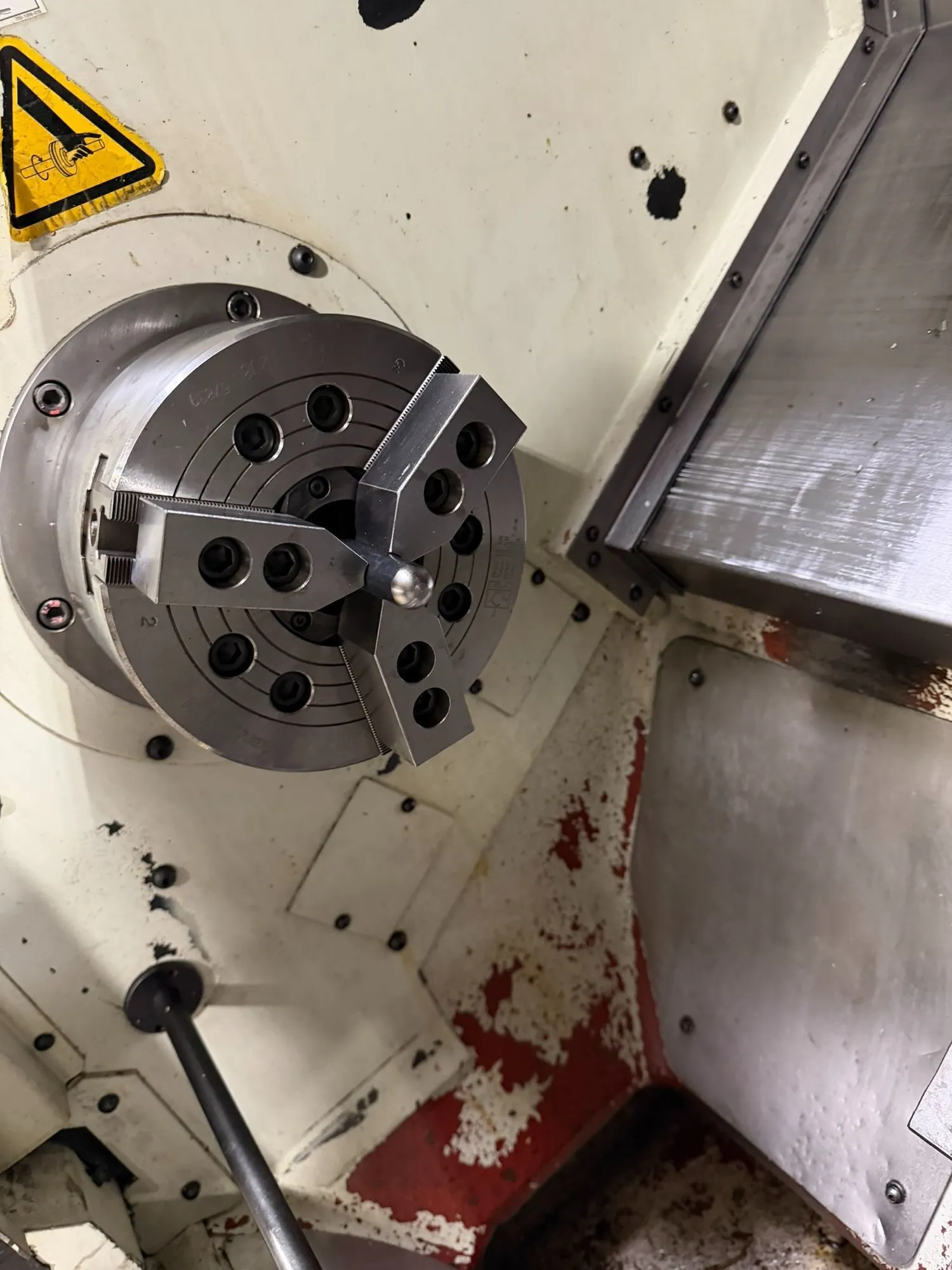

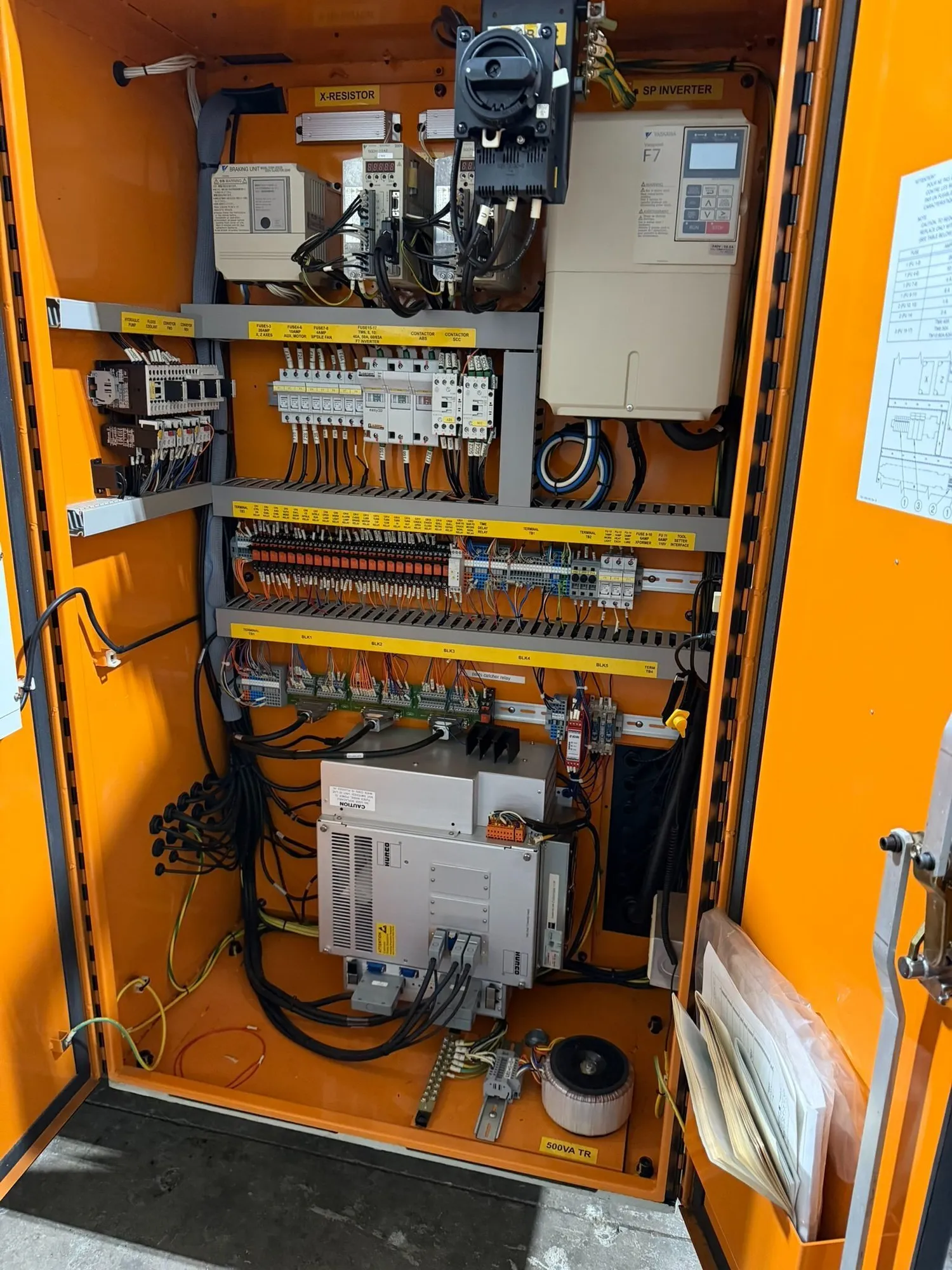

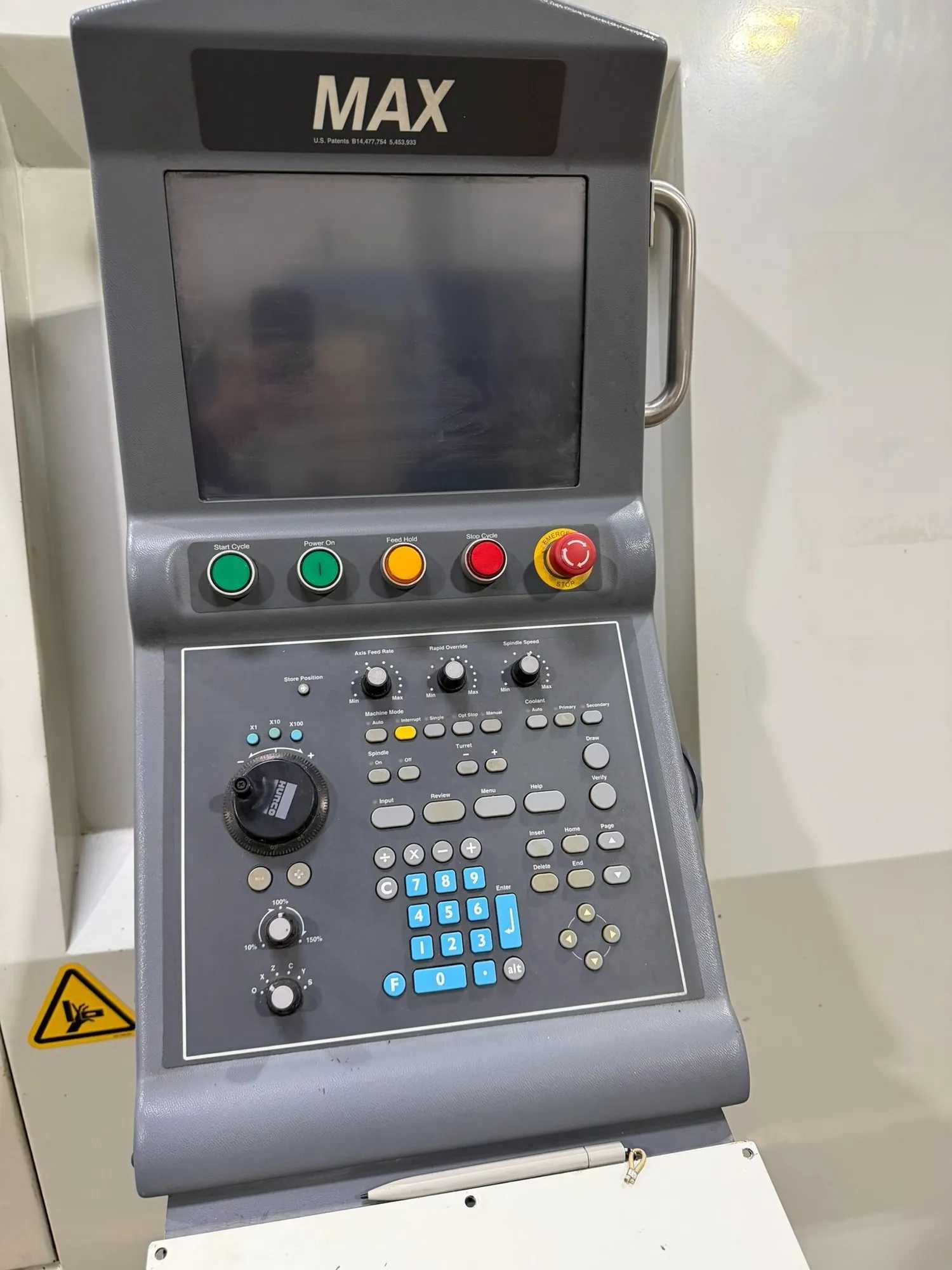

The Hurco TM8 is a 2-Axis CNC lathe turning center equipped with an 8″ 3-jaw chuck, 10 position turret, tailstock, chip conveyor, and Win Max CNC control. It features X-axis travel of 8″ and Z-axis travel of 20″, with max turning length of 18.8″ and max turning diameter of 12″. The machine has a swing over bed of 21.6″ and swing over cross slide of 11.8″, with distance between centers of 27.9″ and chuck size of 8″. The spindle has a 2.4″ bore, 4,800 RPM max speed, and 15 HP motor, with bar capacity of 2.0″. The turret has 10 positions. Electrical requirements are 230 V, 3 phase, 60 Hz.
