Hydra-Cell M03BASGSFEMA Triplex Diaphragm Pump, 0.33 HP Power, 1.0 GPM Flow, 1000 PSI Pressure, 115/230V AC

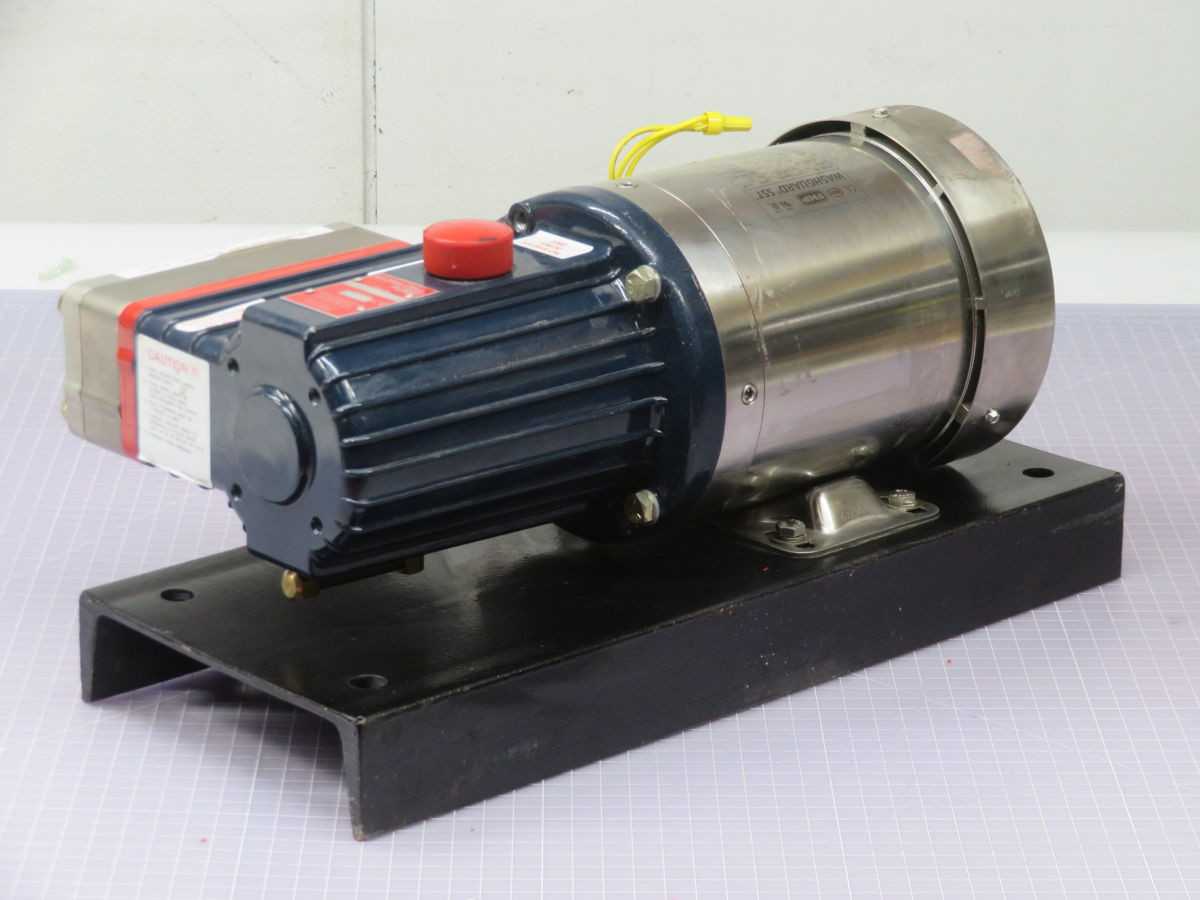

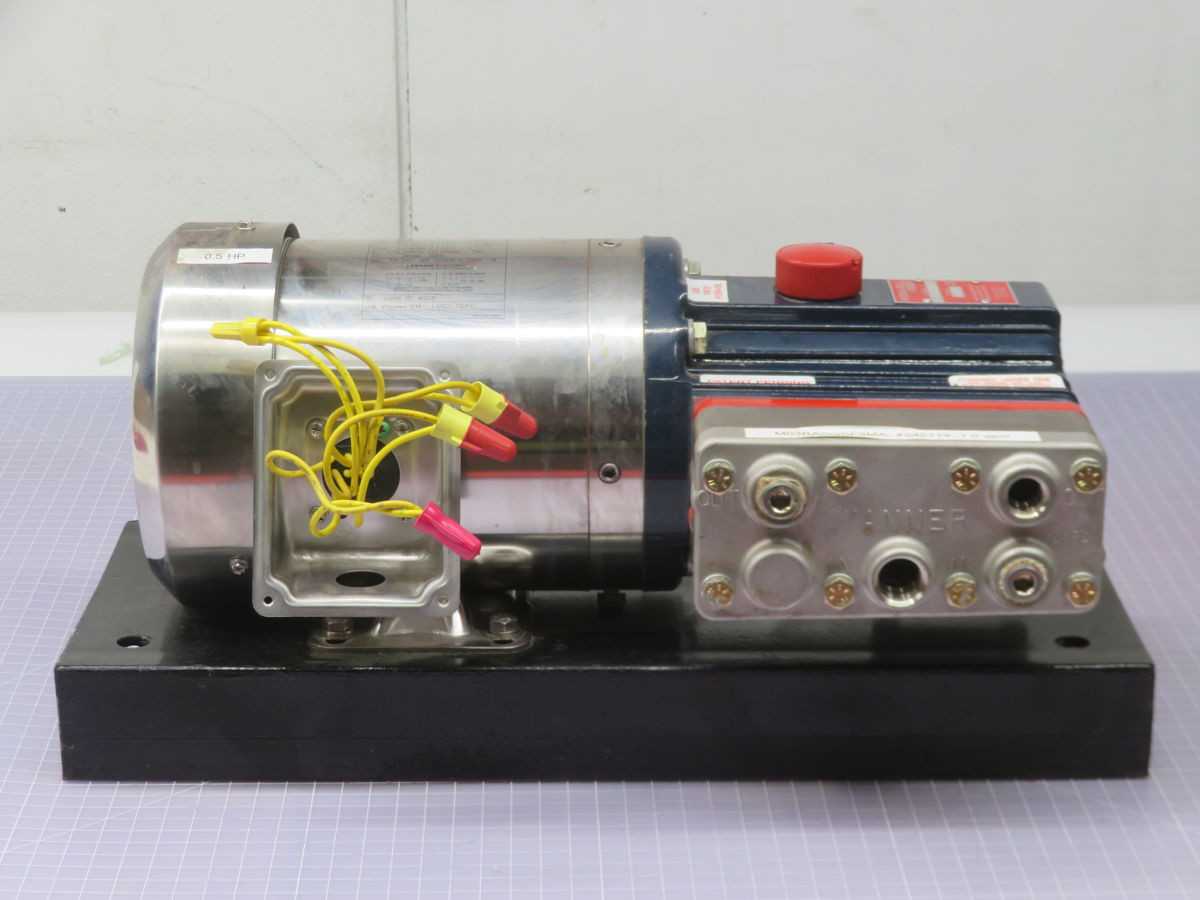

The Hydra-Cell model M03BASGSFEMA is a positive displacement, triplex diaphragm pump integrated with a general-purpose electric motor. The pump features a brass pump head, FKM (VITON) diaphragms, and 316L stainless steel valves and valve seats. O-rings are constructed from FKM (VITON). The attached single-phase motor operates at 115/230V AC, 50/60Hz, with a power output of 0.33 HP (0.25 kW). The motor features a totally enclosed fan cooled (TEFC) enclosure, constructed from stainless steel (SST) for washguard applications. This configuration supports a maximum flow rate of approximately 1.0 GPM (3.8 LPM) and is rated for operating pressures up to 1000 PSI (69 BAR).
