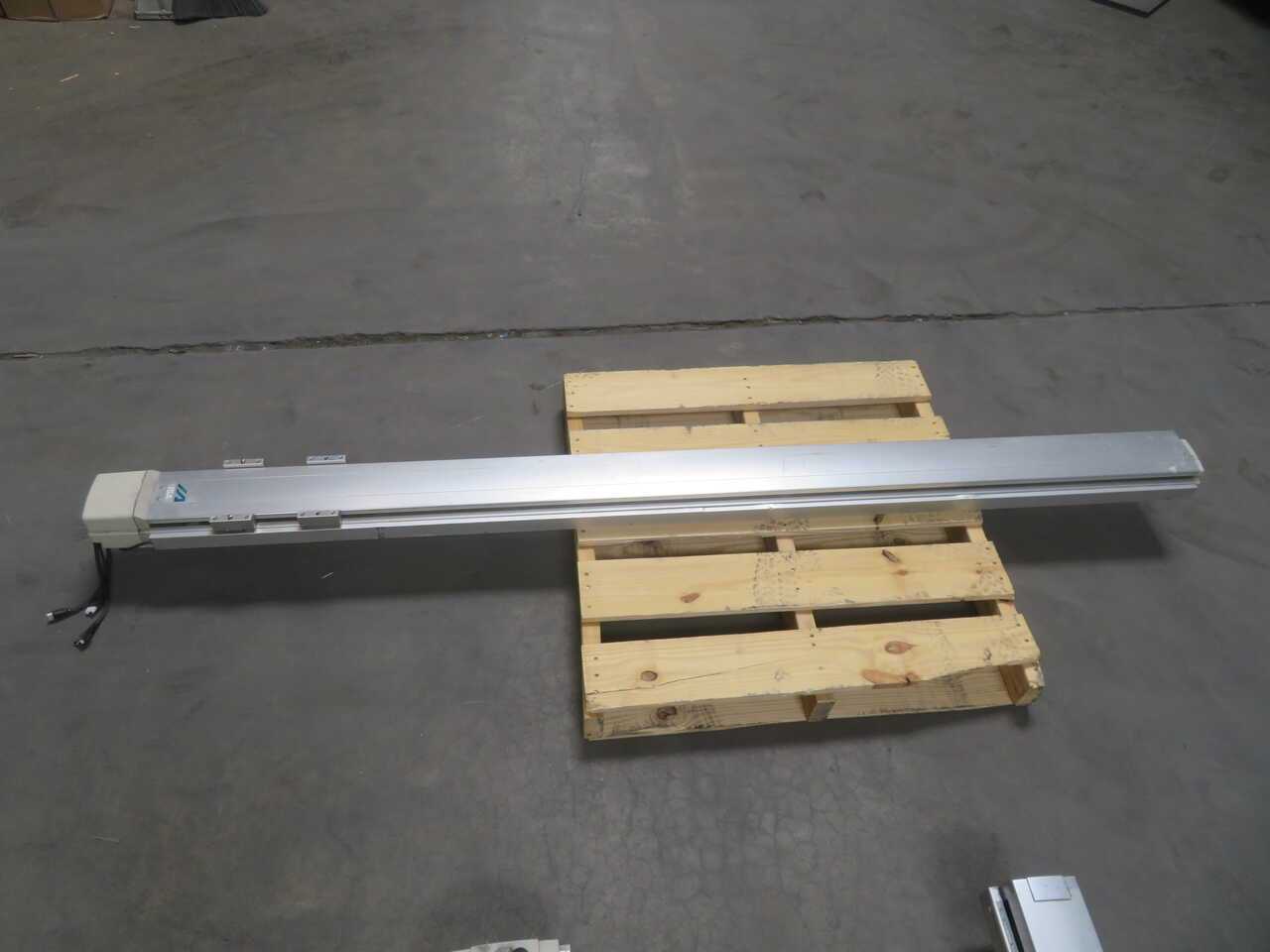

IAI ISA-LXUWX-I-400-20-1800-T2-M-AQ-C-L-RT ACTUATOR 400W 1800MM STROKE

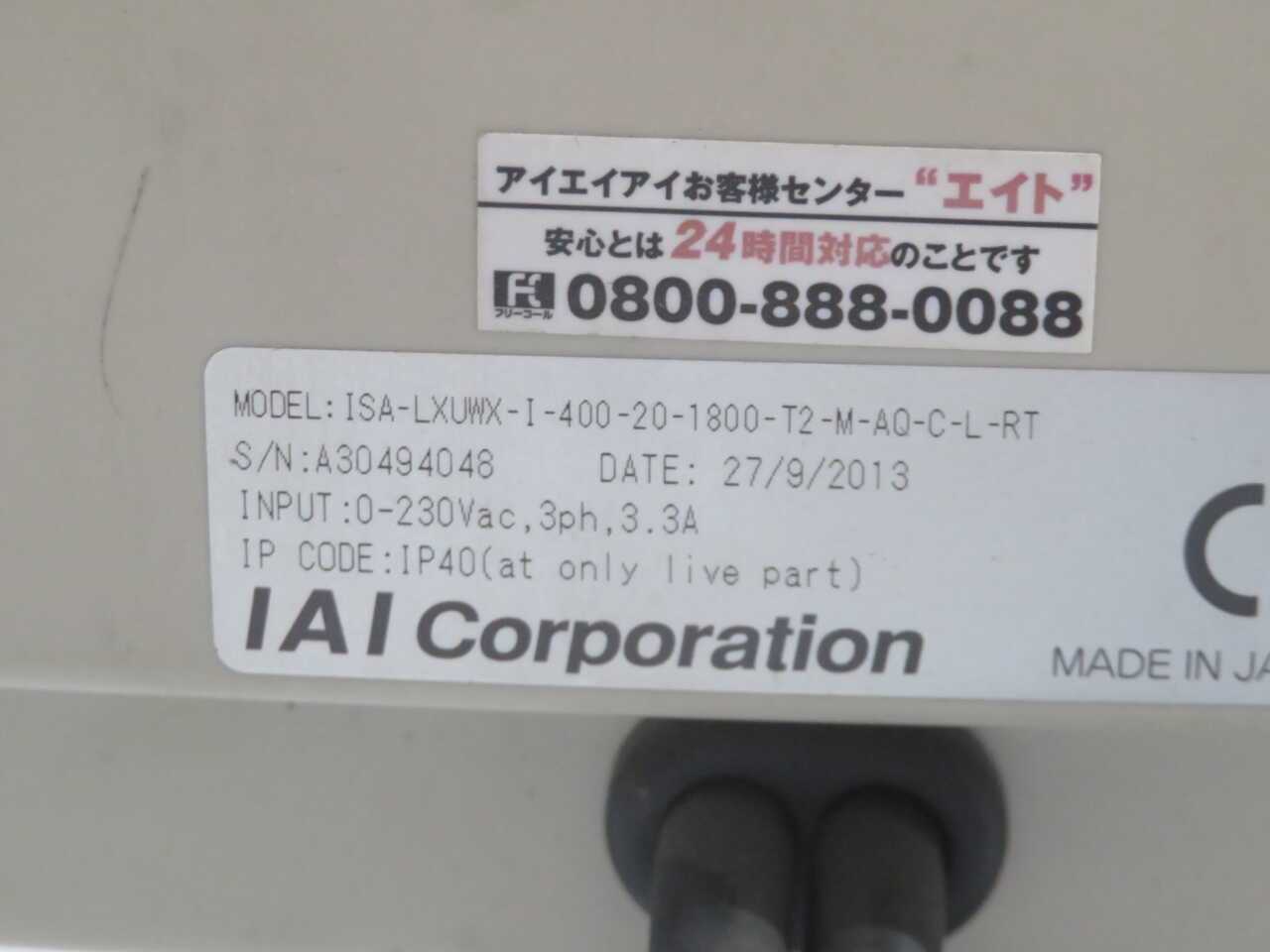

THE IAI ISA-LXUWX-I-400-20-1800-T2-M-AQ-C-L-RT IS A SINGLE-AXIS LINEAR PNEUMATIC ACTUATOR AND ROBOT DESIGNED FOR HORIZONTAL INDUSTRIAL AUTOMATION APPLICATIONS. IT FEATURES A LARGE X-AXIS MID-SUPPORT CONFIGURATION WITH A DOUBLE SLIDER TYPE MECHANISM AND AN ACTUATOR WIDTH OF 150MM. DRIVEN BY A 400W AC SERVO MOTOR, THE UNIT OPERATES ON AN INPUT VOLTAGE OF 0-230VAC (THREE-PHASE, 3.3A). IT UTILIZES A 20MM LEAD BALL SCREW SYSTEM TO DELIVER A STROKE LENGTH OF 1800MM. THE SYSTEM OFFERS A POSITIONING REPEATABILITY OF ±0.02MM, A RATED THRUST OF 340.1N, A RATED HORIZONTAL ACCELERATION OF 0.3G, AND A MAXIMUM HORIZONTAL LOAD CAPACITY OF 80KG. THE ALUMINUM BASE FEATURES A WHITE ALUMITE TREATMENT WITH INTEGRATED GUIDE RAILS FOR HIGH RIGIDITY AND A COMPACT CROSS-SECTION. THIS MODEL IS EQUIPPED WITH AN AQ SEAL FOR ENVIRONMENTAL PROTECTION, A CREEP SENSOR (C), A HOME LIMIT SWITCH (L), AND A GUIDE WITH A BALL-RETAINING MECHANISM (RT). IT INCLUDES A 5-METER CABLE (M) AND IS COMPATIBLE WITH T2 SERIES CONTROLLERS, SUCH AS THE XSEL-P/Q, SSEL-CS, OR SCON-CB/CGB SYSTEMS, ALLOWING FOR PROGRAM CONTROL OR POSITIONER OPERATION.
