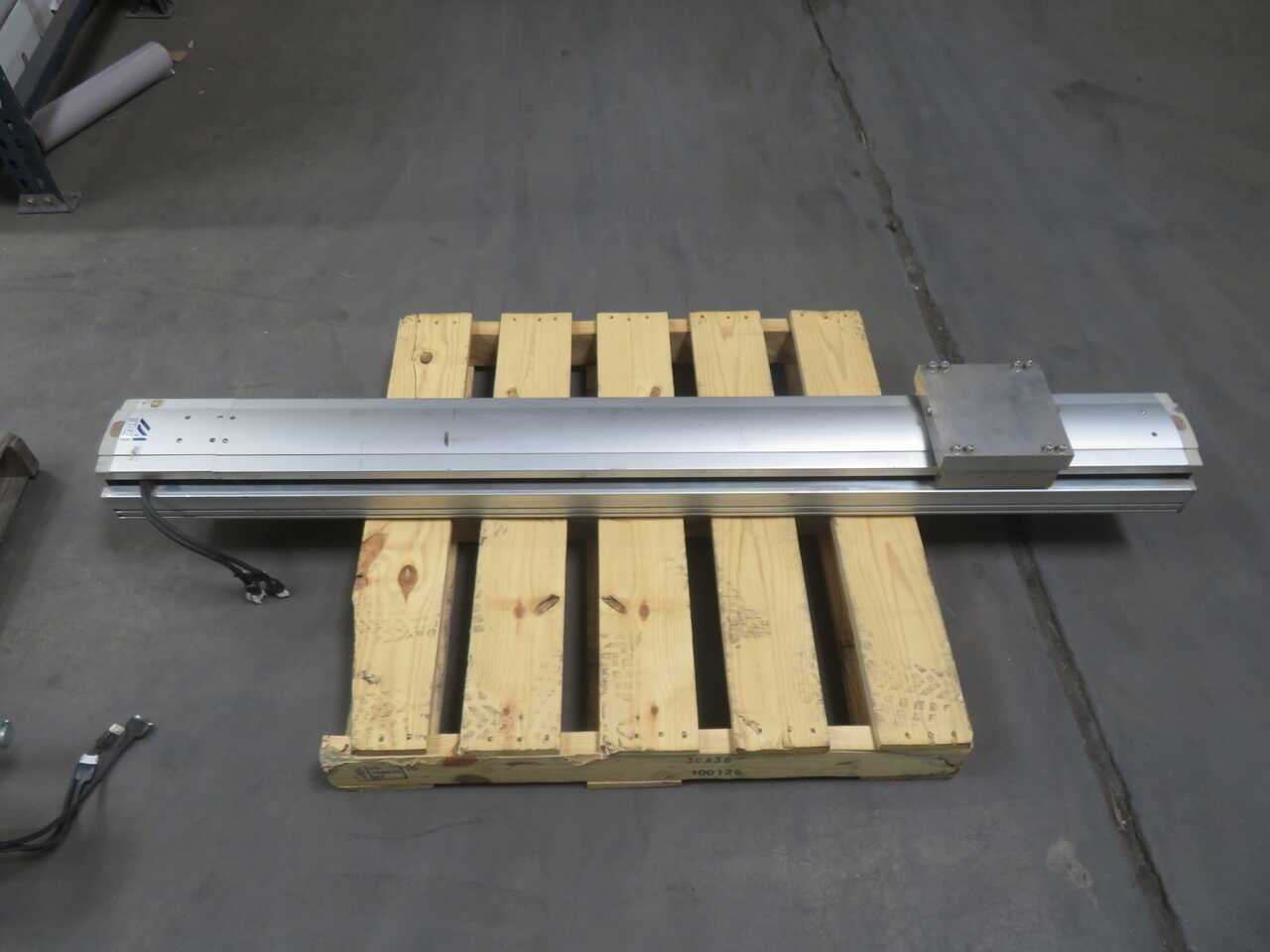

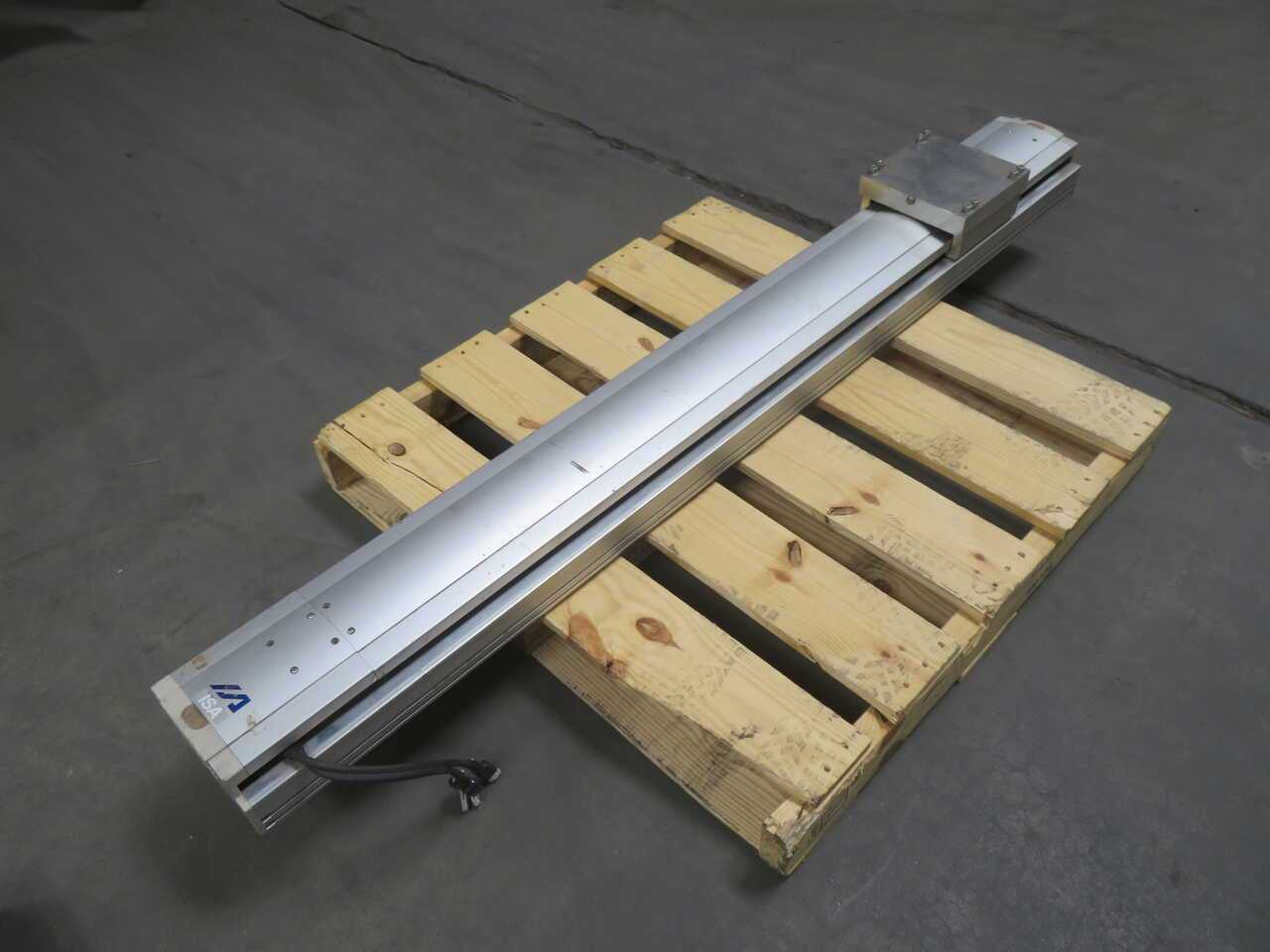

IAI ISA-WXM-A-600-40-1300-T2-X20-A3-L Actuator 600W 1300mm Stroke

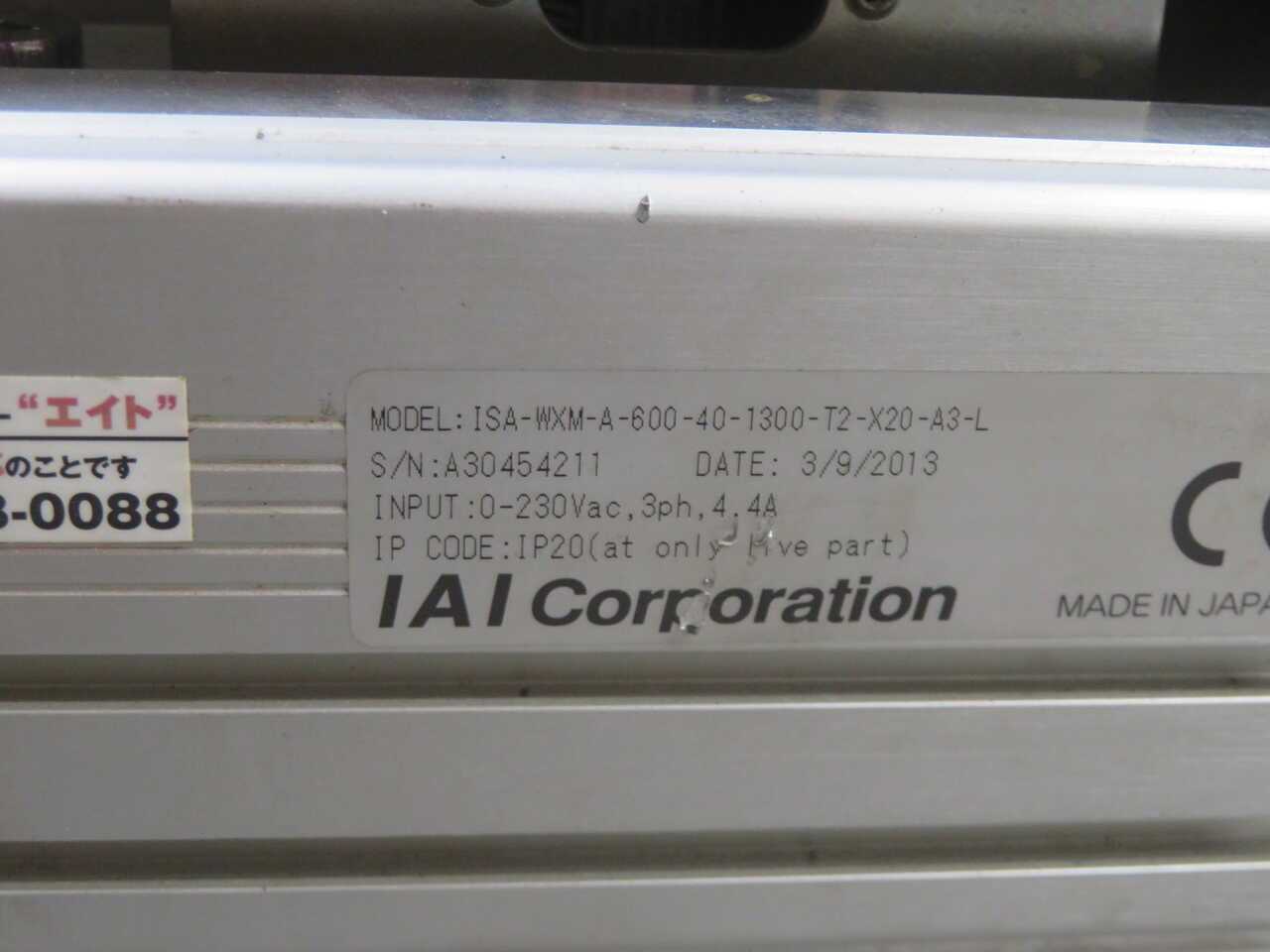

THE IAI ISA-WXM-A-600-40-1300-T2-X20-A3-L IS A SUPER-LARGE X-AXIS SLIDER-TYPE SINGLE-AXIS ROBOT AND LINEAR ACTUATOR DESIGNED FOR INDUSTRIAL AUTOMATION. IT FEATURES AN ACTUATOR WIDTH OF 198MM AND IS POWERED BY A 600W AC SERVO MOTOR OPERATING ON AN INPUT VOLTAGE OF 0-230VAC (THREE-PHASE, 4.4A). EQUIPPED WITH AN ABSOLUTE ENCODER, THE SYSTEM UTILIZES A 20MM DIAMETER BALL SCREW WITH A 40MM LEAD TO DELIVER A STROKE LENGTH OF 1300MM. IT OFFERS A POSITIONING REPEATABILITY OF ±0.02MM, A RATED HORIZONTAL PAYLOAD CAPACITY OF 60KG AT 0.3G ACCELERATION, AND A RATED THRUST OF 255N. AT THIS 1300MM STROKE LENGTH, THE UNIT ACHIEVES A MAXIMUM OPERATING SPEED OF 950 MM/S. THE ALUMINUM BASE STRUCTURE IS ENGINEERED FOR RIGIDITY, SUPPORTING AN ALLOWABLE DYNAMIC MOMENT OF UP TO 139.2 N·M IN THE MA DIRECTION, 199.9 N·M IN THE MB DIRECTION, AND 391 N·M IN THE MC DIRECTION. THIS SPECIFIC MODEL INCLUDES A STANDARD INTEGRATED HOME LIMIT SWITCH (L), AN OPTIONAL RIGHT-SIDE CABLE EXIT CONFIGURATION (A3), AND A 20-METER SPECIFIED CABLE (X20). IT IS COMPATIBLE WITH T2 SERIES CONTROLLERS, SUCH AS THE XSEL-P/Q, SSEL, AND SCON SYSTEMS, FOR PRECISE POSITIONER OR PROGRAM-CONTROLLED OPERATIONS.
