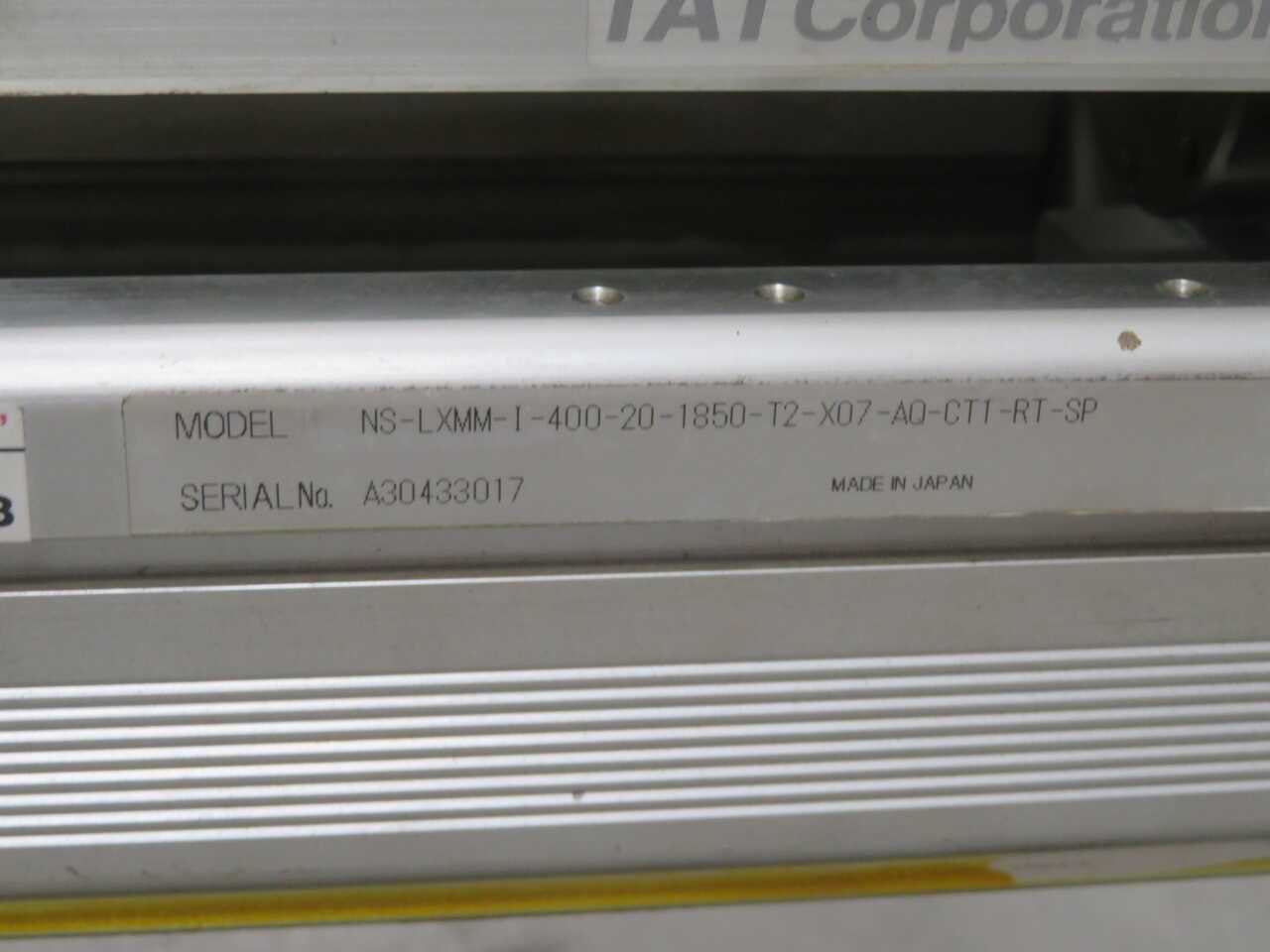

IAI NS-LXMM-I-400-20-1850-T2-X07-AO-CT1-RT-SP MULTI-SLIDER LINEAR ROBOT 400W 1850MM STROKE

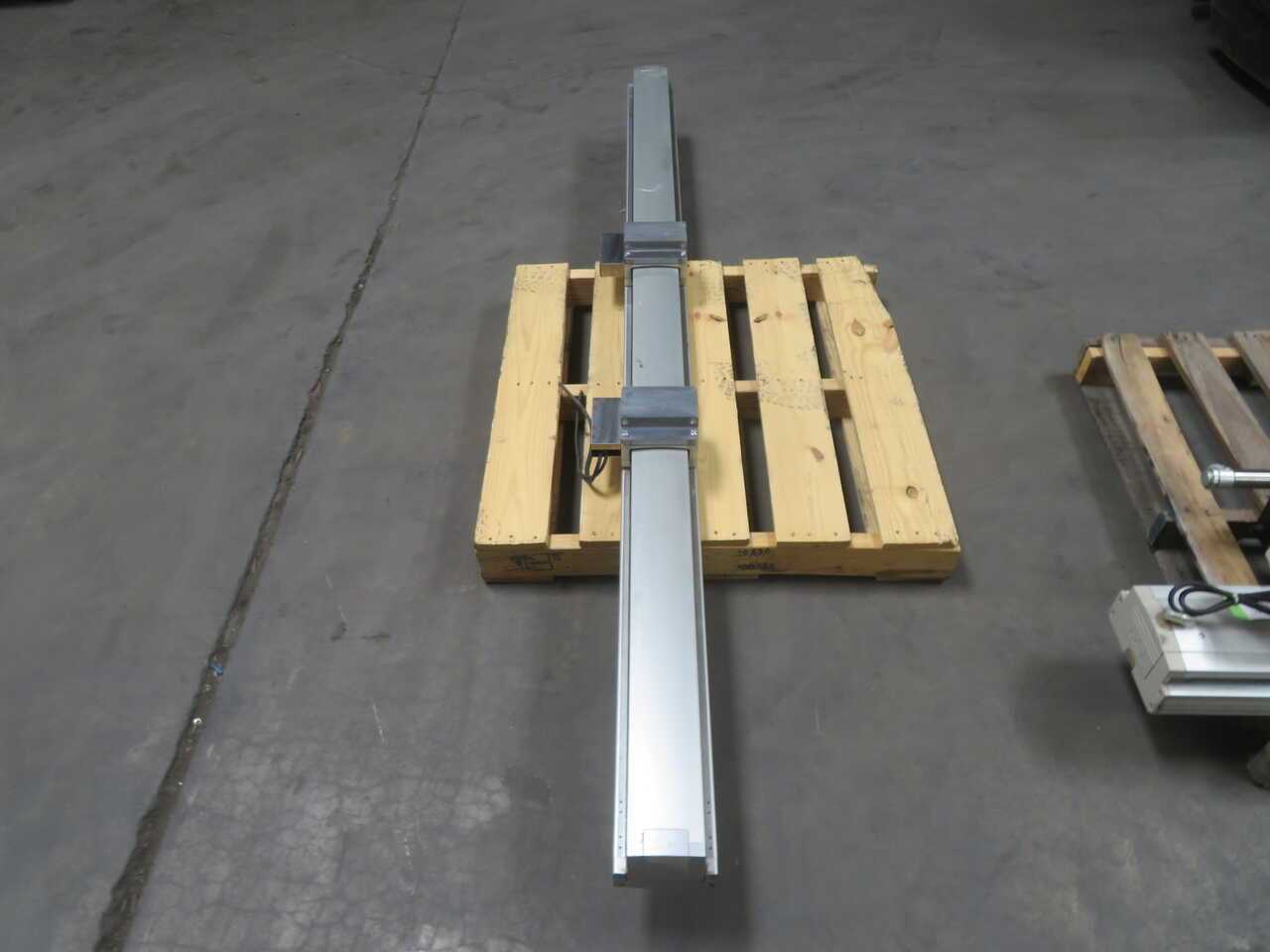

THE IAI NS-LXMM-I-400-20-1850-T2-X07-AQ-CT1-RT-SP IS A LARGE, HORIZONTAL MULTI-SLIDER SINGLE-AXIS LINEAR ROBOT AND ACTUATOR DESIGNED FOR INDUSTRIAL AUTOMATION APPLICATIONS. IT FEATURES A MAIN UNIT WIDTH OF 145MM AND UTILIZES AN INCREMENTAL ENCODER SYSTEM. DRIVEN BY A 400W AC SERVO MOTOR, THE UNIT OPERATES VIA A 20MM LEAD PRECISION BALL SCREW MECHANISM TO DELIVER A STROKE LENGTH OF 1850MM. THE SYSTEM OFFERS A MAXIMUM HORIZONTAL PAYLOAD CAPACITY OF 80KG, A RATED THRUST OF 340.1N, A RATED ACCELERATION OF 0.3G, AND A MAXIMUM SPEED OF 1300MM/S. BUILT ON A RIGID ALUMINUM BASE WITH A WHITE ALUMITE TREATMENT, IT INCORPORATES A DIRECT-ACTING INFINITE CIRCULATION TYPE LINEAR GUIDE THAT PROVIDES A POSITIONING REPEATABILITY OF ±0.01MM AND BACKLASH OF 0.02MM OR LESS. THIS MULTI-SLIDER CONFIGURATION ALLOWS TWO SLIDERS ON A SINGLE AXIS TO MOVE INDEPENDENTLY, MAXIMIZING SPACE EFFICIENCY AND REDUCING CYCLE TIMES. THIS SPECIFIC MODEL COMES EQUIPPED WITH A STANDARD CABLE TRACK (CT1), A GUIDE WITH A BALL-RETAINING MECHANISM (RT), AN AQ SEAL FOR LONG MAINTENANCE-FREE LUBRICATION, AND A 7-METER SPECIFIED ROBOT CABLE (X07). IT IS FULLY COMPATIBLE WITH T2 SERIES CONTROLLERS, SUCH AS THE SCON, SSEL, AND XSEL-P/Q SYSTEMS, SUPPORTING ADVANCED PROGRAM CONTROL AND POSITIONER OPERATIONS.
