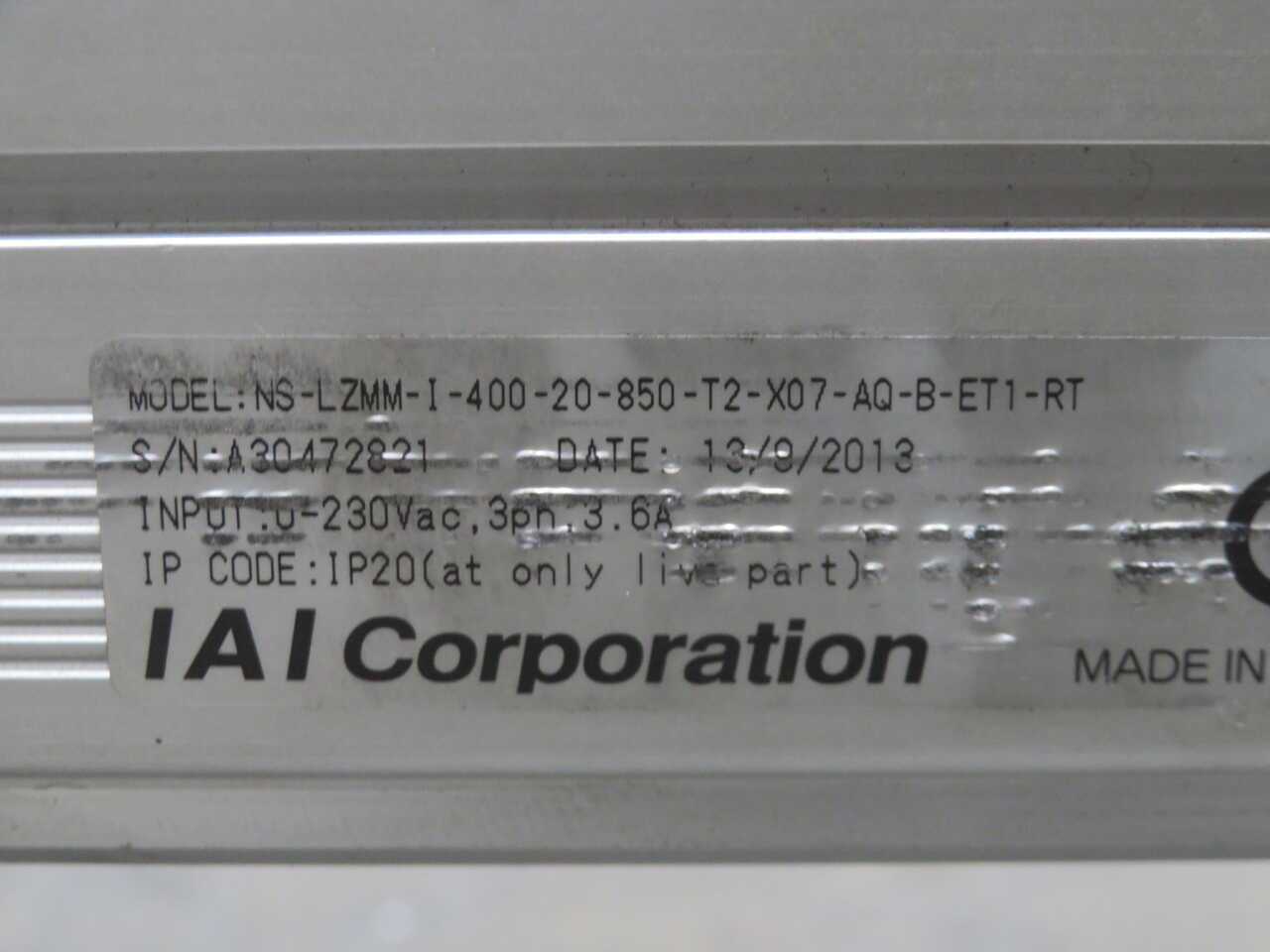

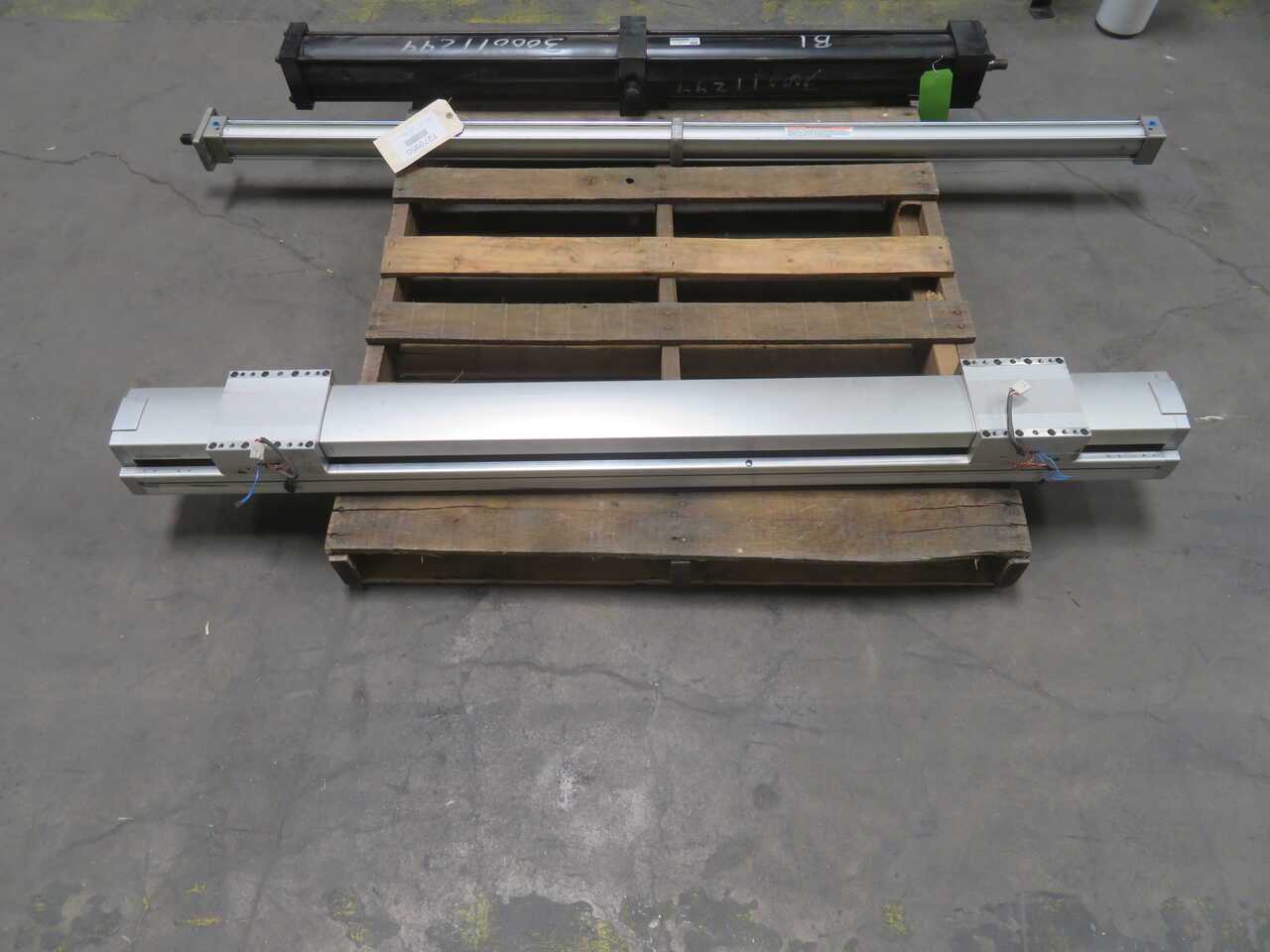

IAI NS-LZMM-I-400-20-850-T2-X07-AQ-B-ET1-RT LINEAR ACTUATOR 400W 850MM STROKE 20KG PAYLOAD

THE IAI NS-LZMM-I-400-20-850-T2-X07-AQ-B-ET1-RT IS A LARGE, SINGLE-AXIS VERTICAL LINEAR ACTUATOR AND ROBOT PART DESIGNED FOR INDUSTRIAL AUTOMATION APPLICATIONS. IT OPERATES USING AN INNOVATIVE LARGE NUT ROTATION TYPE MECHANISM WHERE THE SLIDER MOVES LINEARLY WHEN ITS BUILT-IN HOLLOW-SHAFT MOTOR ROTATES THE NUT RATHER THAN THE BALL SCREW ITSELF. THIS FIXED SPINDLE DESIGN REDUCES THE EFFECTS OF DANGEROUS ROTATION SPEEDS AND SUPPRESSES VIBRATION, ENABLING HIGH-SPEED MOVEMENT OVER A LONG STROKE. DRIVEN BY A 400W AC SERVO MOTOR, THE UNIT OPERATES ON A THREE-PHASE INPUT VOLTAGE OF 0-230VAC WITH A RATED CURRENT OF 3.6A. IT FEATURES A 20MM LEAD BALL SCREW SYSTEM THAT PROVIDES A STROKE LENGTH OF 850MM, DELIVERING A MAXIMUM SPEED OF 1300MM/S AND A MAXIMUM VERTICAL PAYLOAD CAPACITY OF 20KG. THE SYSTEM GENERATES A RATED THRUST OF 340.1N AND ACHIEVES A POSITIONING REPEATABILITY OF ±0.01MM. FOR HARDWARE PROTECTION AND LONG-TERM ENVIRONMENTAL DURABILITY, THIS MODEL COMES EQUIPPED WITH AN AQ SEAL LUBRICATING UNIT FOR BOTH THE GUIDE AND BALL SCREW, AN INTEGRATED BRAKE SYSTEM ESSENTIAL FOR VERTICAL CONFIGURATIONS TO PREVENT THE SLIDER FROM FALLING WHEN POWERED DOWN, AND A GUIDE WITH A BALL-RETAINING MECHANISM (RT). THE ACTUATOR INCLUDES A SPECIFIED 7-METER ROBOT CABLE (X07) AND AN EXTENDED CABLE TRACK DIRECTION 1 (ET1). IT IS FULLY COMPATIBLE WITH T2 SERIES CONTROLLERS, ALLOWING SEAMLESS INTEGRATION WITH SCON, SSEL, OR XSEL-P/Q CONTROL SYSTEMS FOR MULTI-AXIS PROGRAM CONTROL OR PRECISION POSITIONER OPERATION.
