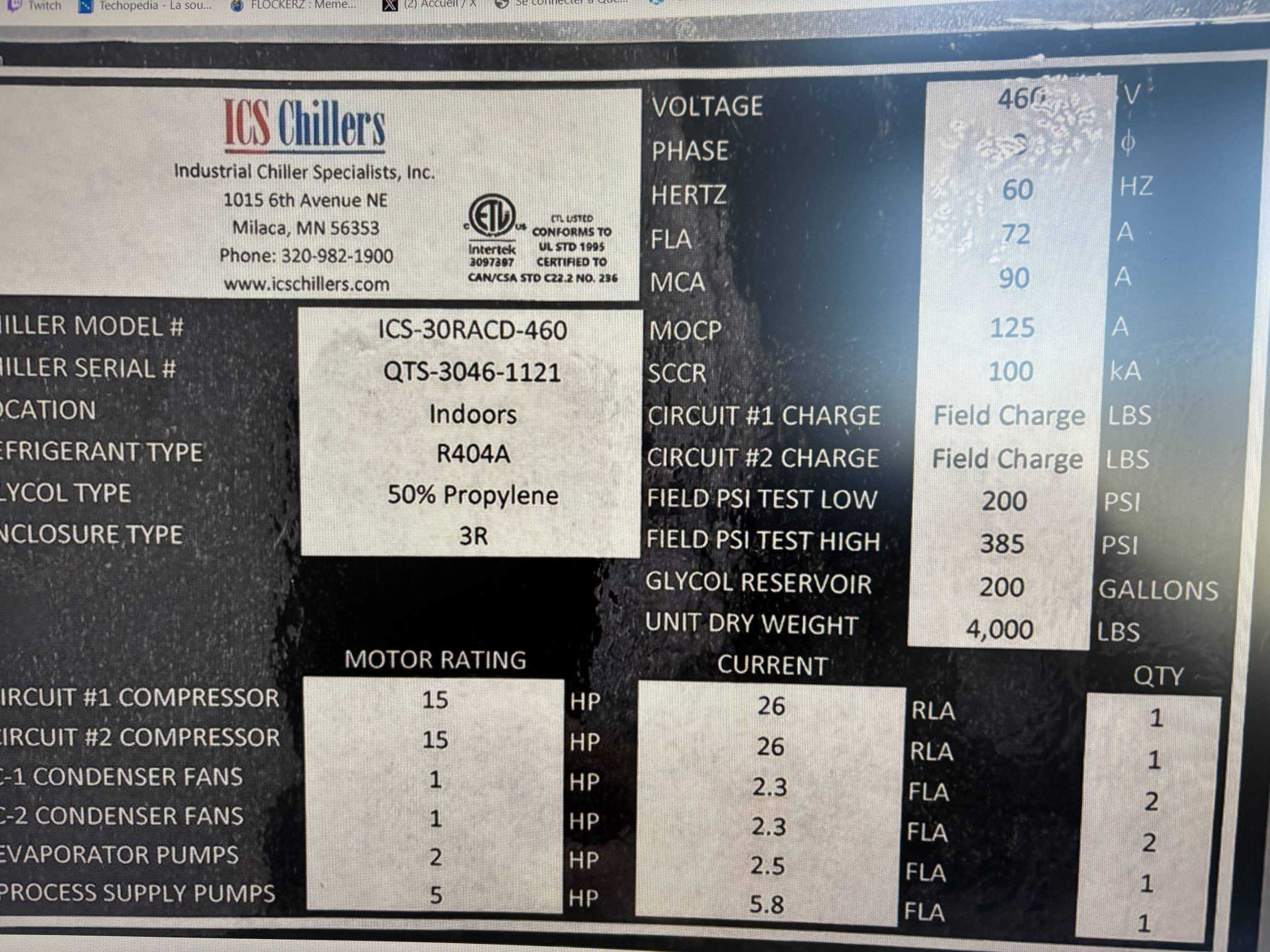

ICS-30RACD-460 CHILLER, 30 TON, 460V/3-PH/60 HZ, R404A, 4,000 LBS DRY WEIGHT

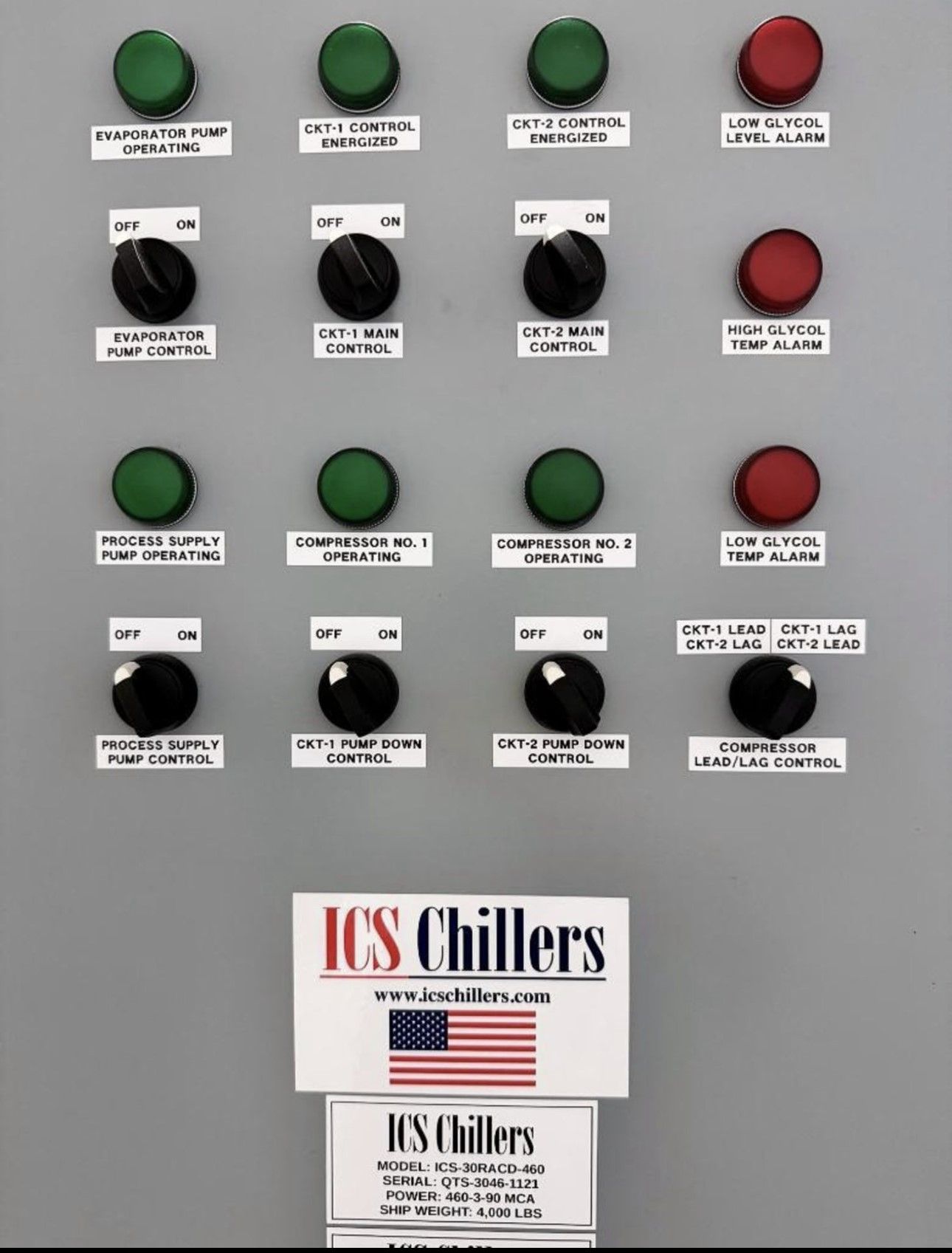

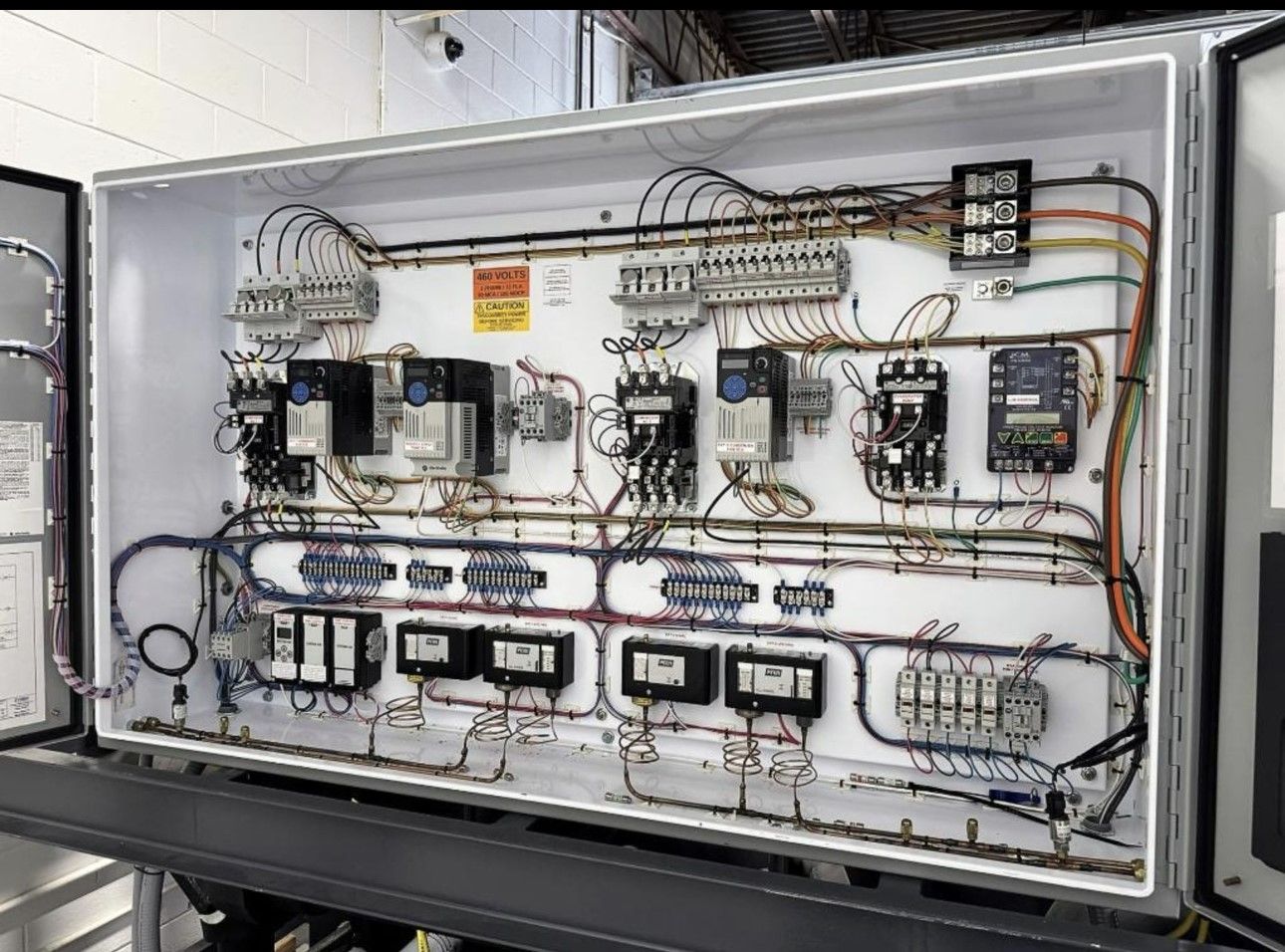

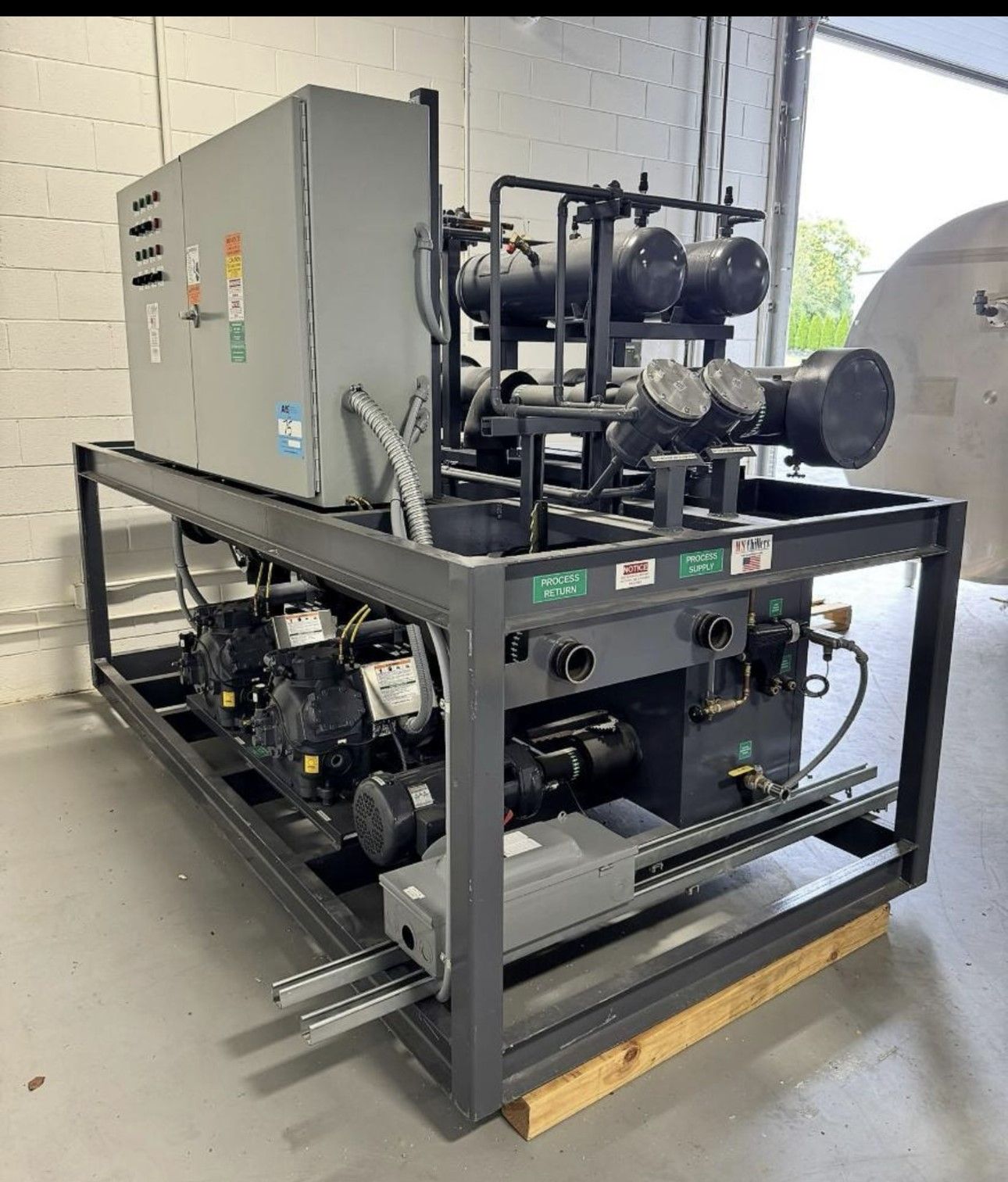

THE ICS-30RACD-460 CHILLER IS DESIGNED FOR HEAVY-DUTY INDUSTRIAL AND PROCESS COOLING APPLICATIONS, INTENDED FOR INDOOR INSTALLATION. IT PROVIDES APPROXIMATELY 30 TONS OF COOLING CAPACITY, POWERED BY A 460V/3-PHASE/60 HZ SUPPLY. THE SYSTEM FEATURES TWO 15 HP COMPRESSORS, TOTALING 30 HP, AND USES R404A REFRIGERANT. IT IS DESIGNED TO OPERATE WITH A PROCESS FLUID OF 50% PROPYLENE GLYCOL AND INCLUDES AN INTEGRATED 200-GALLON GLYCOL RESERVOIR. KEY ELECTRICAL RATINGS ARE FLA: 72 A, MCA: 90 A, MOCP: 125 A, AND SCCR: 100 KA. THE UNIT IS SKID-MOUNTED, INCLUDES A FULL ELECTRICAL CONTROL PANEL, AND INTEGRATED EVAPORATOR AND PROCESS SUPPLY PUMPS. ITS APPROXIMATE DRY WEIGHT IS 4,000 LBS.
