INDUCTOTHERM VIP POWER MELT CORELESS INDUCTION FURNACE, 1750KW, 70HZ, 7.5T CAPACITY

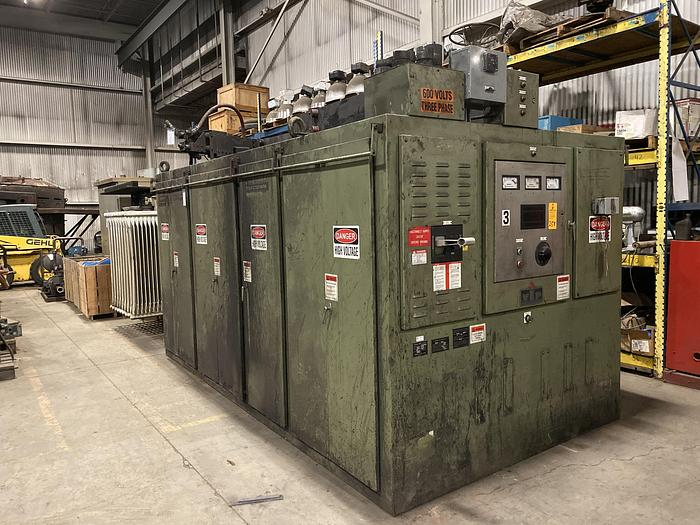

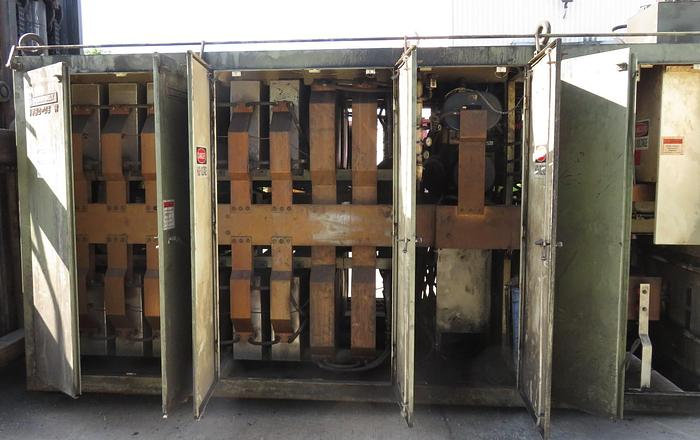

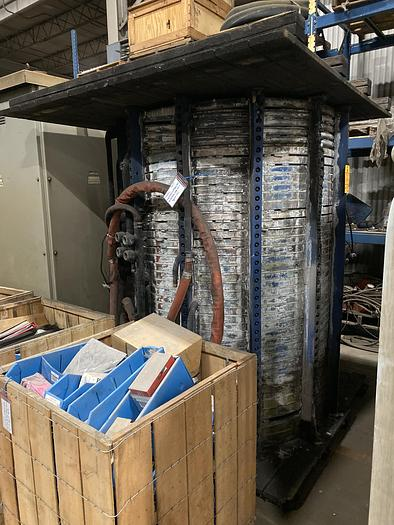

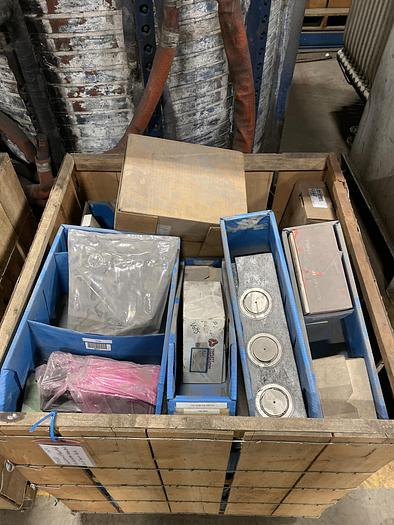

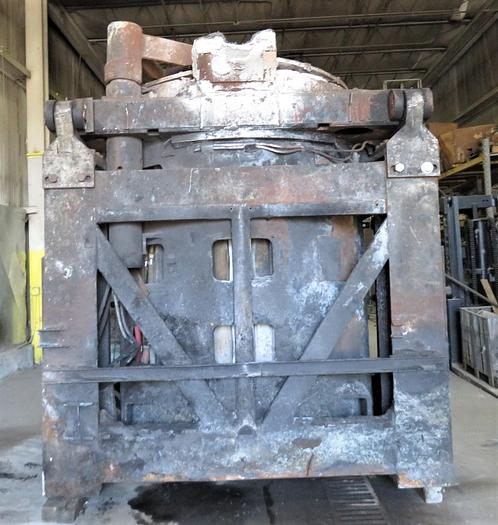

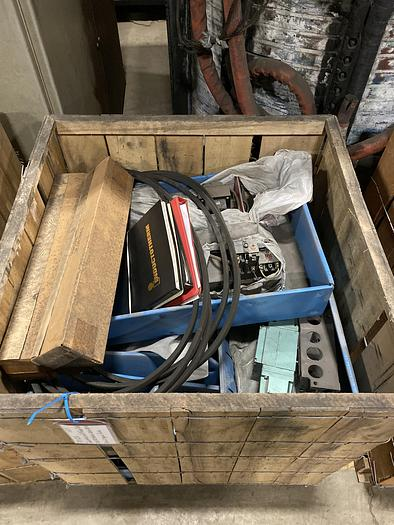

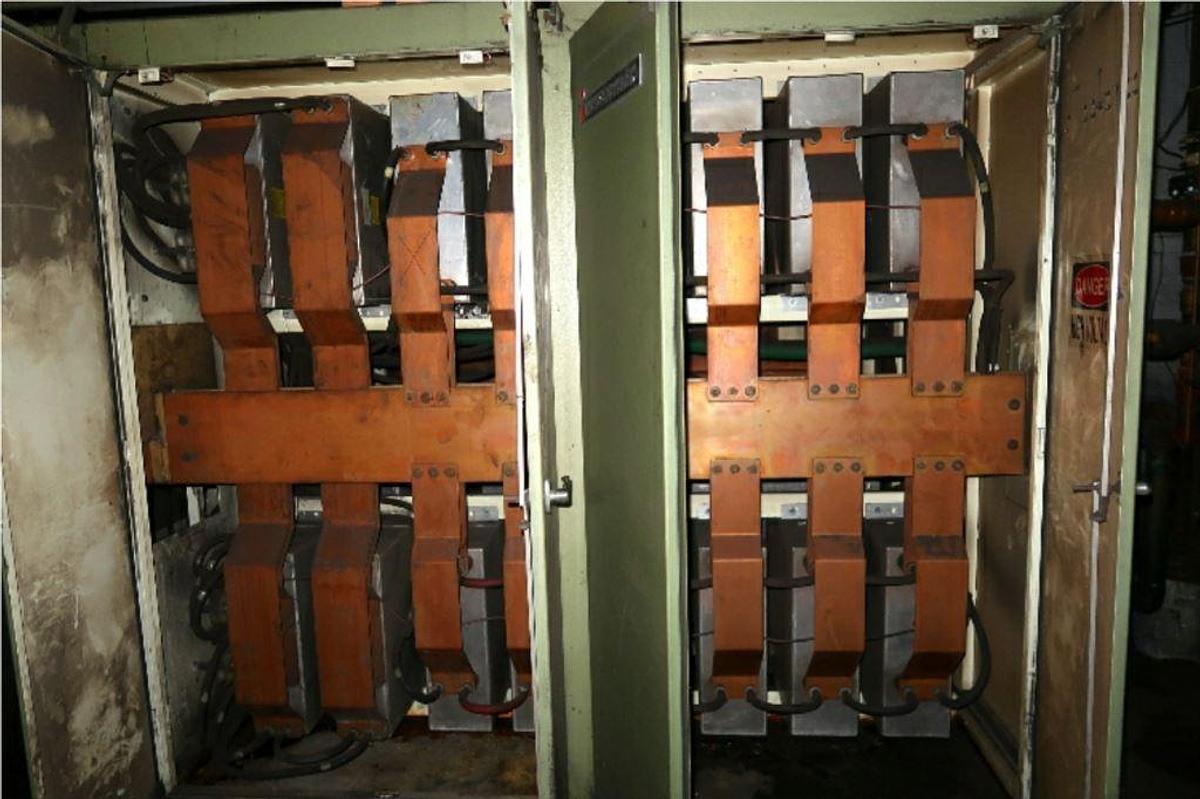

THIS INDUCTOTHERM VIP POWER MELT IS A CORELESS INDUCTION FURNACE SYSTEM RATED AT 1750 KW WITH AN OPERATING FREQUENCY OF 70 HZ. IT IS DESIGNED WITH A 7 MT SHELL AND HAS A MELT CAPACITY OF 7.5 TONS, UTILIZING A 7 TON CRUCIBLE. THE ELECTRICAL SPECIFICATIONS INCLUDE AN INPUT OF 575V, 3 PHASE, 60 HZ, 0.95 POWER FACTOR, DRAWING 1902 KVA AT 1910 AMPS. THE SYSTEM'S OUTPUT IS SUPPORTED BY 2200 VOLT CAPACITORS AT 70 HZ. THE UNIT IS PAIRED WITH A WARD TRANSFORMER FEATURING A HIGH VOLTAGE PRIMARY OF 12470 DELTA AND A LOW VOLTAGE SECONDARY OF 575Y/332. THE COMPLETE SYSTEM INCLUDES HIGH VOLTAGE SWITCHGEAR, A SPARE COIL, AND COMPONENTS SUCH AS A SPARE INDUCTOTHERM FURNACE ELEMENT AND A SKID OF CYLINDERS FOR THE FURNACE.
