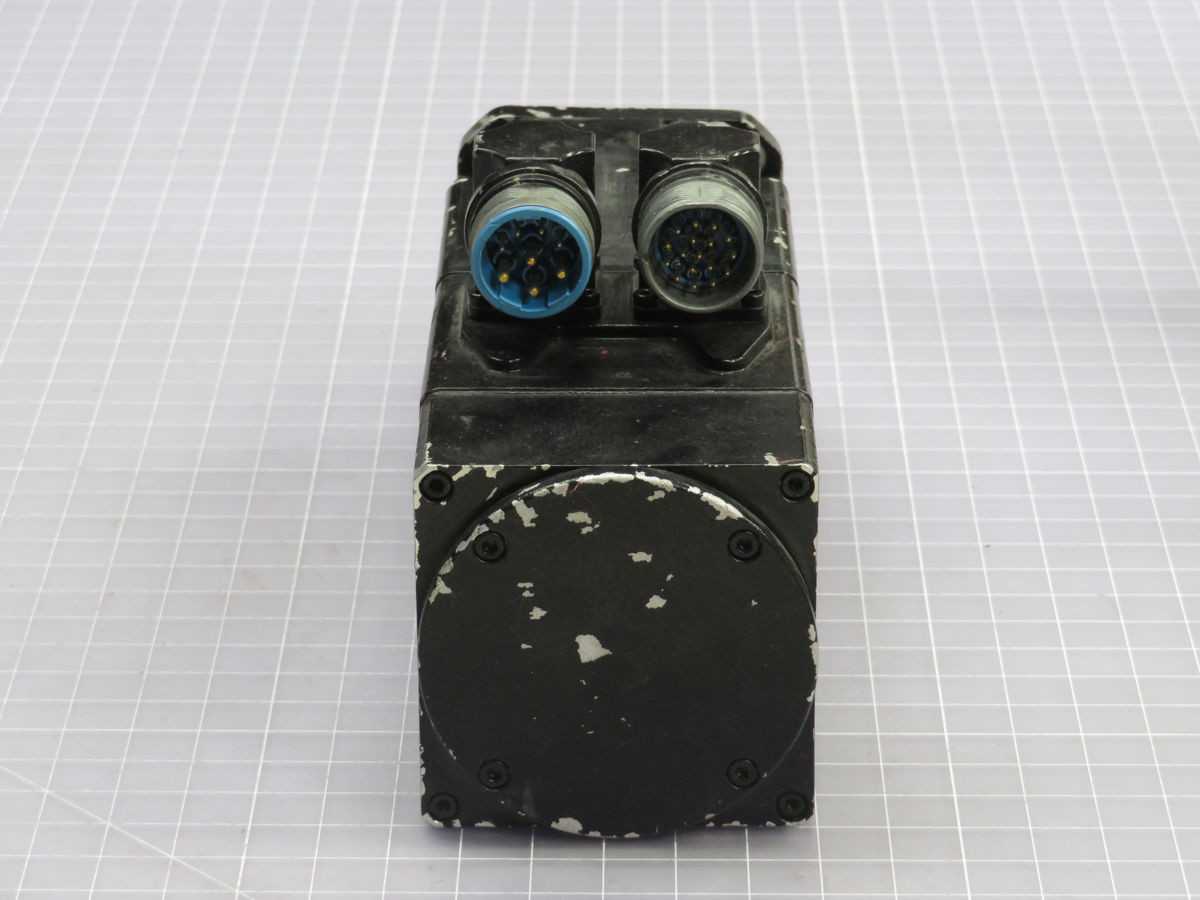

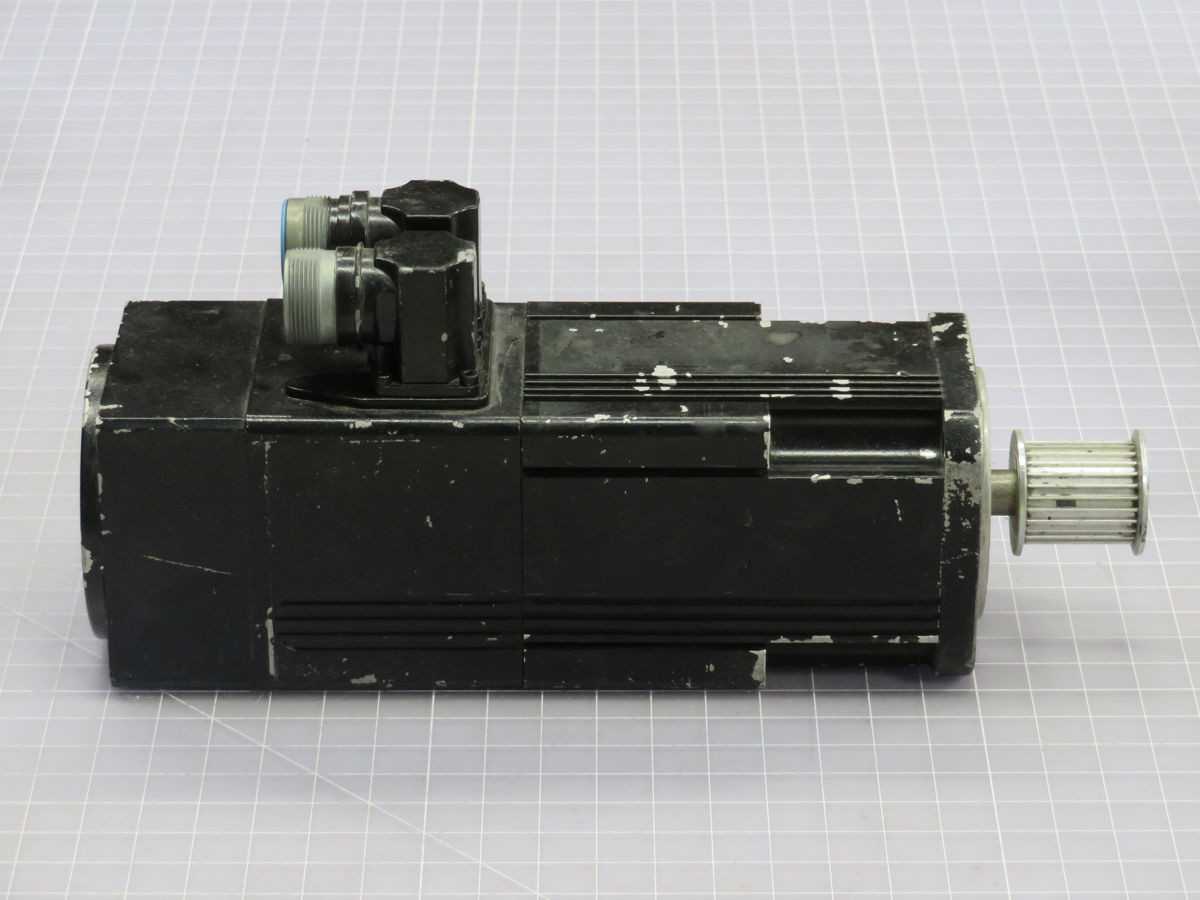

INFRANOR MAVILOR BS0739.90.9095.H6 SERVO MOTOR, 1.2 NM TORQUE, 6000 RPM SPEED, 750 W POWER, IP65

THE INFRANOR MAVILOR MODEL BS0739.90.9095.H6 IS AN AC BRUSHLESS SERVO MOTOR FROM THE BL73 SERIES, ENGINEERED FOR PRECISE INDUSTRIAL MOTION CONTROL. THIS MOTOR FEATURES AN INTEGRATED HOLDING BRAKE AND AN INTEGRATED ENCODER, FACILITATING ACCURATE POSITION FEEDBACK. IT DELIVERS A CONTINUOUS TORQUE OF 1.2 NM AND A PEAK TORQUE OF 4.8 NM, ACHIEVING A MAXIMUM ROTATIONAL SPEED OF 6000 RPM. OPERATING AT A NOMINAL VOLTAGE OF 230 VAC, THE UNIT PROVIDES APPROXIMATELY 750 W OF RATED POWER. ITS CONSTRUCTION ENSURES AN INGRESS PROTECTION RATING OF IP65, PROVIDING PROTECTION AGAINST DUST AND LOW-PRESSURE WATER JETS.
