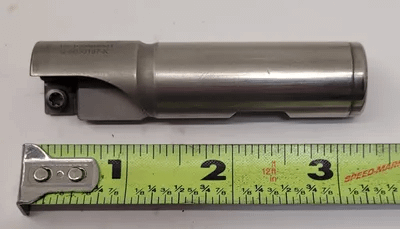

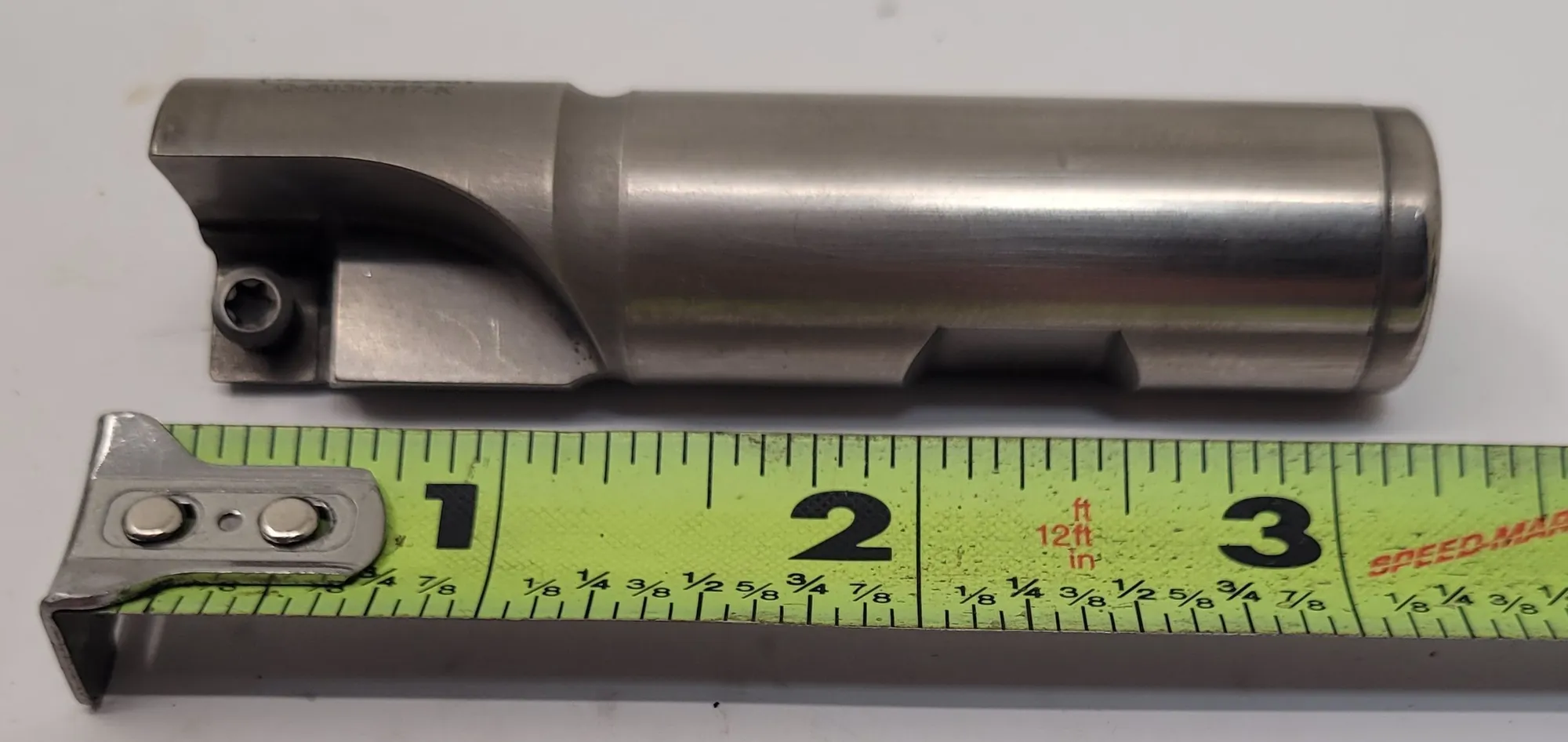

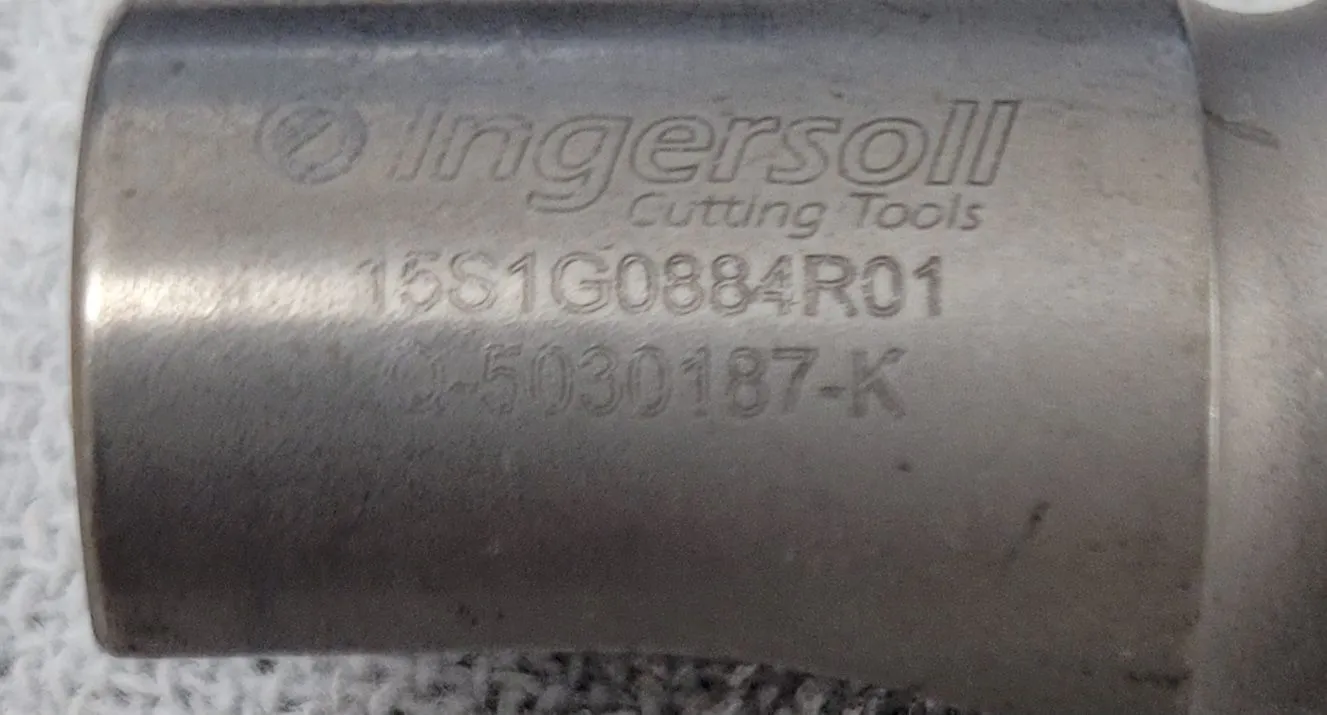

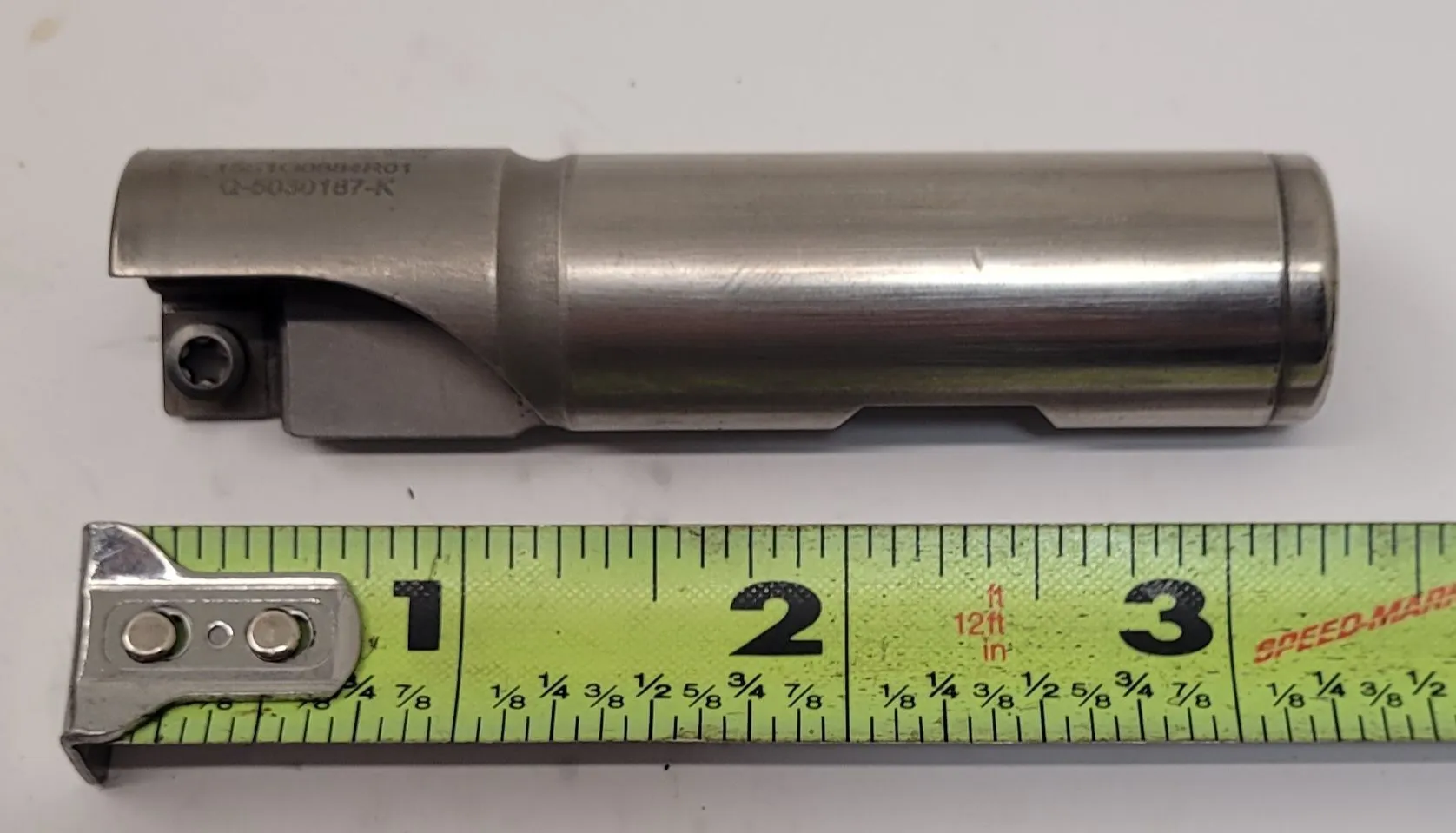

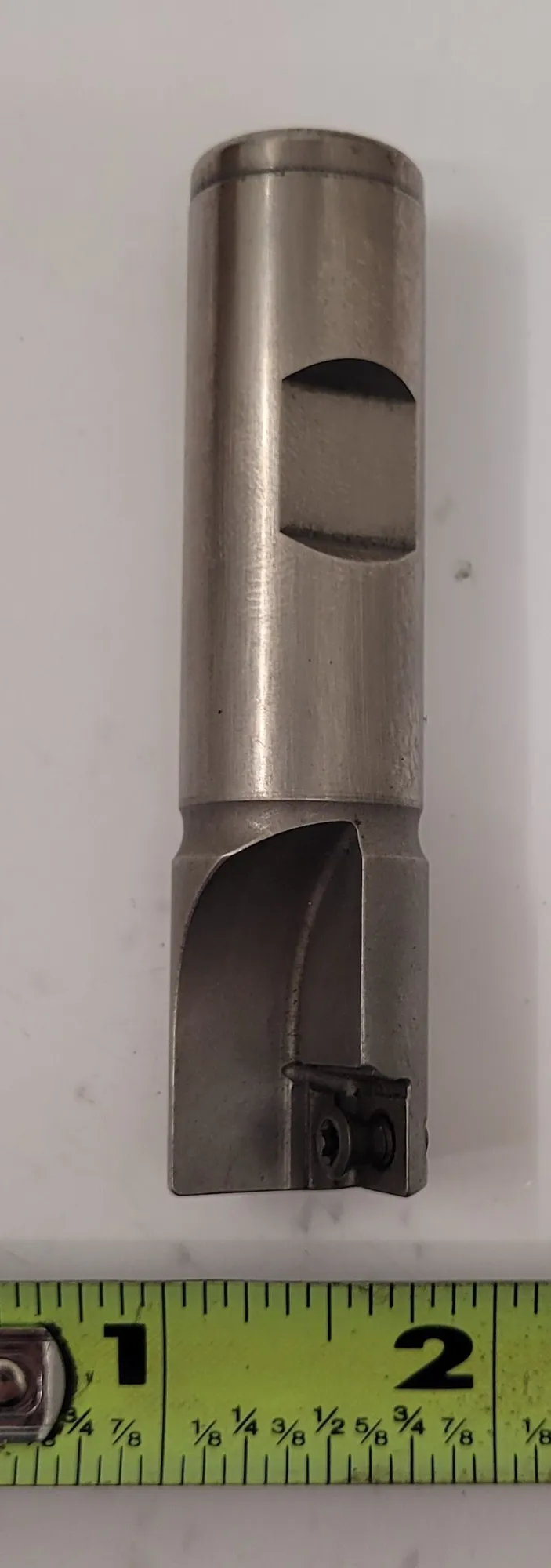

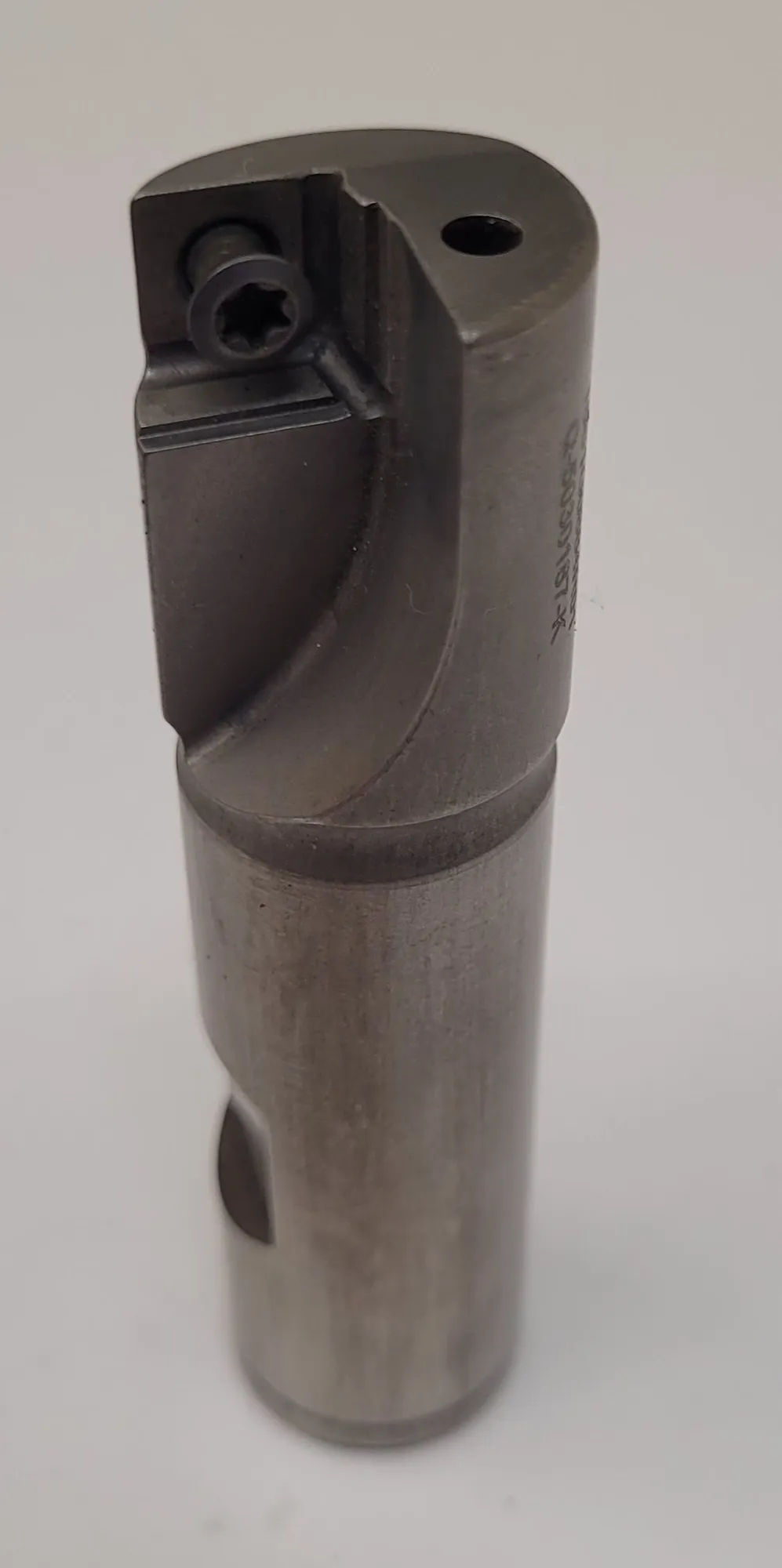

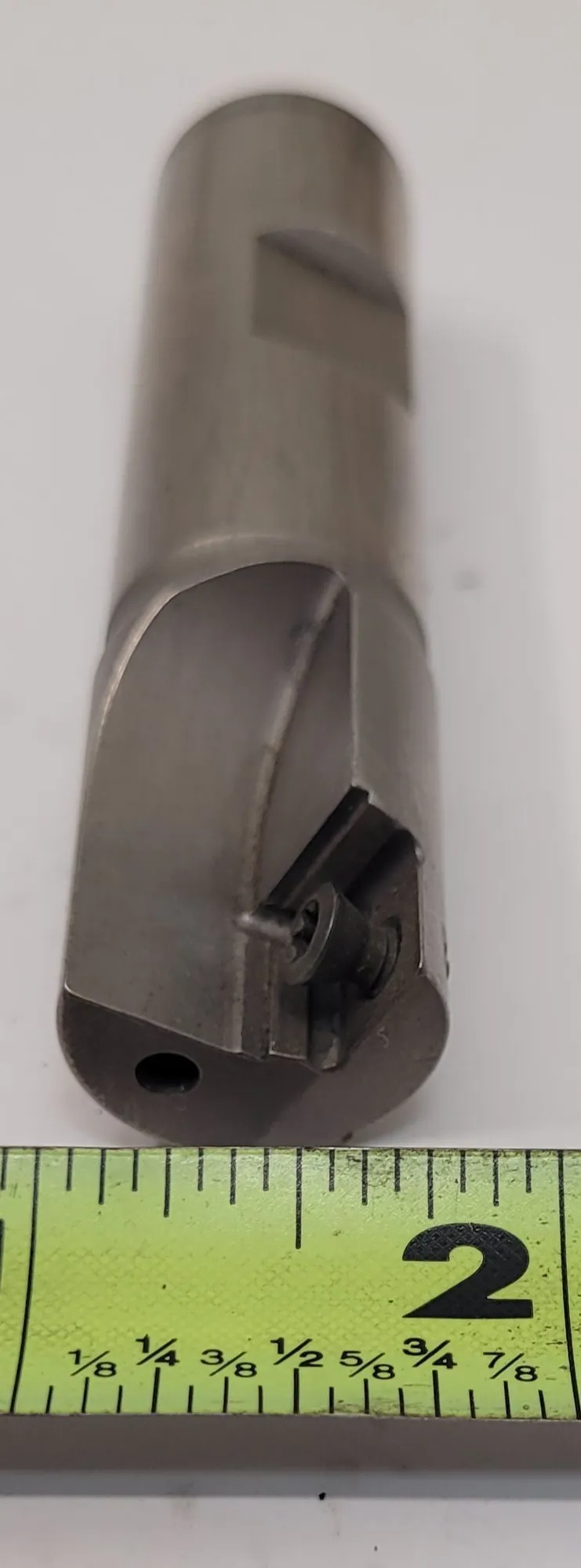

INGERSOLL 15S1G0884R01 1XD CENTER-CUTTING COUNTER BORE TOOL, 0.813" DC, 0.750" SHANK DIA

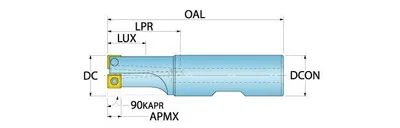

THE INGERSOLL 15S1G0884R01 CUTTING COUNTER BORE TOOL FEATURES A CUTTING EDGE ANGLE (KAPR) OF 90 DEGREES AND A CUTTING DIAMETER (DC) OF 0.813 INCHES. THE MAXIMUM DEPTH OF CUT (APMX) IS 0.400 INCHES. IT HAS AN OVERALL LENGTH (OAL) OF 3.25 INCHES AND A SHANK DIAMETER (DCON) OF 0.7500 INCHES. THE TOOL HAS A MAXIMUM USABLE LENGTH (LUX) OF 0.75 INCHES AND A PROTRUDING LENGTH (LPR) OF 1.25 INCHES. IT IS DESIGNED WITH ONE EFFECTIVE TOOTH (ZEFF), ONE FACE INSERT COUNT (ZNF), AND ONE PERIPHERAL INSERT COUNT (ZNP). THE TOOL IS COOLANT-CAPABLE (CSP COOLANT: YES).
