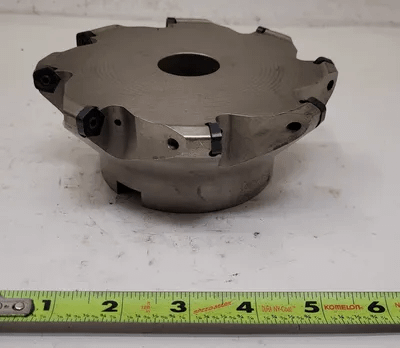

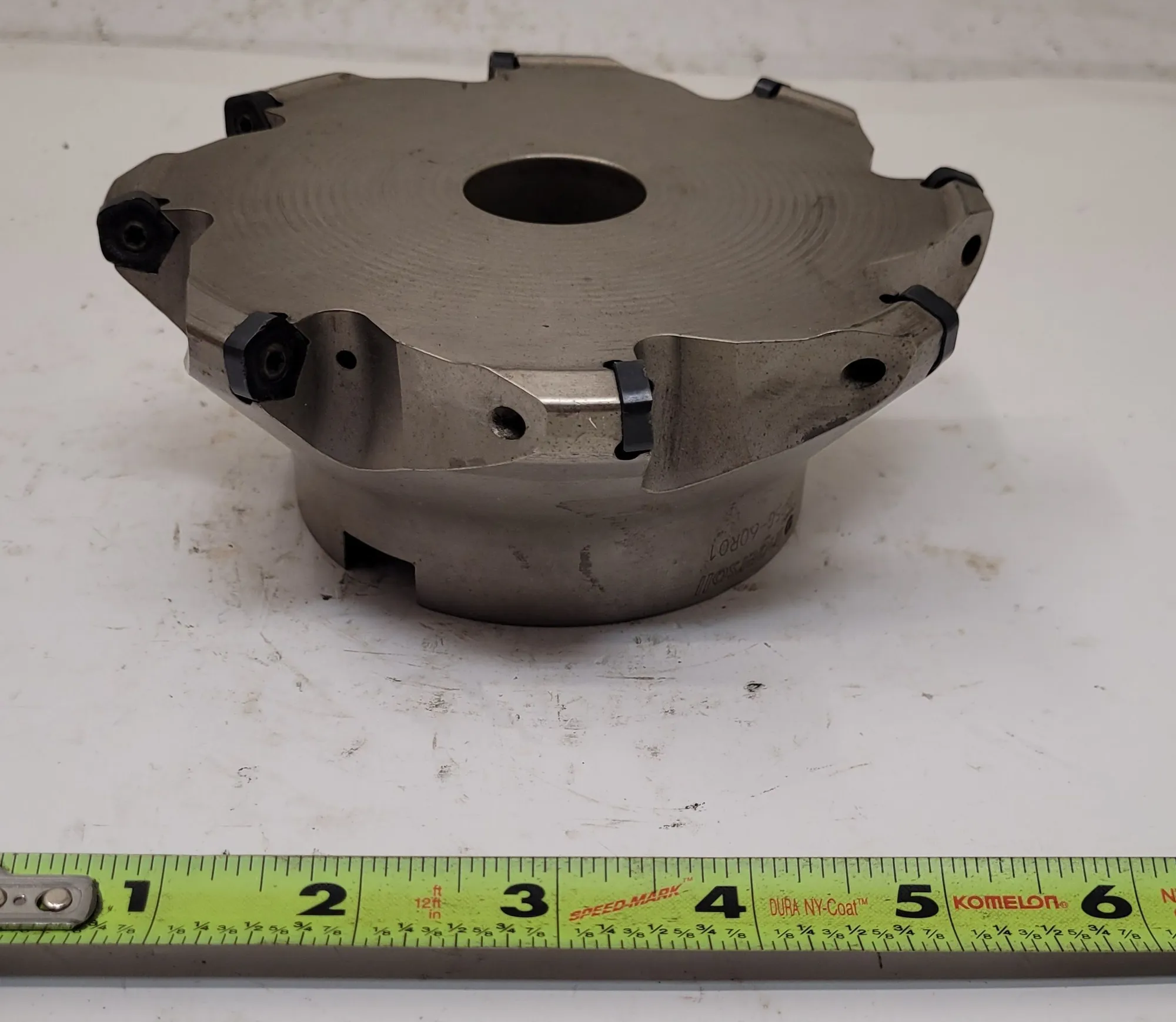

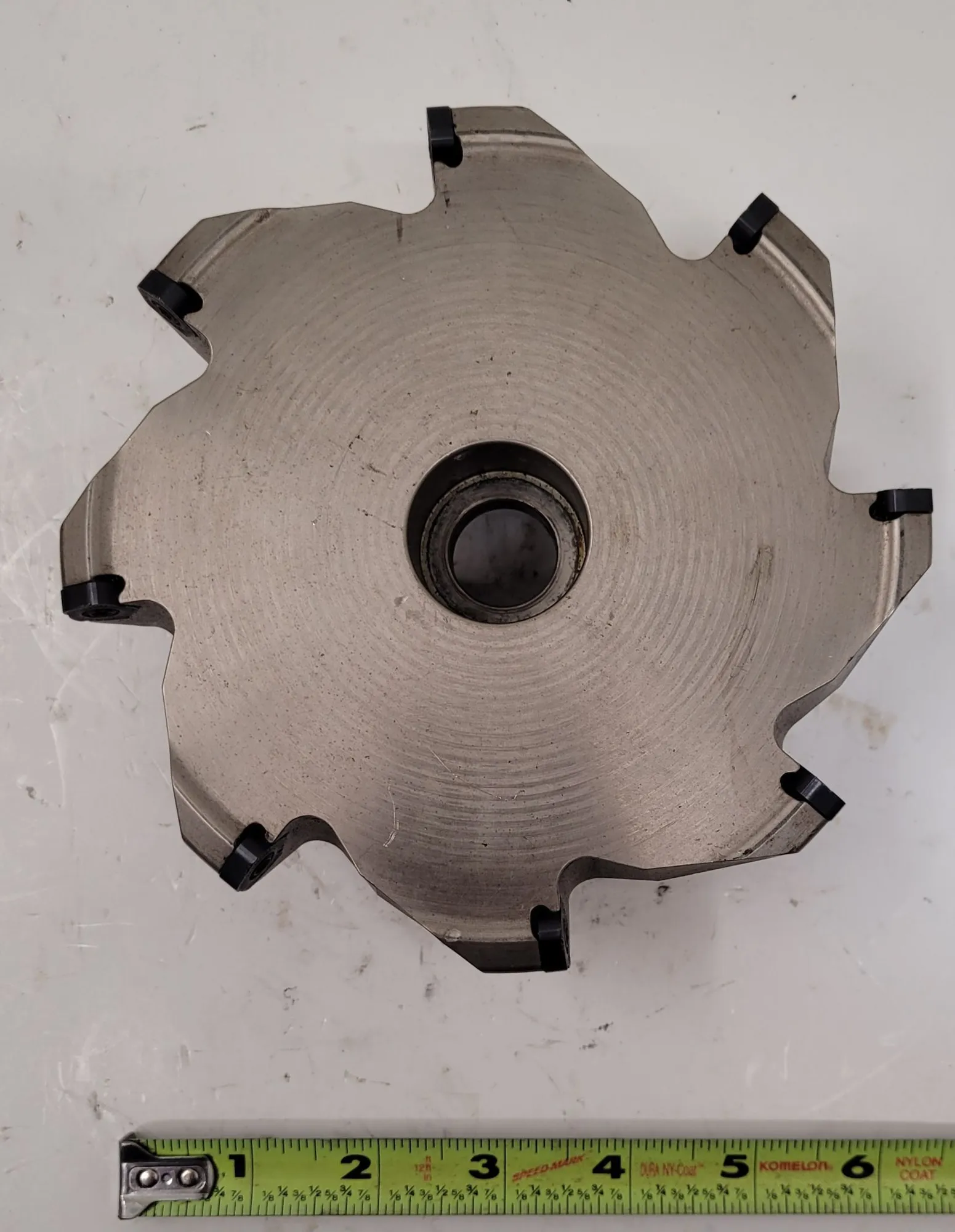

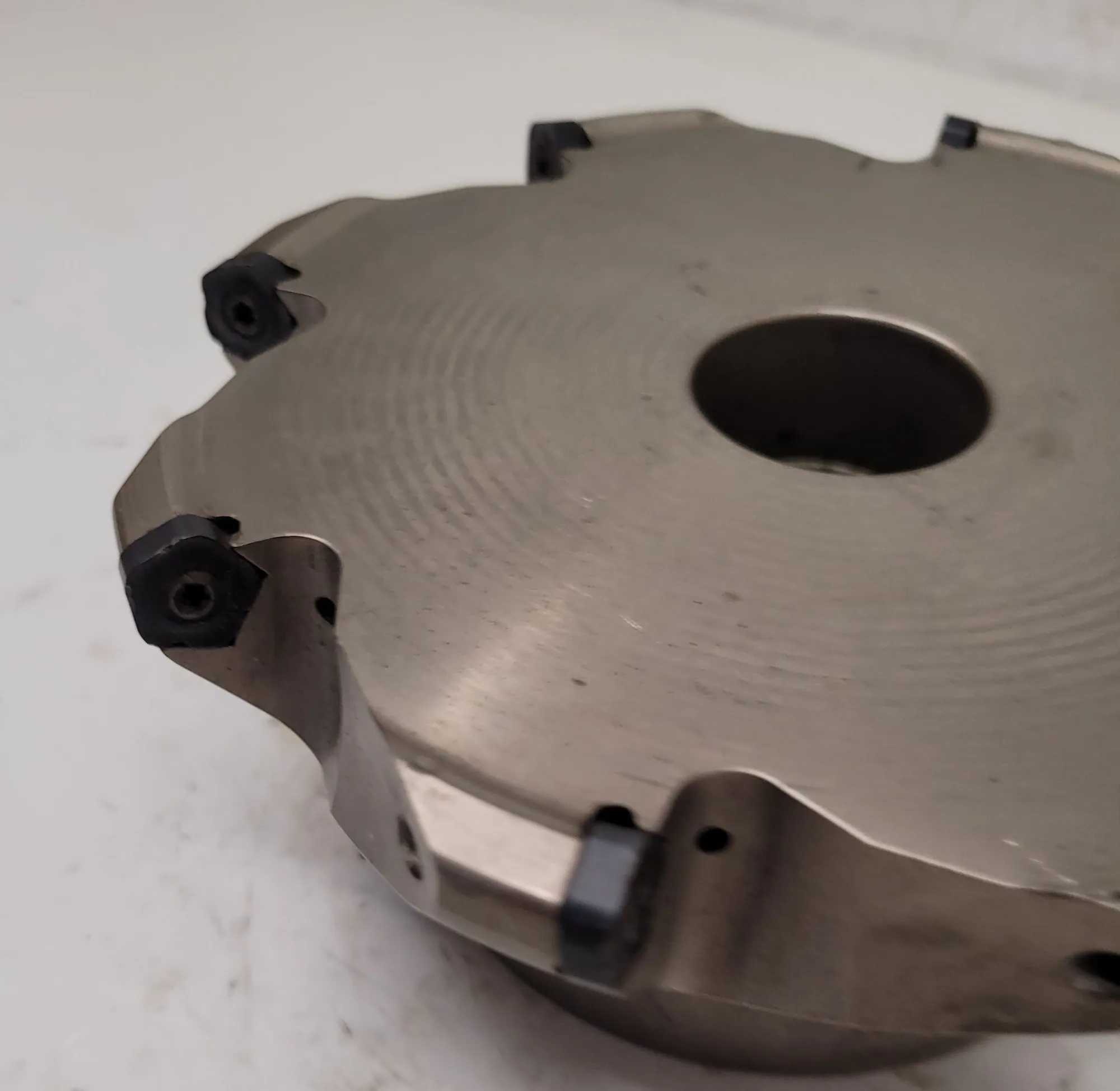

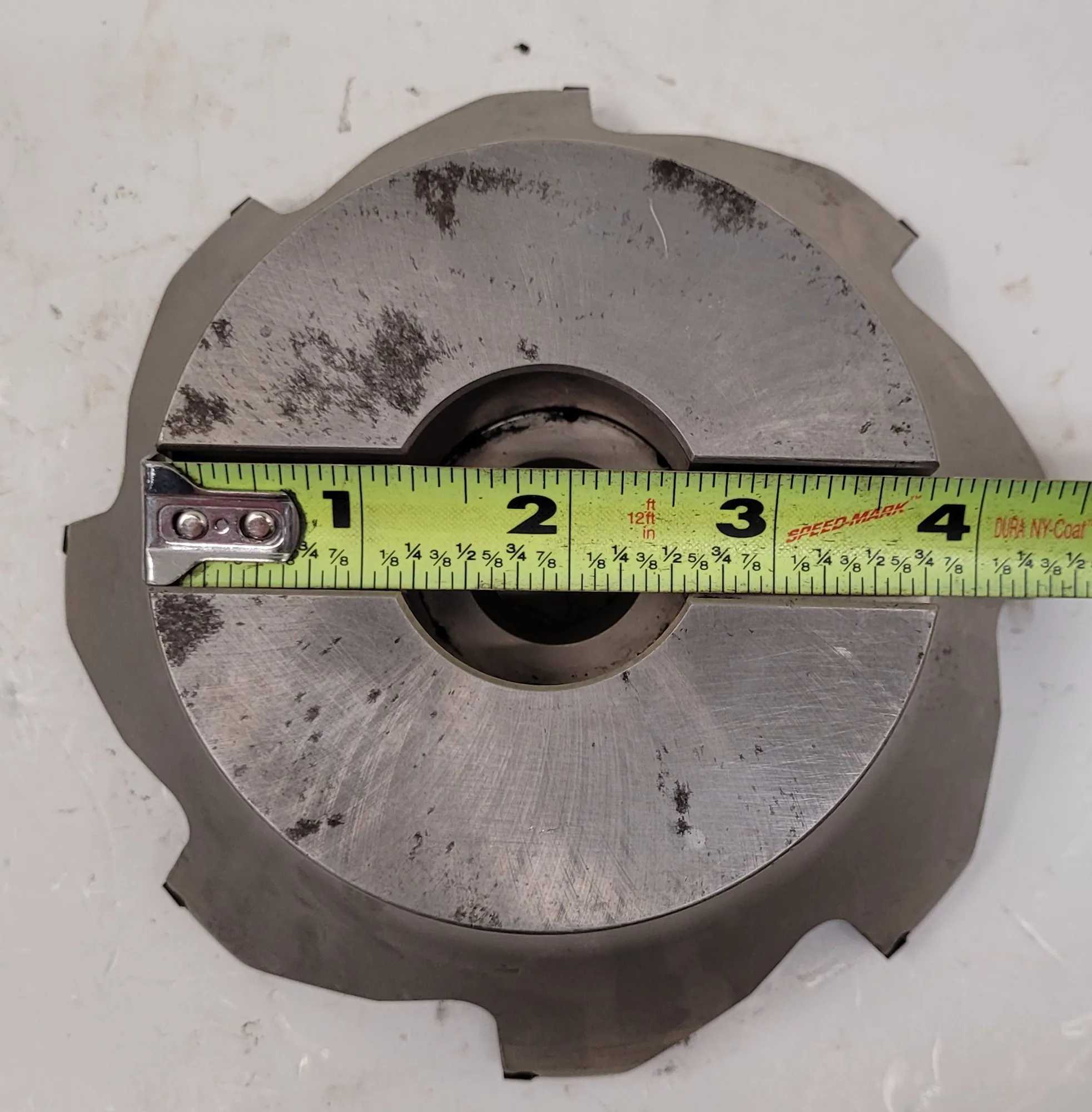

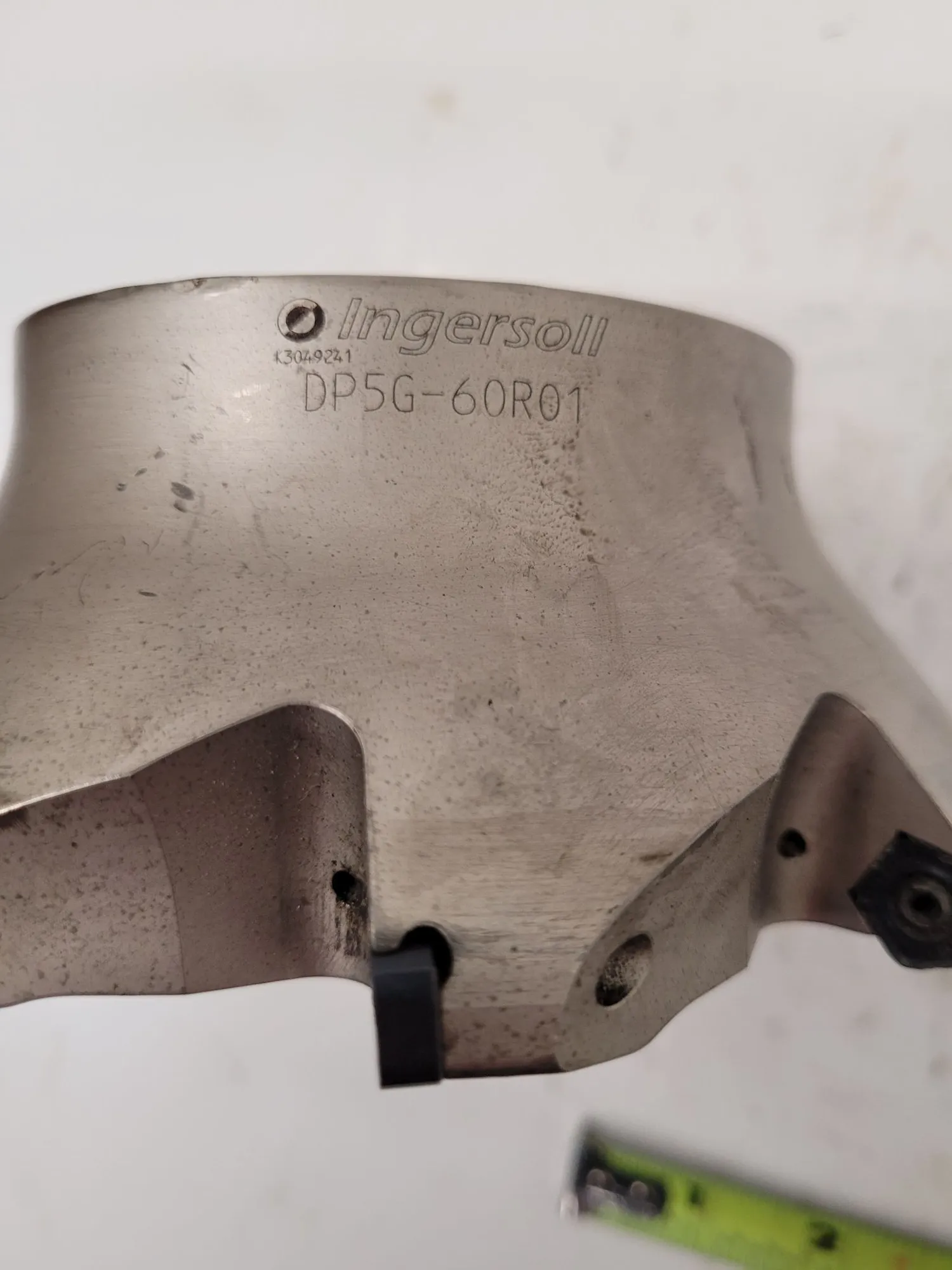

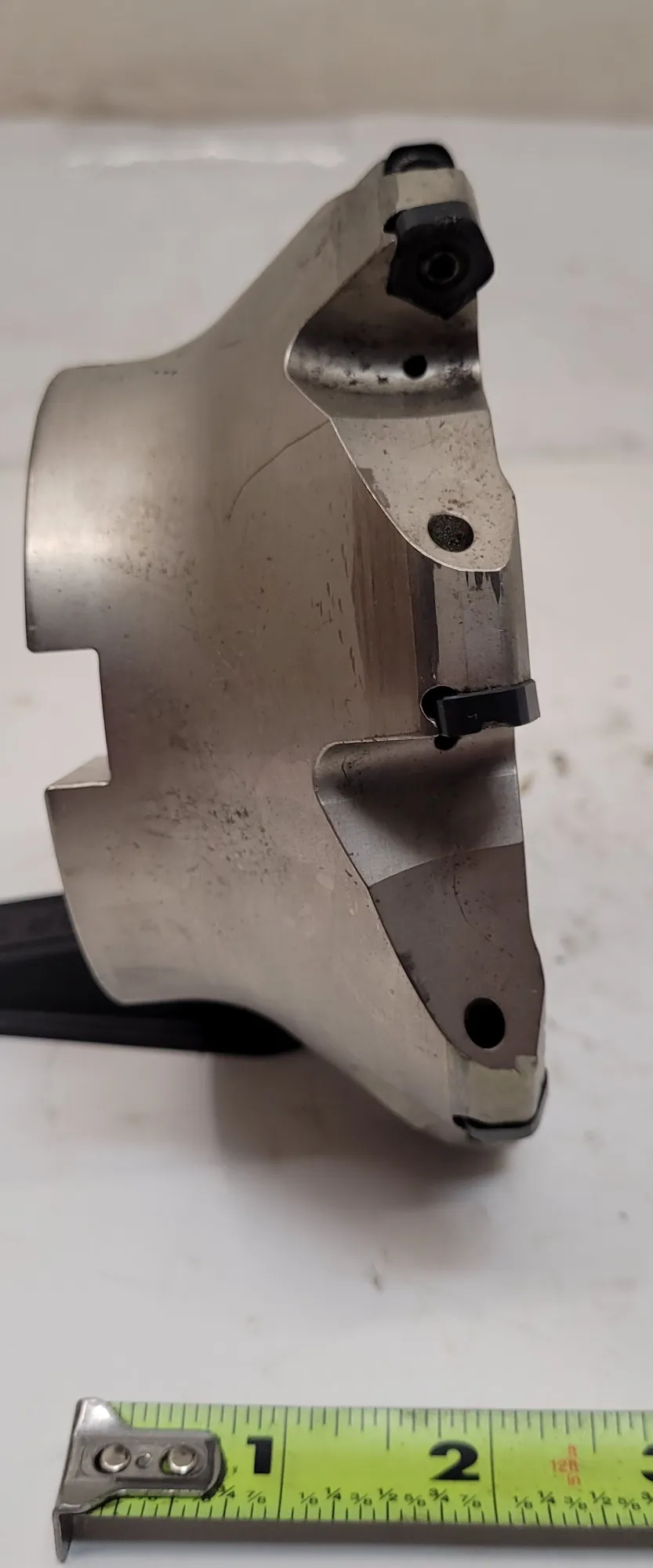

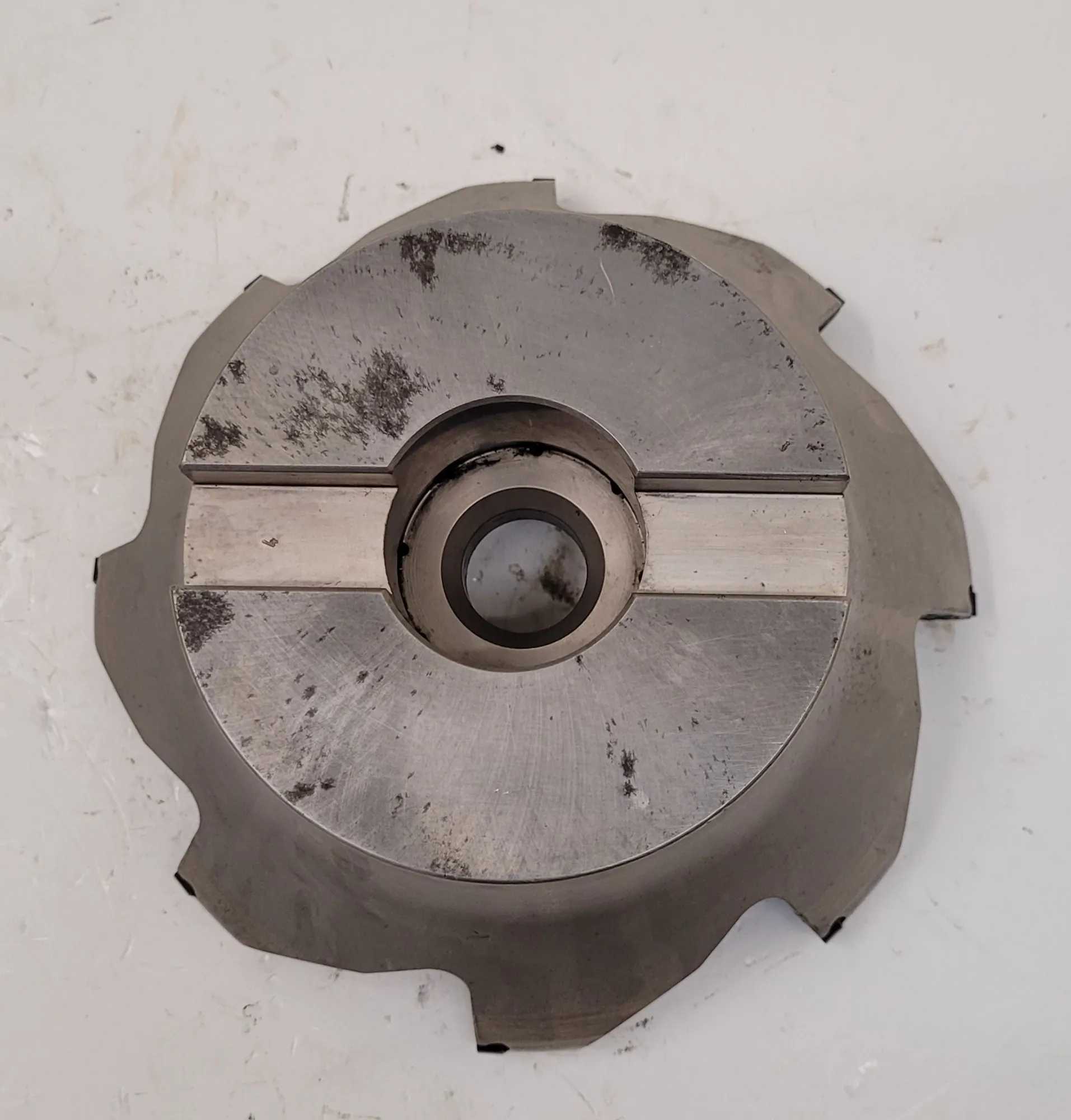

Ingersoll DP5G-60R01 Indexable 6" Facemill

This is an Ingersoll DP5G-60R01 Indexable 6" Facemill from Ingersoll Cutting Tools. It features a maximum cutting diameter of 6 inches and an actual cutting diameter of 5.468 inches. The maximum depth of cut is .06 inches, with a program radius equivalent of .180 inches. The facemill is designed with 8 flutes or inserts and includes a .63-inch keyway. The hub diameter is 3.80 inches, and it has a bore of 1.50 inches. The overall length (OAL) is 2.375 inches. Technical angles include a maximum ramp angle of .70 degrees and a cutting edge angle of 21.0 degrees. This tool is coolant ready.
