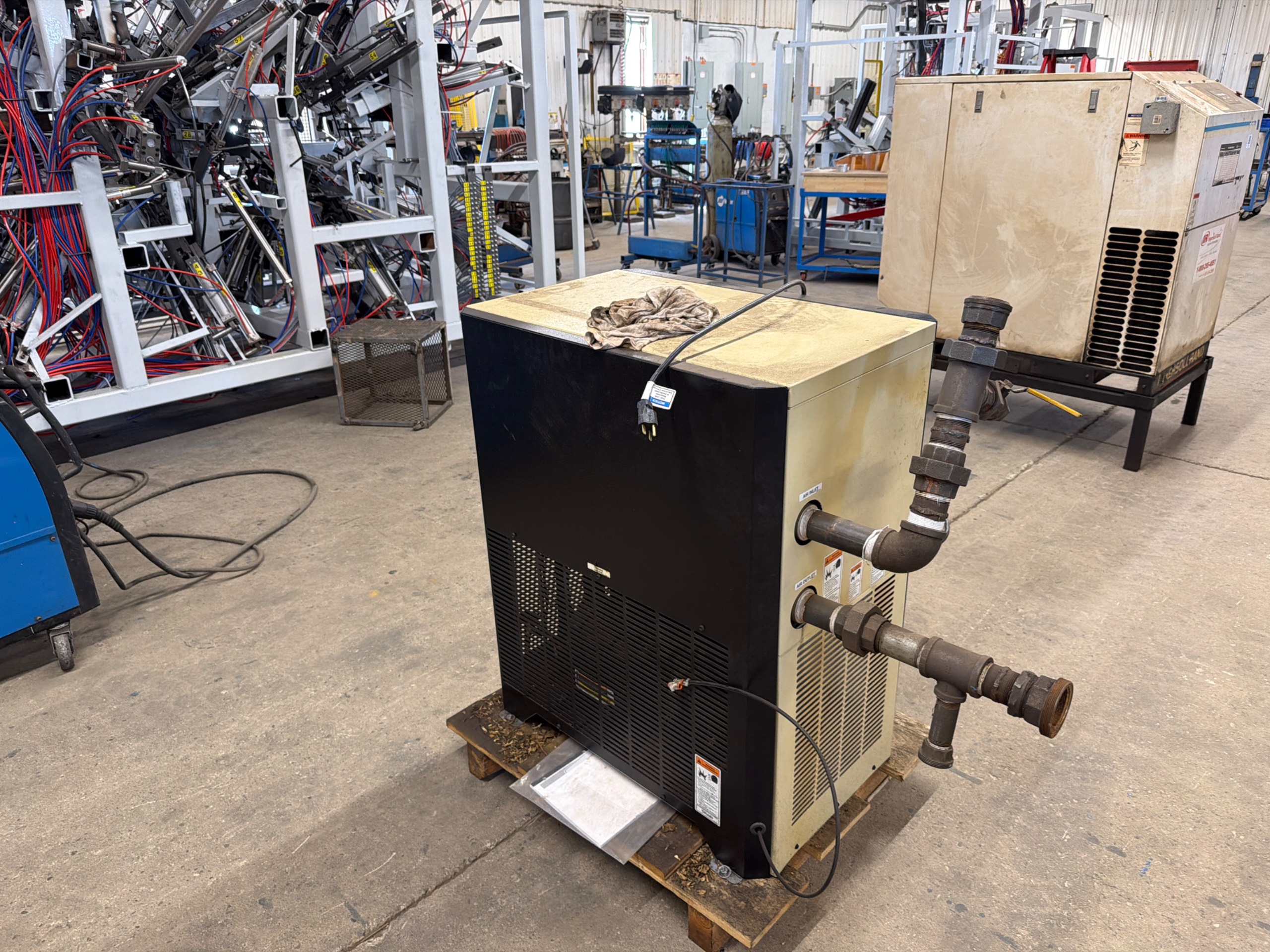

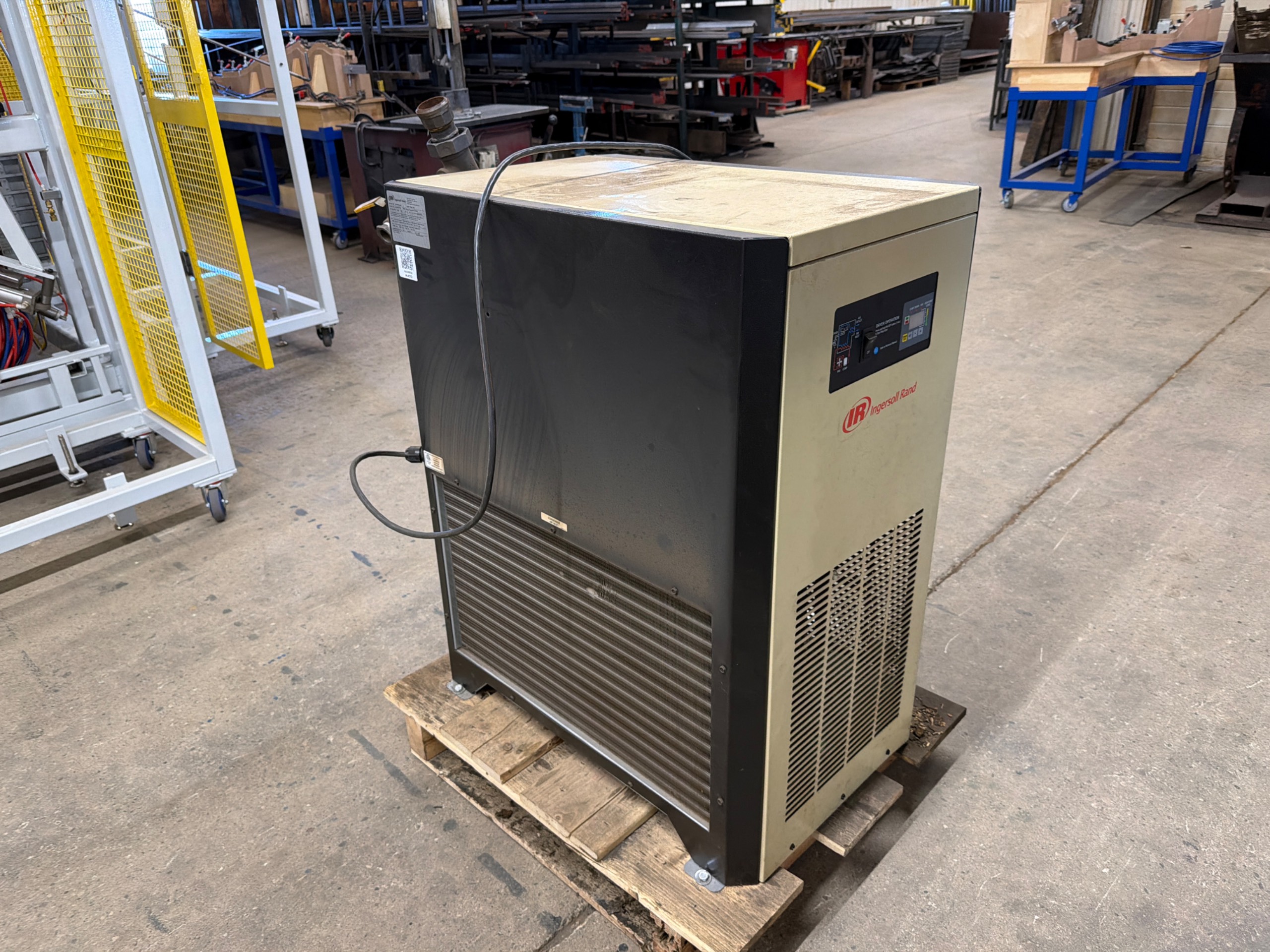

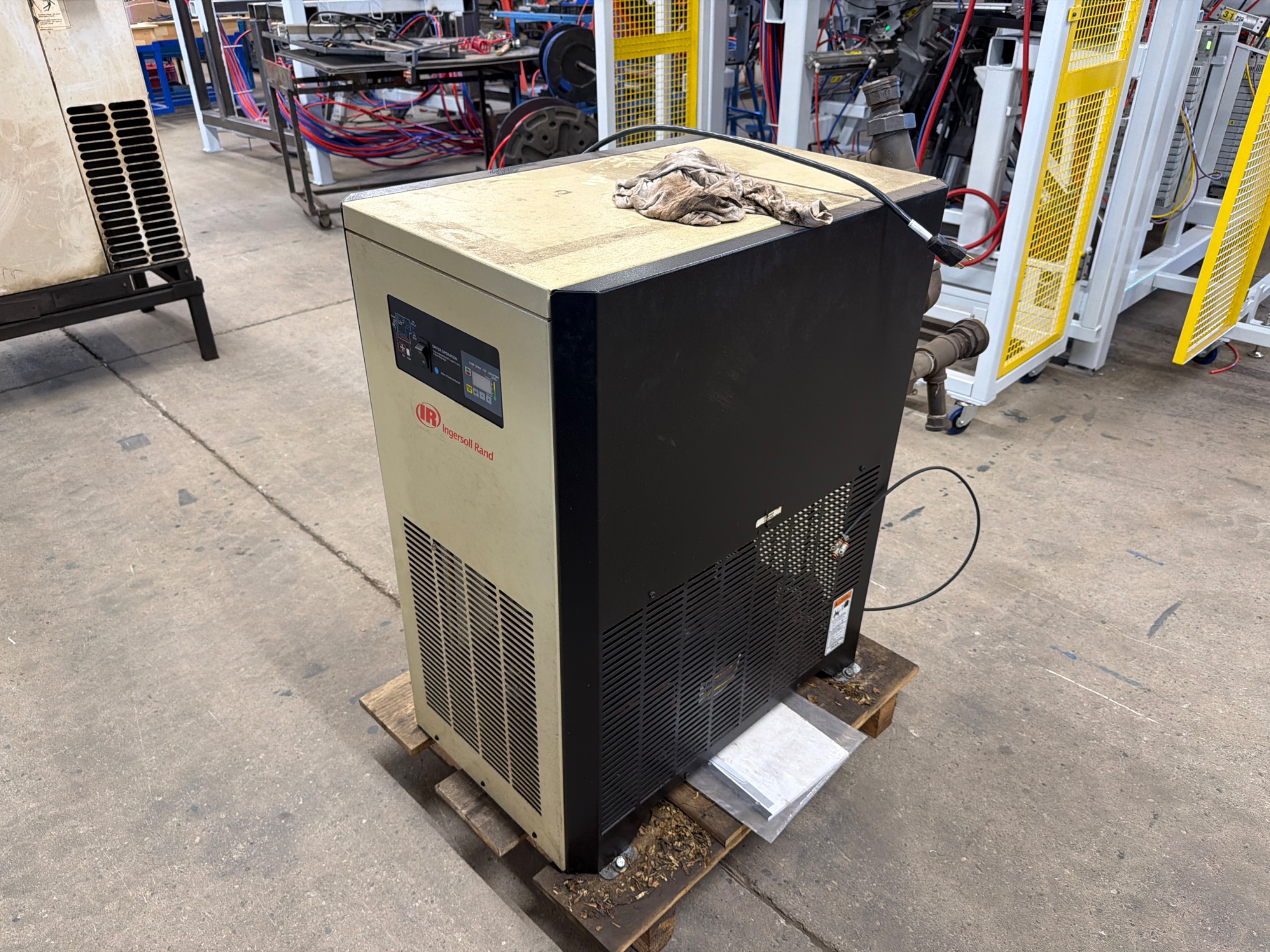

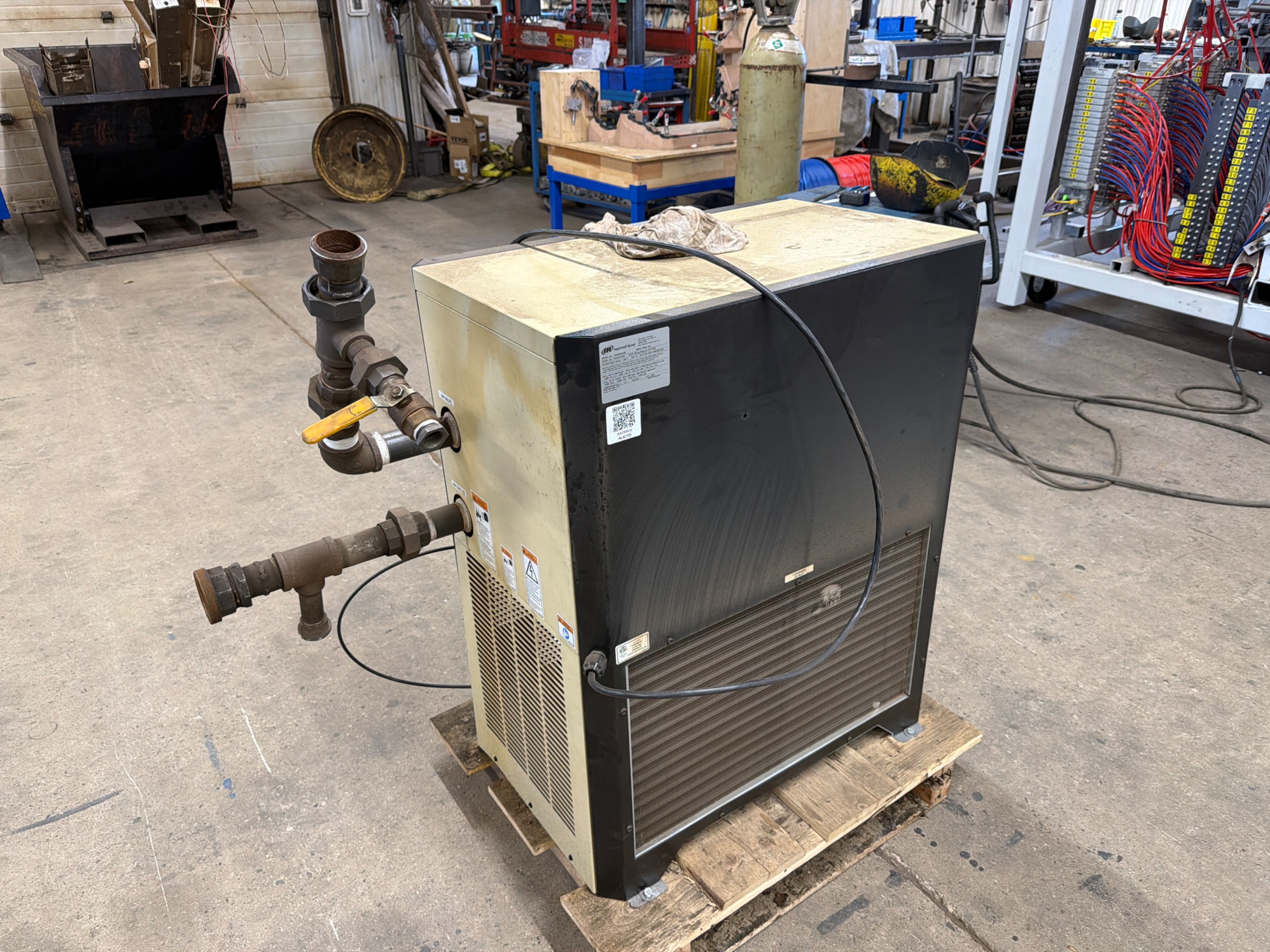

INGERSOLL RAND DA30NA200 REFRIGERATED AIR DRYER, 200 PSIG, 230V, 1PH, 60HZ, 1 HP

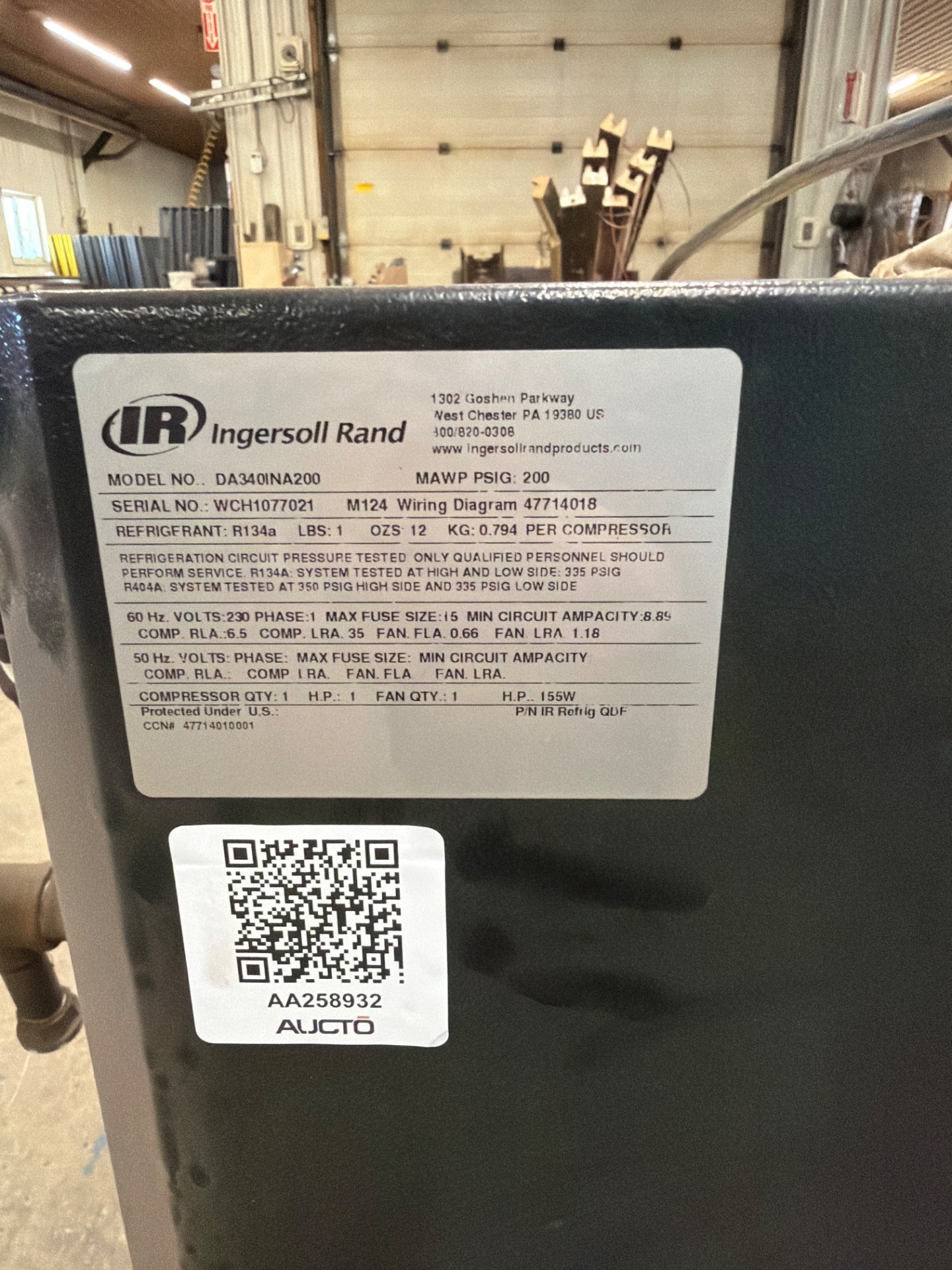

THE INGERSOLL RAND DA30NA200 IS A REFRIGERATED AIR DRYER DESIGNED FOR COMPRESSED AIR SYSTEMS. THE UNIT FEATURES A MAXIMUM ALLOWABLE WORKING PRESSURE (MAWP) OF 200 PSIG AND UTILIZES R134A REFRIGERANT WITH A CHARGE OF 0.794 KG (1 LB 12 OZ) PER COMPRESSOR. IT OPERATES ON A SINGLE-PHASE, 230 V POWER SUPPLY AT A FREQUENCY OF 60 HZ. THE ELECTRICAL SPECIFICATIONS INCLUDE A MINIMUM CIRCUIT AMPACITY OF 8.85 A AND A MAXIMUM FUSE SIZE OF 15 A. THE COMPRESSOR IS RATED AT 1 HP WITH A RATED LOAD AMPERAGE (RLA) OF 6.5 A AND A LOCKED ROTOR AMPERAGE (LRA) OF 35 A. THE FAN MOTOR OPERATES AT 155 W WITH A FULL LOAD AMPERAGE (FLA) OF 0.66 A AND A LOCKED ROTOR AMPERAGE (LRA) OF 1.18 A.
