INGERSOLL RAND SSR-EP25SE ROTARY SCREW AIR COMPRESSOR, 25HP, 95CFM, 125PSIG, 460/575V, 3PH

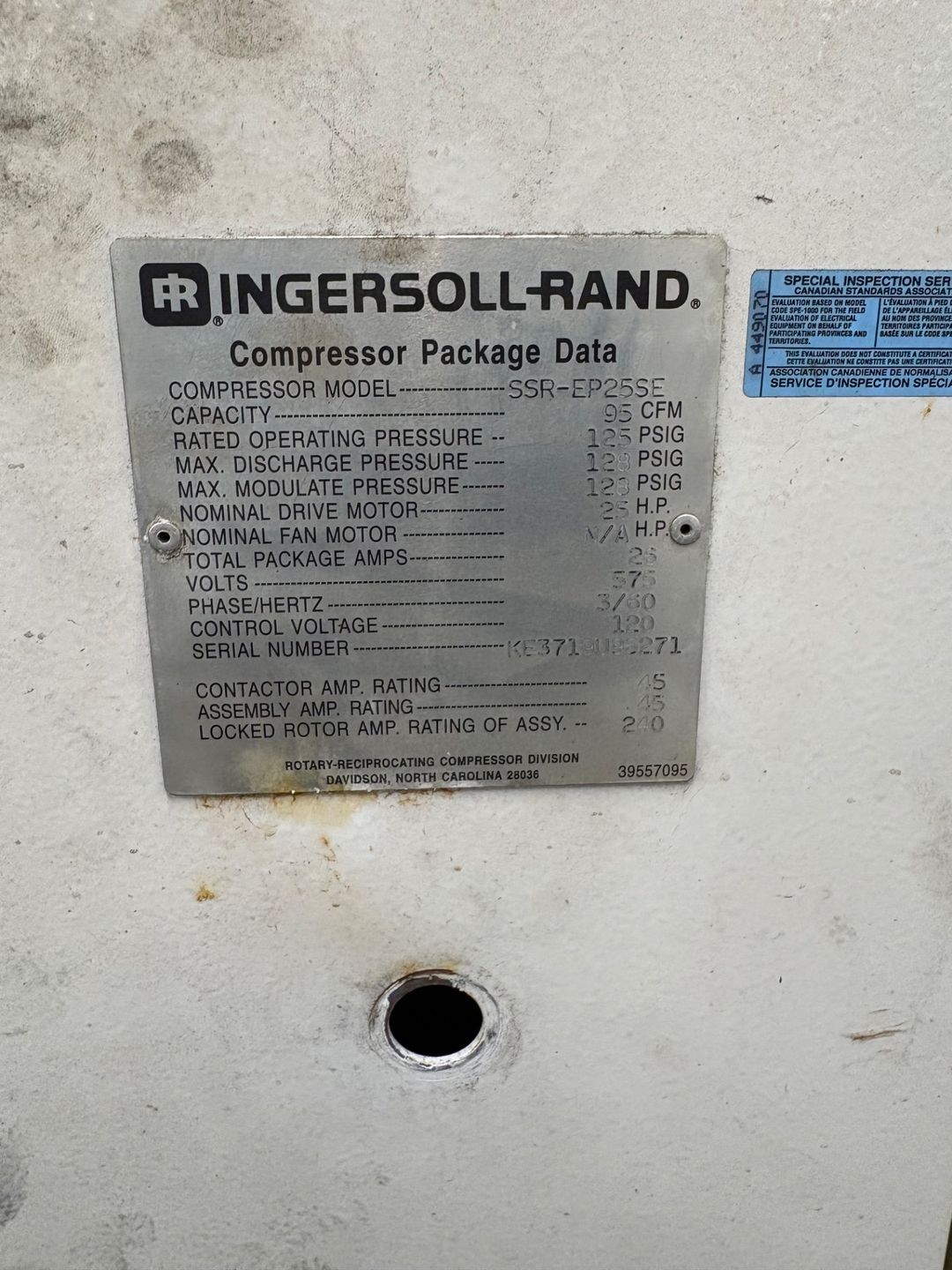

THE INGERSOLL RAND SSR-EP25SE IS A ROTARY SCREW AIR COMPRESSOR DESIGNED FOR CONTINUOUS INDUSTRIAL APPLICATIONS. THIS UNIT FEATURES A 25 HP MAIN DRIVE MOTOR AND A 1/4 HP FAN MOTOR, DELIVERING A CAPACITY OF 95 CFM AT A RATED OPERATING PRESSURE OF 125 PSIG. IT HAS A MAXIMUM DISCHARGE AND MODULATE PRESSURE OF 128 PSIG. THE ELECTRICAL CONFIGURATION TYPICALLY REQUIRES A 575V OR 460V, 3-PHASE, 60 HZ POWER SUPPLY, WITH A CONTROL VOLTAGE OF 120V. TOTAL PACKAGE AMPERAGE IS APPROXIMATELY 26A TO 35A DEPENDING ON THE VOLTAGE CONFIGURATION, WHILE THE CONTACTOR AND ASSEMBLY ARE RATED FOR 45A. THE COMPRESSOR UTILIZES AN OIL-INJECTED SYSTEM FOR LUBRICATION AND IS AIR-COOLED.
