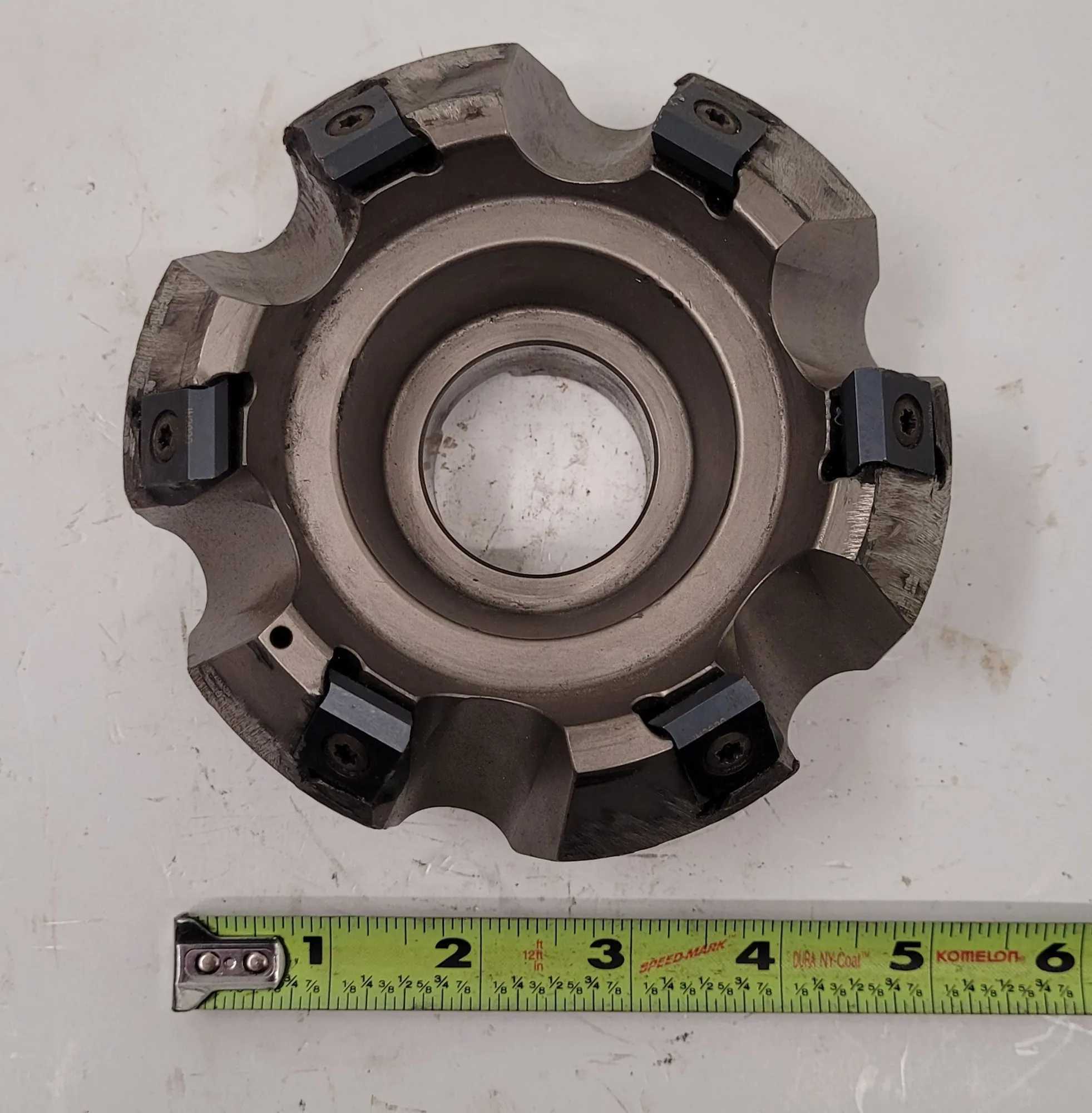

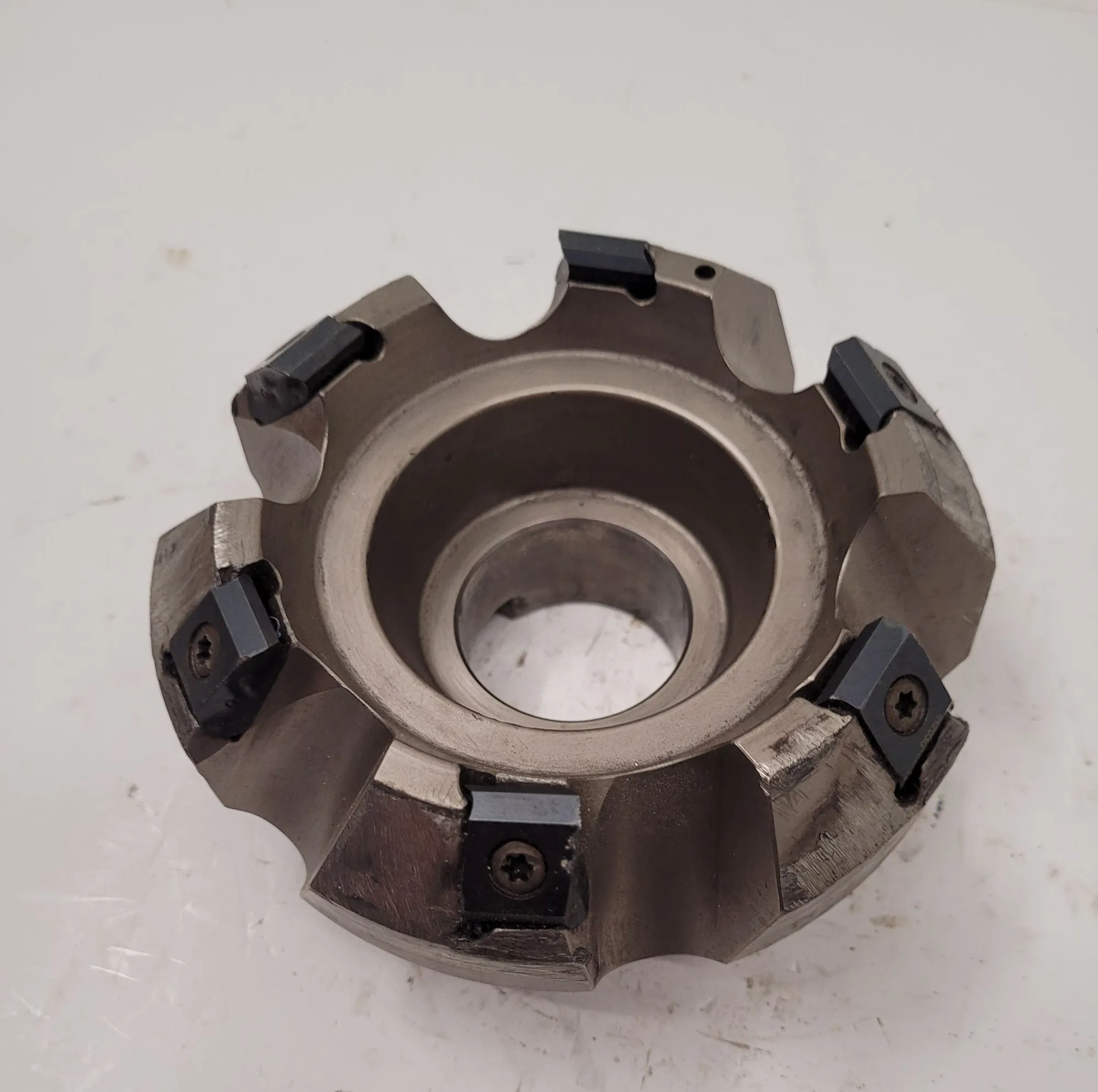

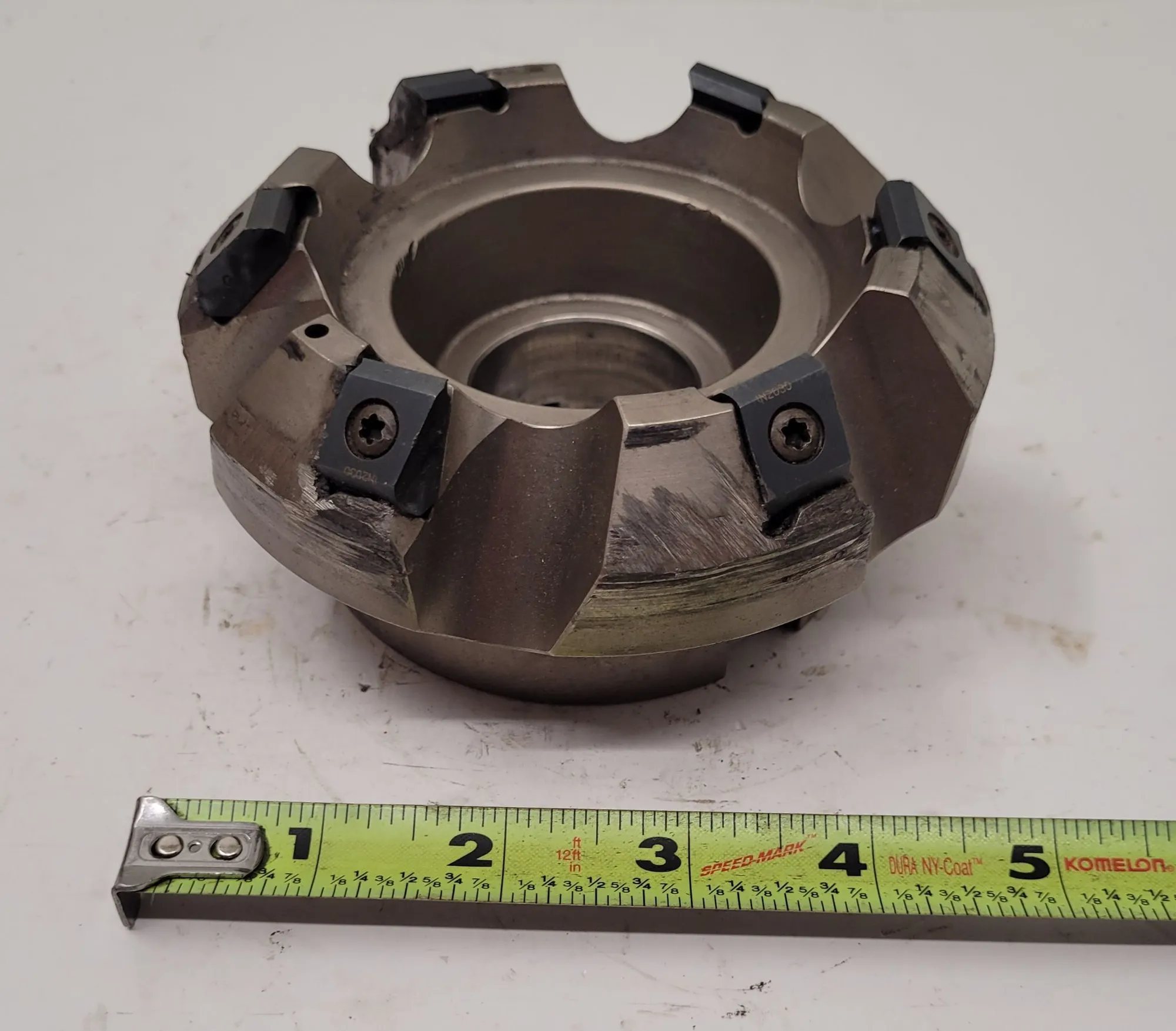

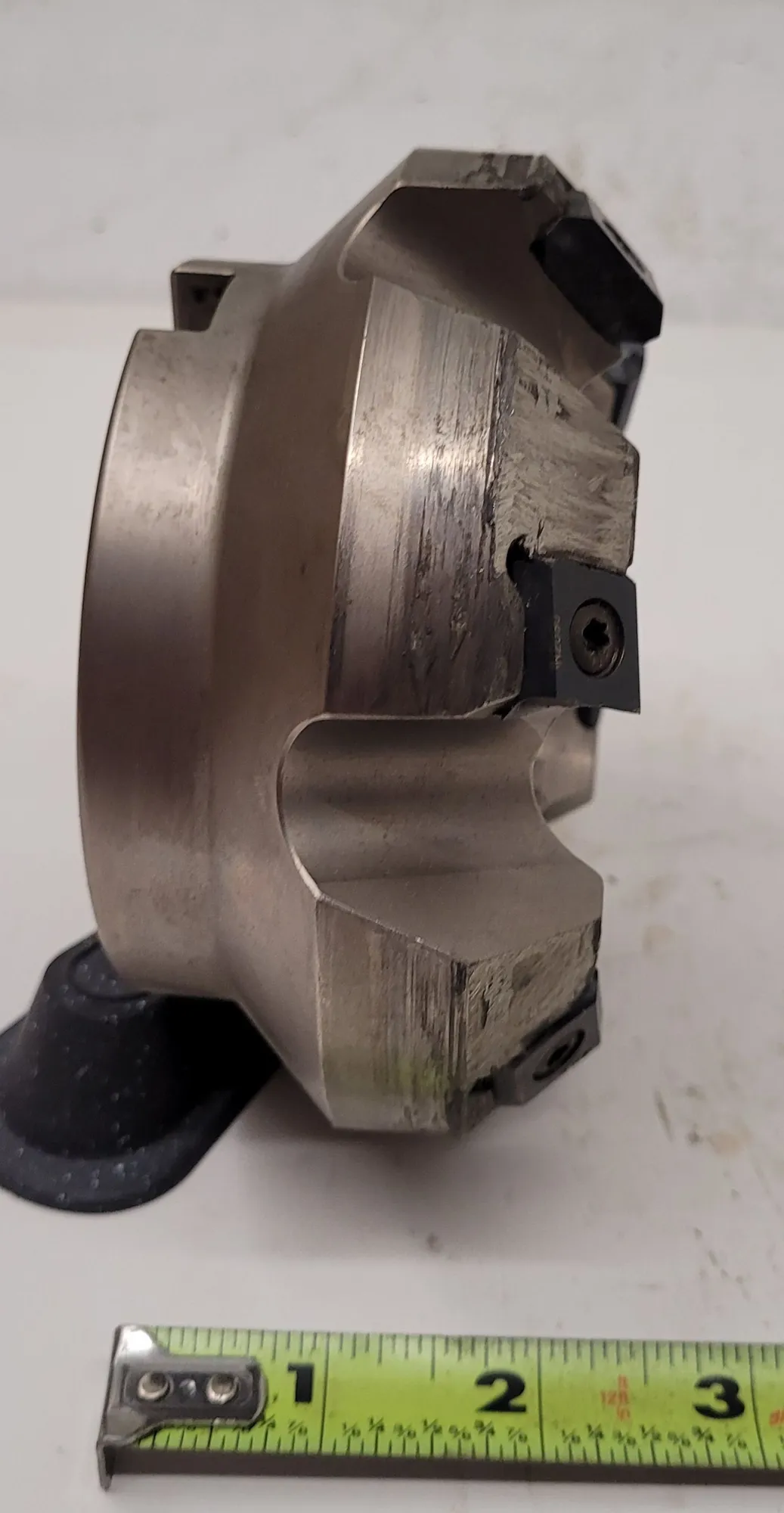

INGERSOLL SN6N-04R01 FACE MILL, 4.69″ DIA., 6 INSERTS, 45 DEGREE ANGLE

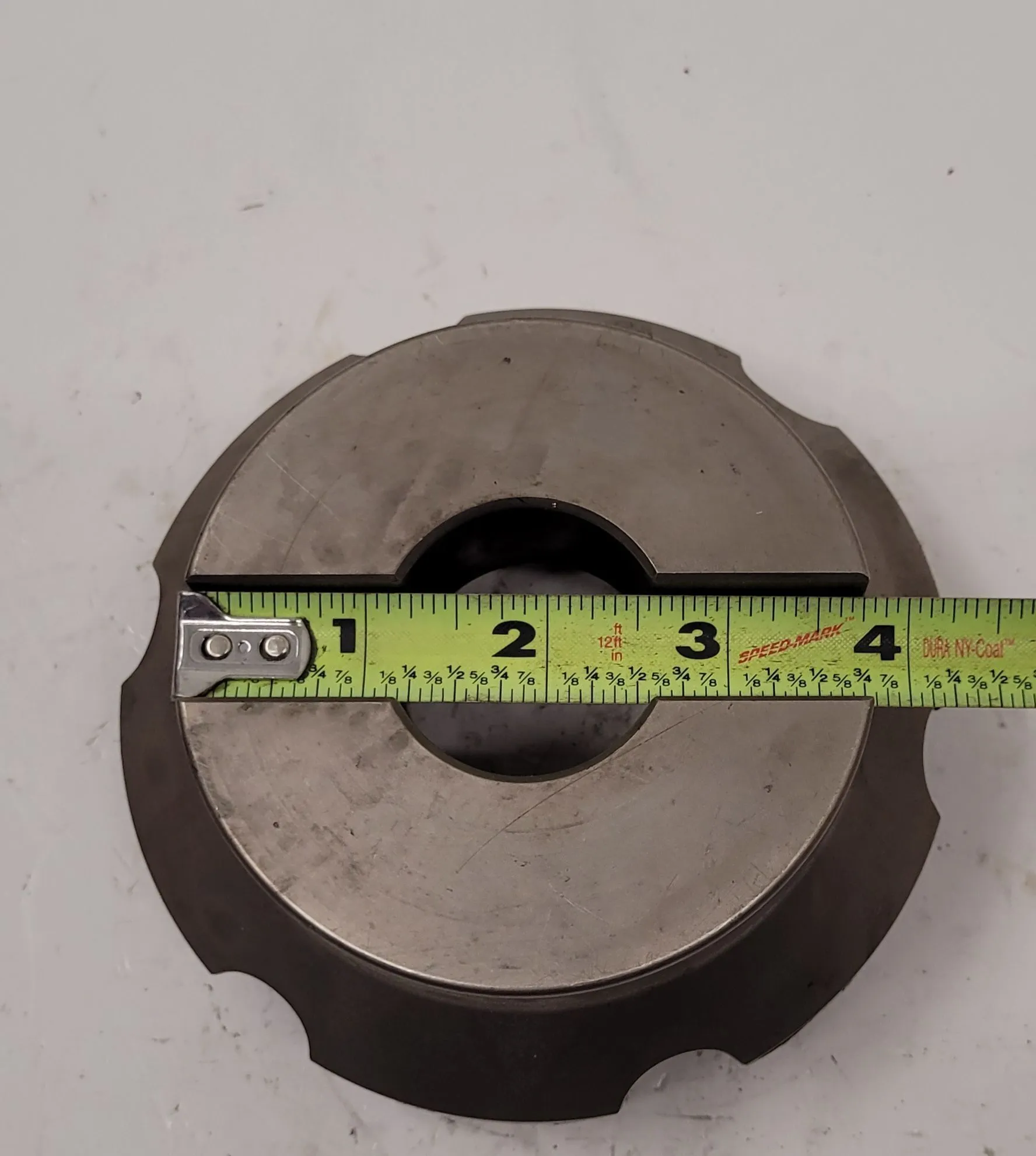

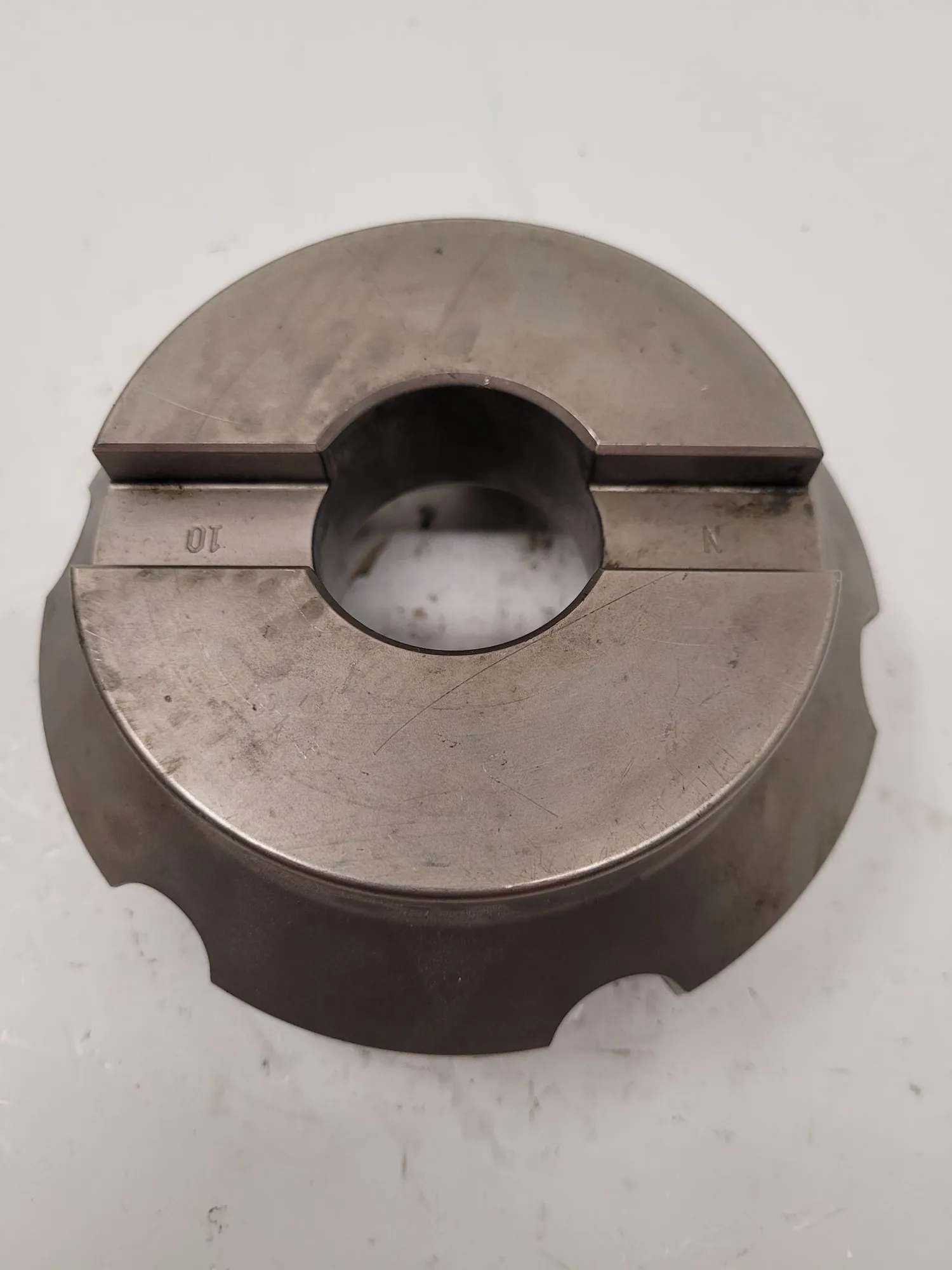

THE INGERSOLL SN6N-04R01 IS A RIGHT-HAND CUTTING FACE MILL CONSTRUCTED WITH A STEEL BODY. IT UTILIZES 6 CUTTING INSERTS AND IS COMPATIBLE WITH AN ARBOR STYLE A CONNECTION. THE CUTTING DIAMETER IS 4″ WITH A MAXIMUM CUTTING DIAMETER OF 4.69″. IT SUPPORTS A MAXIMUM DEPTH OF CUT OF 0.35″ AND HAS A TOOL CUTTING EDGE ANGLE OF 45 DEGREES. APPLICATIONS INCLUDE CHAMFERING, FACING, AND SLANTED SHOULDER & CHAMFER. THE CONNECTION DIAMETER FOR THE MACHINE SIDE IS 1-1/2″, THE OVERALL LENGTH IS 2-3/8″, AND THE HUB DIAMETER MEASURES 2.48″.
