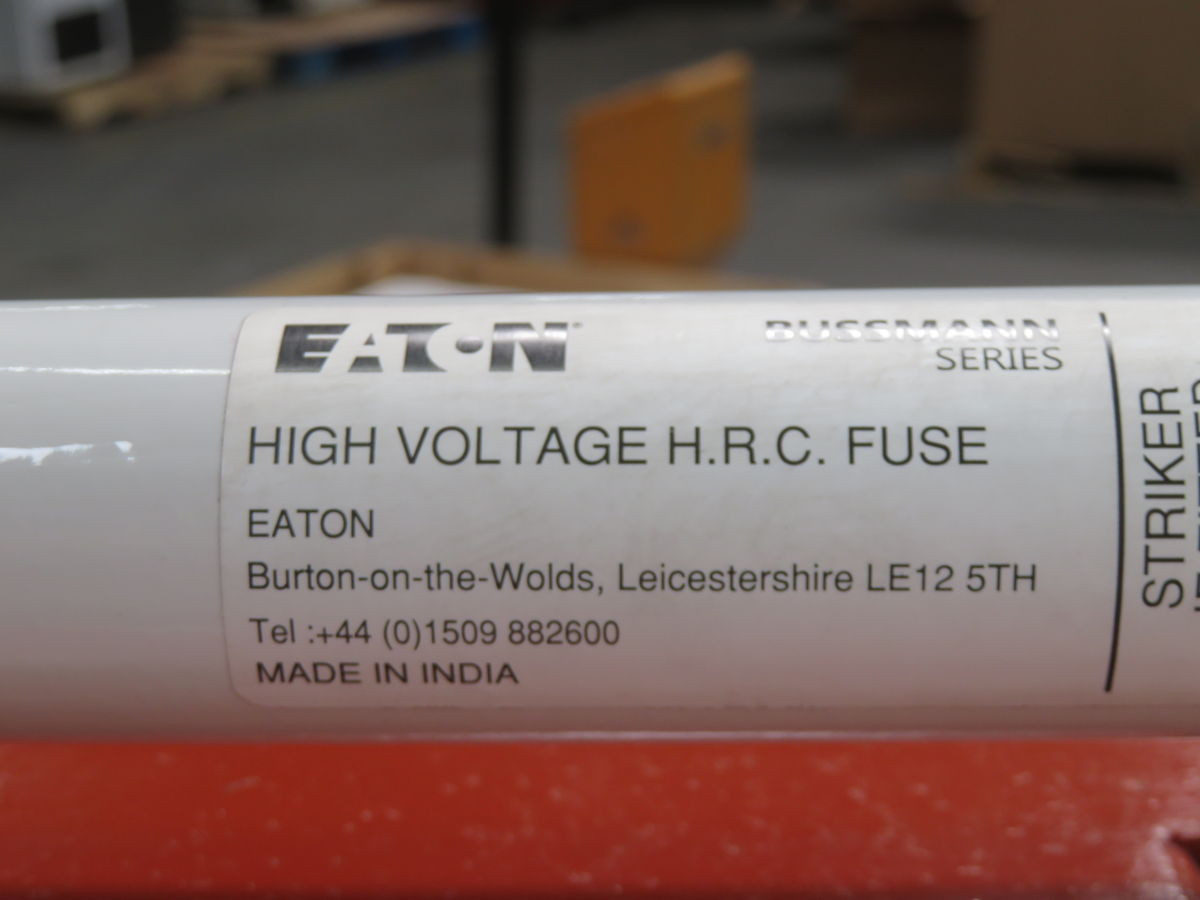

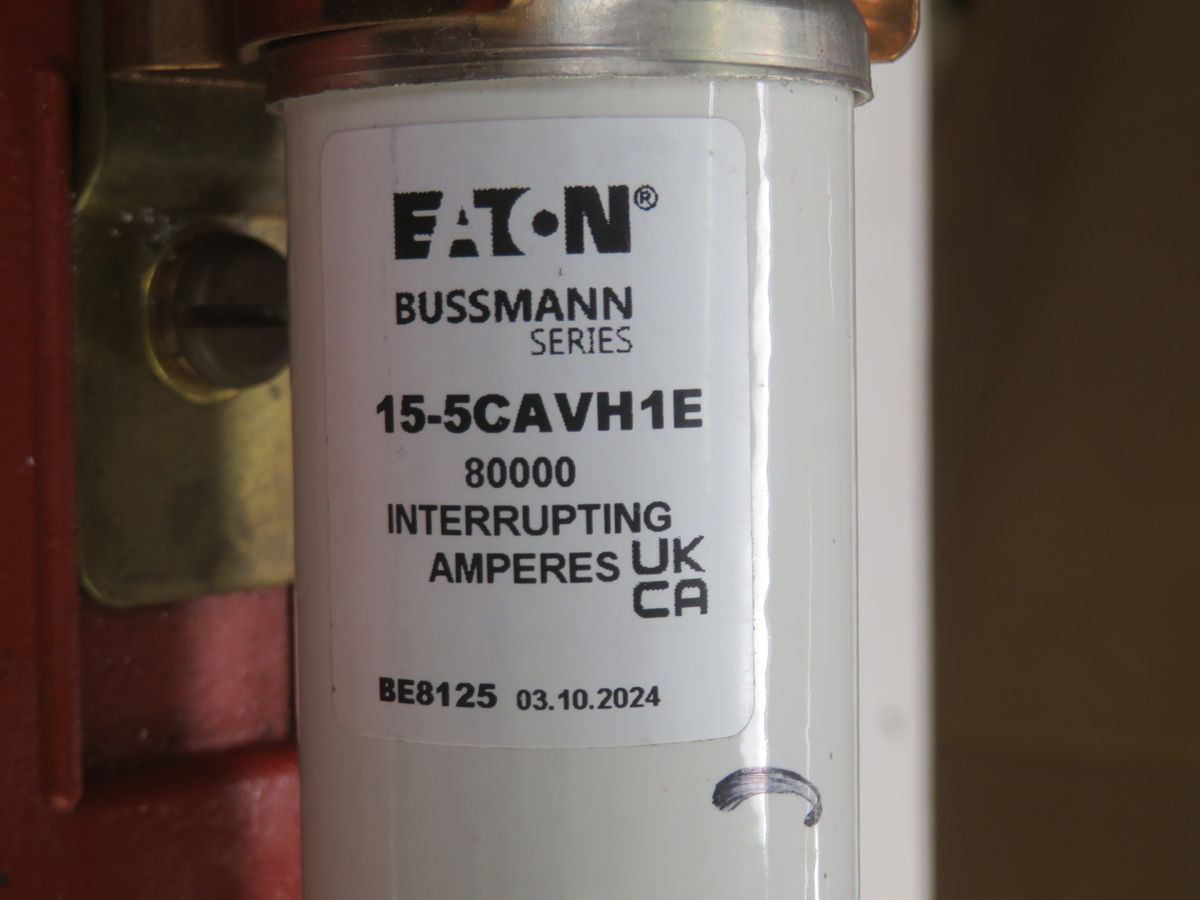

INSTRUMENT TRANSFORMER PTW5-1-110-842F VOLTAGE TRANSFORMER W EATON 15-5CAVH1E FUSE

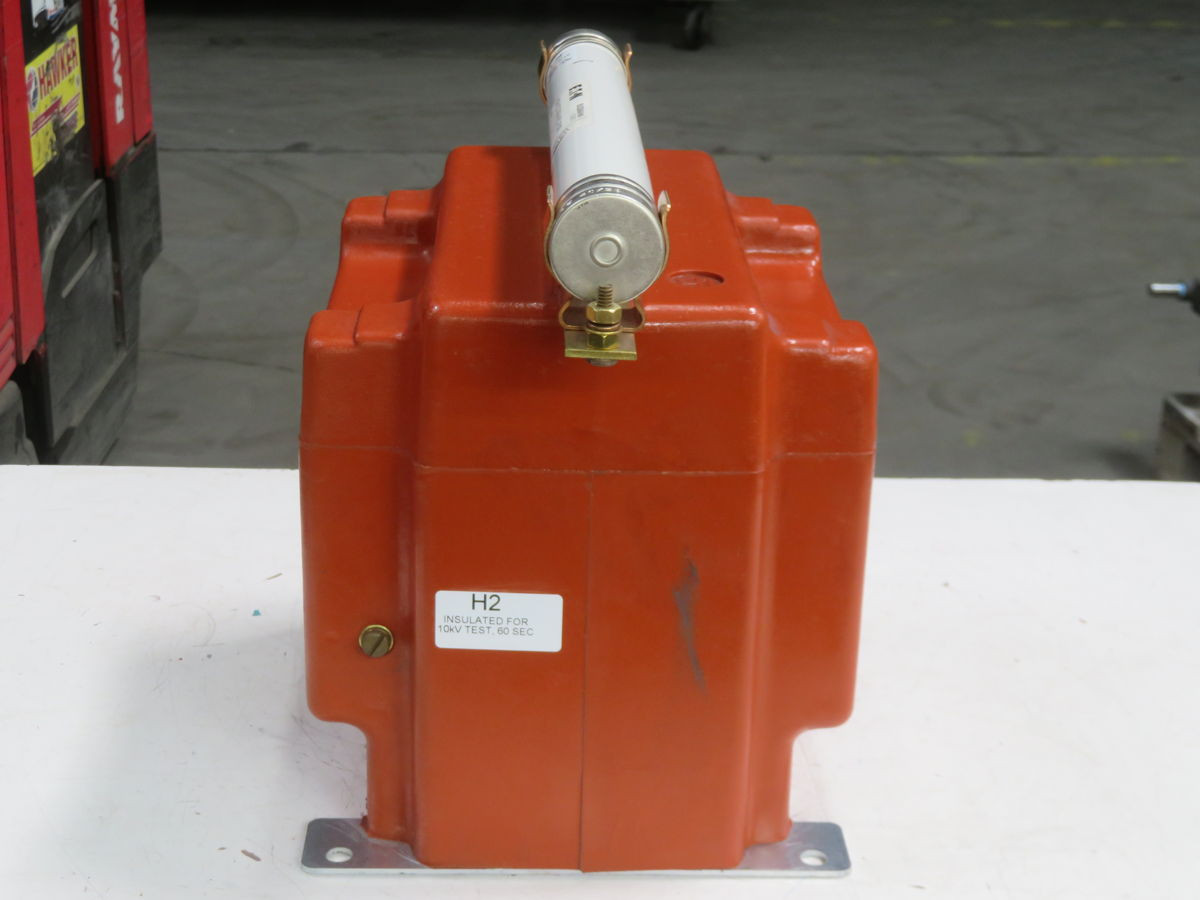

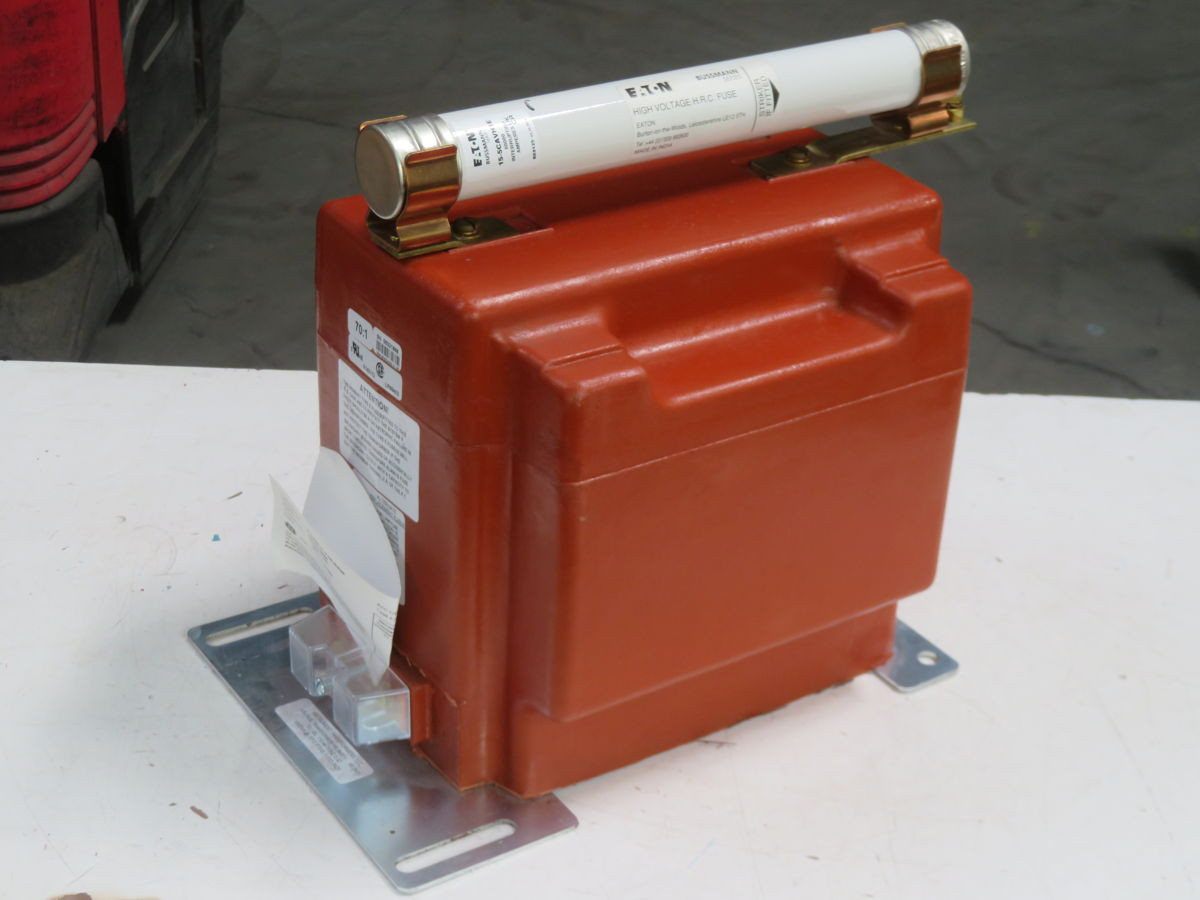

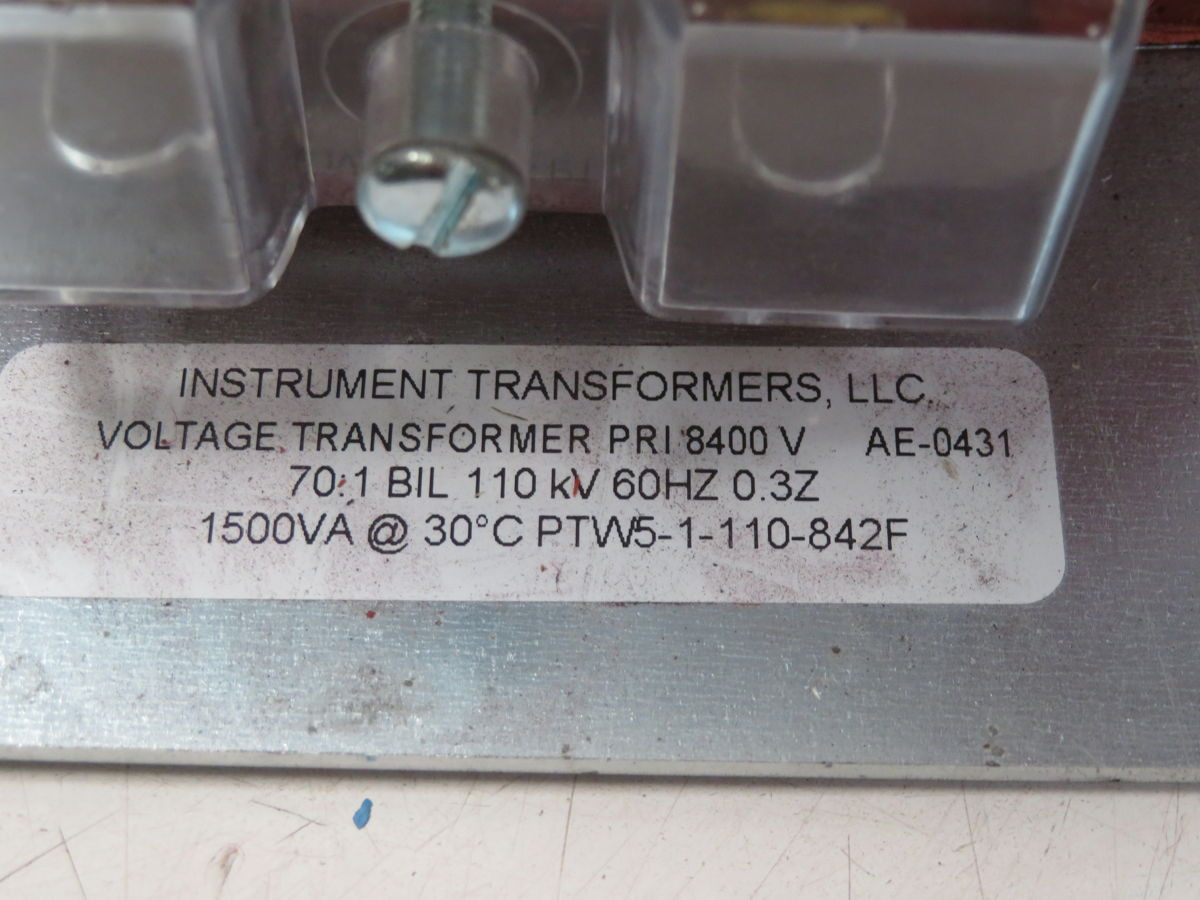

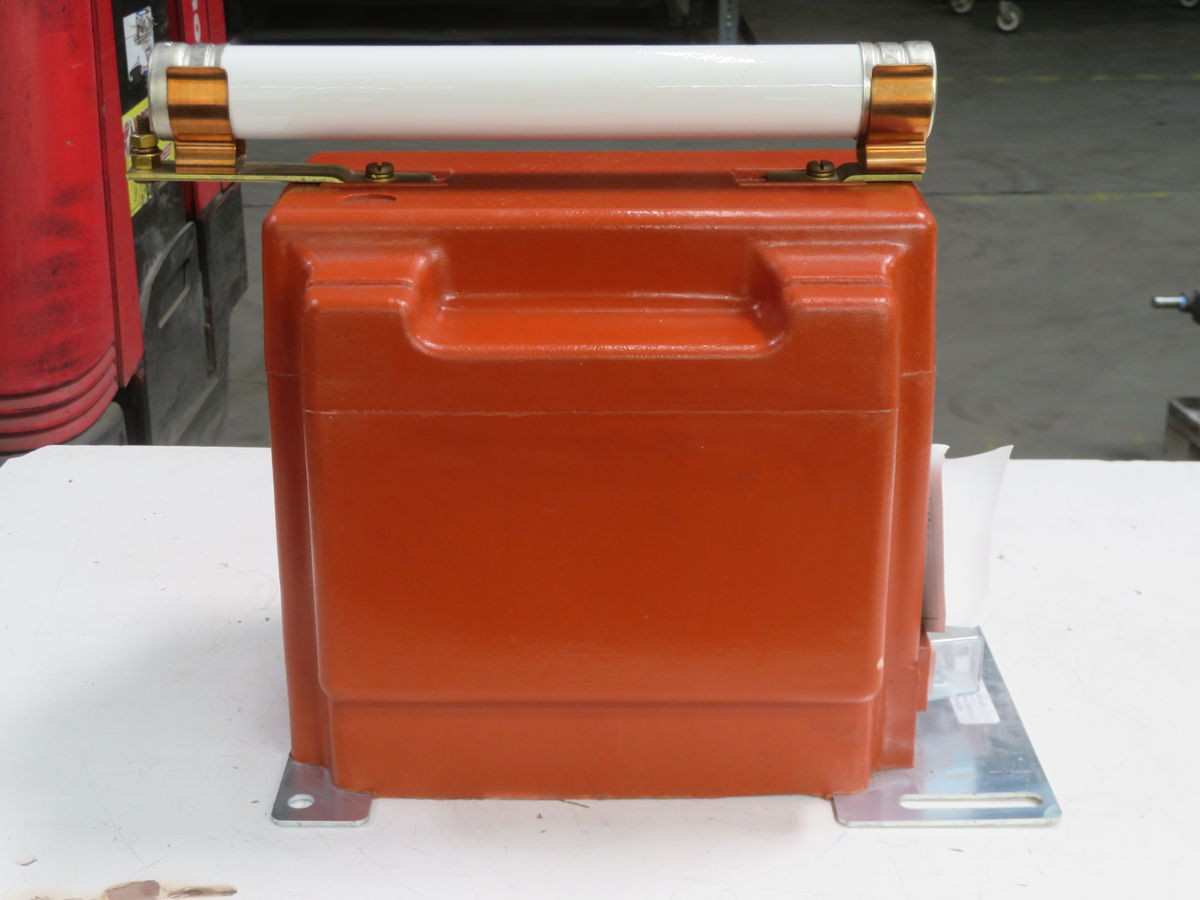

THE INSTRUMENT TRANSFORMER MODEL PTW5-1-110-842F IS AN INDOOR, SINGLE-PHASE, EPOXY-MOLDED VOLTAGE TRANSFORMER DESIGNED FOR METERING AND PROTECTIVE RELAYING APPLICATIONS IN 60 HZ ELECTRICAL SYSTEMS. IT IS RATED FOR A NOMINAL SYSTEM VOLTAGE OF 15.5 KV. THE TRANSFORMER FEATURES A BASIC IMPULSE LEVEL (BIL) OF 110 KV, INDICATING ITS INSULATION COORDINATION FOR MEDIUM VOLTAGE ENVIRONMENTS. THIS UNIT PROVIDES ACCURATE VOLTAGE TRANSFORMATION NECESSARY FOR INSTRUMENTATION AND CONTROL FUNCTIONS WITHIN ELECTRICAL DISTRIBUTION INFRASTRUCTURE.
