INSTRUMENT TRANSFORMERS PT3-2-45-122 TRANSFORMER

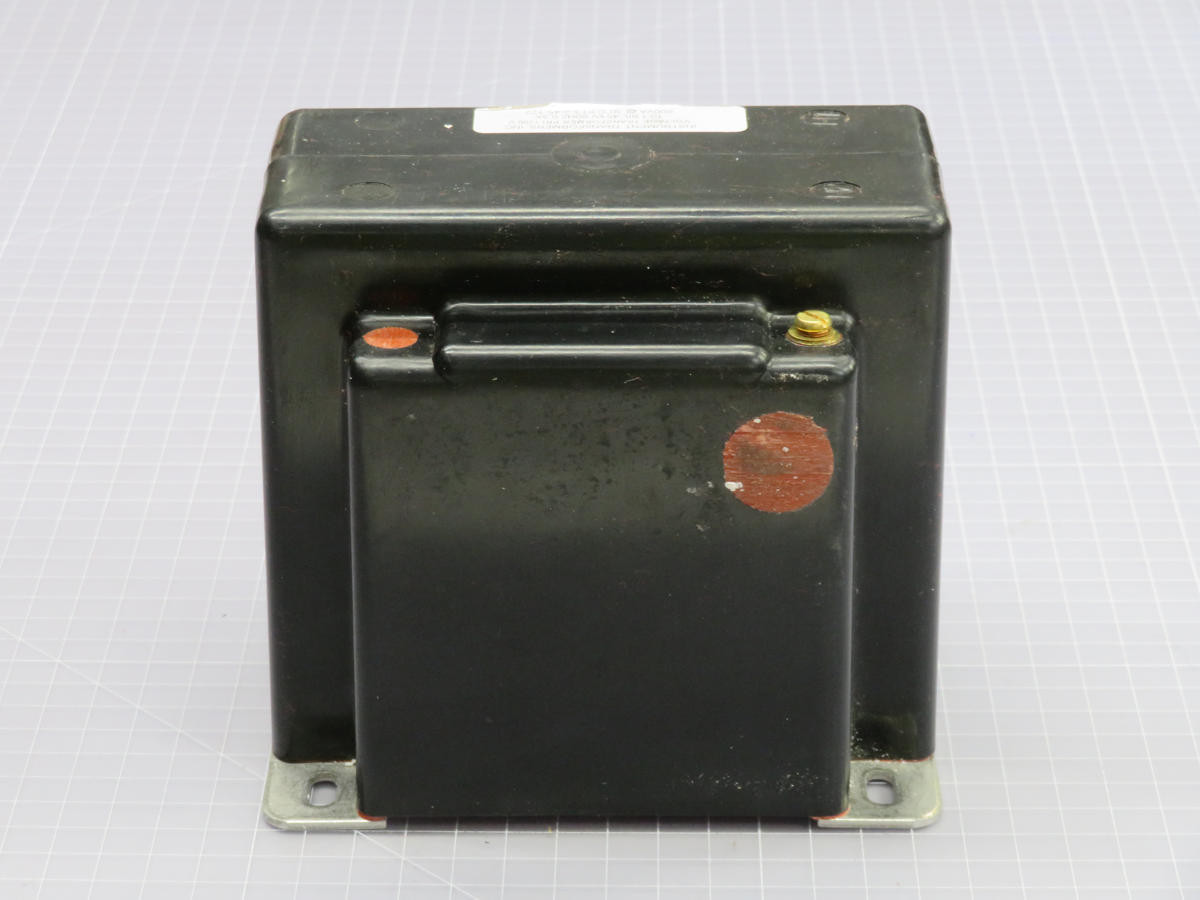

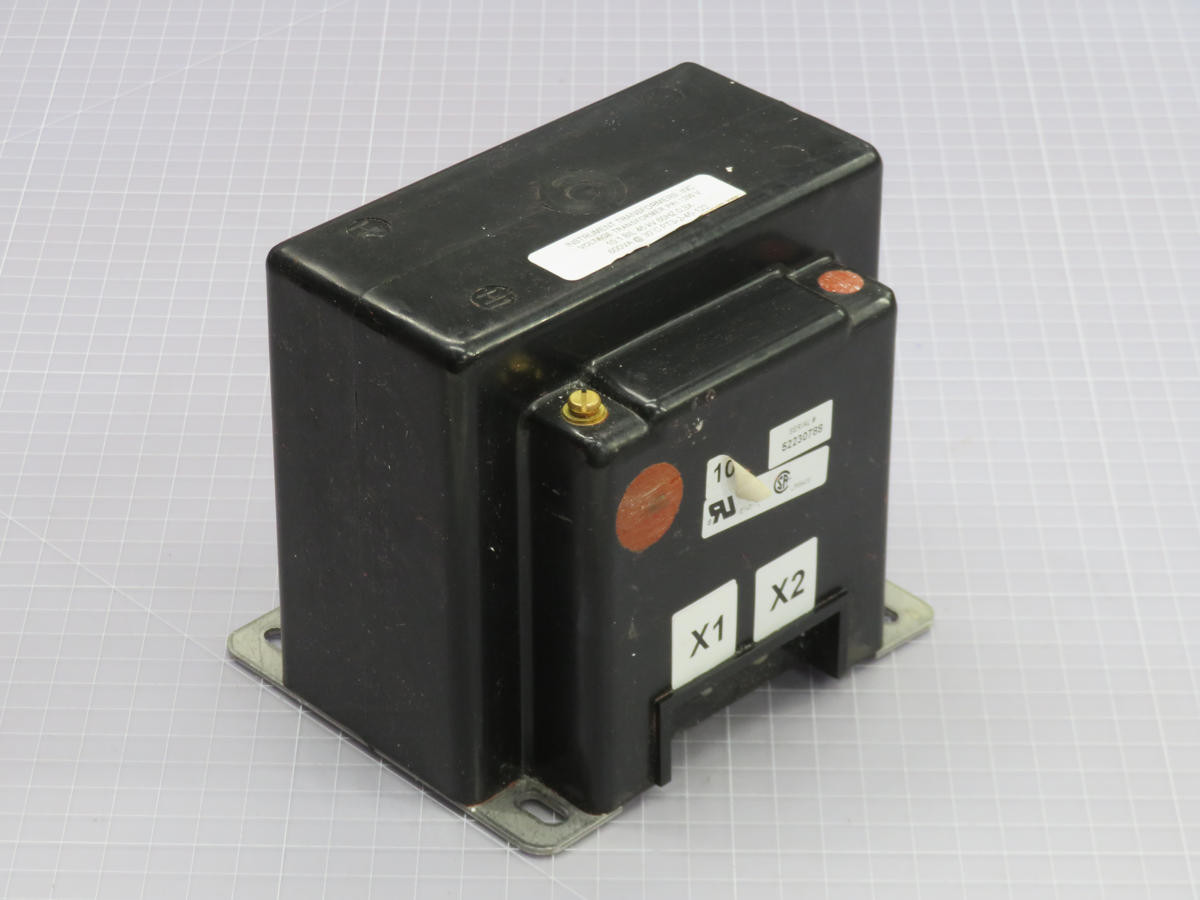

THE INSTRUMENT TRANSFORMERS MODEL PT3-2-45-122 IS A SINGLE-PHASE OUTDOOR POTENTIAL TRANSFORMER, MANUFACTURED BY INSTRUMENT TRANSFORMERS INC. THIS UNIT IS DESIGNED FOR METERING AND RELAYING APPLICATIONS, FEATURING A NOMINAL PRIMARY VOLTAGE RATING OF 45 KV. IT OPERATES AT A FREQUENCY OF 50/60 HZ. CONSISTENT WITH ITS 45 KV CLASS WITHIN THE PT3 SERIES, THE TRANSFORMER IS CONSTRUCTED WITH A BASIC IMPULSE INSULATION LEVEL (BIL) OF 250 KV. THE STANDARD SECONDARY WINDING PROVIDES AN OUTPUT VOLTAGE OF 120 V.
