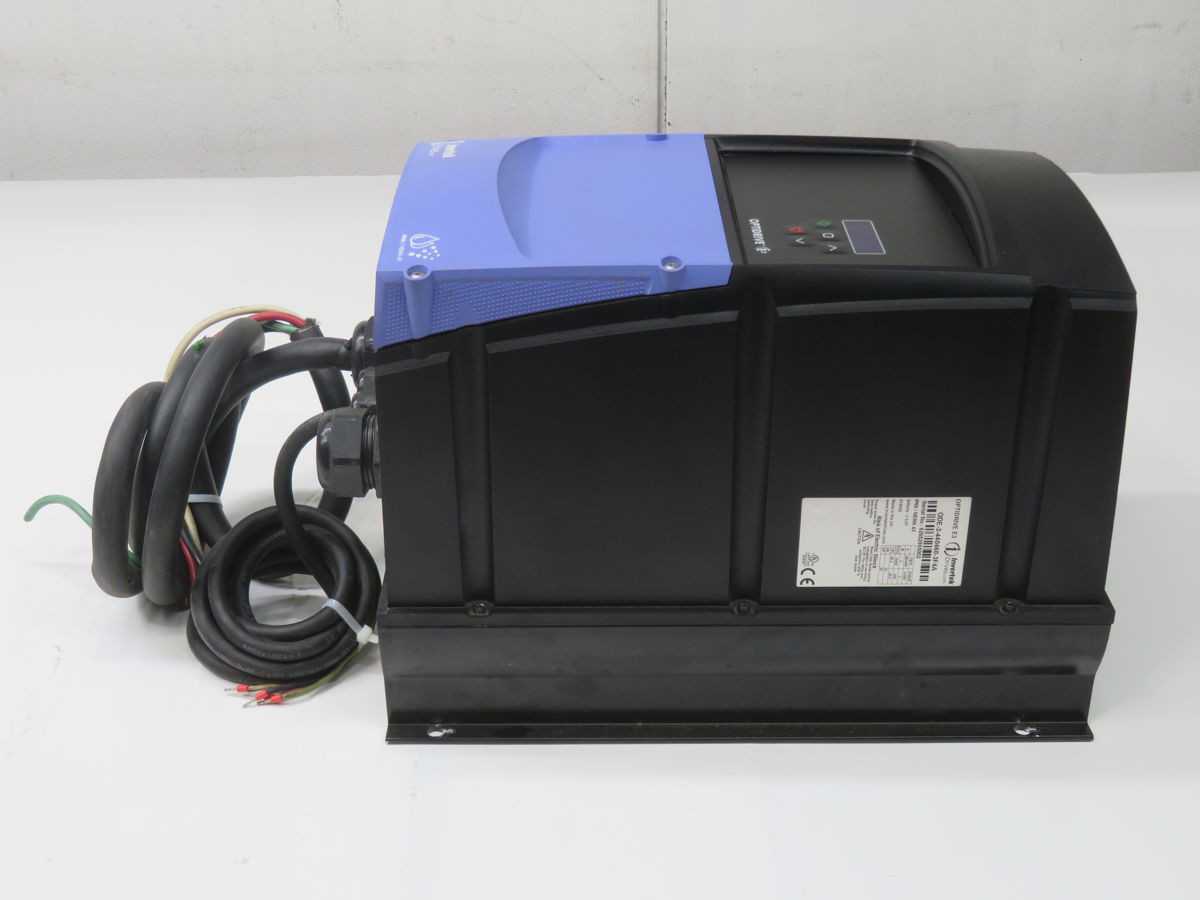

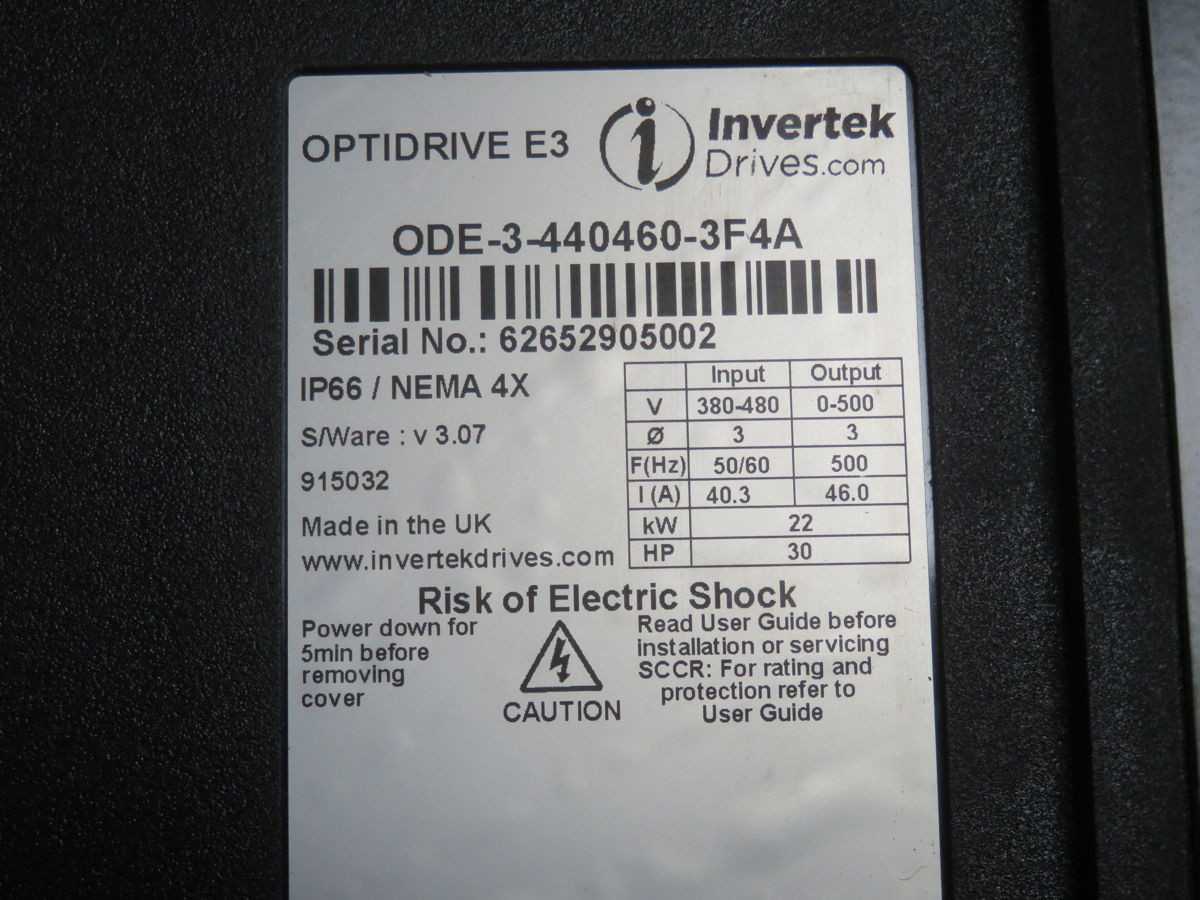

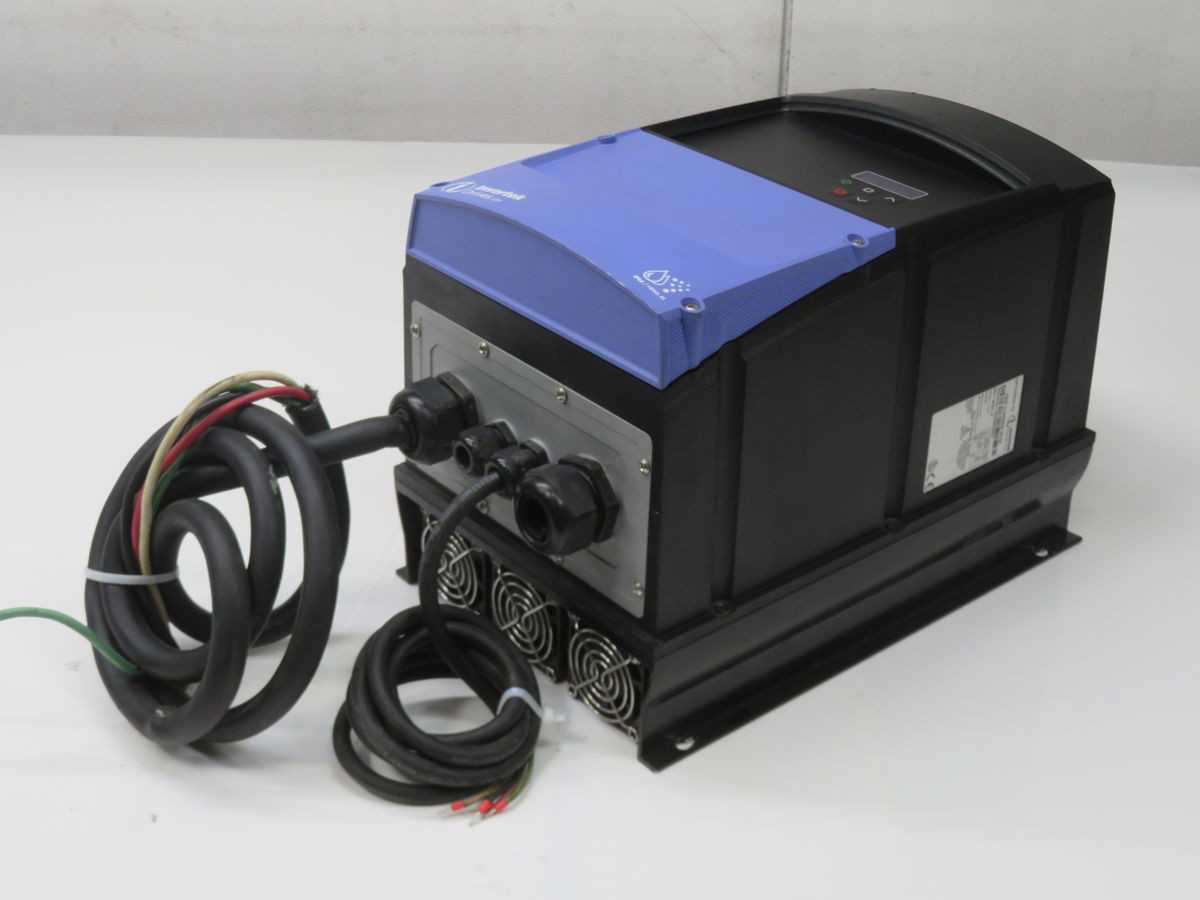

Invertek ODE-3-440460-3F4A VFD, 22 kW Power, 380-480V in, 46A Out, 0-500 Hz Freq, IP66

THE INVERTEK OPTIDRIVE E3, MODEL ODE-3-440460-3F4A, IS A GENERAL-PURPOSE VARIABLE-FREQUENCY DRIVE. IT FEATURES A 22 KW (30 HP) POWER RATING AND OPERATES WITH A 3-PHASE INPUT VOLTAGE OF 380–480V, PROVIDING A 3-PHASE OUTPUT UP TO 460V. THE UNIT DELIVERS A MAXIMUM OUTPUT CURRENT OF 46 A ACROSS AN OUTPUT FREQUENCY RANGE OF 0-500 HZ. ENCLOSED IN AN IP66/NEMA 4X RATED HOUSING, IT INCORPORATES SENSORLESS VECTOR CONTROL FOR AC INDUCTION, PERMANENT MAGNET, AND BLDC MOTORS. TECHNICAL FEATURES INCLUDE INTEGRATED EMC FILTERS, A BUILT-IN BRAKE CHOPPER, AND 14-PARAMETER COMMISSIONING. COMMUNICATION VIA MODBUS RTU IS SUPPORTED, WITH TYPICAL I/O COMPRISING TWO ANALOG INPUTS, FOUR DIGITAL INPUTS, ONE ANALOG OUTPUT, AND ONE RELAY OUTPUT.
