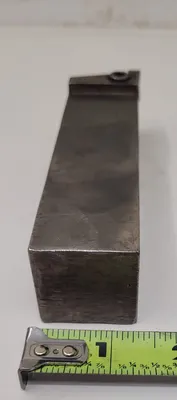

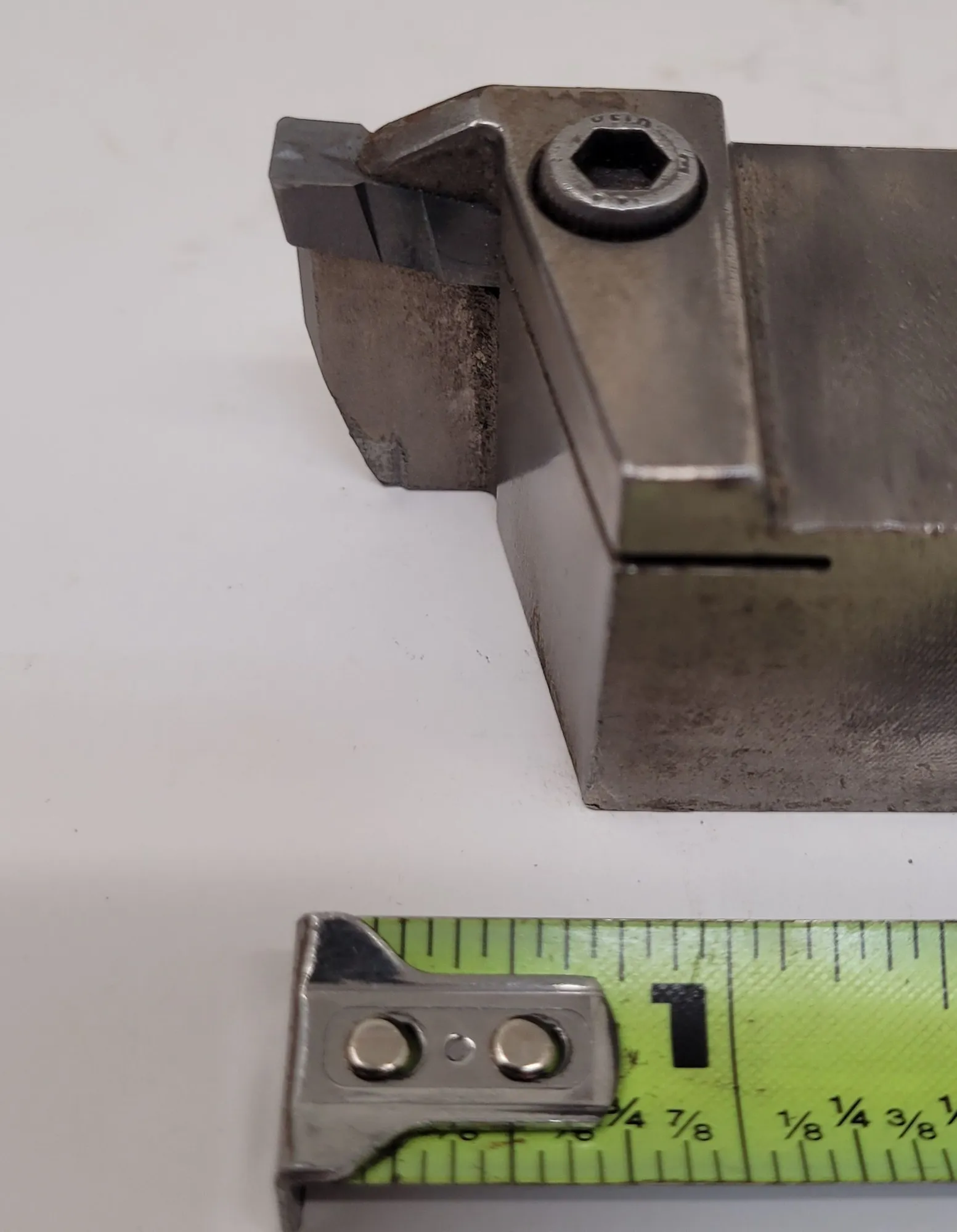

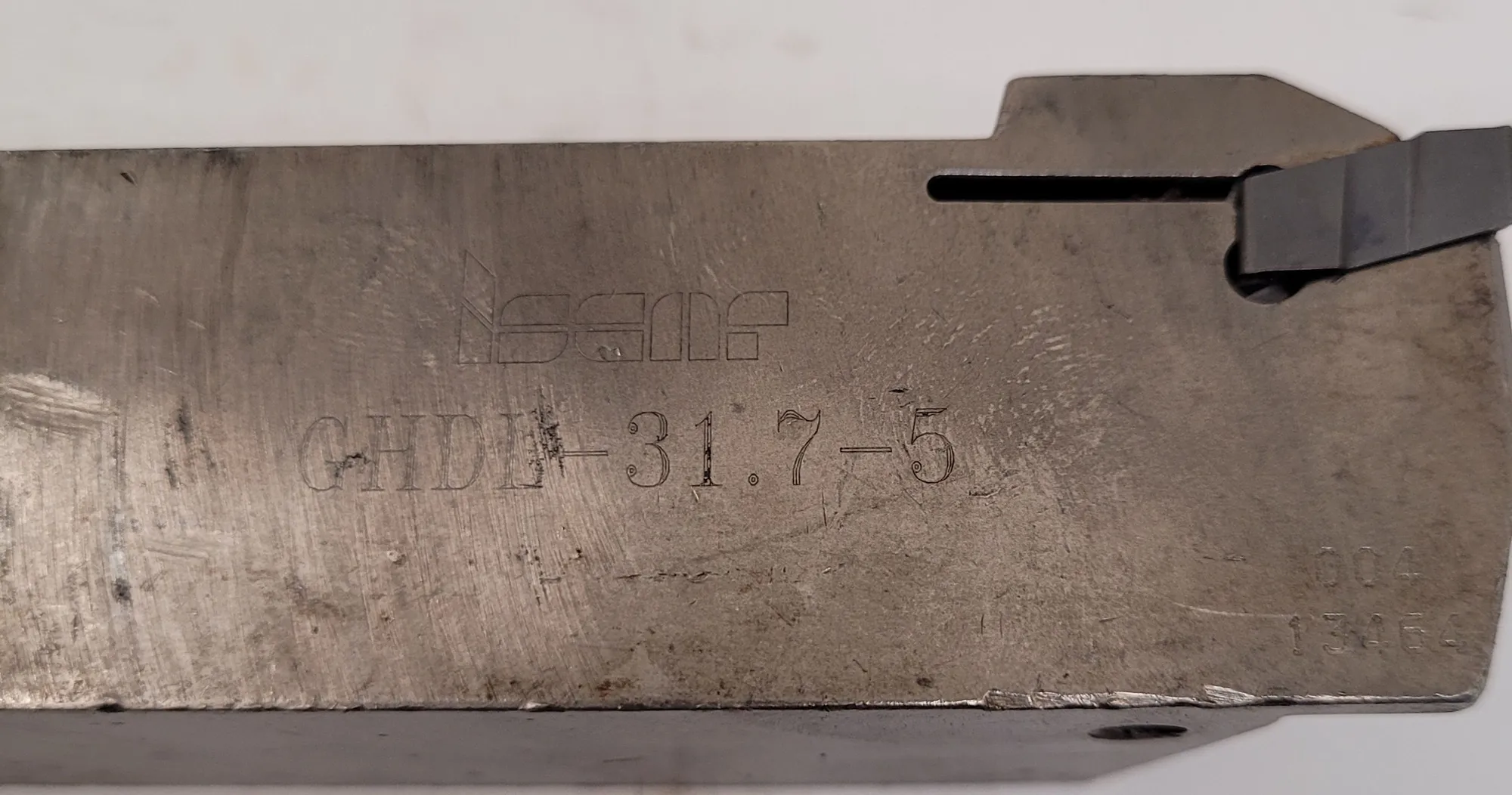

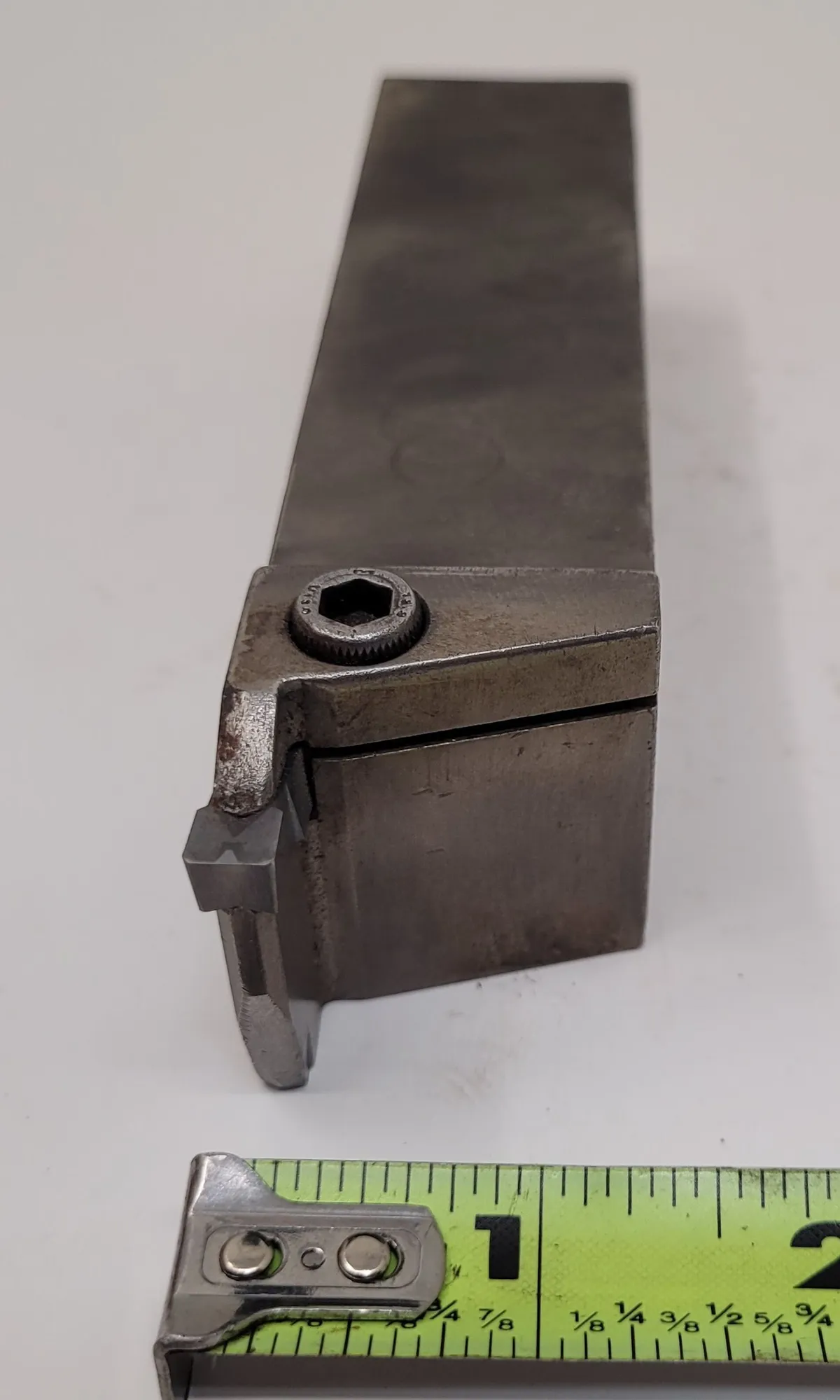

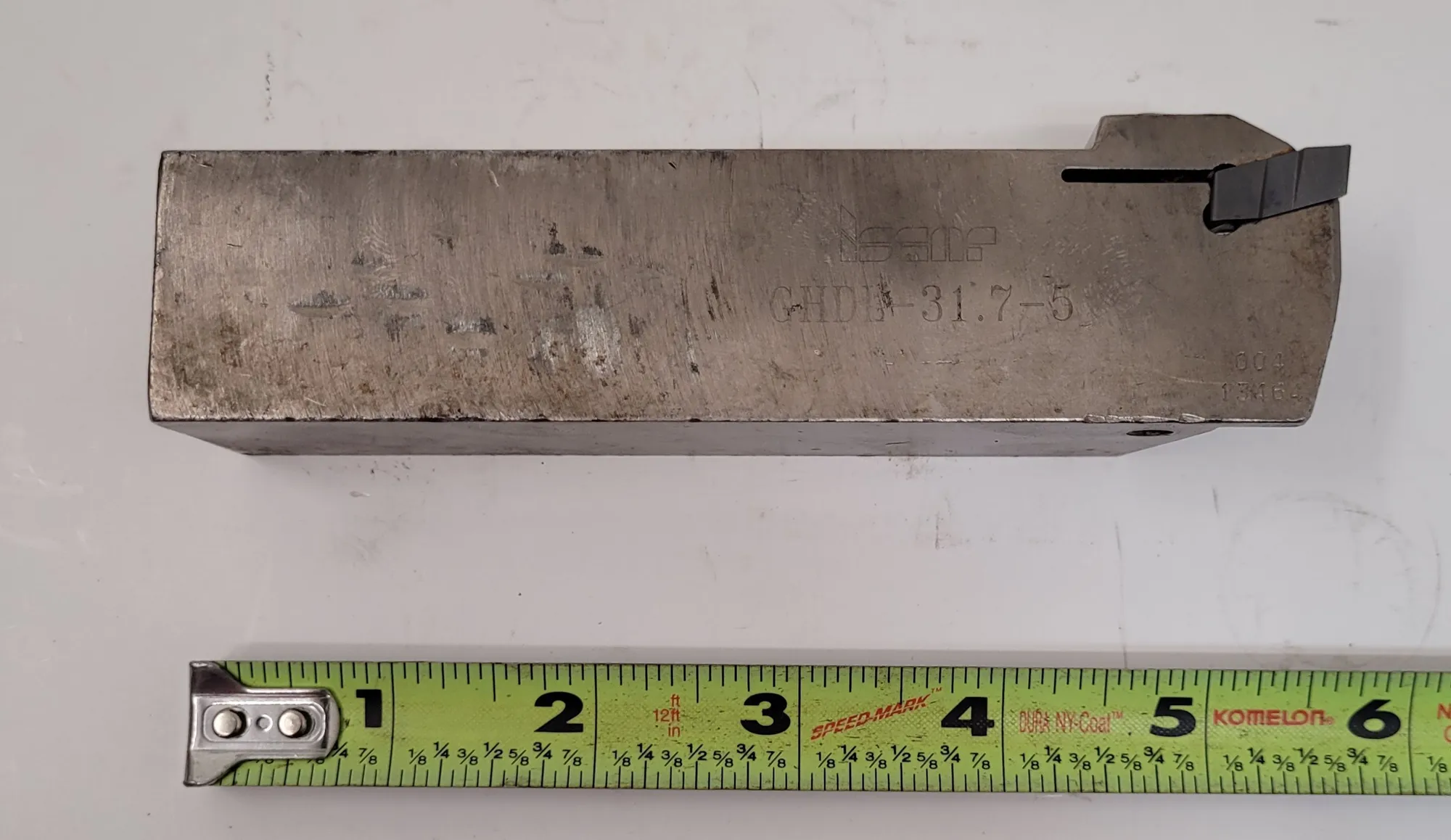

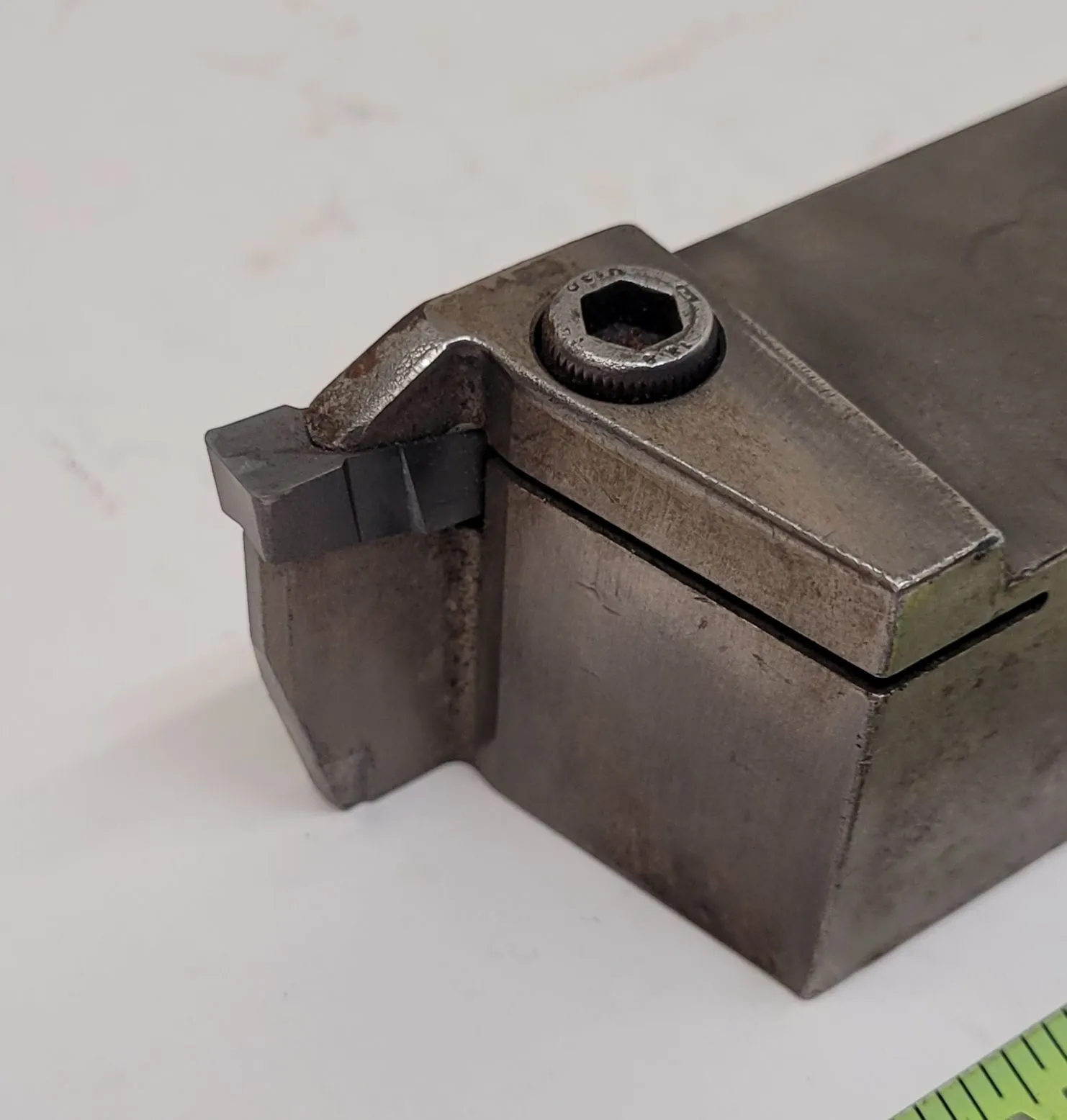

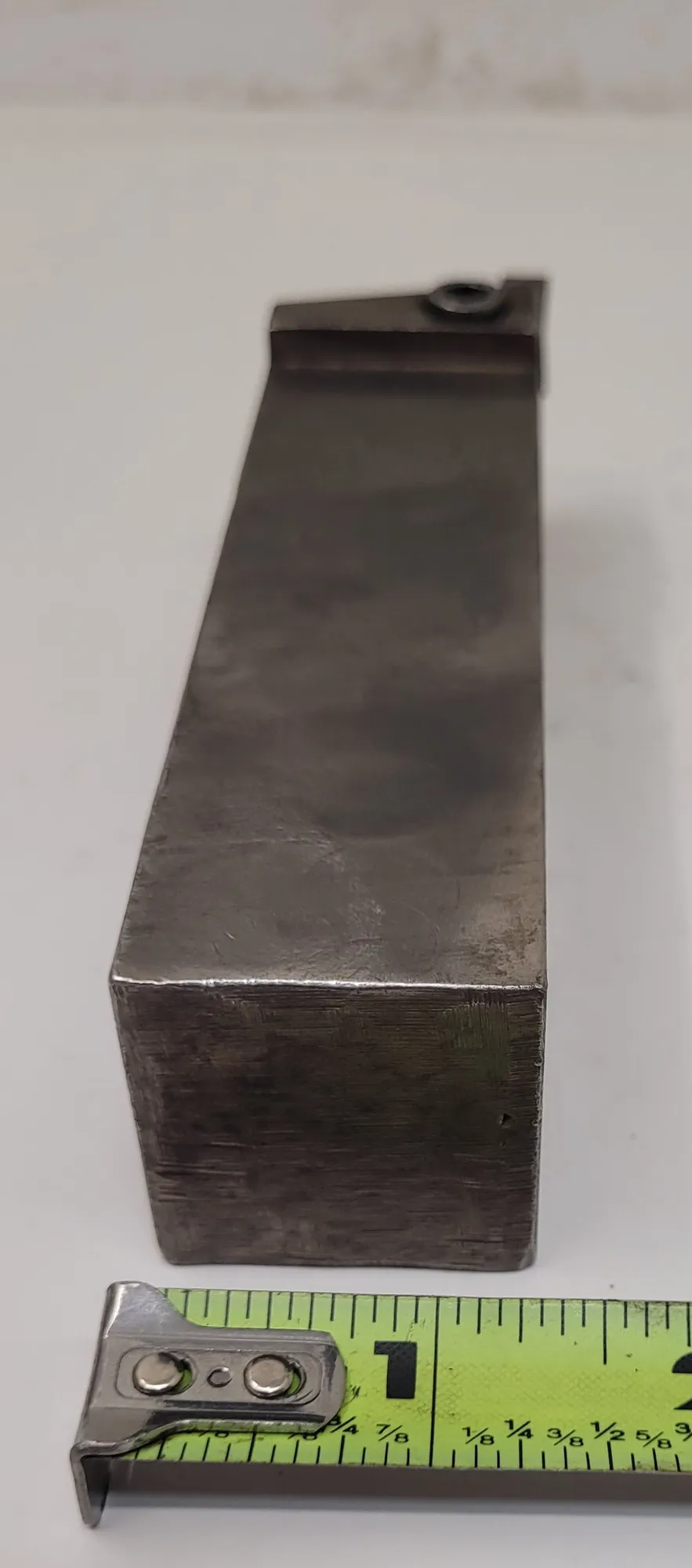

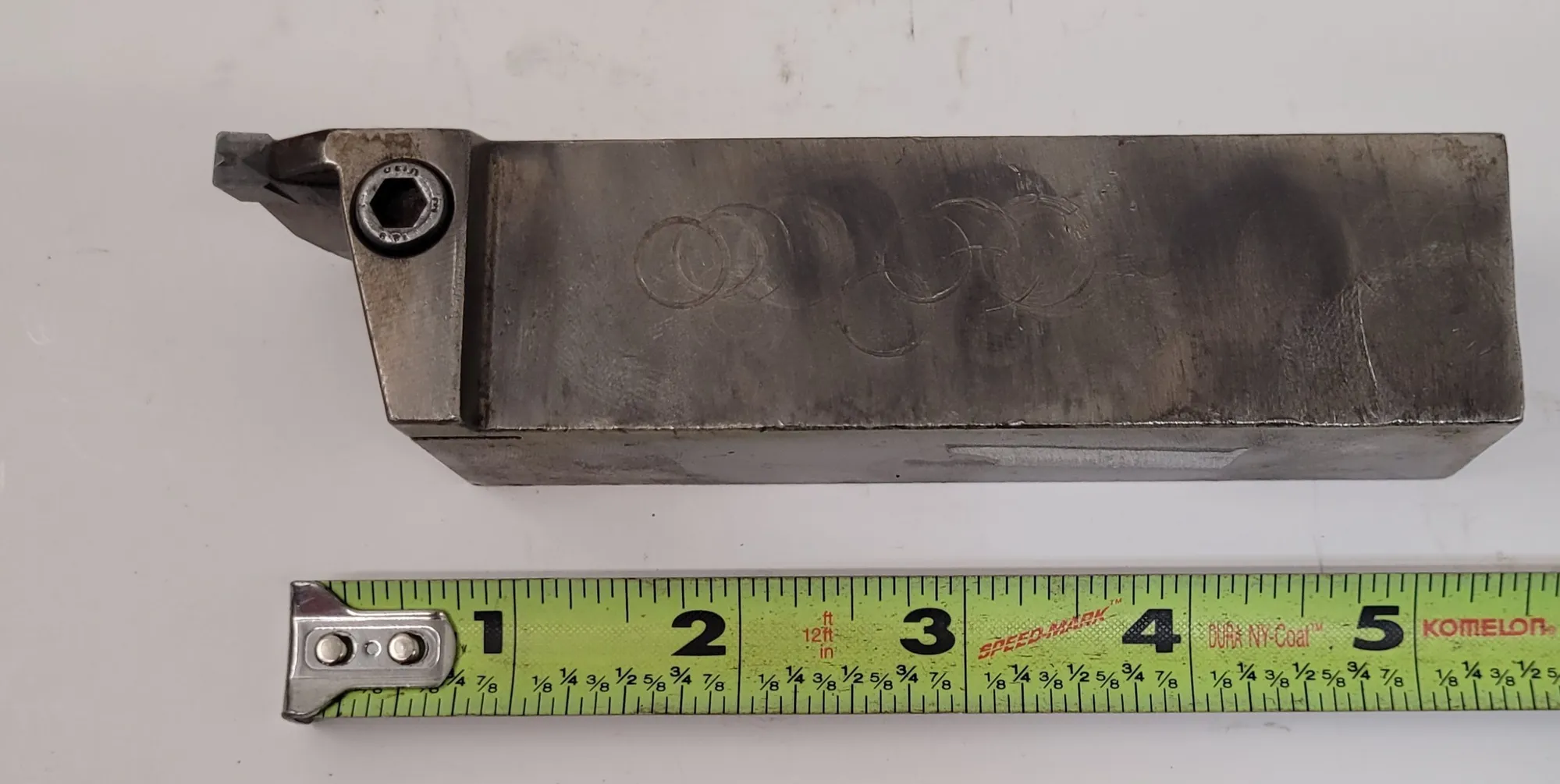

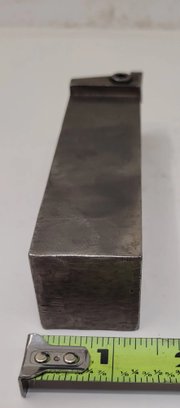

ISCAR GHDL-31.7-5 Groove/Turn Indexable Holder

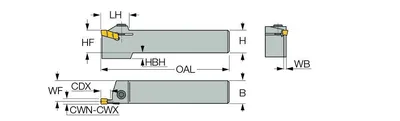

The Iscar GHDL-31.7-5 is a turn-groove indexable holder with an overall length (OAL) of 7″. It features a cutting width minimum (CWN) of 0.2″ and a cutting width maximum (CWX) of 0.252″. The maximum cutting depth (CDX) is 1/2″. This tool has a shank height (H) of 1.3″ and a shank width (B) of 1-1/4″. The functional width (WF) is 1.17″, and the head length (LH) is 1.2″. The coolant supply property is external. The tool is suitable for applications including external grooving, external grooving & turning, external profiling, parting, pulley v grooving, and external threading, categorized as a groove turn T application.
