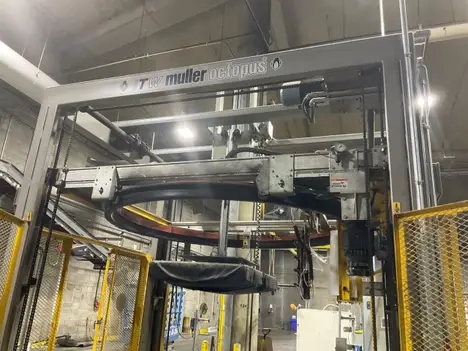

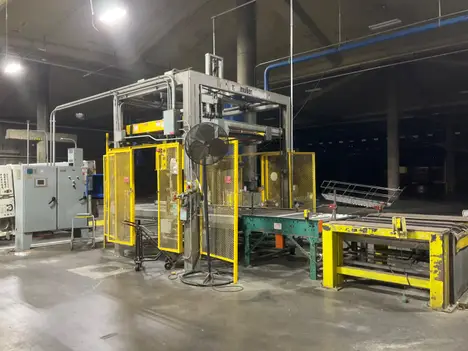

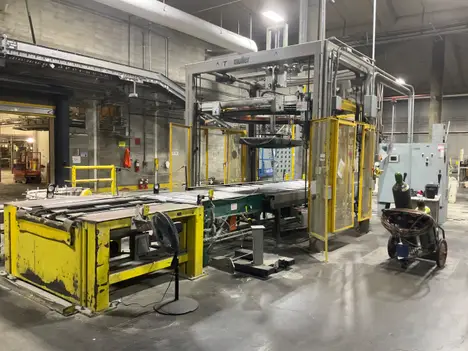

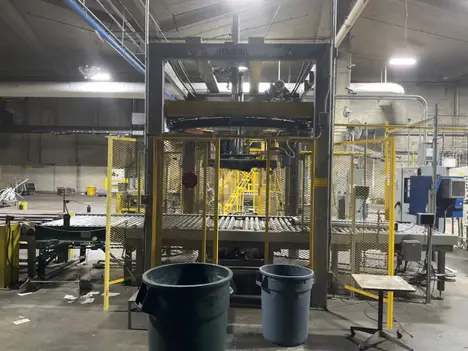

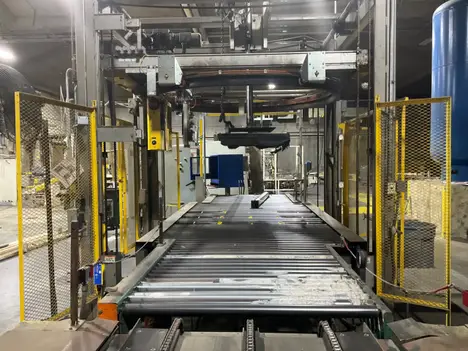

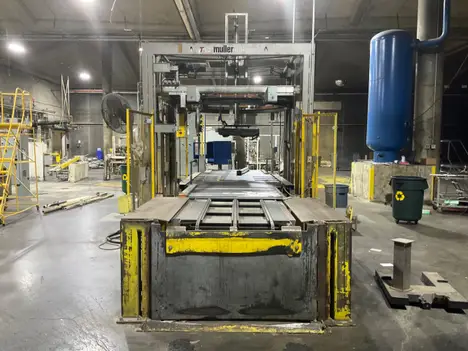

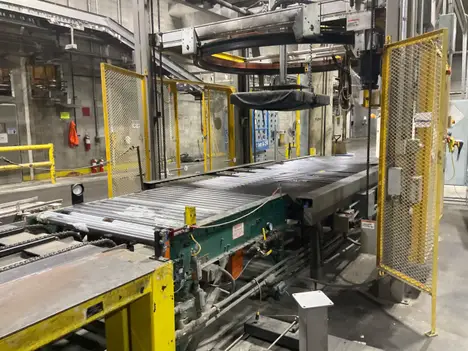

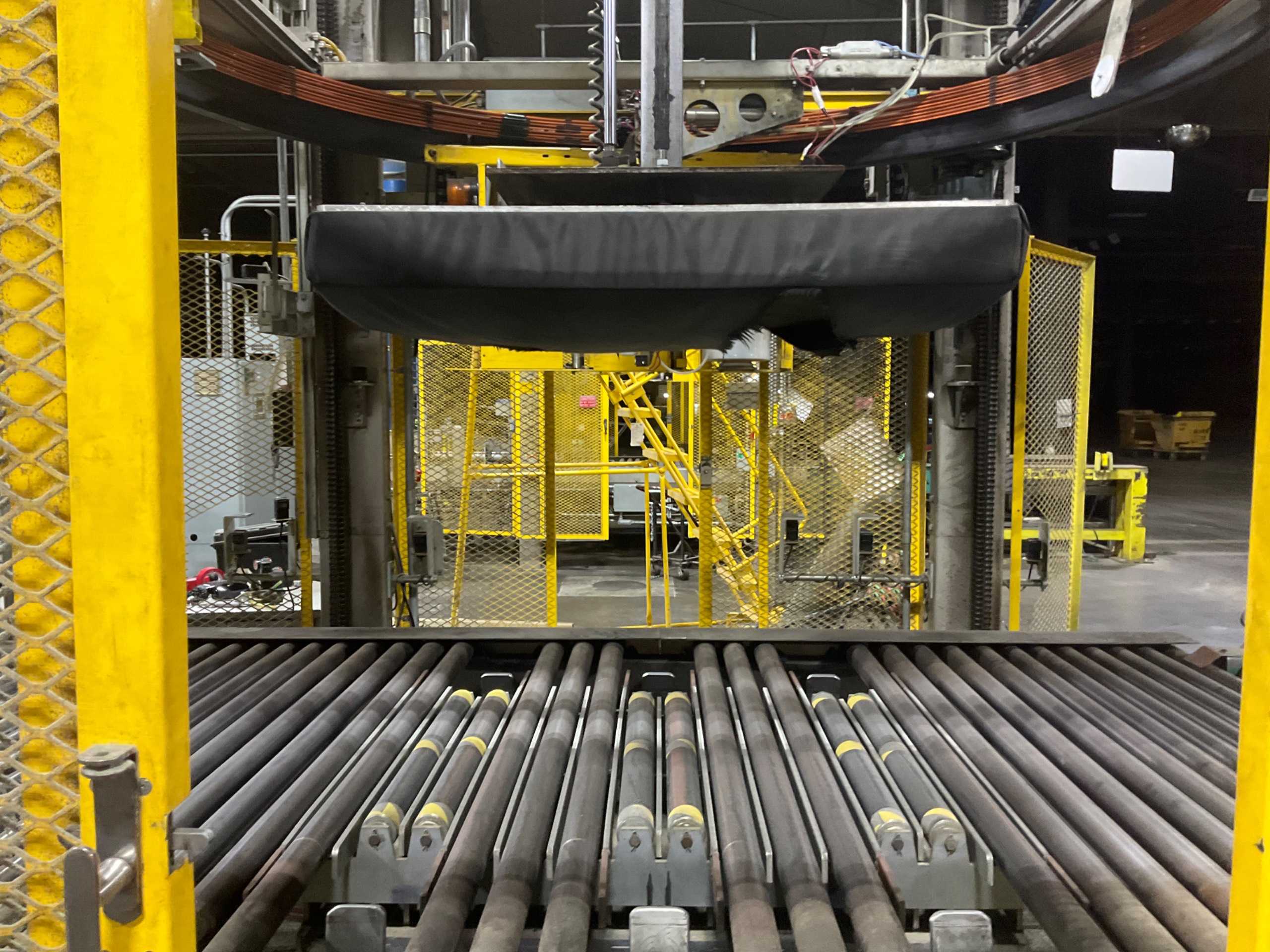

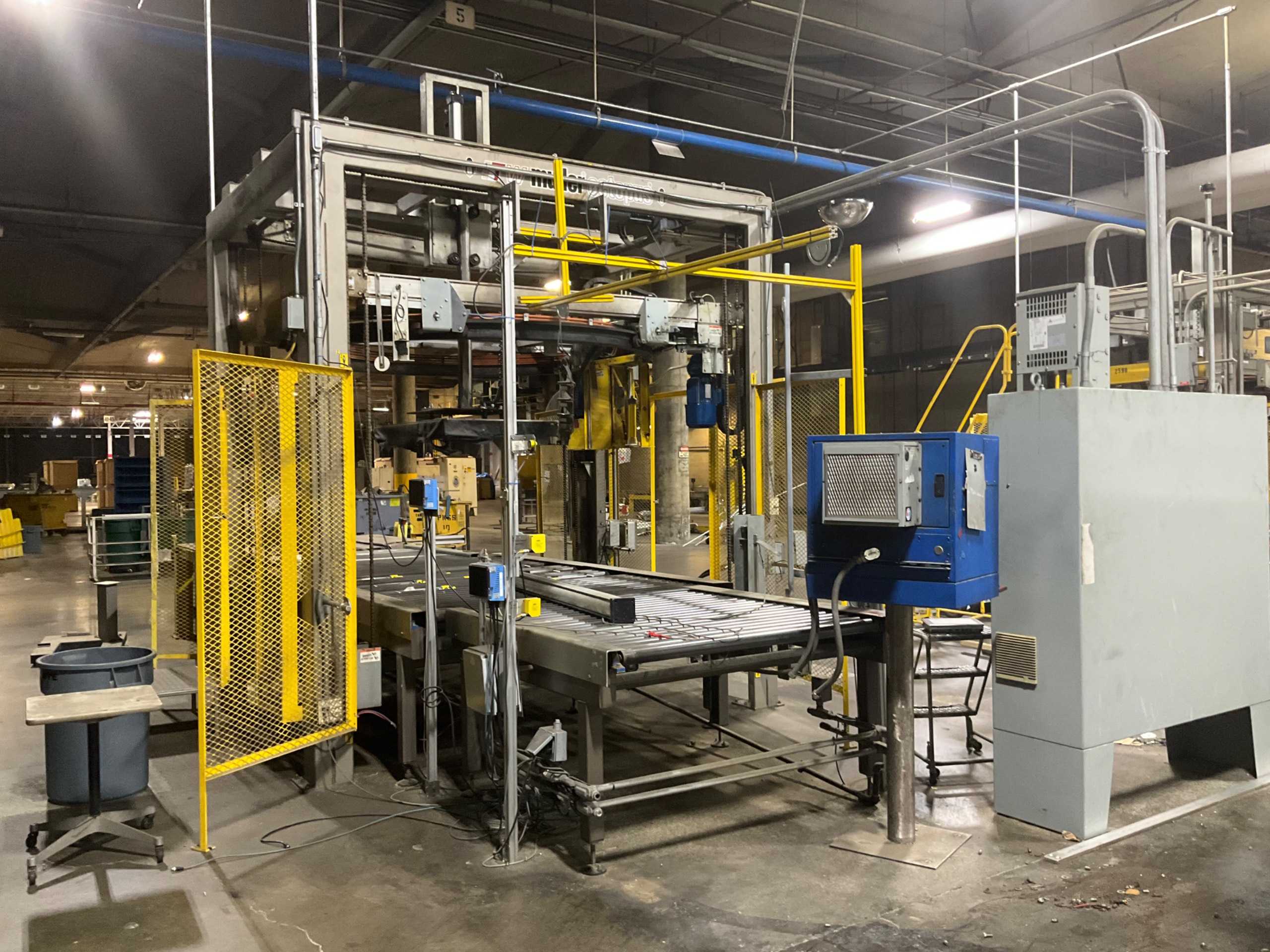

ITW MULLER 606 BFT OCTOPUS STRETCH WRAPPING MACHINE

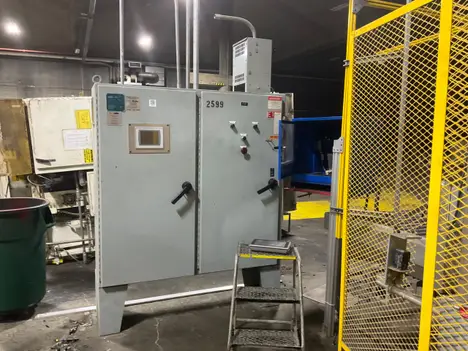

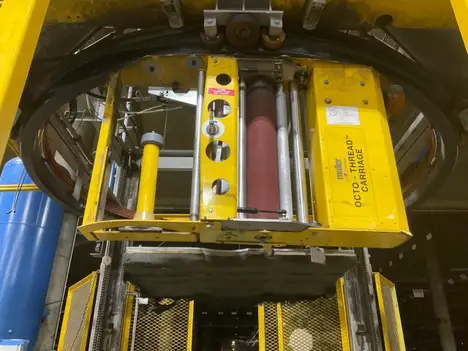

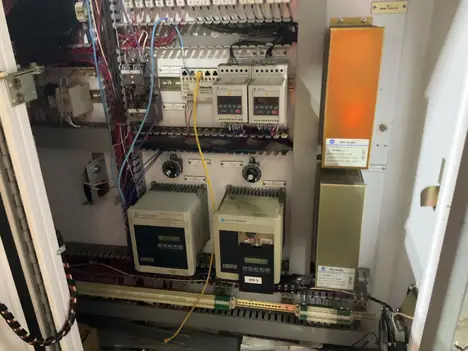

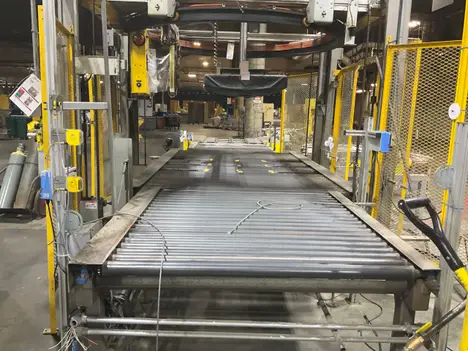

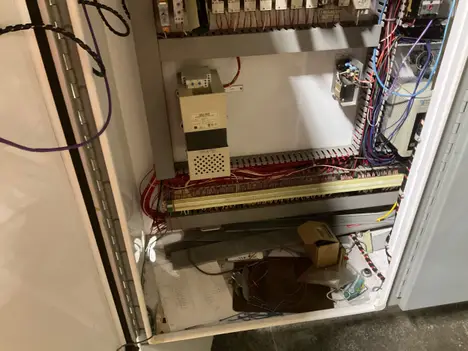

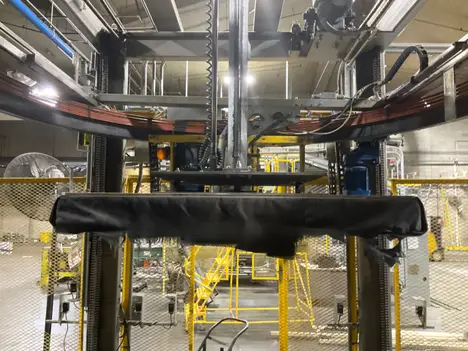

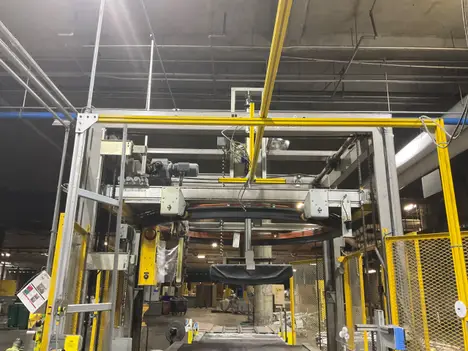

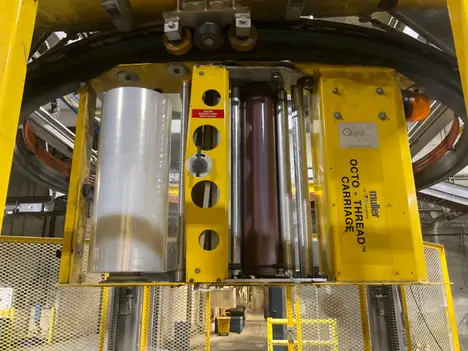

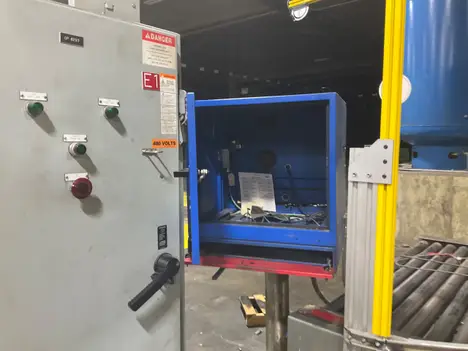

PERFORMANCE: MAXIMUM LOAD SIZE: 48" W X 50" L X 80" H (69" DIAMETER) MINIMUM LOAD SIZE: 36" X 36" X 28" H (FILM CLAMP JUSTIFIED) MAXIMUM LOAD WEIGHT: 4,800 LBS (WITH ITW MULLER CONVEYOR) WRAP SPEED: UP TO 100 LOADS PER HOUR FILM DELIVERY SYSTEM: FILM CAPACITY: 20" ROLL WIDTH X 10" DIAMETER PRE-STRETCH TYPE: STRAIN GAUGE PRE-STRETCH LEVEL: 75% TO 300% (ADJUSTABLE) FORCE CONTROL: VARIABLE FILM THREADING: OCTO-THREAD DESIGN; "W" FILM THREADING PATTERN CUT AND SEAL: CONTROLLED IMPULSE CUTTER AND HEAT SEALER CONTROLS: CONTROLLER: ALLEN-BRADLEY PLC OPERATOR INTERFACE: ALLEN-BRADLEY PANELVIEW LOAD HEIGHT SENSOR: PHOTO EYE WRAP SETTINGS: RE-WRAP FUNCTION, OVERWRAP AND OVERLAP ADJUSTMENTS WRAP COUNTERS: INDEPENDENT TOP AND BOTTOM EMERGENCY STOP: MUSHROOM HEAD ELECTRICAL DISCONNECT: LOCKABLE ELECTRICAL ENCLOSURE: CSA APPROVED POWER REQUIREMENTS: VOLTAGE: 480 VAC, 3-PHASE, 30 AMPS PNEUMATIC: 80 PSI, 3 CFM (CLEAN, DRY AIR) RING LIFT AND ROTATION: LIFT METHOD: CHAIN LIFT MOTOR: 480 VAC - SEW EURODRIVE LIFT CONTROL: VARIABLE FREQUENCY DRIVE ROTATION METHOD: BELT DRIVE ROTATION MOTOR: 480 VAC - SEW EURODRIVE ROTATION CONTROL: VARIABLE FREQUENCY DRIVE STRUCTURE: CONSTRUCTION: HEAVY-DUTY, WELDED
