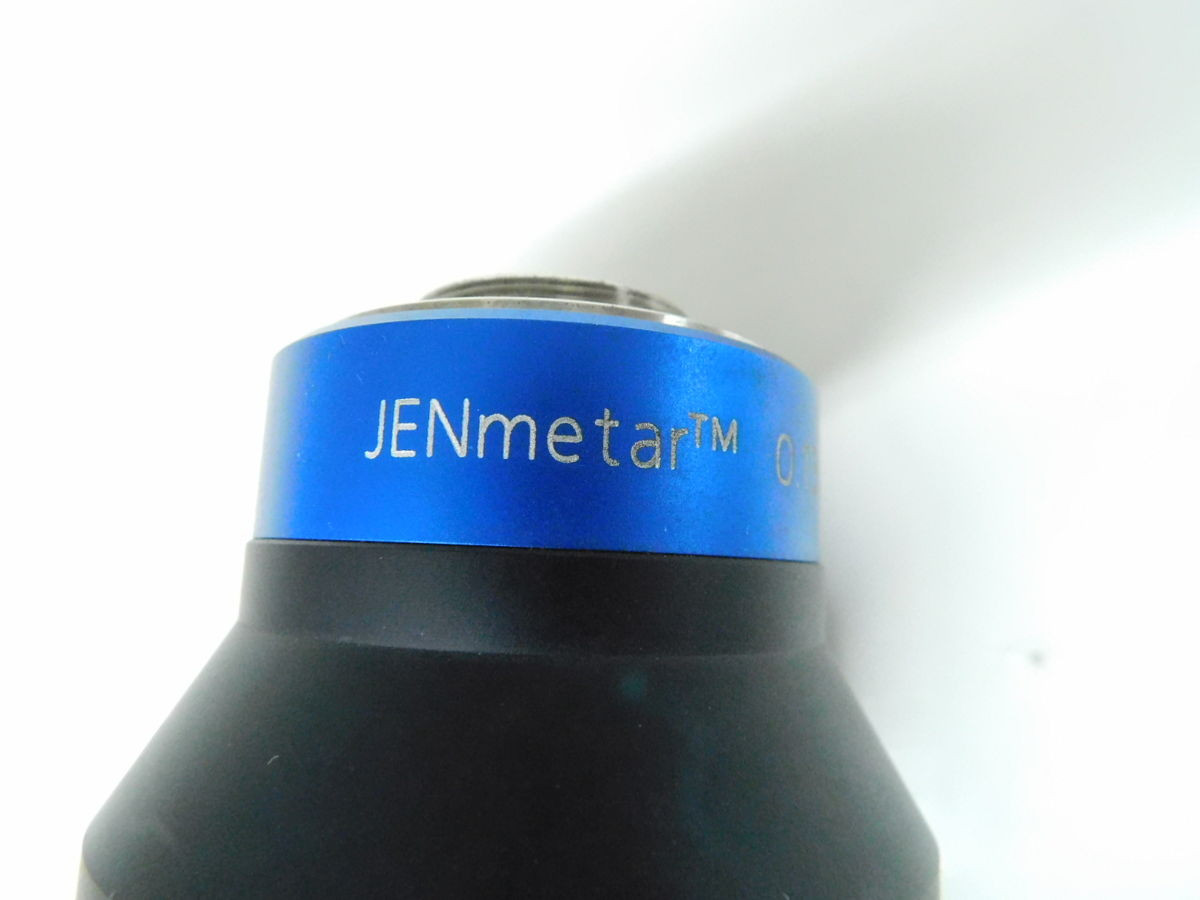

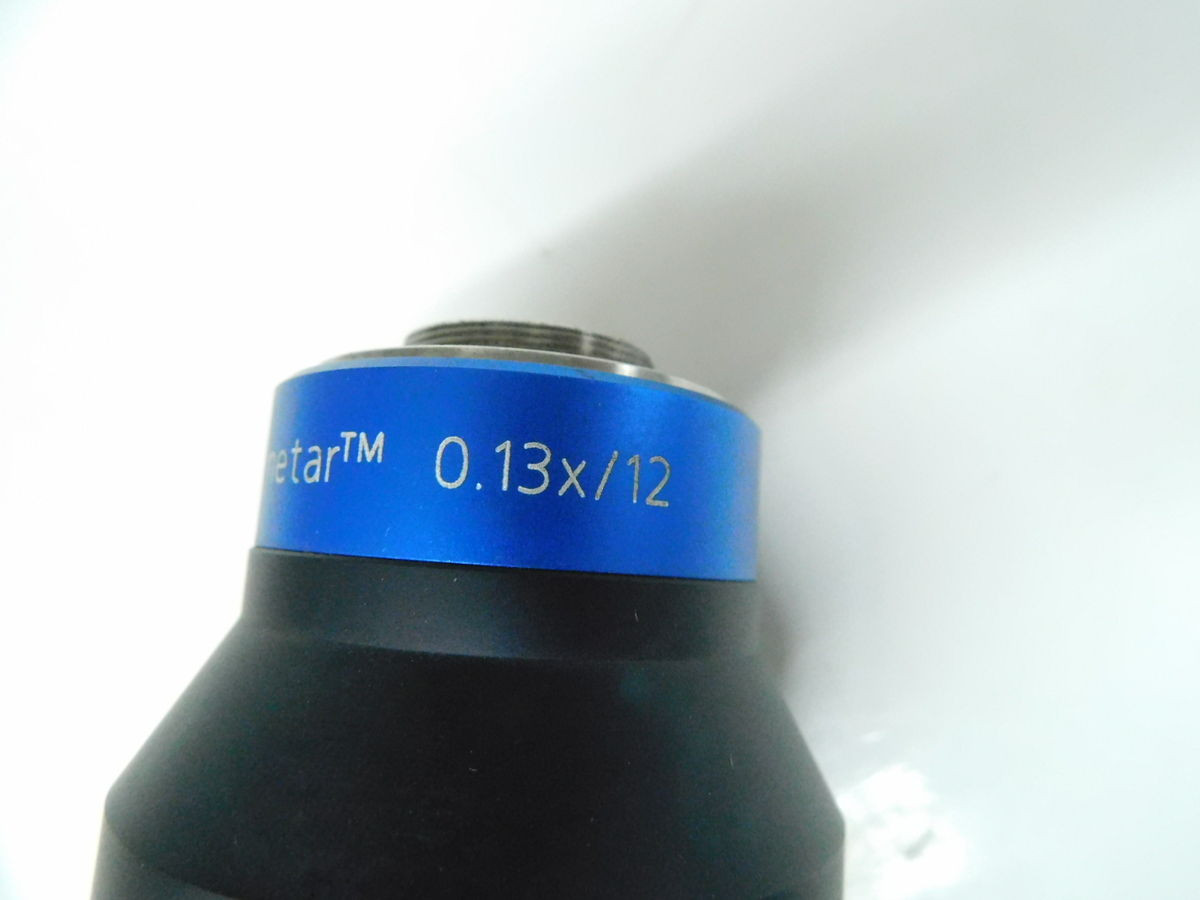

JENOPTIK 017102-011-25,JENMETAR 0.13X/12 CCD CAMERA PRECISE TELECENTRIC LENSE

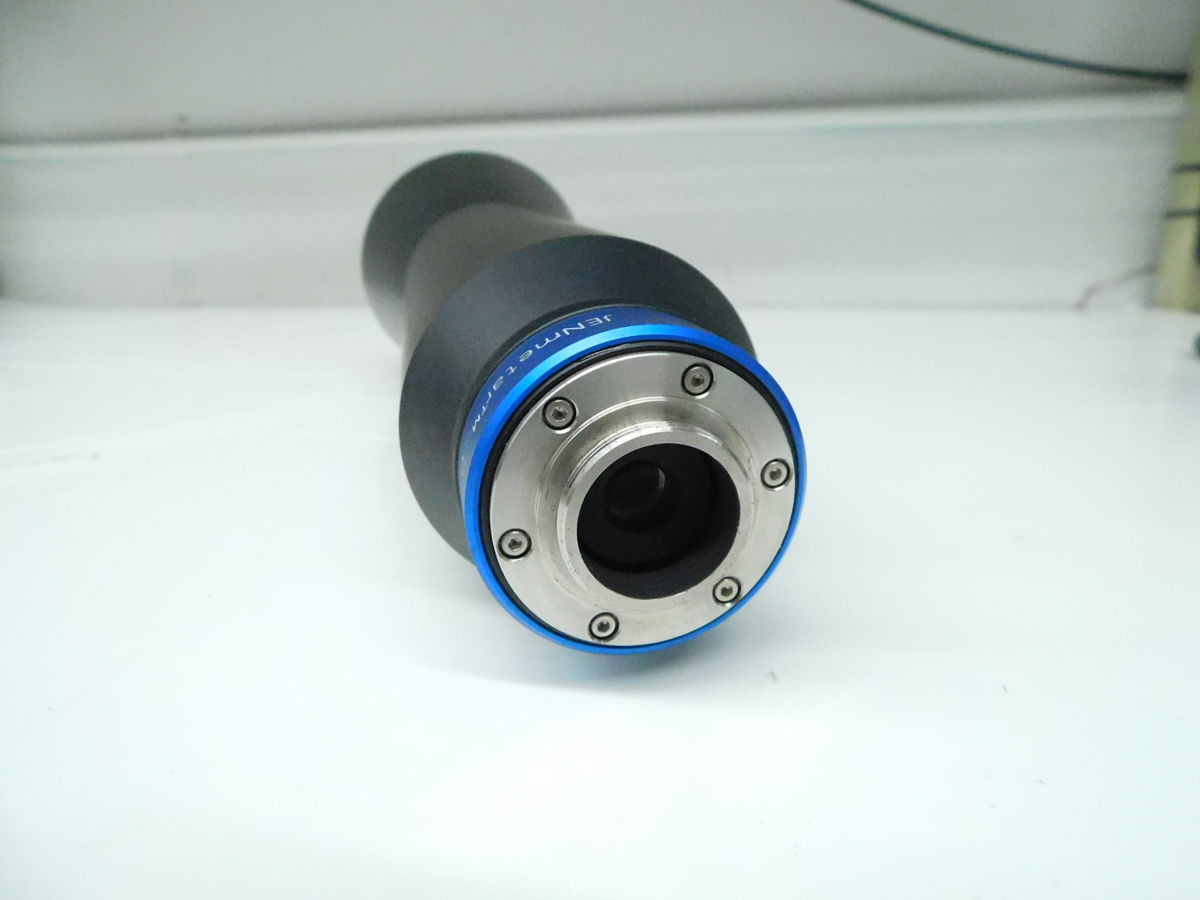

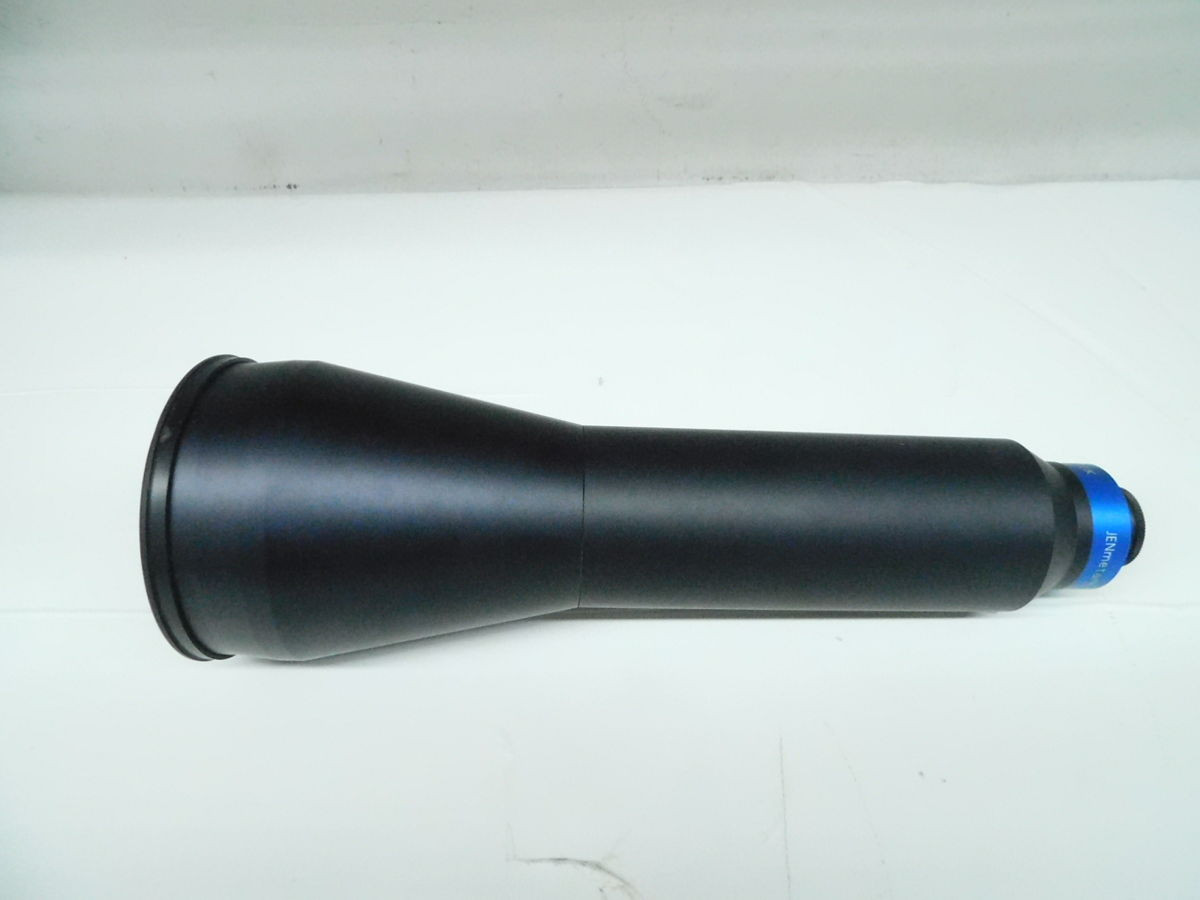

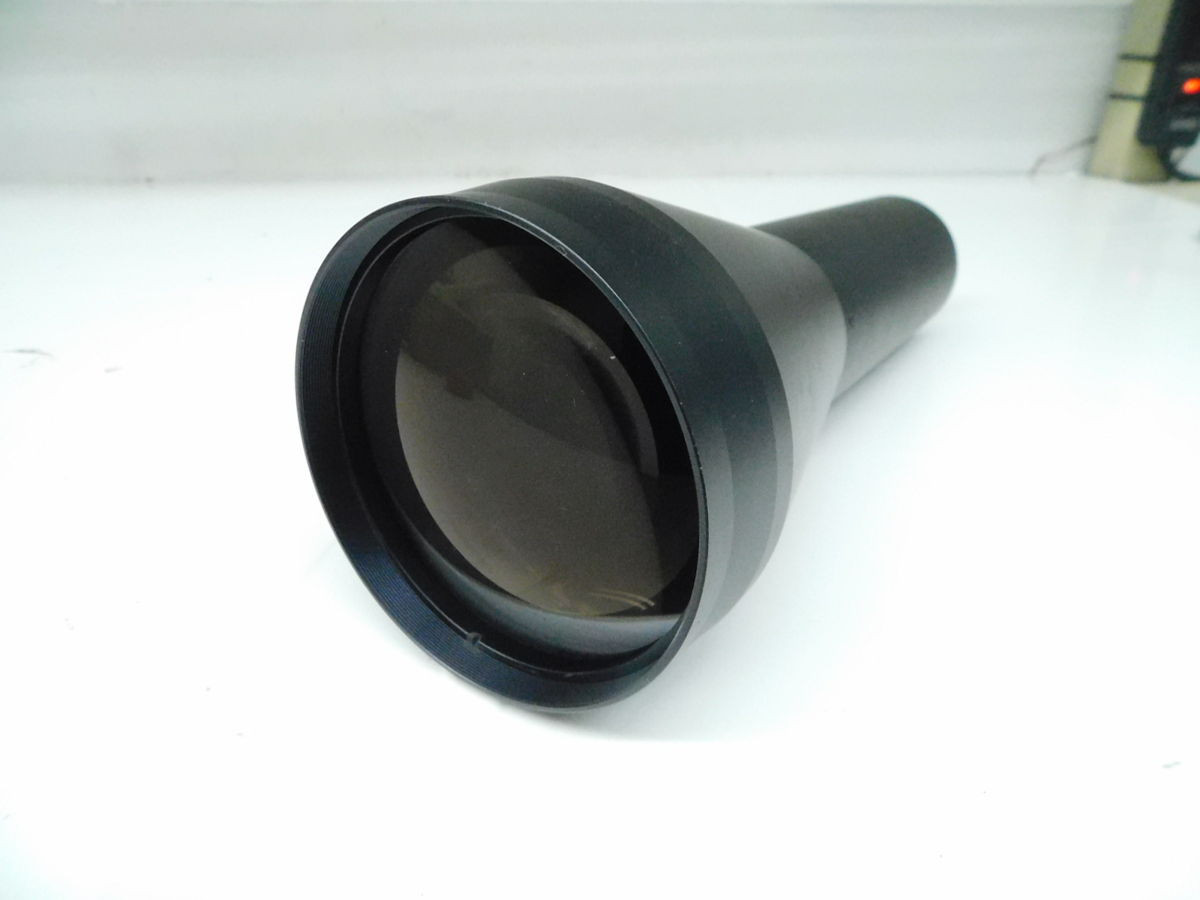

THE JENOPTIK 017102-011-25, JENMETAR 0.13X/12 IS A HIGH-PRECISION, OBJECT-SIDE TELECENTRIC LENS ENGINEERED FOR CCD CAMERA INTEGRATION IN IMAGE PROCESSING AND METROLOGY APPLICATIONS. THIS OPTICAL SYSTEM FEATURES A FIXED MAGNIFICATION OF 0.13X AND OPERATES WITH A WORKING DISTANCE OF 139.8 MM. IT ACHIEVES LOW OPTICAL DISTORTION, MEASURED AT LESS THAN 0.05%, ENSURING HIGH MEASUREMENT ACCURACY. THE LENS OFFERS AN OBJECT-SIDE NUMERICAL APERTURE OF 0.019, SUPPORTING AN OBJECT-SIDE RESOLUTION OF 14.5 ΜM. IT IS CAPABLE OF ILLUMINATING A MAXIMUM SENSOR DIAGONAL OF 32 MM, CORRESPONDING TO A MAXIMUM OBJECT FIELD DIAGONAL OF 246 MM. THE LENS INCORPORATES AN M73X0.75 MOUNT FOR SECURE INTEGRATION.
