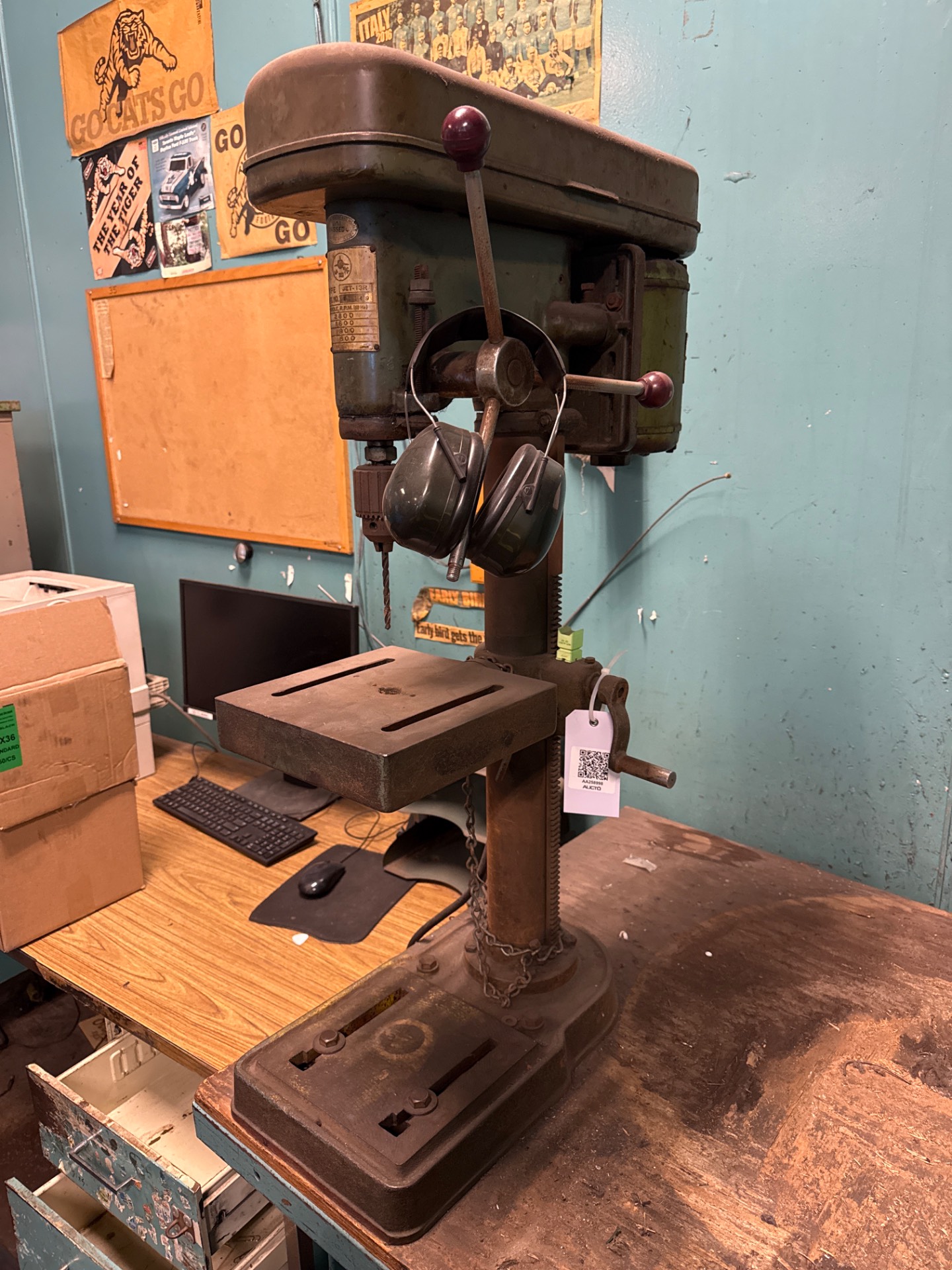

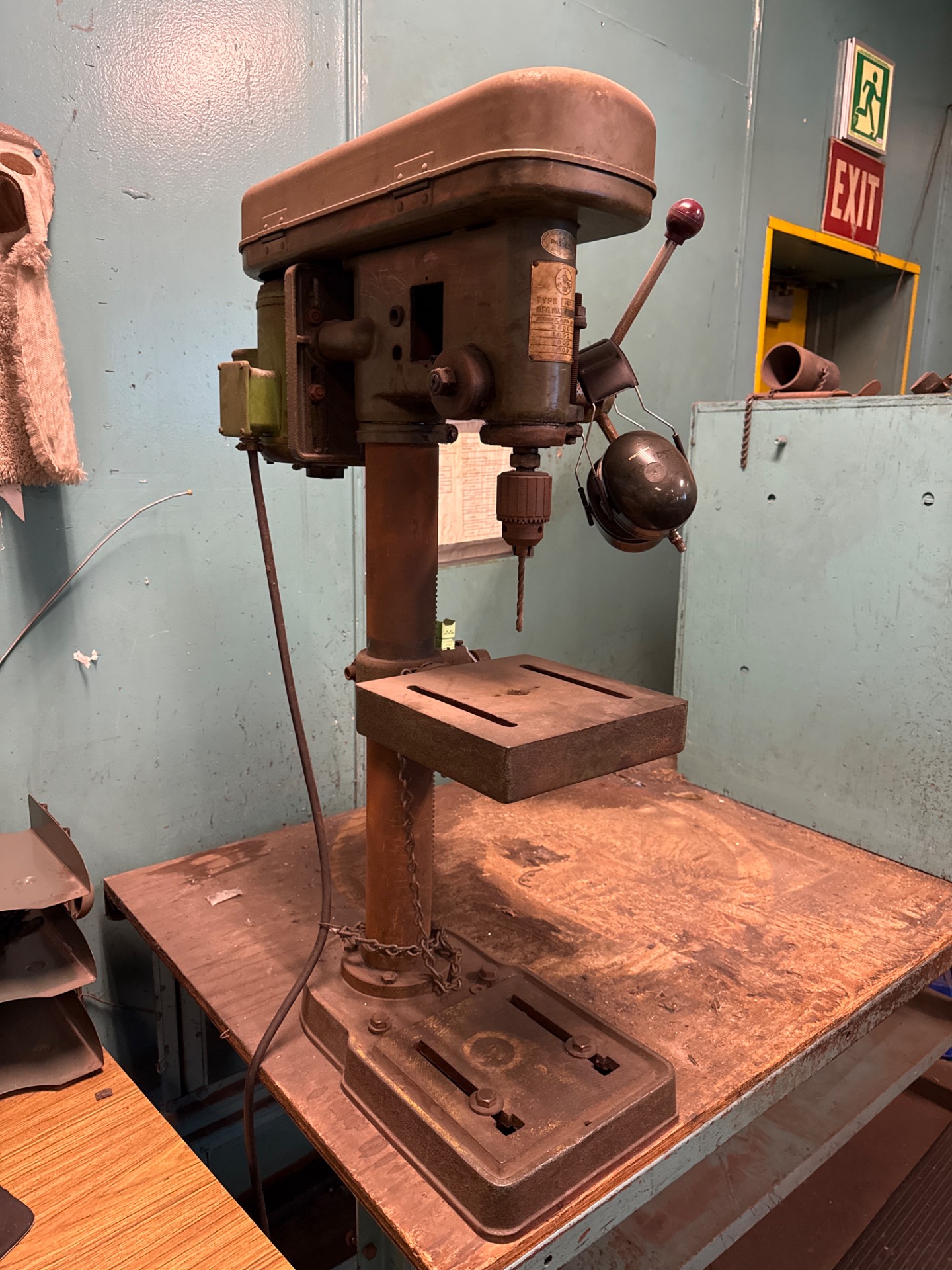

JET JET-13R UPRIGHT DRILL PRESS, 9.5 X 9.5 IN TABLE, 2800 RPM, 0.5 HP

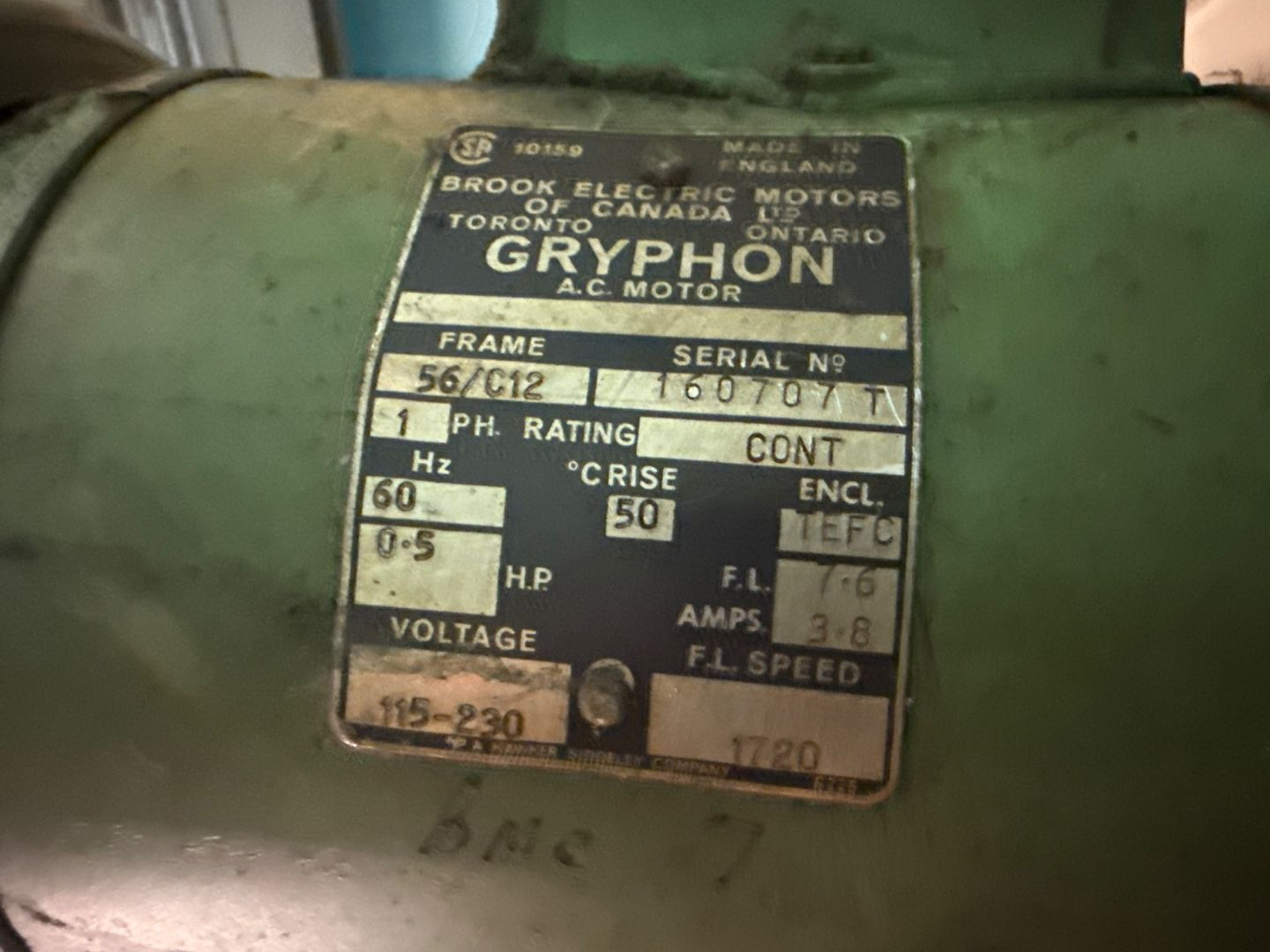

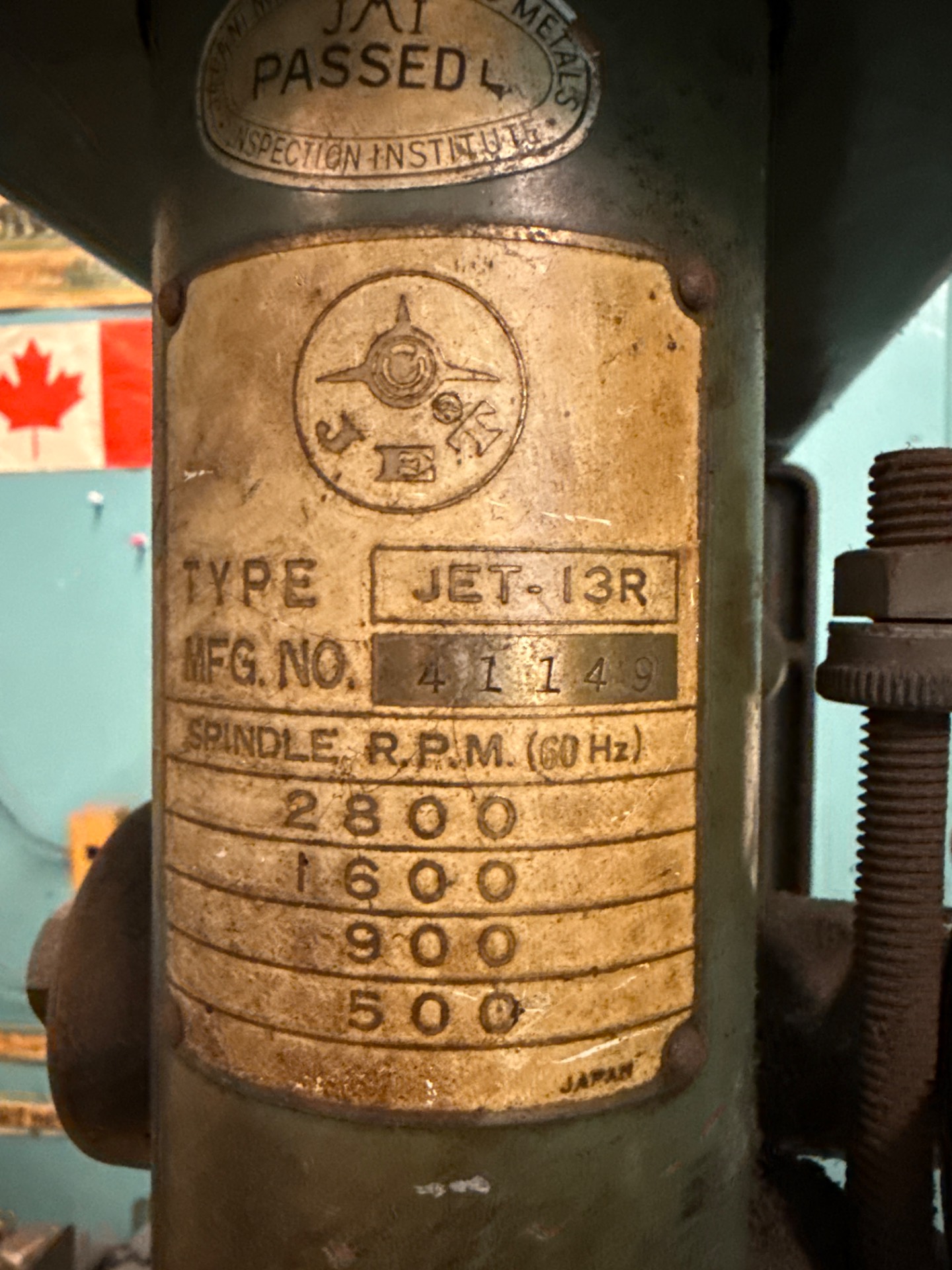

THE JET JET-13R IS A VERSATILE UPRIGHT DRILL PRESS DESIGNED FOR APPLICATIONS IN CARPENTRY, METALWORKING, AND PLASTIC FABRICATION. THIS MACHINE FEATURES A 13-INCH SWING AND IS POWERED BY A 0.5 HP SINGLE-PHASE INDUCTION MOTOR, COMPATIBLE WITH 115V OR 230V ELECTRICAL SYSTEMS. THE SPINDLE OPERATES ACROSS A SPEED RANGE TYPICALLY SPANNING 500 TO 2,800 RPM, OFFERING EITHER 4-SPEED OR 16-SPEED CONFIGURATIONS DEPENDING ON THE SPECIFIC PULLEY SETUP. IT HAS A DRILLING CAPACITY OF APPROXIMATELY 5/8-INCH IN MILD STEEL AND IS EQUIPPED WITH A 5/8-INCH CAPACITY DRILL CHUCK AND KEY. THE PHYSICAL CONSTRUCTION INCLUDES A 9.5-INCH BY 9.5-INCH WORKTABLE THAT ROTATES AND TILTS UP TO 45 DEGREES BOTH LEFT AND RIGHT TO ACCOMMODATE ANGLED DRILLING. THE TABLE AND BASE INCORPORATE SLOTS FOR SECURE WORK PIECE CLAMPING. TECHNICAL FEATURES INCLUDE A POSITIVE DEPTH SETTING MECHANISM UTILIZING A THREADED ROD WITH DUAL LOCK NUTS FOR PRECISION, AND A BUILT-IN WORK LAMP WITH A SEPARATE SWITCH FOR IMPROVED VISIBILITY.
