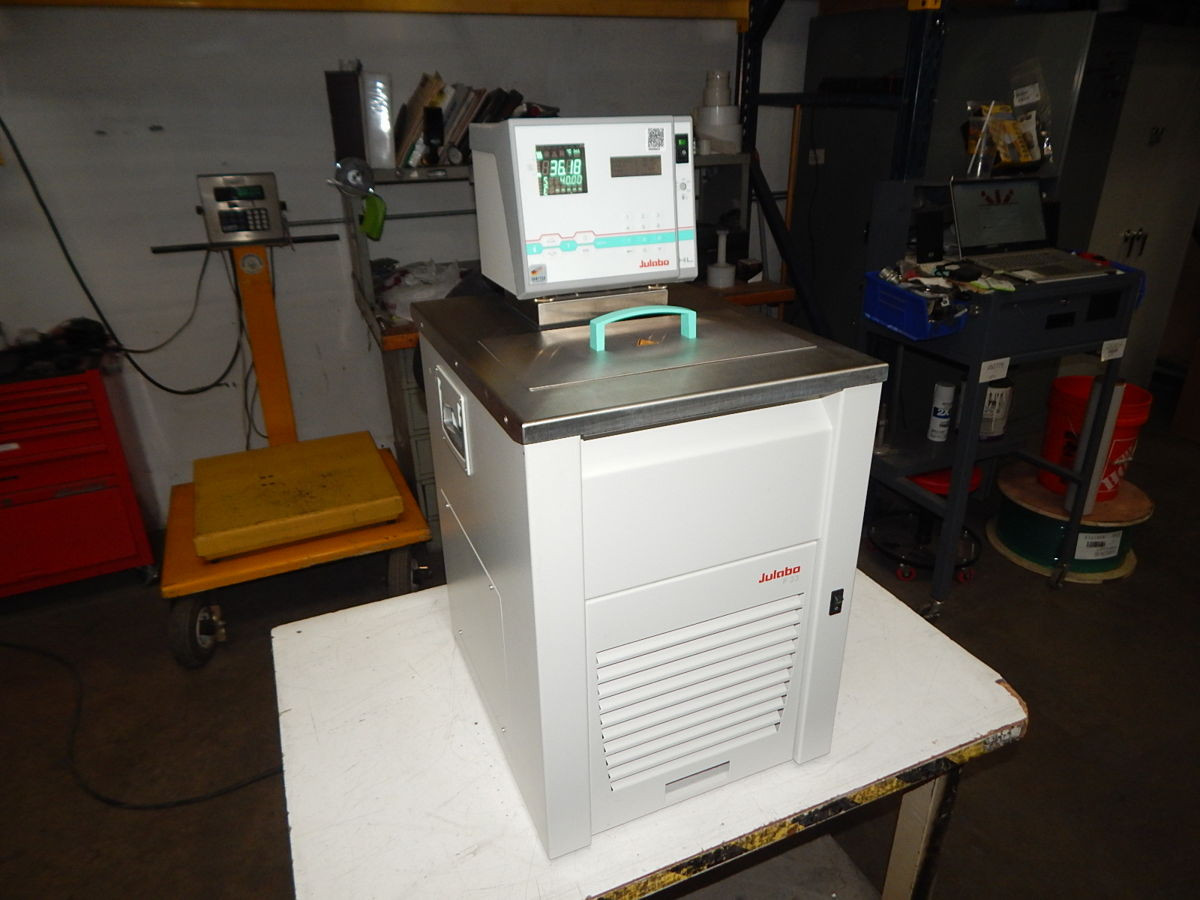

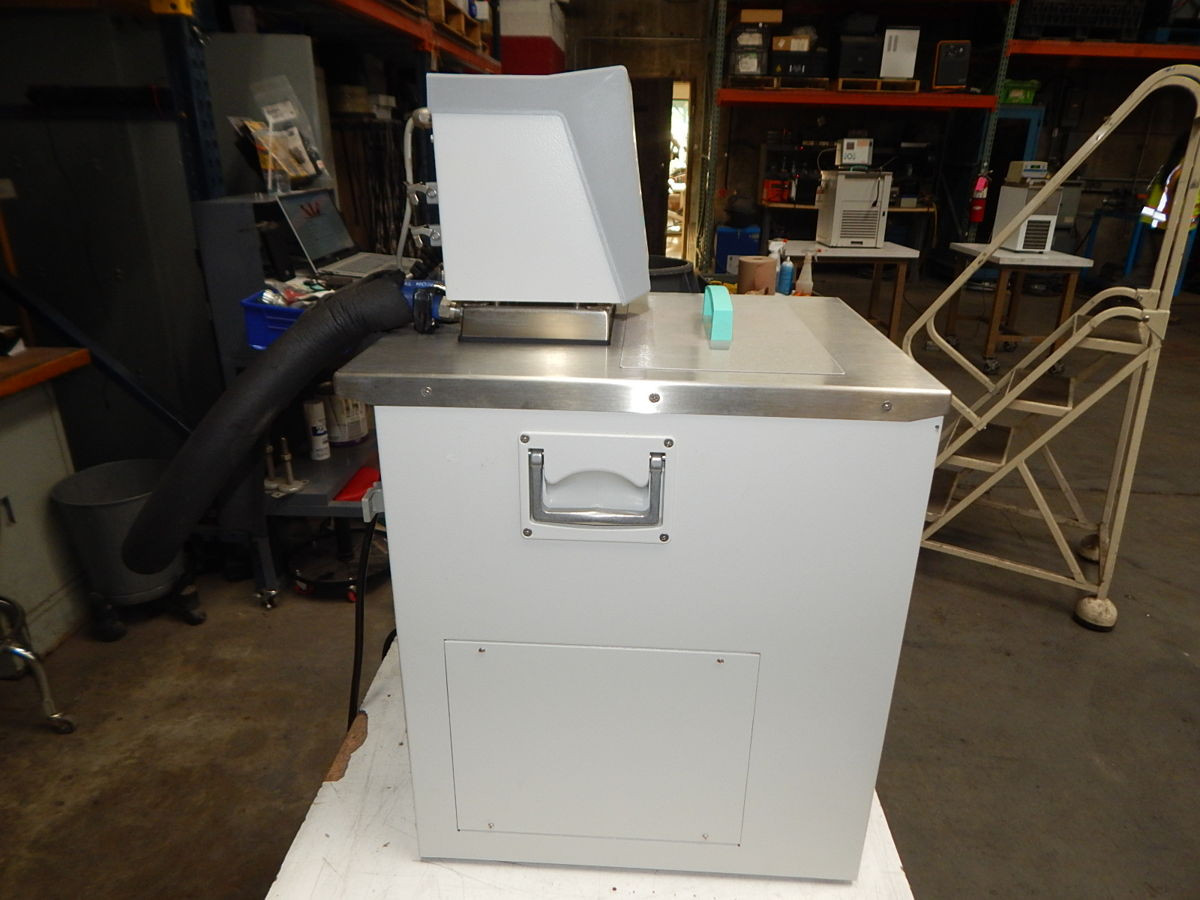

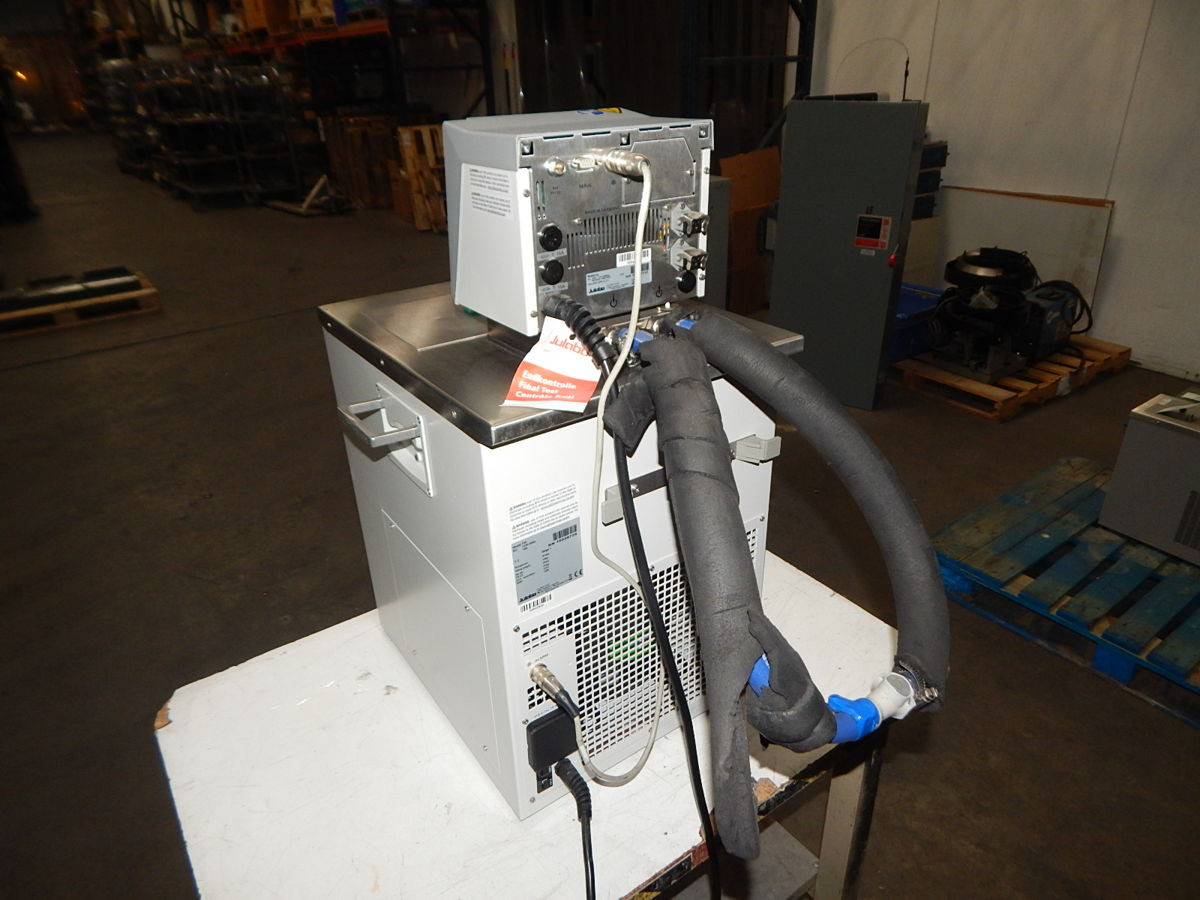

JULABO F33 LAB HEATING COOLING, 120V, -30 TO 200°C TEMP RANGE, 2KW HEATING

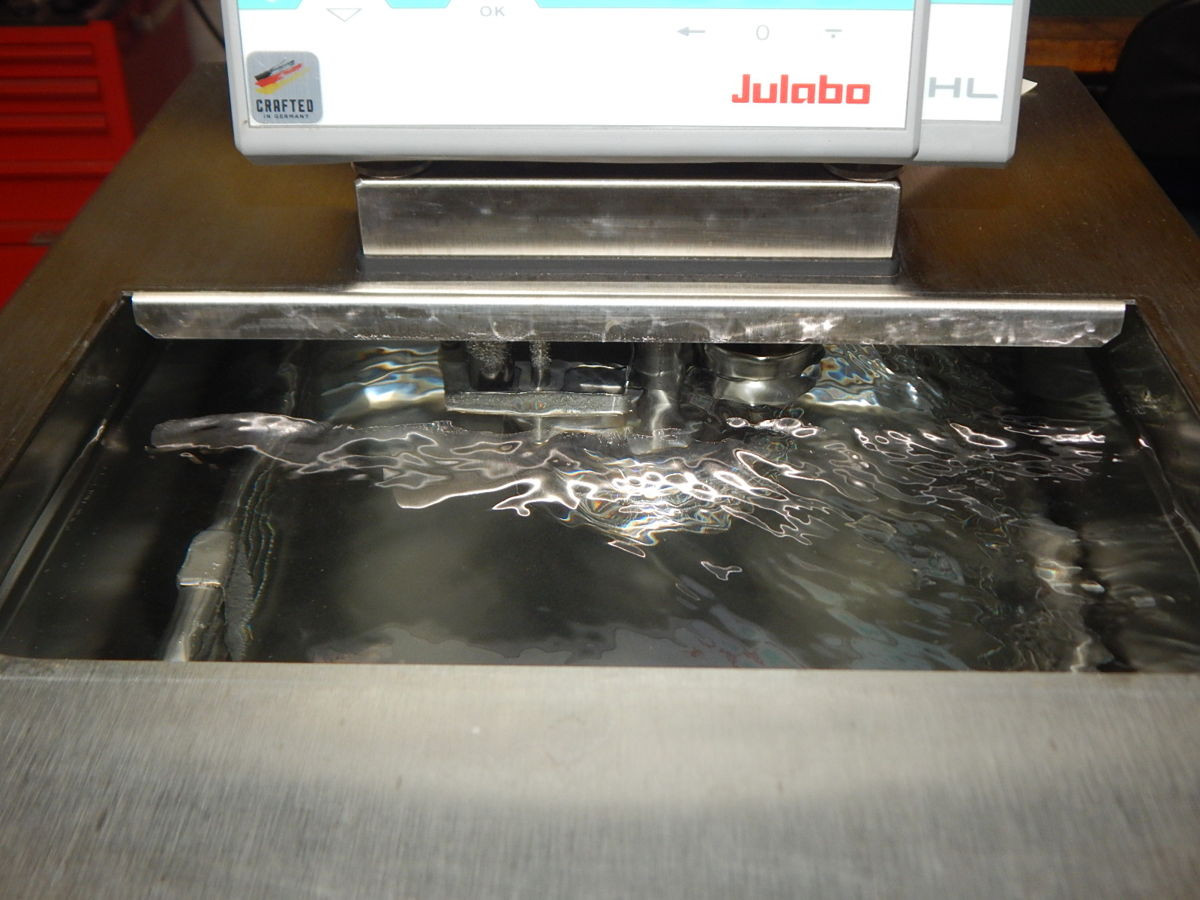

THE JULABO F33 IS A REFRIGERATED/HEATING CIRCULATOR OPERATING ON 120 VAC, SINGLE-PHASE POWER. IT PROVIDES A WORKING TEMPERATURE RANGE FROM -30 °C TO +200 °C, MAINTAINING A TEMPERATURE STABILITY OF ±0.01 °C. THE UNIT FEATURES A HEATING CAPACITY OF 2 KW. COOLING CAPACITIES ARE SPECIFIED AS 0.3 KW AT 20 °C, 0.25 KW AT 0 °C, 0.15 KW AT -20 °C, AND 0.05 KW AT -30 °C. ITS INTEGRATED PUMP DELIVERS A MAXIMUM FLOW RATE OF 22 L/MIN AND A MAXIMUM PRESSURE OF 0.4 BAR. THE BATH HAS A FILLING VOLUME CAPACITY OF 3 TO 4.5 LITERS WITH INTERNAL DIMENSIONS OF 130 X 150 X 150 MM (W X L X D). THE SYSTEM UTILIZES R449A REFRIGERANT. THE CIRCULATOR'S OVERALL DIMENSIONS ARE 230 X 470 X 650 MM (W X L X H), WITH AN APPROXIMATE WEIGHT OF 30 KG.
